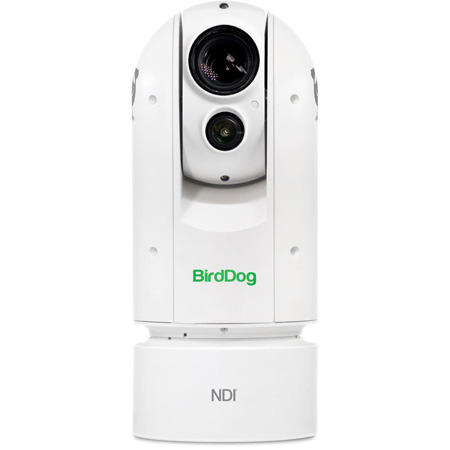

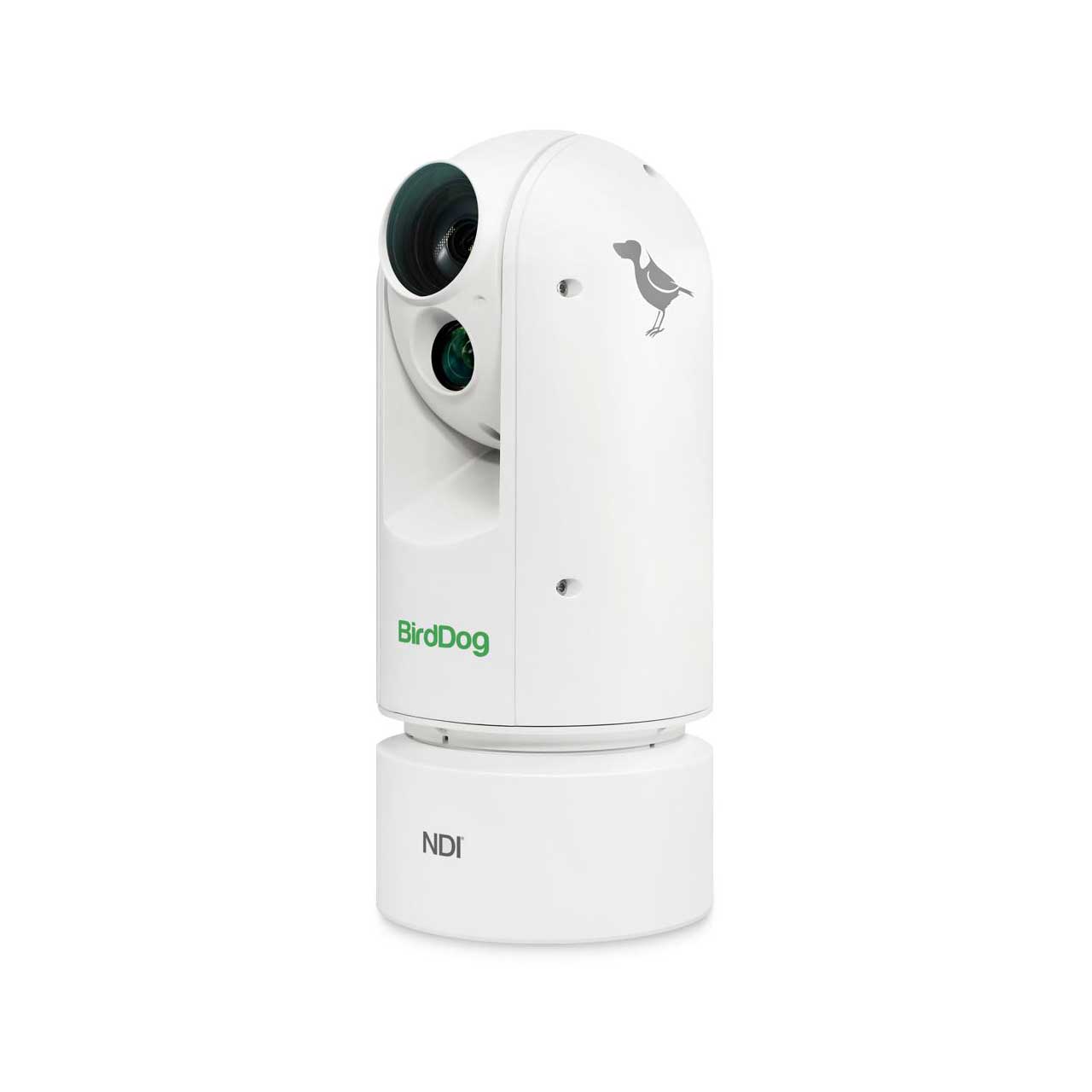

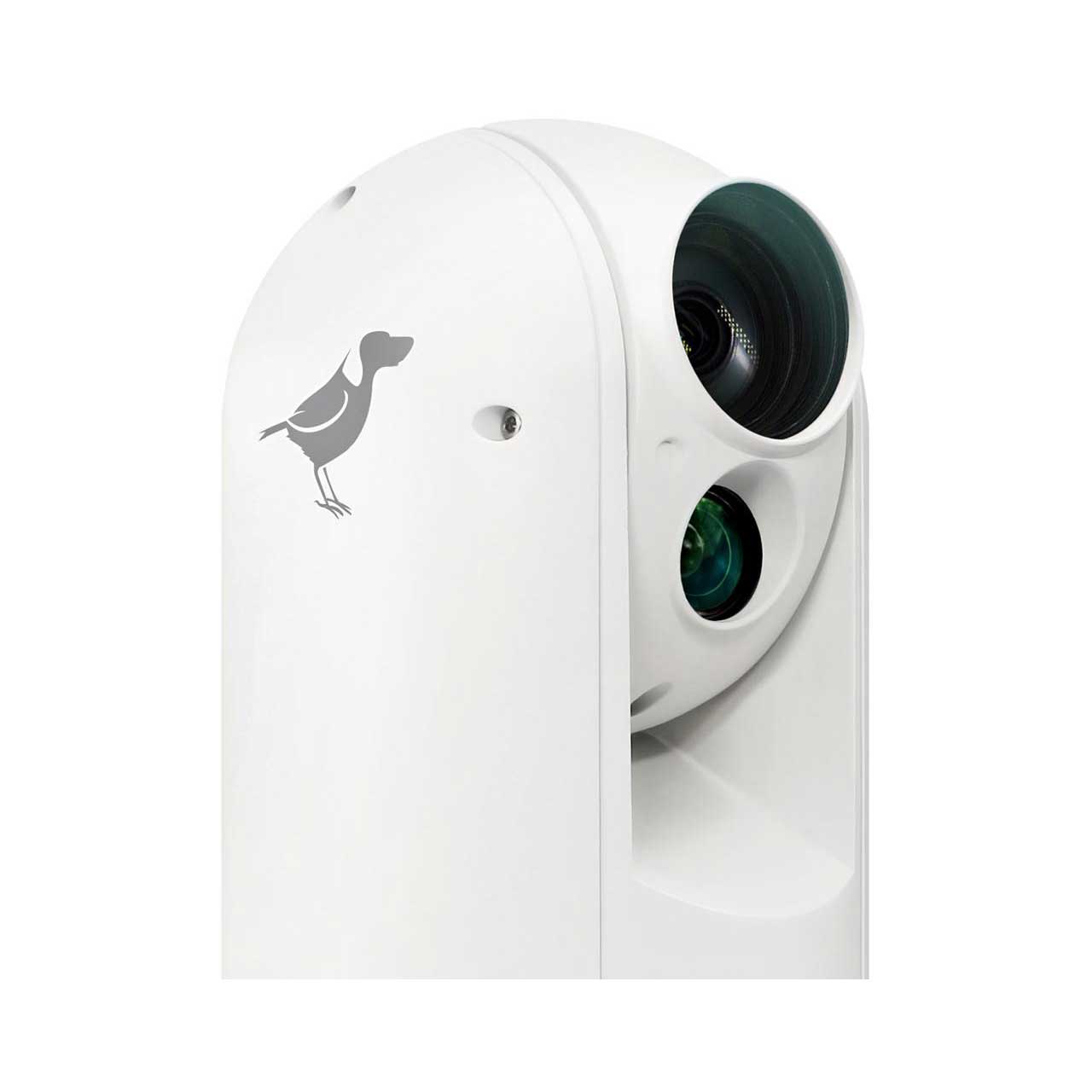

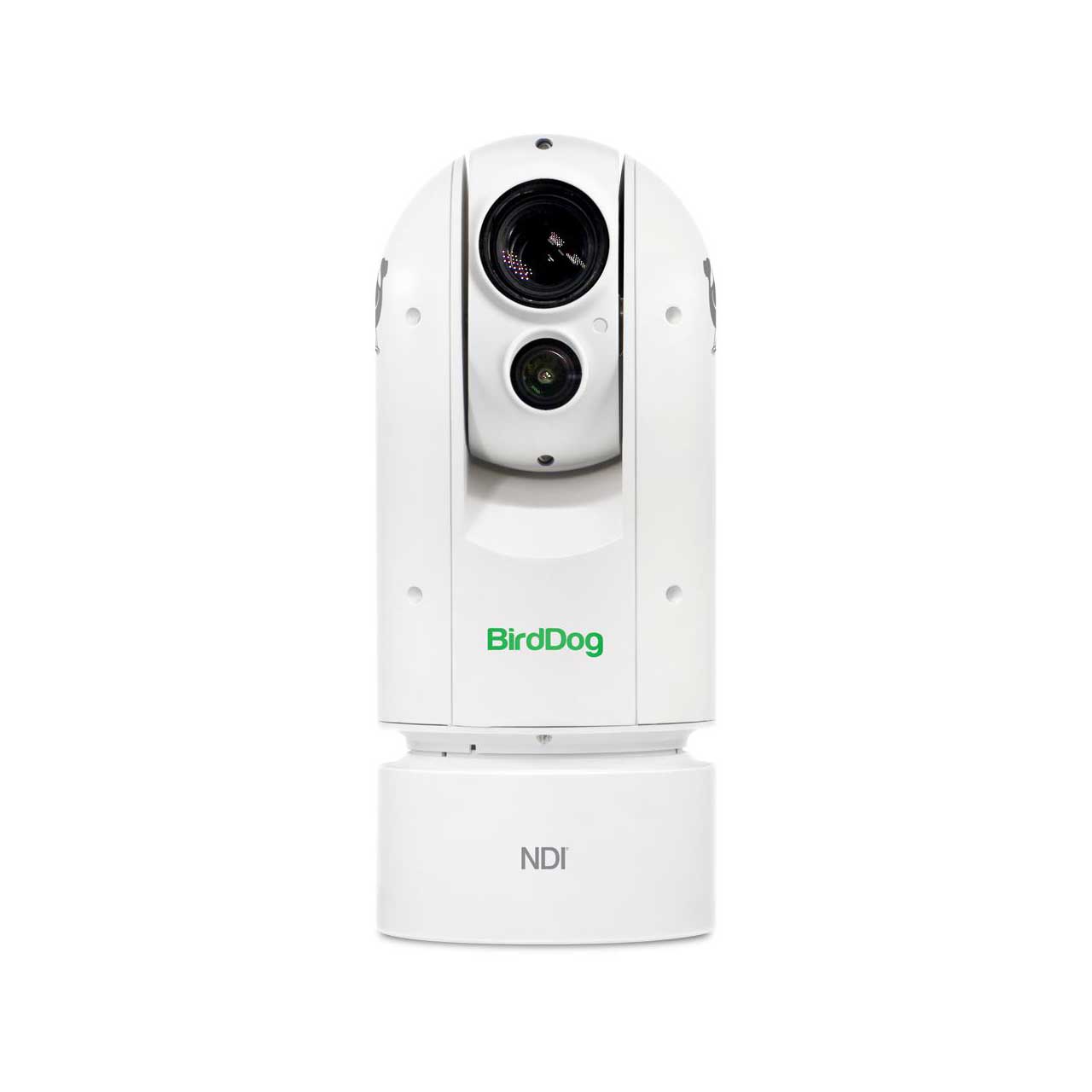

BirdDog Eyes BDA300GEN2 A300 IP67 Extreme Weatherproof 30x Full NDI PTZ Camera with Sony Sensor & SDI - White


  • Product Image Thumbnail 1 of 4
  • Product Image Thumbnail 2 of 4
  • Product Image Thumbnail 3 of 4
  • Product Image Thumbnail 4 of 4
Free Shipping with Minimum Order Banner

Our Price:


Availability: Typically Ships in 3-10 Business Days
iAvailability Description Popup

    BDA300GEN2 - Overview

    Weatherproof Full NDI® PTZ

    The BDA300 PTZ camera utilizes BirdDog's custom NDI silicon chip and leverages an impressive Sony CMOS backlit sensor and full Sony Image Module. Designed for fixed outdoor installations such as sports, the IP67 rating and the Wind Load Durability rating are equal to that of a category 4 Hurricane, which means A300 can withstand pretty much any weather conditions. By teaming up BirdDog's custom NDI® silicon chip, a Sony CMOS backlit sensor, and a true Sony Image module A300 has lightning auto focus, incredibly sharp images, and insanely fast zoom. A300 has frame rates up to 1080p60, 30x optical zoom, and outputs SDI and Full NDI® simultaneously.

    New Color matrix
    Dialling in your cameras just levelled up. A300 now has a full color matrix with individual saturation and hue control over Red, Green, Blue, Cyan, Yellow and Magenta, all with 64 levels of control and 72 levels of Gamma.

    Full NDI. No compromises.
    In the world of NDI there are two flavors, NDI and NDI|HX. NDI® is a variable bit rate, I-Frame codec that is reaches around 140Mbits at 1080p60 and is visually lossless. NDI|HX is a compressed, long-GOP, H.264 variant that reaches around 12Mbits at 1080p60. A300 only Encodes and Decodes Full YUV422 NDI

    Sony Sensor. You deserve the best.
    The best pictures come from the best silicon. A300 is teams up a world class Sony CMOS Backlit Sensor with the BirdDog custom NDI® chip to form a match made in silicon heaven. Your productions deserve the best.

    Sony Image Module. Optics done right.
    Lightning auto focus. Insanely fast zoom. Precision optics. The only way to achieve the best picture quality is with image module made by the world's best. A300 uses a true Sony image module to give unparalleled performance, picture quality, and responsiveness.

    All weather. Keep your NDI dry.
    With an IP67 rating A300 is perfect for fixed installations in outdoor and indoor environments. The nitrogen filled housing ensures no fog, and the external housing has been treated for corrosion resistance against salt spray. With -40°C to +60°C operating temperature rating A300 has been designed to withstand the most extreme elements on earth

    Nitrogen Filled Housing. Fog don't live here.
    Never worry about missing the shot. With A300's nitrogen filled housing there is no chance of the lens fogging up

    Category 4 Hurricane? Bring it.
    Designed for all weather conditions, A300 boasts an incredible Wind Load Durability rating equal to 60m/s. As long as you have it secured properly A300 will just keep on keeping on

    Frickin laser beam.Pew Pew.
    Built in infra red laser with a range of up to 500 meters helps with focusing in low light conditions.

    Please note A300 does not come with a Power Supply. Please be sure to order either the BD-A-PP97, BirdDog 97W PoE Power Injector for A200 / A300 or the BD-A-P24-5, BirdDog Power adaptor 24VAC 5A for A200 / A300

    • Features:

      • Full NDI® - Full YUV422 NDI®
      • NDI® & SDI - simultaneous outputs
      • Sony Sensor - CMOS Backlit
      • Sony Image Module - Lightning auto focus & Insanely fast zoom.
      • All weather - IP67 rating
      • 30x Optical zoom
      • Nitrogen Filled Housing eliminates fog
    • Specifications:

      • Camera
      • Video Output: NDI/SDI
      • Optical Zoom: 30x
      • Image Sensor: 1 / 2.8 inch CMOS 2.13MP
      • Lens: 4.3-129mm
      • Digital Zoom: 12x
      • Horizontal Angle of View: 63.7° (W) - 2.3° (T)
      • Aperture: F1.6 (W) - F4.7 (T)
      • Min. Illumination: Color: 0.01 lux (F1.6, AGC on, 1/30s, High sensitive mode), 0.1 lux (F1.6, AGC on, 1/30s, Normal sensitive mode)
      • Shutter Speed: 1/1 - 1/10000s
      • Focus: Auto, Push, Manual
      • White Balance: Auto, Indoor, Outdoor, Manual, OPW, ATW
      • Exposure: Auto, Manual, Shutter/Iris Priority
      • Backlight Compensation: YES

      • Pan Movement: Horizontal: ±360° continuous pan (Zoom Adaptive Speed Range: 0.01° - 80°/S )
      • Tilt Movement: Vertical: +90° to -30° (Zoom Adaptive Speed Range: 0.1° - 90°/S)
      • Preset Positions: 255 (Speed adjustable: Up to 150°/s)
      • Environmental: Outdoor/Indoor, IP67, corrosion resistant treated housing, Wind load durability 60m/s, Nitrogen filled housing
      • Operating Temperature: -40° to 140°F (-40° to +60°C)
      • Operating Humidity: ≤80%
      • Illumination: IR Laser, illumination up to 500m

        Video Interface
      • Video Output: NDI/SDI
      • Video Formats:
        1080p 60, 59.94, 50, 29.97, 25
        1080i 60, 59.94, 50
        720p 60, 59.94, 50, 29.97, 25
      • Audio I/O
        3.5mm Audio In (Stereo)
        3.5mm Audio Out (Stereo)

        Control Interface
      • IP PTZ Control: NDI Control (auto configuring) VISCA IP
      • Serial PTZ Control: RS422/RS485 Connector
      • Serial Control Protocol: VISCA / Pelco D

        Power & Dimensions
      • Power Input: AC 24v, PoE 80W Ready (BirdDog PoE 80W Injector needed, optional)
      • Power Consumption: Min: 36W; Max: 76.68W(Fully loaded operation with heater and IR Laser on)
      • Dimensions: 7.08 x 7.08 x 16.65" (180 x 180 x 423mm)
      • Weight: 22.48Lbs (10.2kg)

      • Video Compression: Full NDI - i-frame high quality low latency NDI for production
      • Network Protocol: NDI - Discovery, configuration and control
      • Web Control Interface: Full control via Web/Mobile UI including Scene presets
    • Item Includes:

      • 1x BirdDog EyesA300
      • 1x Screw pack
