    BDMINIHDMI - Overview

    Pocket sized NDI®

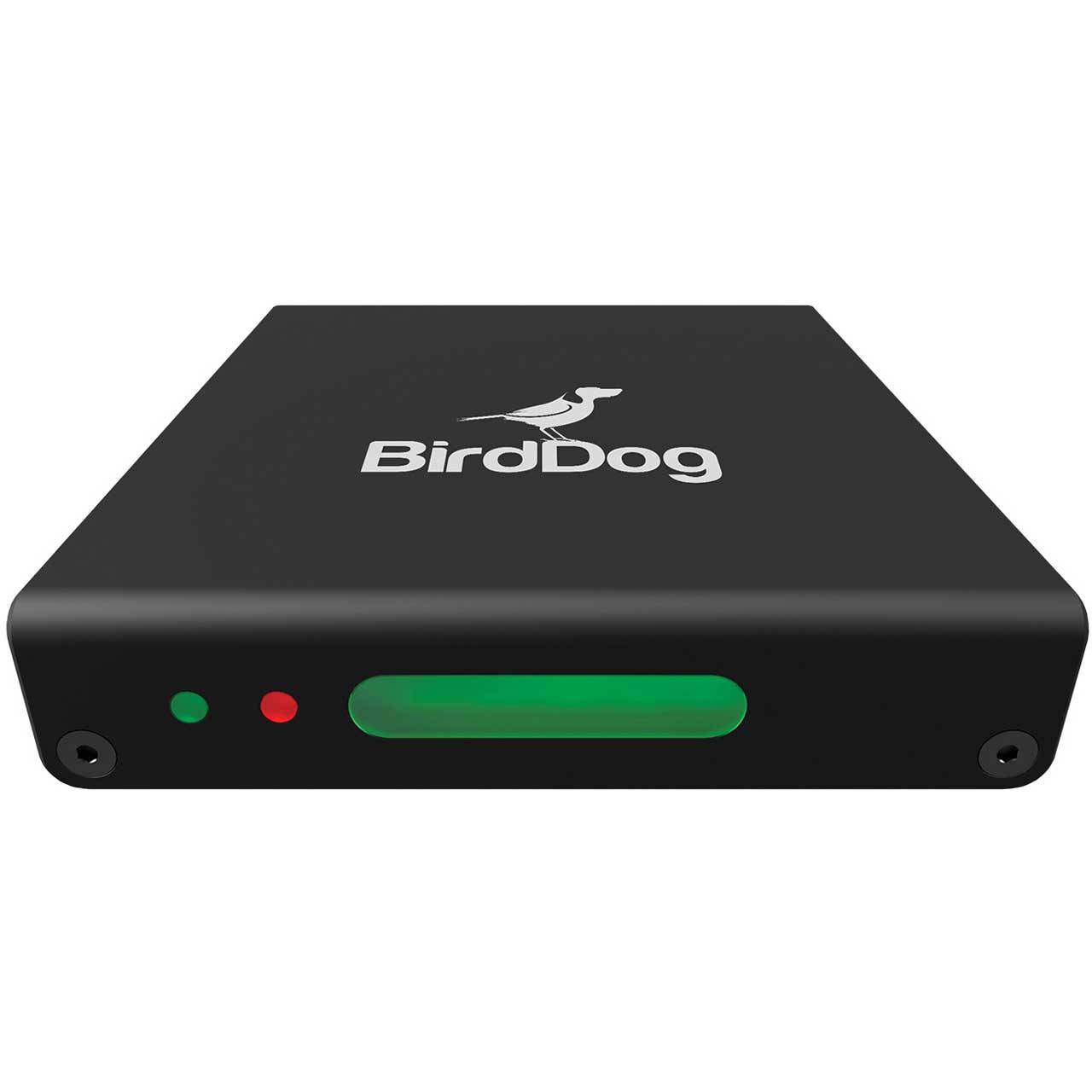

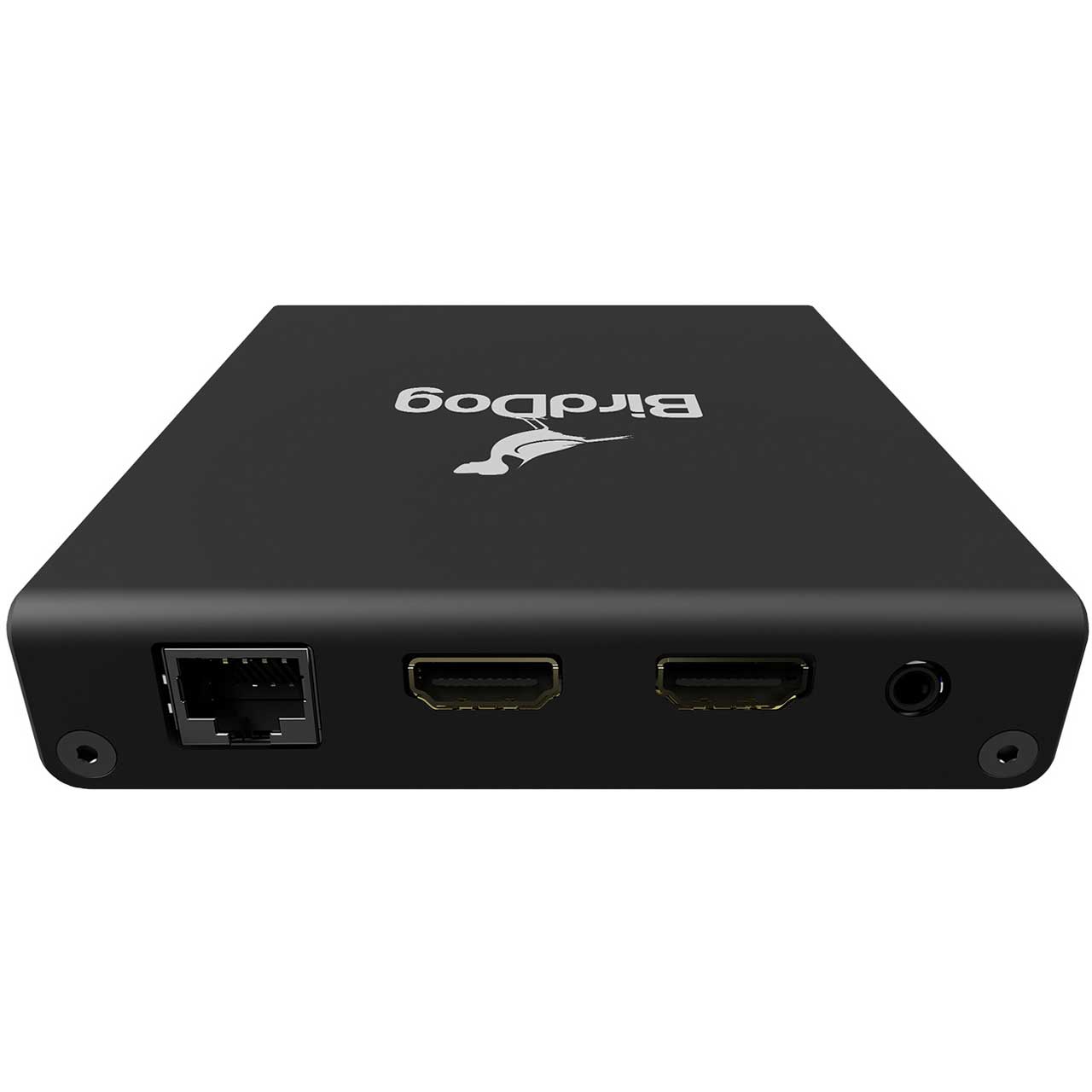

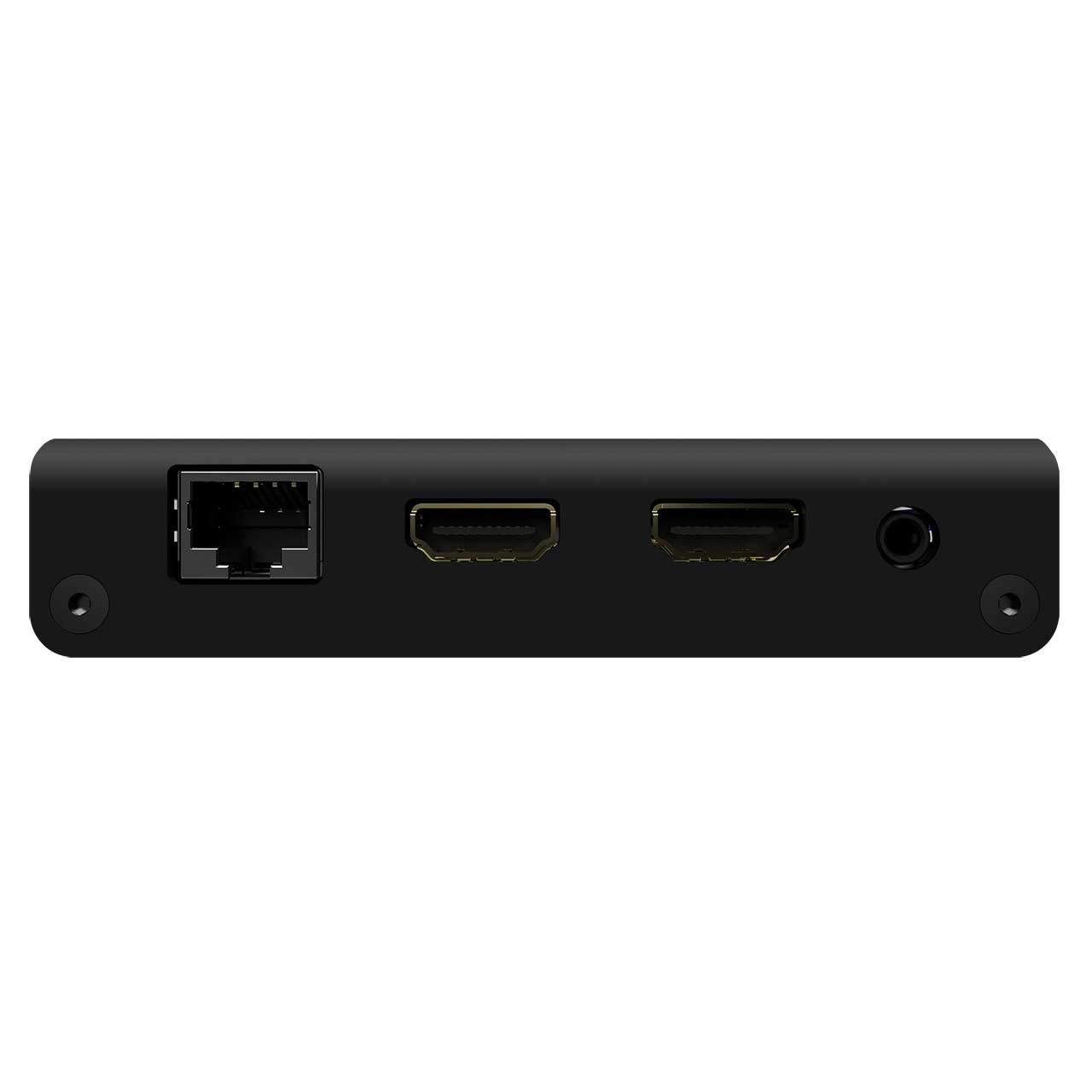

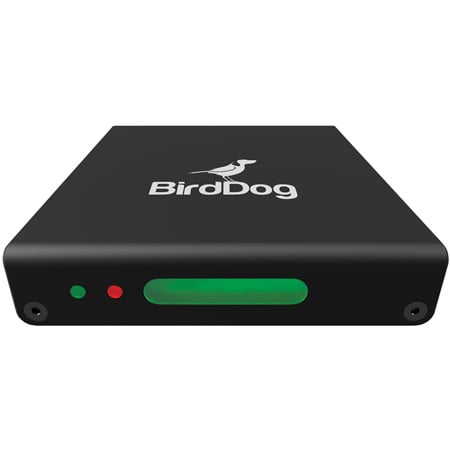

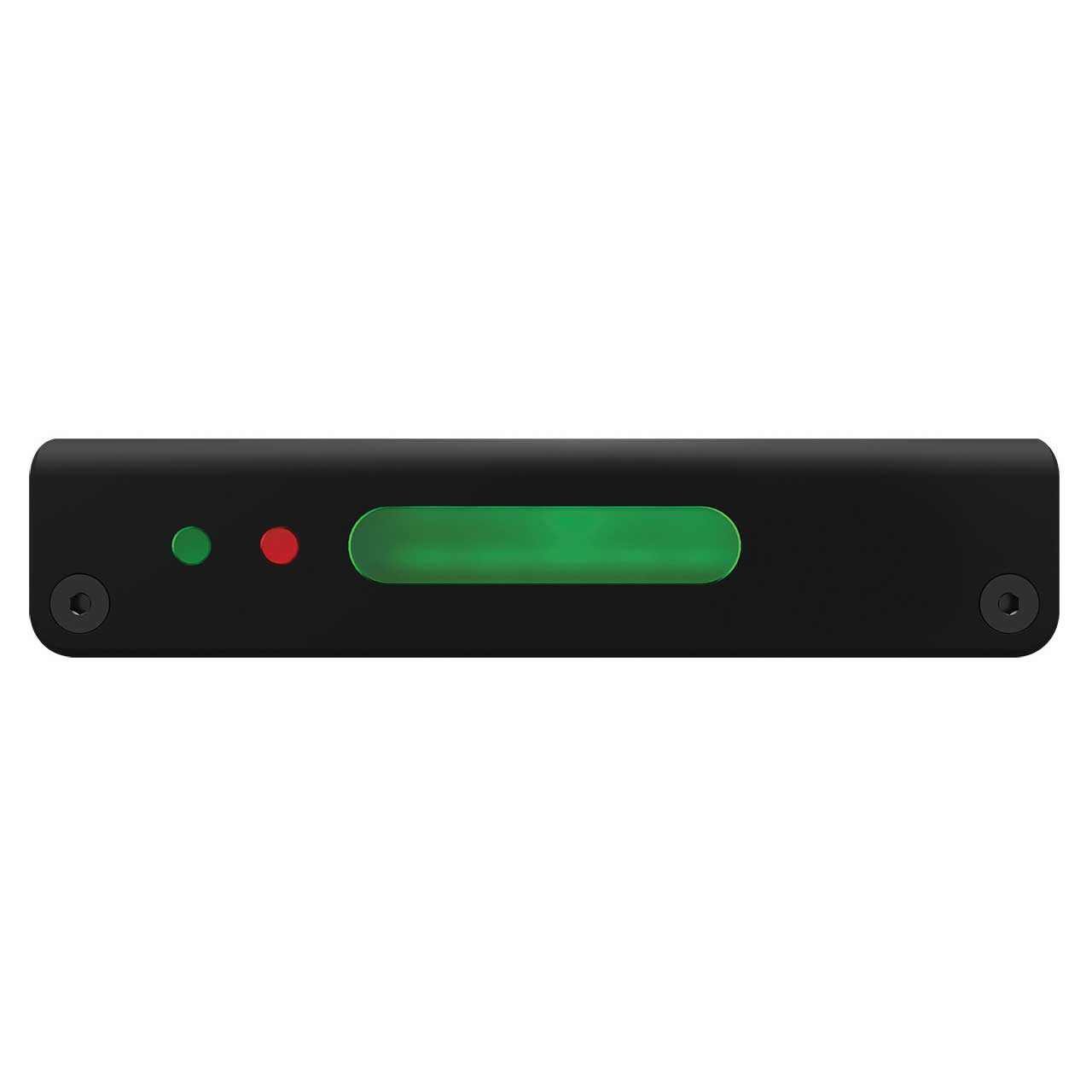

    Big things come in small packages. The BirdDog BDMINIHDMI is a Mini NDI Encoder/Decoder that utilizes BirdDog's custom NDI® silicon chip and is housed in aircraft grade aluminium case. Mini is the ultimate entry point into the world of NDI® Encoding and Decoding. Featuring HDMI inputs and outputs, Active Loop Outs, Audio Intercom System, NDI® Tally System, PoE, and compatibility with BirdDog's Comms and Central Apps.

    NDI Decoding. Get NDI® onto screens.
    With world's first NDI® Decoding in hardware, using BirdDog's custom silicon chip, there has never been a faster or easier way to distribute content. Mini can see any Full NDI® content on the network and with BirdDog's Web Console you can route that to Mini for HDMI output to a screen or projector. Perfect for Digital Signage, Sports Stadiums, House of Worship, IMAG, and any application that needs content on screens. Team up Mini with optional Central application and you have an incredibly easy to use yet unbelievably powerful content distribution system.

    Full NDI®. No compromises.
    In the world of NDI® there are two flavours, NDI® and NDI|HX. NDI® is a variable bit rate, I-Frame codec that is reaches around 140Mbits at 1080p60 and is visually lossless. NDI|HX is a compressed, long-GOP, H.264 variant that reaches around 12Mbits at 1080p60. Mini hardware only Encodes and Decodes Full YUV422 NDI®.

    NDI® Encode or Decode. Total flexibility.
    Built with total flexibility in mind, Mini can be configured as an NDI® Encoder or NDI® Decoder with a simple click of a button through the web console. In Encode Mode Mini is the perfect way to get your HDMI sources into the world of NDI® and supports up to1080p60.

    Tally. It just works.
    The world's first NDI® Tally system is built right into Mini and it requires zero configuration. Includes a built-in large Tally display for your on-air talent to easily see which camera is live, plus user selectable Tally borders on loop out, and an external Tally output.

    • Features:

      • Beautiful to touch. Tough as old boots
      • Pocket sized NDI®
      • NDI® Decoding. Get NDI® onto screens.
      • Extreme Speed. It's all about the silicone
      • Return feed. Pros need it.
      • Tally, it just works
      • PoE, DC, D-Tap. Up to you
      • VESA or Camera Mount
      • RESTful API. DIY automation.
    • Specifications:

      • (HD) 1080p 25, 29.97, 30, 50, 59.94, 60
      • (HD) 1080i 50, 59.94, 60
      • (HD) 720p 50, 59.94, 60

      • 1 x HDMI Standard Type A connector
      • HDMI v1.4a, RGB or YCbCr

      • 1 x HDMI Standard Type A connector
      • HDMI v1.4a, RGB or YCbCr

      • 2-Channel, 24-bit HDMI embedded audio,
      • 48 kHz sample rate

      • 3.5mm Microphone headset input / output

      • Realtime, ultra-low latency, full-bitrate NDI(i-frame)

      • Bicolor Tally (Red/Green)
      • Multicolour status information
      • Full status information on HDMI output (Selectable)

      • 10/100/1000 Ethernet (RJ-45) with PoE
      • (Power over Ethernet)
      • Embedded web configuration panel forcontrol and firmware updates

      • Network settings
      • Video settings
      • Tally settings
      • Audio and Comms settings
    • Item Includes:

      • BirdDog Mini encoder
      • Universal AC adapter
    • GTIN:
