Magewell 64050 Pro Convert HDMI TX 1-Channel NDI Encoder

ITEM #: MGW-64050 MFG #: 64050

Primary Image
  • Product Image Thumbnail 1 of 5
  • Product Image Thumbnail 2 of 5
  • Product Image Thumbnail 3 of 5
  • Product Image Thumbnail 4 of 5
  • Product Image Thumbnail 5 of 5
Free Shipping with $49 Minimum Order

Our Price:

$425.00

Availability: Typically Ships in 3-10 Business Days
iAvailability Description Popup


    64050 - Overview

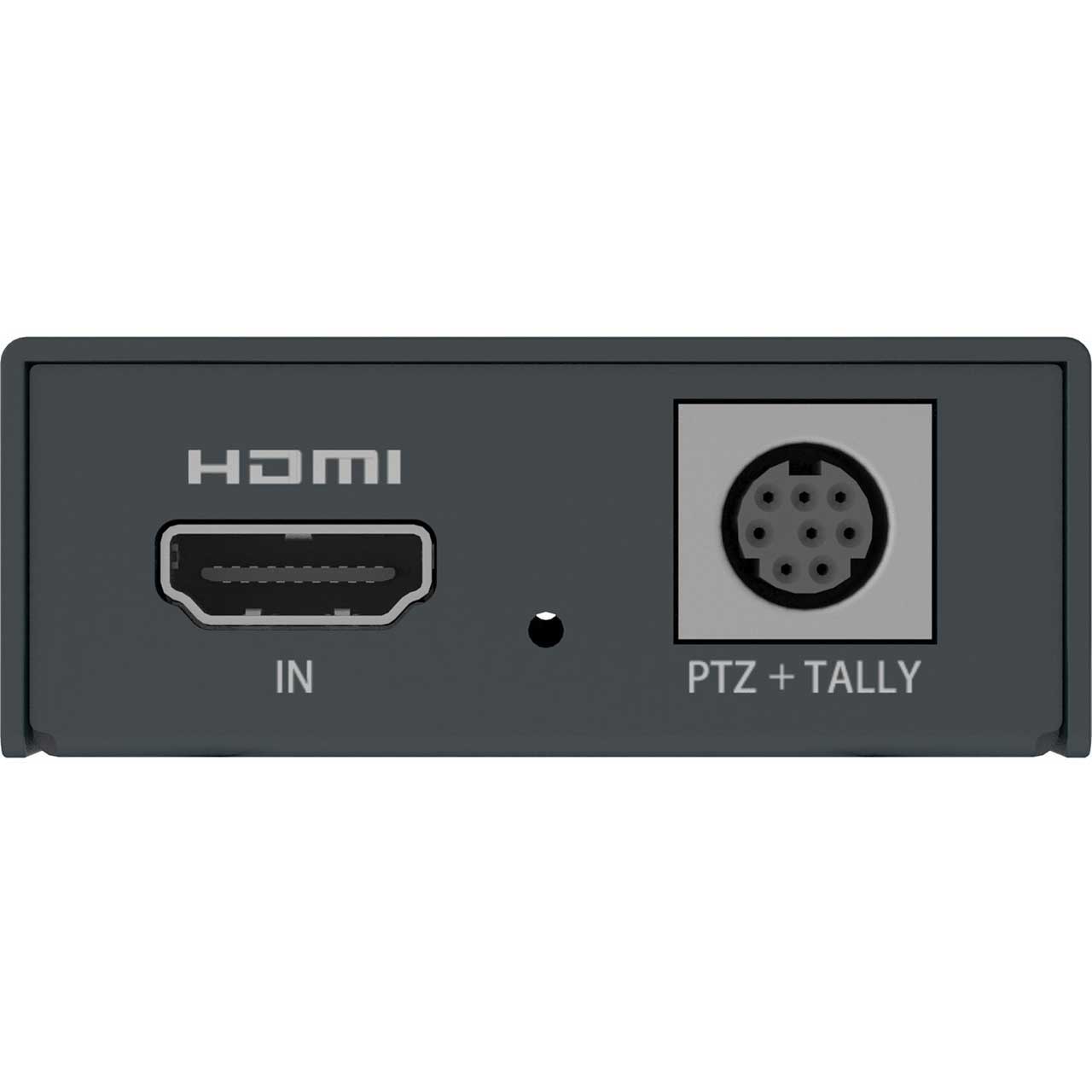

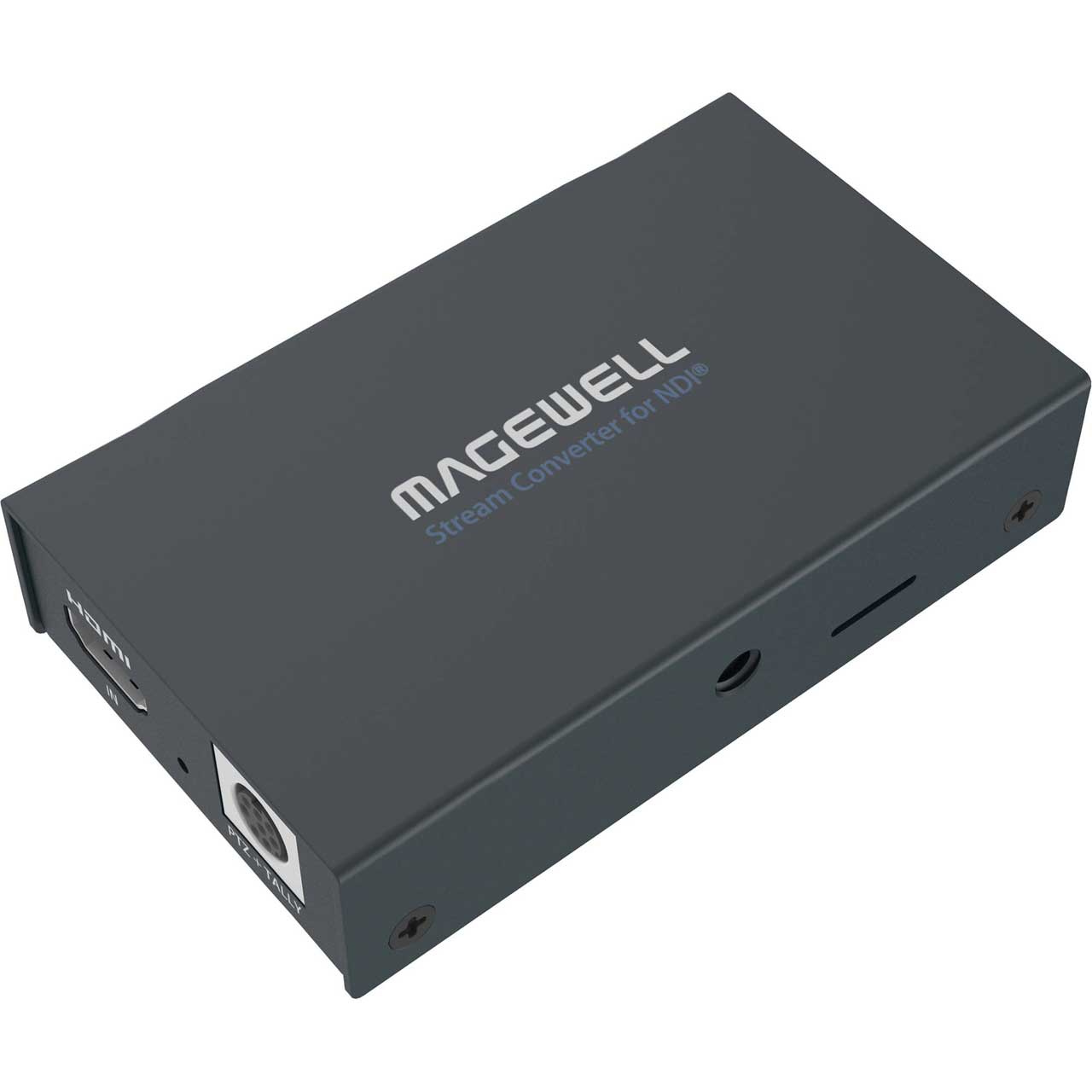

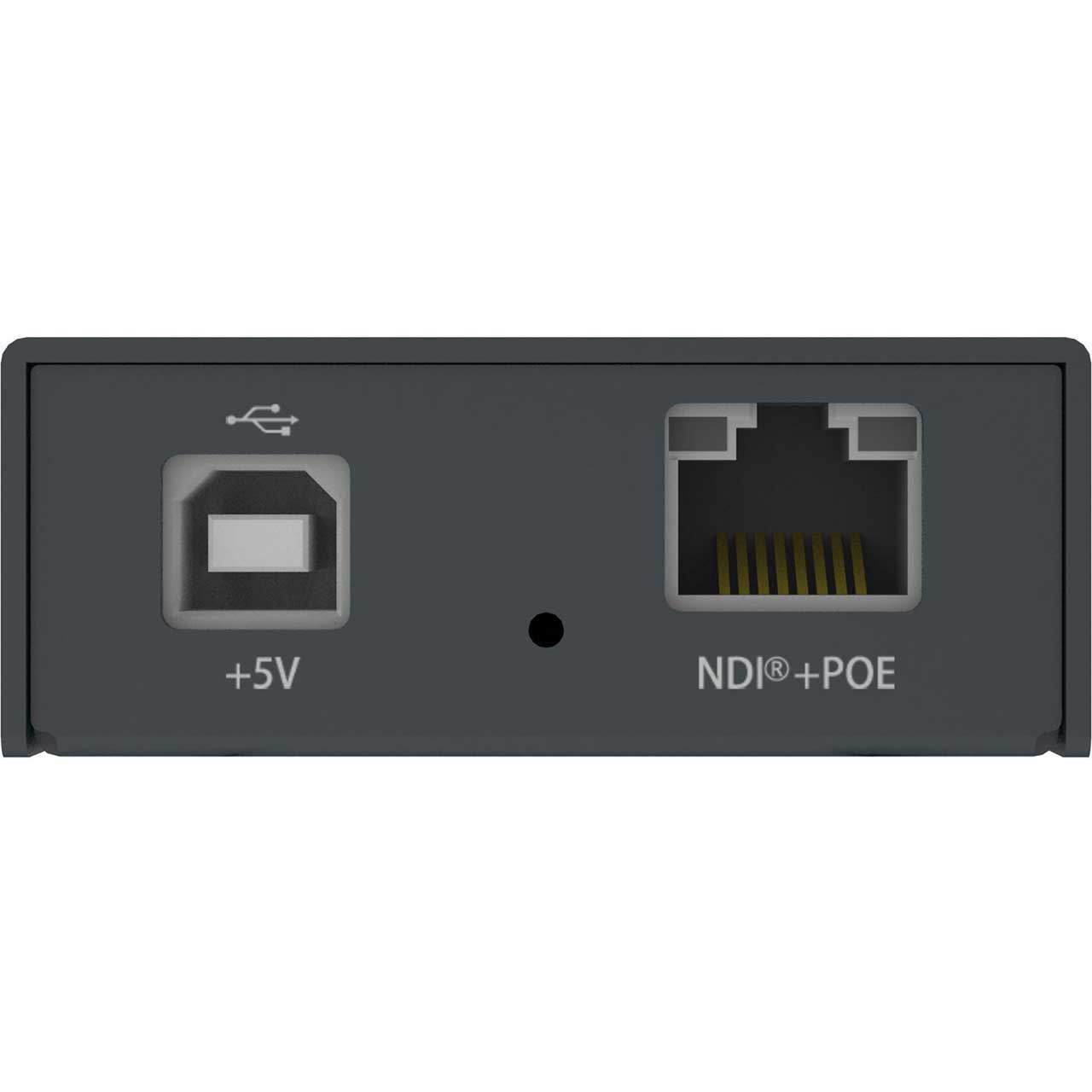

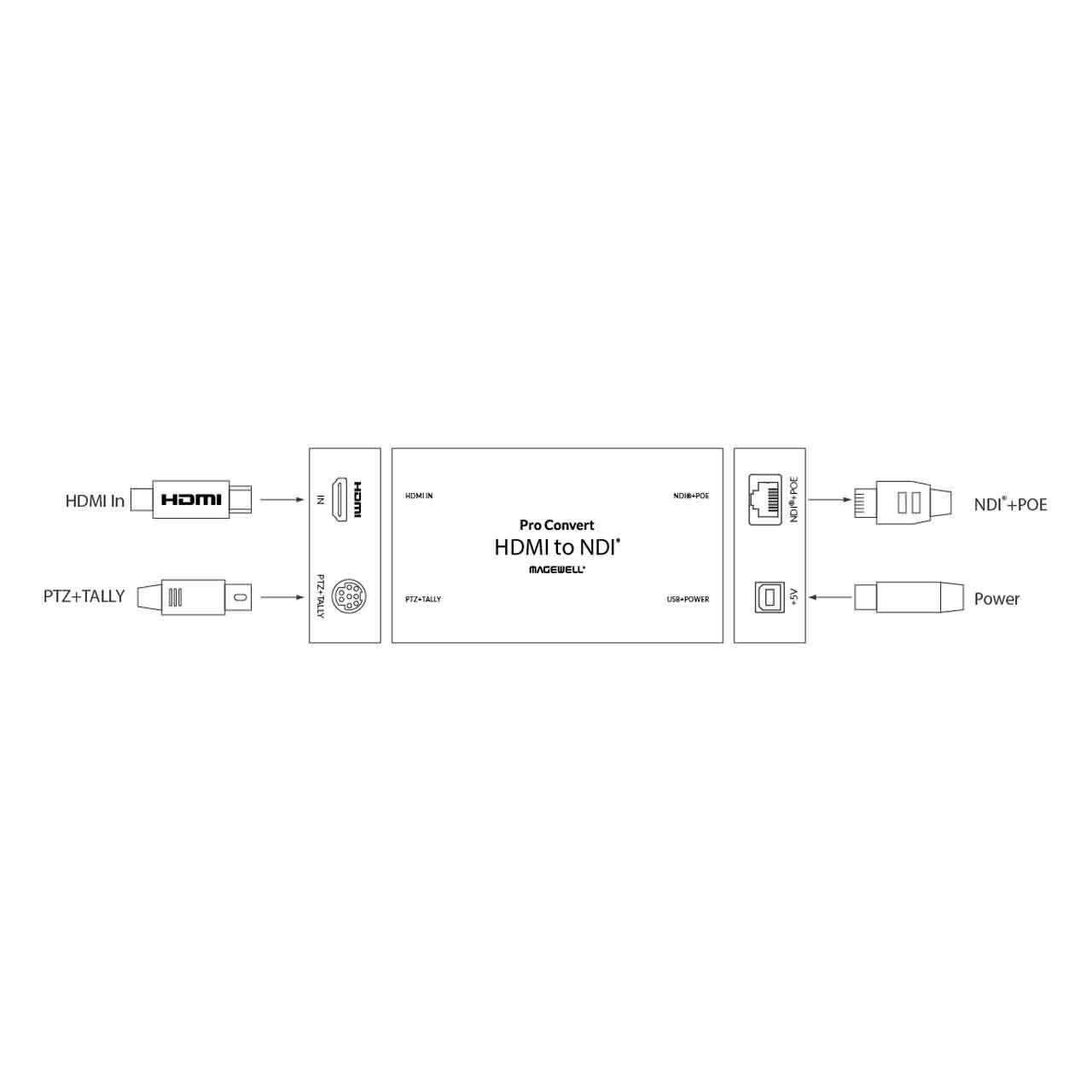

    The Magewell 64050 Pro Convert HDMI TX 1-Channel NDI Encoder from allows you to convert an HDMI signal with embedded audio to an NDI stream. It supports resolutions up to 2048 x 1200 at 60p on both input and NDI output. The device can be powered via an included power adapter or over PoE using the NDI port. It features a 1/4"-20 thread for camera mounting and can be used in the studio or in the field thanks to a compact and robust design. There's also a PTZ+tally shared mini-DIN port for connecting tally lights or setting up NDI-based PTZ camera control. A tally light accessory comes included.

    A companion Web UI allows assigning the device name, source name, and other settings. The encoder also has an on-board SD card slot but it is not functional at the time of this writing. Any future firmware updates will also be accessible via the Web UI.

    The Pro Convert HDMI TX Encoder additionally features an adaptive HDMI equalizer that allows for HDMI cables lengths up to 98'.

    • Features:

      • Support for up to 2048x1200 4:4:4/4:2:2 60fps HDMI input
      • Support for 8-channel IEC60958 audio streams
      • Support for up to 2048x1200 60fps 4:2:2 8-bit NDI encoding
      • Send NDI streams across network segments
      • Remotely control PTZ cameras via NDI
      • Support for NDI 4.x
      • Very low latency
      • Advanced configuration and device status through intuitive Web GUI
      • Tally lights and camera mounting for live production applications
      • HTTP-based APIs for custom integration

    • Specifications:

      • Input Features
      • Max video input: 2048x1200 60fps 4:4:4/4:2:2
      • Input video at any format by custom EDID of input port
      • Video formats: RGB, YUV BT.601/709/2020
      • 8-channel HDMI-embedded audio
      • HDMI interface: HDMI 1.4, DVI-D

        NDI® Encoding Features
      • Encoding Full NDI real-time stream at up to 2048x1200 60fps 4:2:2 8-bit.
      • Output the same resolution as input or any custom resolution. Typical outputs include:
      • 2048x1080p/1920x1080p 23.98/24/25/29.97/30/50/59.94/60
      • 1920x1080i 25/29.97/30/50/59.94/60
      • 1280x720p 23.98/24/25/29.97/30/50/59.94/60/100/119.88/120
      • 720x480p/720x480i 59.94/60/119.88/120
      • 720x576p/720x576i 50/100
      • Output frame rate same as the original, 1/2, 1/3 or 1/4 of input frame rate
      • Encoding 2-channel NDI-embedded audio
      • Support NDI 4.x

        Web UI Management
      • Provide comprehensive information regarding the device and input signals in real-time
      • Allow to configure how an input is processed and encoded, including deinterlacing, EDID, up/down scaling, frame rate, aspect ratio, as well as the network connection
      • Update firmware
      • Support USB RNDIS/ECM
      • Support IE/Edge/Firefox/Chrome/Safari/Opera web browsers
      • Provide HTTP APIs

        On-board Control Buttons
      • 16 Position Rotary DIP Switch: set board-index from 0 to F

        PTZ Control
      • Control PTZ cameras using protocols of VISCA, Visca UDP, Visca UDP2rs232, PELCO-P and PELCO-D via NDI
      • Mini-DIN-8 jack (shared with Tally light)

        Network Interfaces
      • 10/100/1000Mbps Ethernet
      • IEEE 802.3af PoE

        USB Interface
      • USB2.0 Type B
      • 5V/2.1A power supply
      • USB RNDIS/ECM

        Supported Products
      • NDI Studio Monitor
      • OBS
      • vMix
      • Any other NDI-enabled product

        LED Indicators
      • Status LEDs indicate: Power supply: on/off
      • Input signal: locked/unlocked

        Form Factor
      • 100.9smm (L) x 60.2mm (W) x 23.3mm (H)

        Accessories
      • USB 2.0 A to B cable
      • 5V/2.1A power adaptor
      • Mini-DIN 8 breakout cable
      • Tally light
      • L-bracket

        Power Consumption
      • 5V max current: ~1.5A
      • Max power consumption: ~6W

        Working Environment
      • Operating temperature: 0 to 40 deg C
      • Storage temperature: -20 to 70 deg C
      • Relative humidity: 5% to 90% non-condensing

    • Item Includes:

      • 1x Magewell 64050 Pro Convert HDMI TX
      • 1x USB 2.0 A to B cable
      • 1x 5V/2.1A power adaptor
      • 1x Mini-DIN 8 breakout cable
      • 1x Tally light
      • 1x L-bracket
