    BDP100B - Overview


    Your entry into the world of NDI®.
    Built on BirdDog's custom NDI® silicon chip with a Sony CMOS Sensor, the BirdDog P100 PTZ camera is your entry into the world of full NDI®. Featuring frame rates up to 1080p60, 10x optical zoom, USB 2.0, HDMI, SDI, and Full NDI® outputs, P100 gives you professional level quality, performance, and total flexibility. 3.5mm audio connectors allow P100 to work with BirdDog Comms, the world's first NDI® audio intercom platform.

    New Color Matrix.
    Dialing in your cameras just levelled up. P100 now has a full color matrix with individual saturation and hue control over Red, Green, Blue, Cyan, Yellow and Magenta, all with 64 levels of control.

    New Codec Engine.
    A totally rebuilt codec engine brings even lower latency to the P100 and computationally higher picture quality. Better pictures, less bandwidth, faster.

    Full NDI®. No compromises.
    In the world of NDI® there are two flavors, NDI® and NDI/HX. NDI® is a variable bit rate, I-Frame codec that is reaches around 140Mbits at 1080p60 and is visually lossless. NDI/HX is a compressed, long-GOP, H.264 variant that reaches around 12Mbits at 1080p60. P100 is a Full NDI® camera.

    Sony Sensor. You deserve the best.
    The best pictures come from the best silicon. P100 is teams up a world class Sony CMOS Backlit Sensor with the BirdDog custom NDI® chip to form a match made in silicon heaven. Your productions deserve the best.

    Extreme Speed. Optics done right.
    Lightning auto focus. Insanely fast zoom. Precision optics. P100 has been engineered to meet the most demanding situations whether you are in a boardroom streaming your quarterly results, producing a live event for your church, or live streaming sports.

    FREE Cam Control. Color match in seconds.
    The Cam Control app is the easiest and most user-friendly way to dial in BirdDog cameras. Simply load on a Windows 10 machine on the same network as your BirdDog cameras and access all functions of the camera through a beautiful interface. Quickly dial in the look you like and copy settings across multiple cameras in seconds. And it's 100% FREE with all BirdDog PTZ cameras.

    Webcam now. Production cam later.
    P100 might be the best camera investment you can make. Use it now as a super high quality camera with the USB 2.0 for Zoom, Teams, Meet, Chime, Messenger, and even Skype if that's still your thang, and then when the world returns to normal you can use it as a production camera with it's broadcast video connections - SDI, HDMI, and NDI.

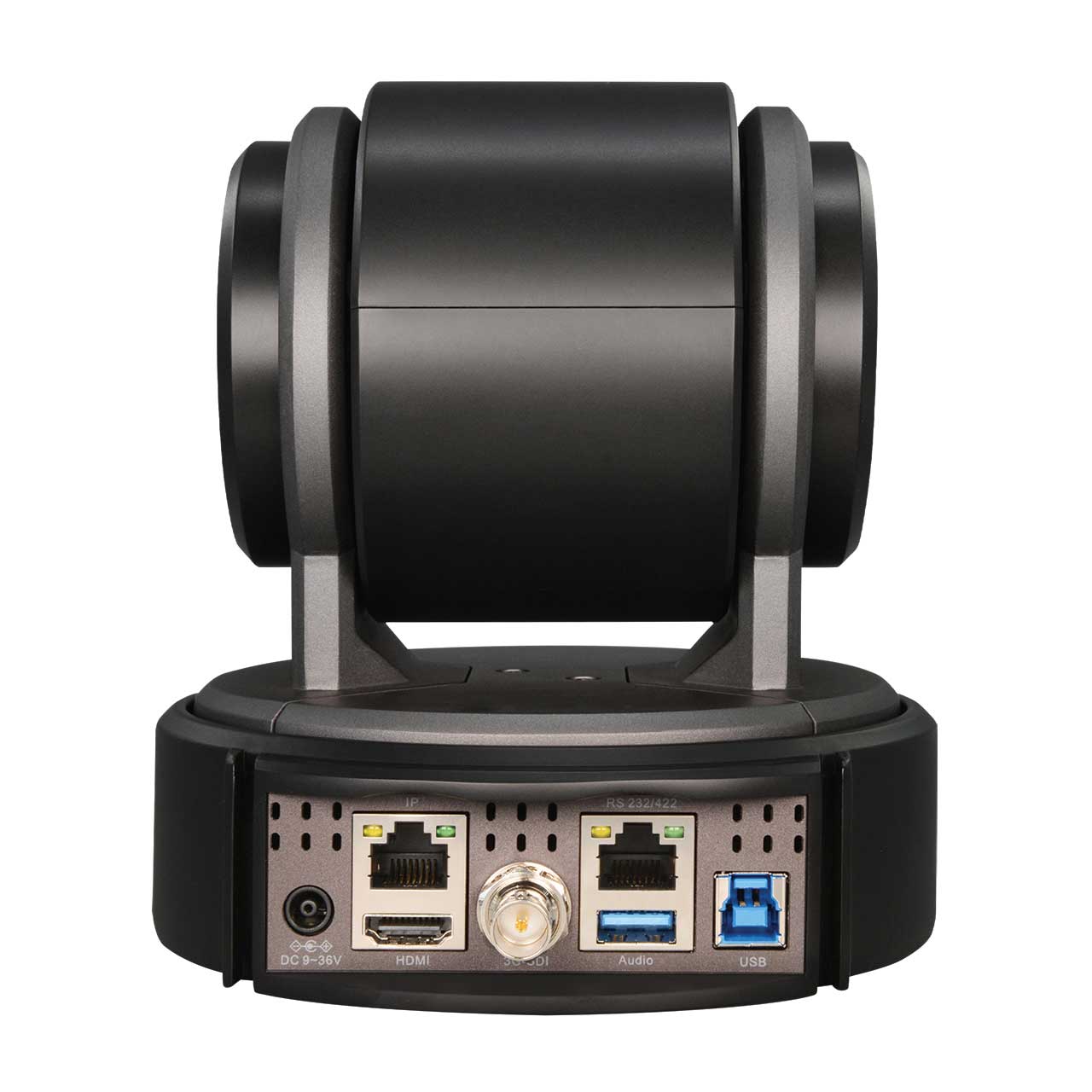

    Quad output. NDI®, SDI, HDMI, and USB 2.0.
    With NDI®, SDI, HDMI, and USB 2.0 simultaneous outputs the P100 is ready to go live with full NDI® today or can be use as a traditional SDI/HDMI camera. You can rest easy in the knowledge that P100 has you covered for all workflow situations.

    • Features:

      • Resolution: Up to 1080P60, 1080i59.94
      • NDI® Resolution: Up to 1080P60, 1080P30
      • Zoom: Optical 10X
      • Image stabilizer and true WDR 130dB
      • Video Output: HDMI, 3G-SDI, NDI®, CVBS simultaneously
      • ±350-degree continuous pan, ±120-degree continuous tilt
      • 128 presets, Speed up to 150 degrees/sec
      • Standard mounting and ceiling mounting with E-Flip function
      • Control supports RS-232 control, RS-422/485 control, VISCA-over-IP, NDI® Control, IR Remote Controller
      • Presets store camera directions and image parameters.(Up to 6 presets on remote controller or 128 presets via protocol programming)
      • Image parameter setting restore with presets and quick access operation
      • Supports Audio input, Audio output with NDI® streaming.
      • Power: DC 12V, PoE+(IEEE802.3at)
      • Firmware upgrade via USB2.0 or IP
    • Specifications:

      • CAMERA
      • Image Sensor: 1 / 2.86 inch CMOS 2.2MP
      • Lens: 4.7-47mm
      • Optical Zoom: 10x
      • Digital Zoom: 12x
      • Horizontal Angl of View: 60.9° (W) - 6.43° (T)
      • Aperature: F1.6 (W) - F3.0 (T)
      • Min. Illumination: Color: 0.5 lux
      • Shutter Speed: 1/1 - 1/30000s
      • Focus: Auto, Push, Manual
      • White Balance: Auto, Indoor, Outdoor, Manual, OPW, ATW
      • Exposure: Auto, Manual, Shutter/Iris Priority
      • Backlight Compensation: YES

      • Pan Movement: Horizontal: ±175§ (Zoom Adaptive Speed Range: 0.5°-100°/s)
      • Tilt Movement: Vertical: +90° to -30° (Zoom Adaptive Speed Range: 0.05°-72°/s)
      • Preset Positions: 128 (Speed adjustable: Up to 150°/s)
      • Preset Speed: 0 - 5 Level adjustable
      • Enviornmental: Indoor
      • Operating Temp: -10 - +50 (°C)
      • Operating Humidity: ≥80%
      • Noise at Max Velocity: Max 41dB at full speed pan

      • Video Output: NDI/SDI/HDMI/USB2.0
      • Video Formats: 1080p 60, 59.94, 50, 29.97, 25/1080i 60, 59.94, 50/720p 60, 59.94, 50 - Limited Resolution support over USB
      • Audio I/O (via USB breakout cable): 3.5mm Audio In (Stereo)/3.5mm Audio Out (Stereo)/(NDI, SDI, and HDMI only)

      • IP PTZ Control: NDI Control (auto configuring), VISCA IP
      • Serial PTZ Control: 1x RJ45: RS232/RS422
      • Serial Control Protocol: VISCA / PELCO D

      • Power Input: 12v DC, PoE+ (IEEE 802.3at)
      • MAx Power Draw: Min. 11.1W - Max. 15.2W (PTZ move simultaneously)

      • Video Compression: Full NDI - i-frame high quality low latency NDI for production
      • Network Protocol: NDI - Discovery, configuration and control
      • Web Control Interface: Full control via Web/Mobile UI including Scene presets
    • Item Includes:

      • 1x BirdDog Studio Eyes P100 PTZ Camera
      • 1x IR Remote Controller
      • 1x Power Adapter & Power Cord
      • 1x USB port to 3.5mm Audio Jack Adapter
      • 1x Bag of Mounting Screws
    • Warranty:

      • 2 year warranty
    • GTIN:
