BZBGEAR BG-ExH-70C3 4K 18Gbps HDMI Extender with Bi-Directional IR/PoC/ARC and Audio De-Embedding up to 230-Foot

ITEM #: BG-EXH-70C3 MFG #: BG-EXH-70C3

Primary Image
  • Product Image Thumbnail 1 of 5
  • Product Image Thumbnail 2 of 5
  • Product Image Thumbnail 3 of 5
  • Product Image Thumbnail 4 of 5
  • Product Image Thumbnail 5 of 5
Free Shipping with $49 Minimum Order

Our Price:

$299.00

Availability: In Stock
iAvailability Description Popup


    BG-EXH-70C3 - Overview

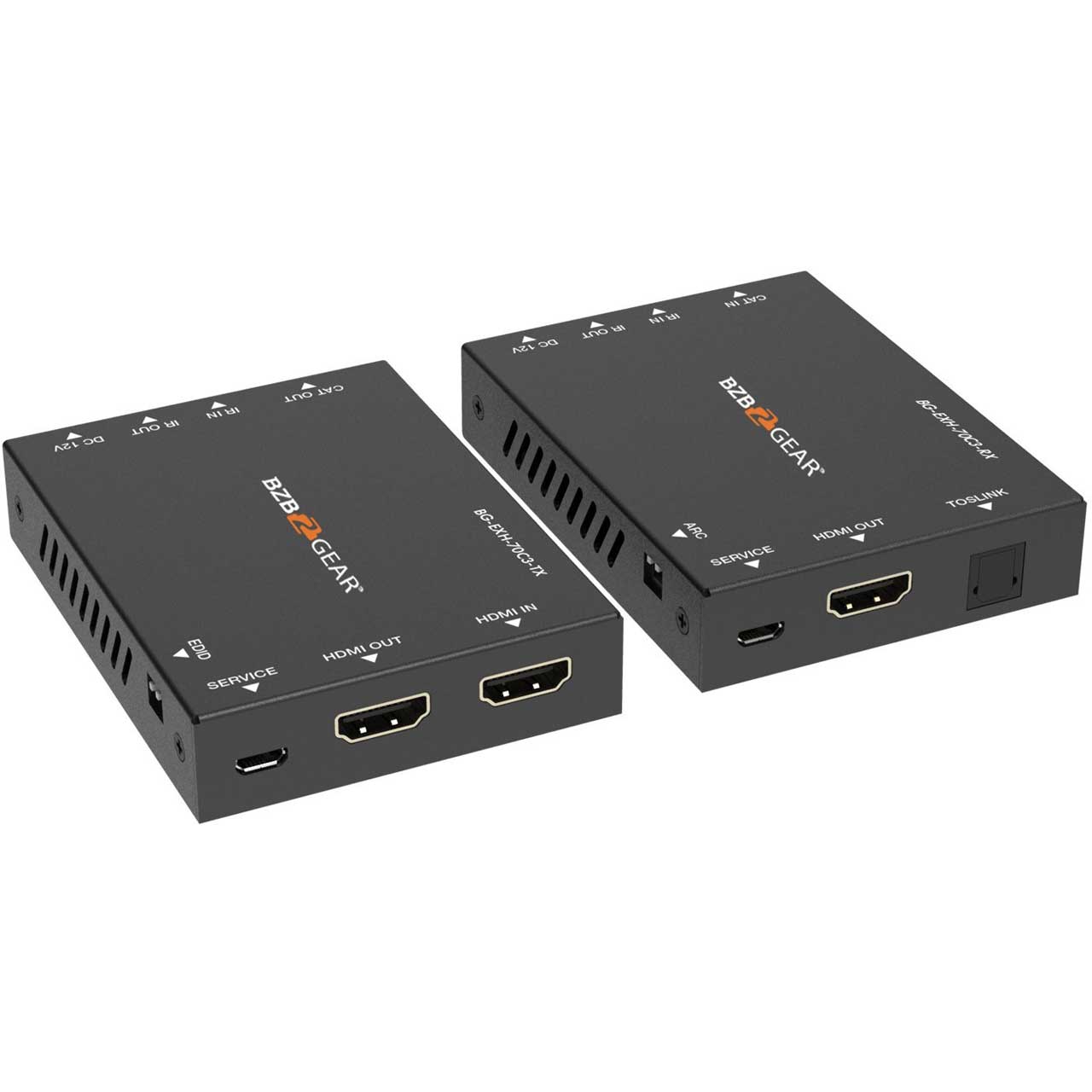

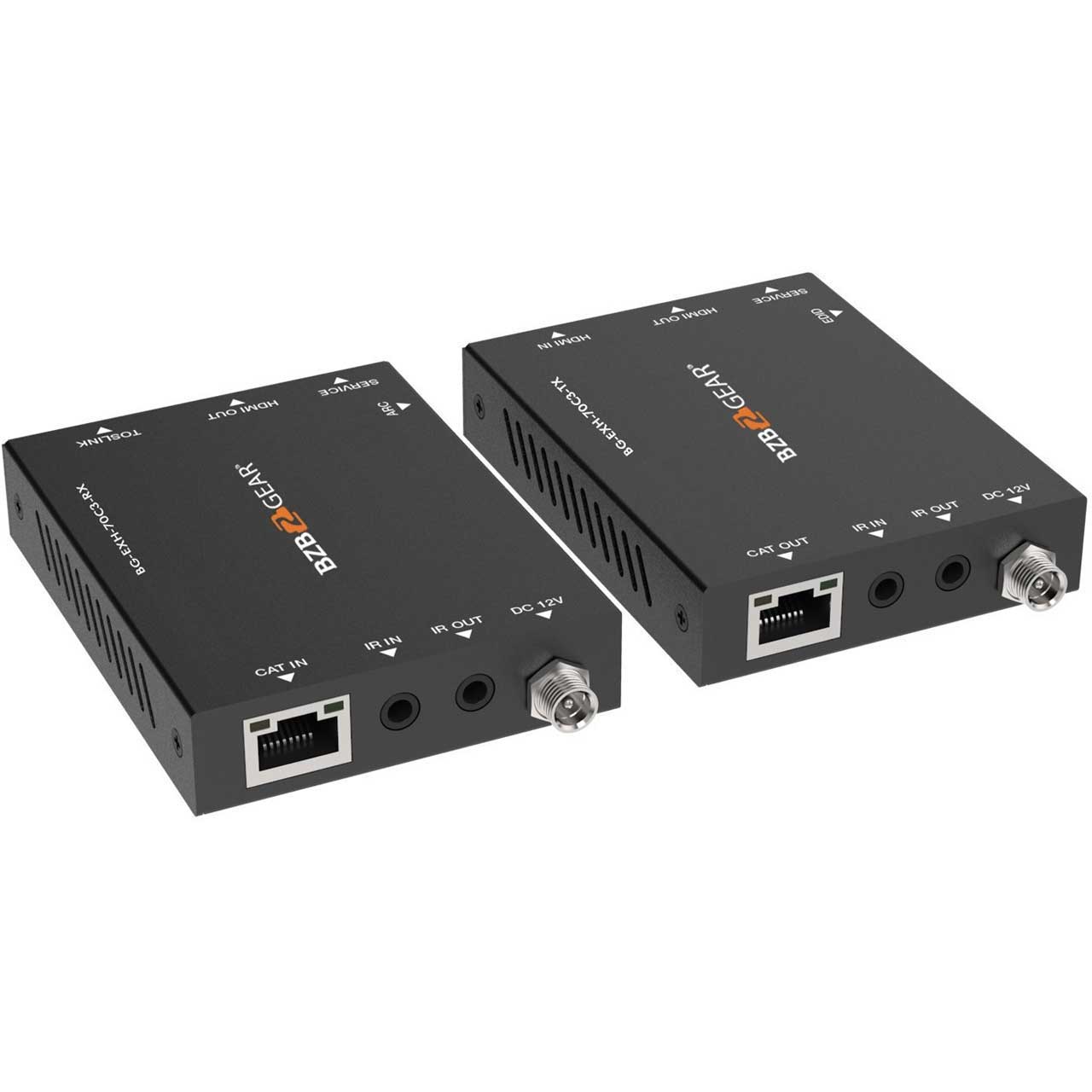

    The BZBGEAR BG-ExH-70C3 is an 18Gbps HDMI extender that can transmit HDMI and IR control signals up to 230ft(70m) via a single CAT6/6a cable and the uncompressed, long-distance transmission between the transmitter and receiver is achieved with zero-delay. These devices are also HDMI 2.0b and HDCP 2.2 compliant ensuring content is protected. The extenders feature bi-directional IR and power over cable(PoC) meaning only one of the units in the pair needs a power supply while IR blaster and receiver cables can be utilized to control devices on either end of the system simplifying a clean installation.

    EDID copy pass-through between the source and display devices help to ensure the best signal quality possible. Video resolution is crystal clear with up to 4K2K@60Hz 4:4:4 along with rich colors provided by HDR, HDR10, HDR10+, Dolby Vision, and HLG. ARC and audio de-embedding via the receiver optical port support LPCM 7.1, Dolby True HD, and DTS HD Master formats. The flexible and compact design of the BG-ExH-70C3 allows for a wide range of uses where signal sources may need to be further away from their displays.

    • Features:

      • Audio Formats: LPCM 7.1, Dolby True HD, DTS HD Master
      • EDID copy pass-through
      • ARC and audio de-embedding through S/PDIF optical port on receiver

    • Specifications:

      • Technical
      • HDMI Compliance: HDMI 2.0b
      • HDCP Compliance: HDCP 2.2
      • Video Bandwidth: 18Gbps
      • Video Resolution: Up to 4K2K@60Hz RGB/YCBCR 4:4:4
      • IR Level: 5Vp-p
      • IR Frequency: Wideband 20K-60KHz
      • Transmission Distance: 4K2K@60Hz 4:4:4--70m, 1080P--70m (CAT6/6a cable)
      • Color Space: RGB 4:4:4, YCbCr 4:4:4, YCbCr 4:2:2, YCbCr 4:2:0
      • Color Depth: 8/10/12bit
      • HDR: HDR, HDR10, HDR10+, Dolby Vision, HLG
      • Audio Formats: HDMI: LPCM 7.1CH, Dolby True HD, DTS-HD Master Optical: Dolby 5.1, DTS 5.1, PCM 2.0

        Connection

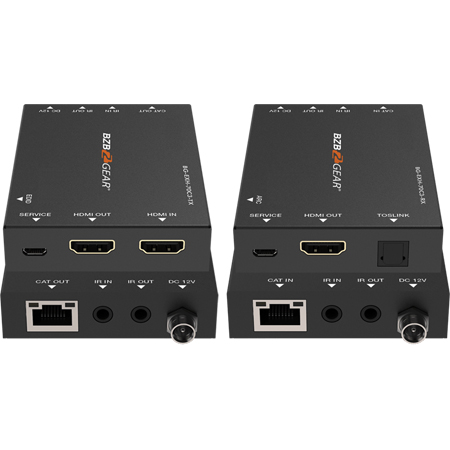

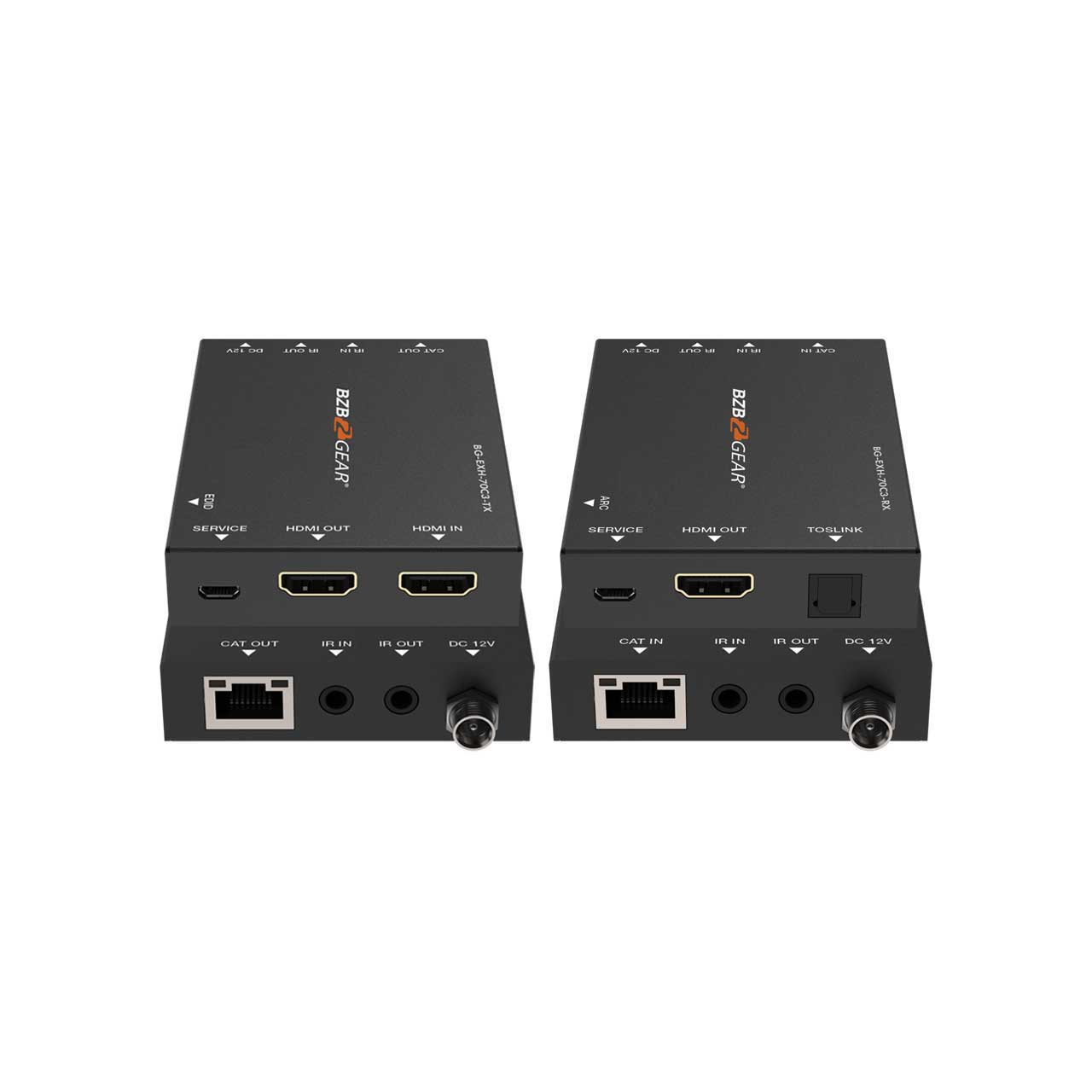

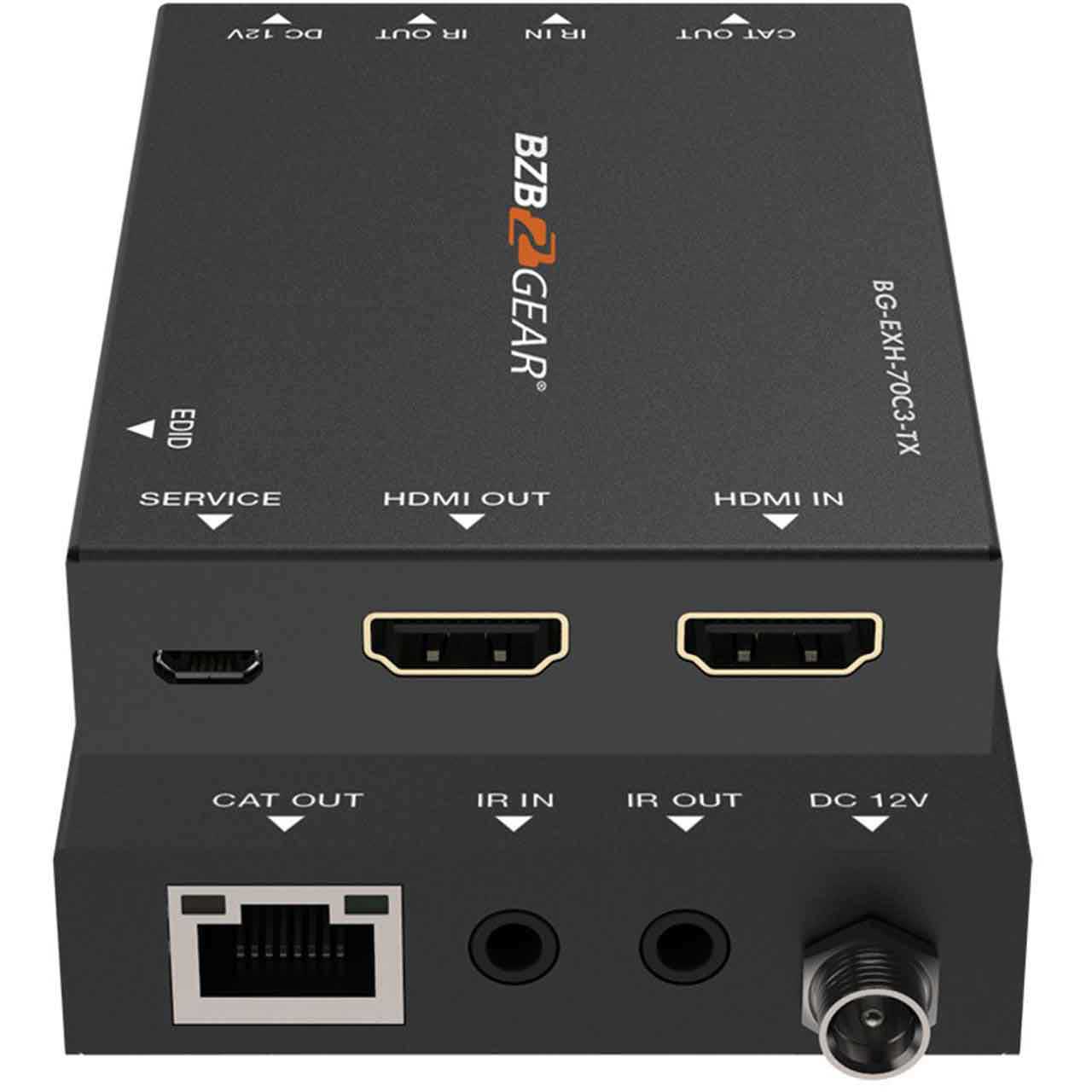

      • Transmitter:
      • Input: 1x HDMI IN (Type A, 19-pin female)
        Output: 1x HDMI OUT (Type A, 19-pin female) / 1x CAT OUT (RJ45)
      • Control:
        1x SERVICE (Micro-USB jack)
        1x IR IN (3.5mm Stereo Mini jack)
        1x IR OUT (3.5mm Stereo Mini jack)

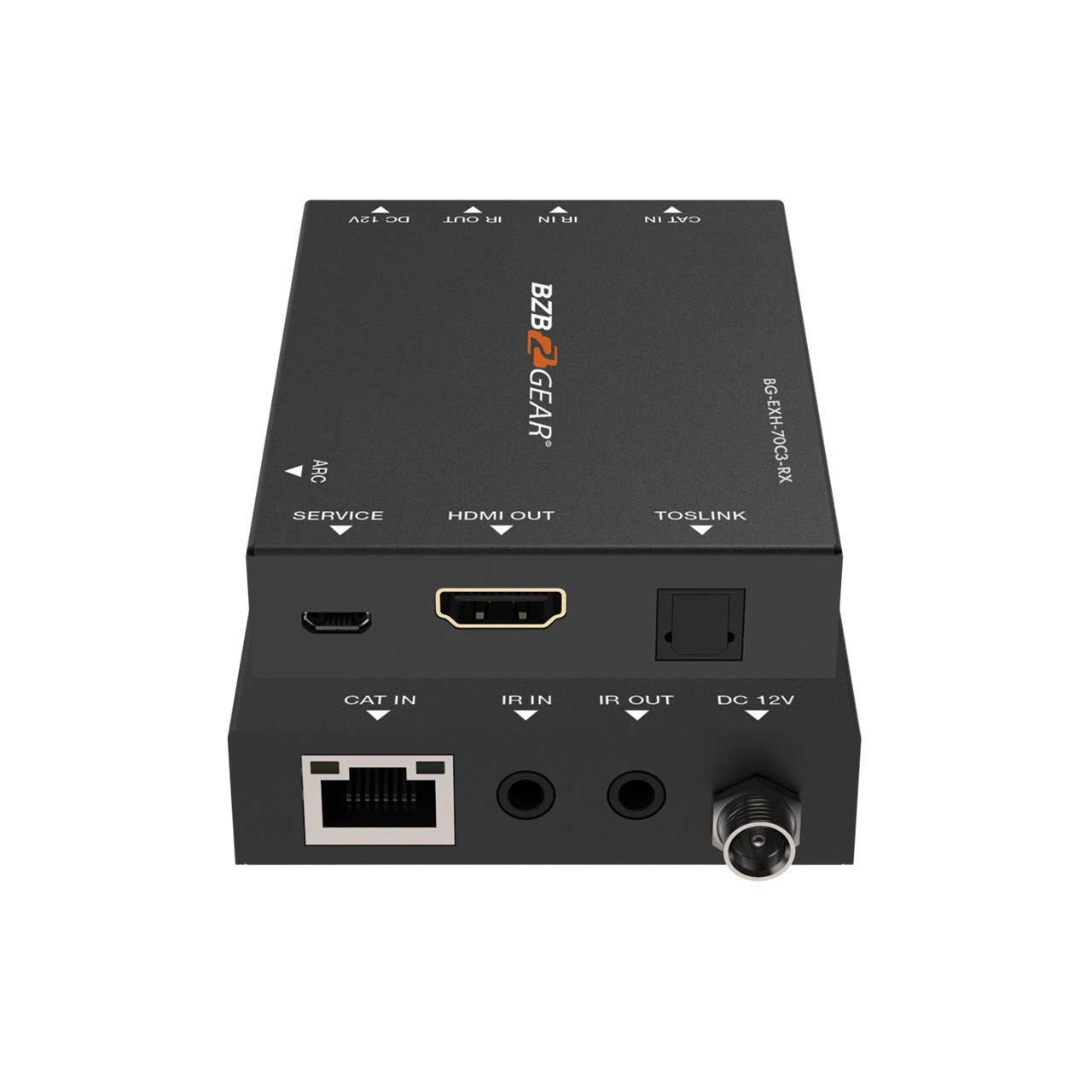

      • Receiver:
        Input: 1xCAT IN (RJ45)
        Output: 1xHDMI OUT (Type A, 19-pin female) / 1xTOSLINK S/PDIF
      • Control:
        1xSERVICE (Micro-USB jack)
        1xIR IN (3.5mm Stereo Mini jack)
        1xIR OUT (3.5mm Stereo Mini jack)

        Mechanical
      • Housing: Metal Enclosure
      • Color: Black
      • Dimensions Tx/Rx (WxDxH): 3.54 x 2.68 x 0.71" (90 x 68 x 18mm)
      • Weight: Transmitter: 0.35Lbs (160g) Receiver: 0.34Lbs (155g)
      • Power Supply: DC 12V/1A; Supported bi-directional PoC function
      • Power Consumption: 3.36 W (max)
      • Operating Temperature: 32° to 104°F (0° to 40°C)
      • Storage Temperature: -4° to 140°F/(-20° to/60°C)
      • Relative Humidity: 20~90% RH (non-condensing)

    • Item Includes:

      • 1x 18Gbps HDMI Extender (Transmitter)
      • 1x 18Gbps HDMI Extender (Receiver)
      • 1x IR Blaster cable (1.5 meters)
      • 1x IR Wideband Receiver cable (1.5 meters)
      • 4x Mounting Ears
      • 8x Machine Screws (KM3*4)
      • 1x 12V/1A Locking Power Adapter
      • 1x User Manual

    • GTIN:

      0850033687491
