BZBGEAR BG-MKVM41R 4x1 1080P Full HD HDMI/USB 2.0 Seamless Quad KVM Multiviewer - Supports up to 4 Computers

ITEM #: BG-MKVM41R MFG #: MKVM41R

Primary Image
  • Product Image Thumbnail 1 of 5
  • Product Image Thumbnail 2 of 5
  • Product Image Thumbnail 3 of 5
  • Product Image Thumbnail 4 of 5
  • Product Image Thumbnail 5 of 5
Free Shipping with $49 Minimum Order

Our Price:

$199.00

Availability: In Stock
iAvailability Description Popup


    MKVM41R - Overview

    This seamless-switching quad KVM multiviewer is a great choice for anyone looking for an easy way to control four separate devices on one screen with one set of peripherals. With one mouse and one keyboard, a user can control up to four PCs in quad-view simply by hovering the mouse over the desktop of the computer they'd like to control on the screen to instantaneously activate control over that machine.

    The BZBGEAR BG-MKVM41R can help create a productivity enhanced workstation and also enables several PCs to share a printer, camera, or other peripherals via two USB 2.0 ports.

    It supports resolutions of up to 1080p@60Hz. Also, it is fully compatible with a wide variety of Windows and Mac OS operating systems. The product can be controlled in various ways: through the mouse button, keyboard hotkey, front panel button, IR control, etc.

    Connectivity

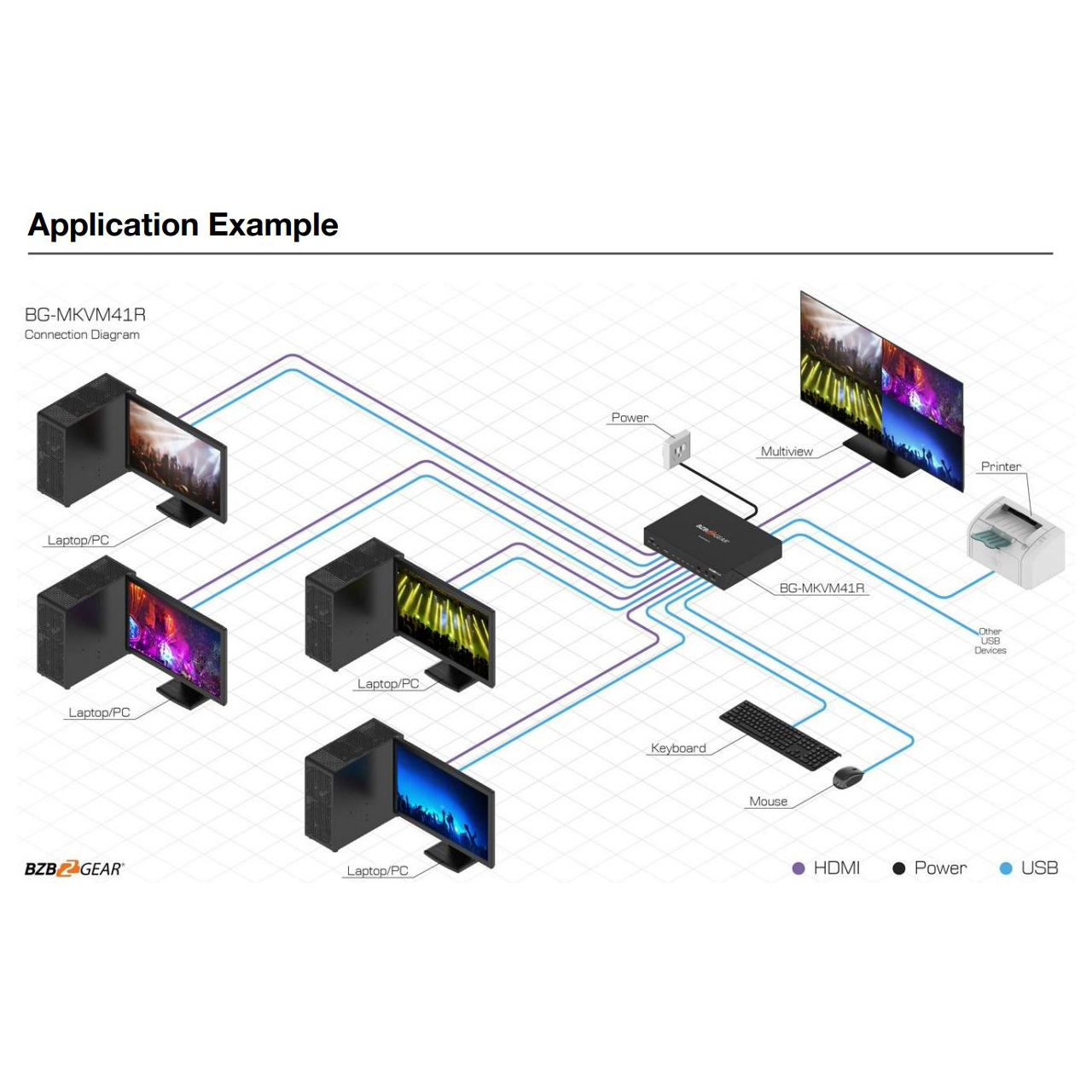

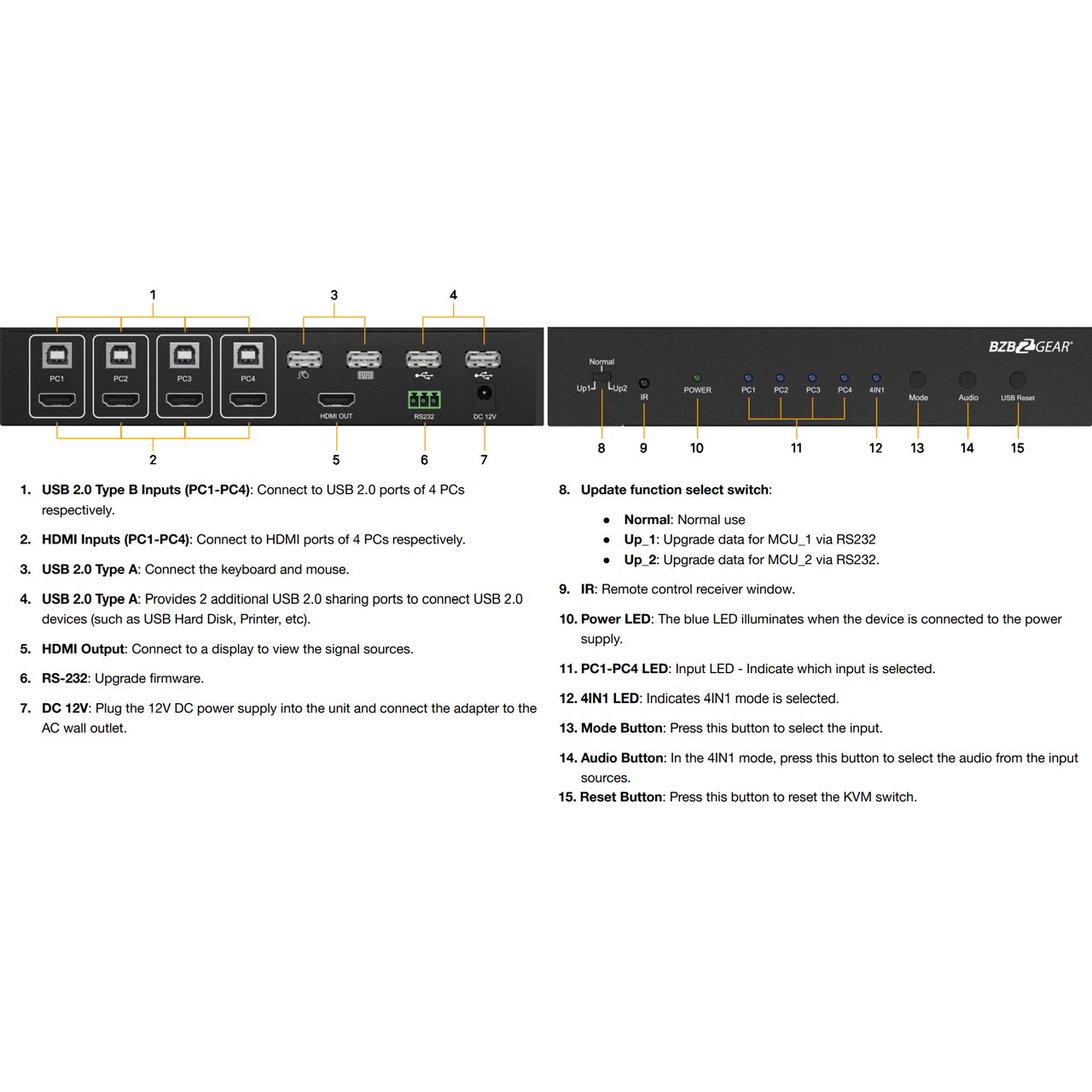

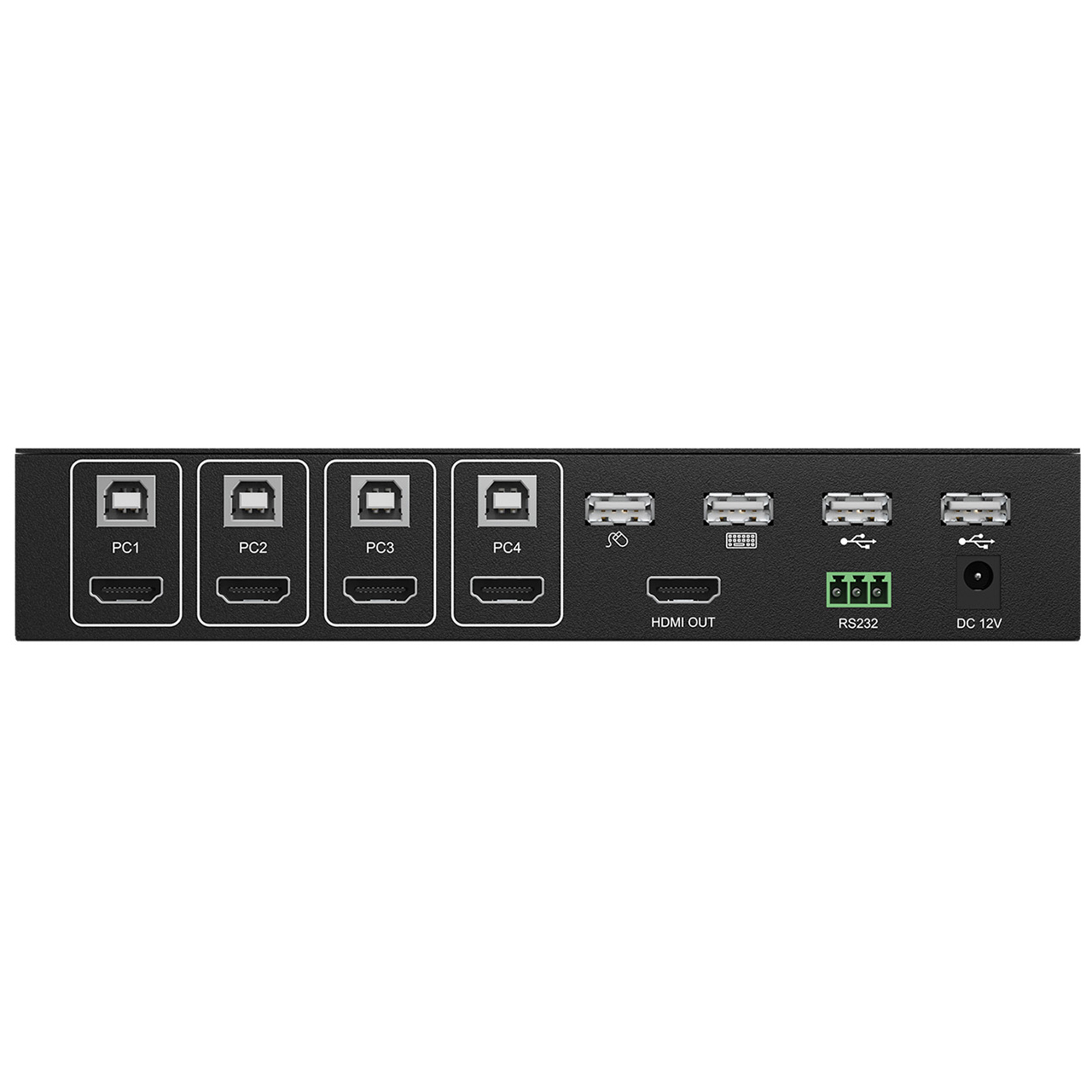

    With four HDMI/USB 2.0 PC HOST ports and one HDMI output, connecting four devices and displaying them on one screen in quad-view is simple. They can also be shown in full screen and switched between via different control methods. The BG-MKVM41R can support HDMI output resolutions up to 1080p@60Hz. This device is compliant with HDMI 1.3a and HDCP 1.2. The device can also be controlled via a RS-232 connection.

    The ability to display and control four separate devices on one screen offers unparalleled productivity and versatility for anyone looking to make the most out of a device management workstation.

    Control

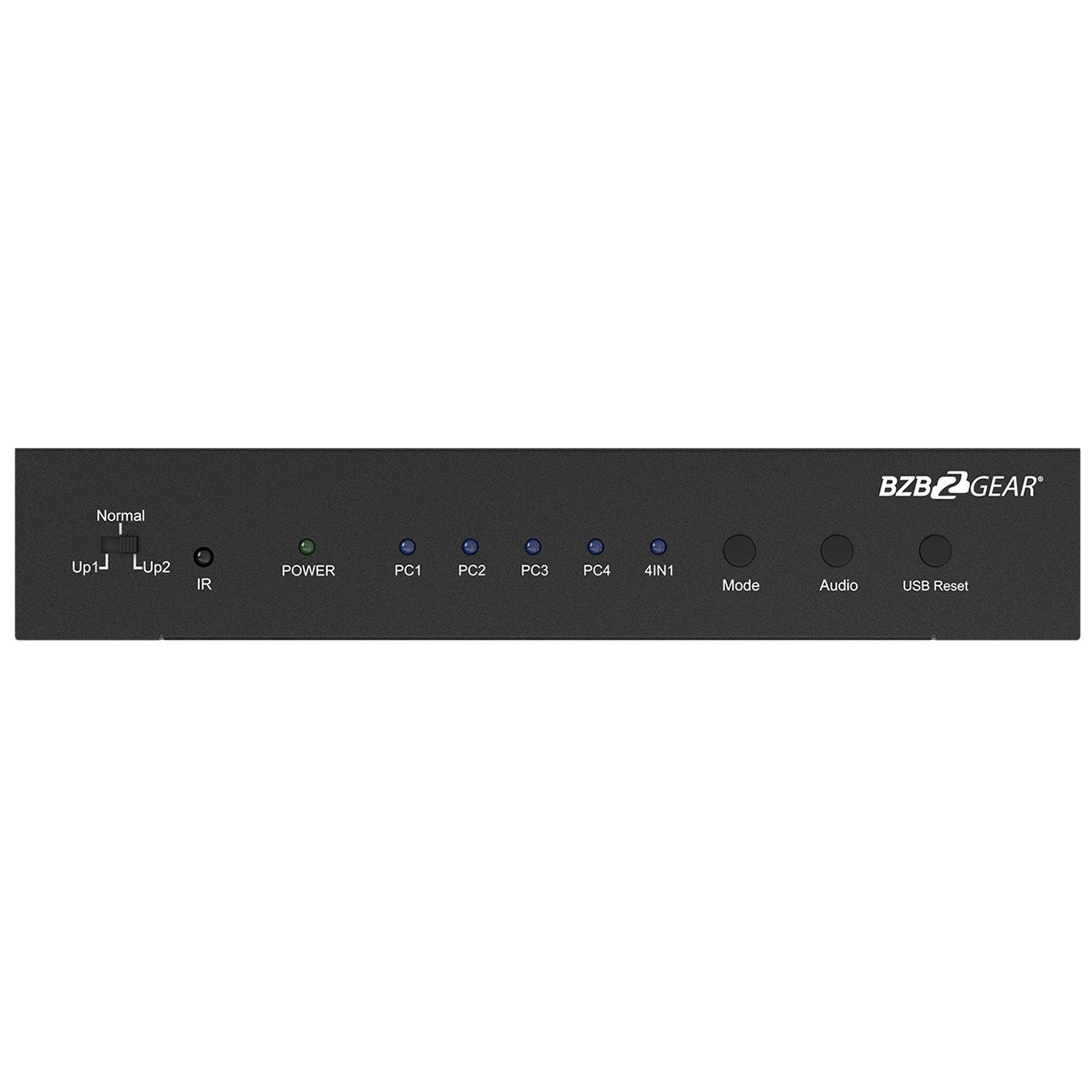

    Users can easily switch between displays using mouse and keyboard hot keys. Front panel buttons on the switcher are also available, as well as an IR remote controller. With the two USB 2.0 device ports, up to four computers can share the same printer, camera, or other peripherals. An audio push button is also available that allows users to select the audio from the BG-MKVM41R's HDMI input sources while using quad-view.

    The BG-MKVM41R's superior control over multiple devices makes it a great choice for multi-computer workstations in conference rooms, industrial centers, and surveillance applications.

    • Features:

      • Compliant with HDMI 1.3a, HDCP 1.2
      • Support 4 by 1 Quad Multi-viewer and seamless switch (with same resolution)
      • Support mouse button,keyboard hot keys,front panel button, IR control
      • Supports multipl Supports multiplexed HDMI 4-input and 1-output
      • Support seamless switch
      • Support multi output resolution
      • Supports up to 1080p@60Hz High Definition resolution
      • Supports the unique 4IN1 Multi-Viewer mode, which allows you to operate 4 PCs with a keyboard&mouse on the same screen without switching

    • Specifications:

      • Signal Inputs/Output
      • Maximum Single Link Range: 1920x1080@60
      • HDMI Input/Output Connector: Type A 19 pin

        Operating Frequency
      • Vertical Frequency Range: 50/60Hz
      • Video Amplifier Bandwidth: 2.25Gbps

        Resolutions
      • Input Resolution: 480i60Hz, 480p60Hz, 576i50Hz, 576p50Hz, 720p50/60Hz, 1080i50/60Hz, 1080p24/25/30/50/60Hz
      • Output Resolution: 720p, 1080p

        Mechanical Data
      • Chassis Material: Metal
      • Color: Black

        Environmental
      • Operating Temperature: 32°F to +158°F / 0°C to +70°C
      • Operating Humidity: 10% to 85% RH (no condensation)
      • Storage Temperature: 14°F to 176°F / -10°C to +80°C
      • Storage Humidity: 5% to 90% RH (no condensation)

        Power Requirement
      • External Power Supply: 12V DC@2A
      • Power Consumption (max): 24W

        Regulatory Approvals
      • Main Unit: FCC, CE
      • Power Supply: UL, CE, FC C, REACH, ROHS

    • Item Includes:

      • 1x BG-MKVM41R 4x1
      • 1x 12V/DC, 2A Power Supply
      • 1x Remote Control
      • 2x L shape stand feet
      • 6x Screw
      • 1x Phoenix plugs for RS232 cable termination
      • 1x User Manual
      • 1x Quick Start Guide
