This 2x2 video wall processor is a great option for retail signage, entertainment venues, sports bars, and restaurants. Thanks to its high quality at 4K@60Hz resolution, the BG-UHD-VW24 stands out as a great choice for businesses in need of beautiful video walls. This processor is also a flexible platform, enabling operators to switch between sources for each display in matrix switch mode.
If you’re looking for a larger video wall processor, you may be interested in the BG-UHD-VW29 for 3x3 video walls.
Connectivity

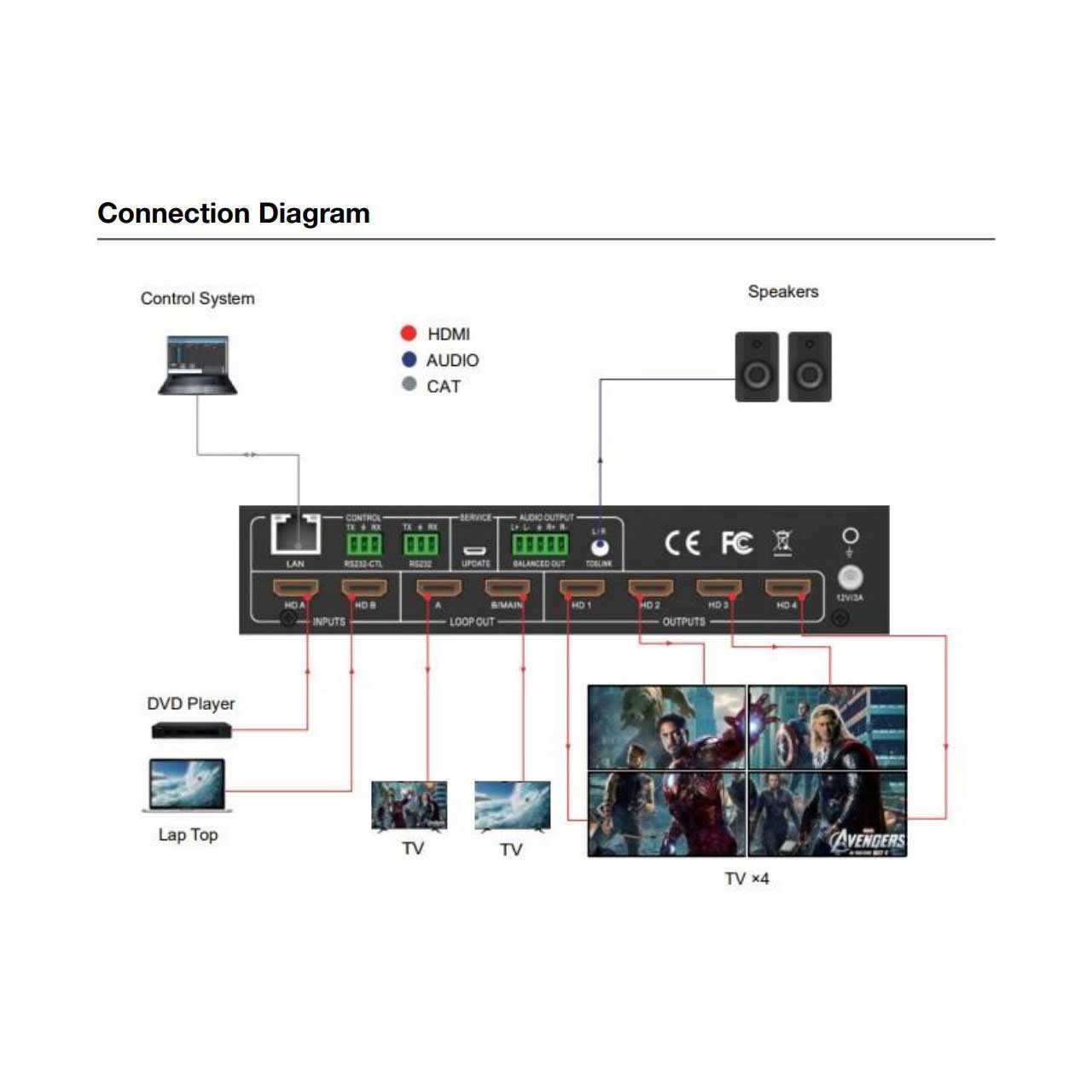

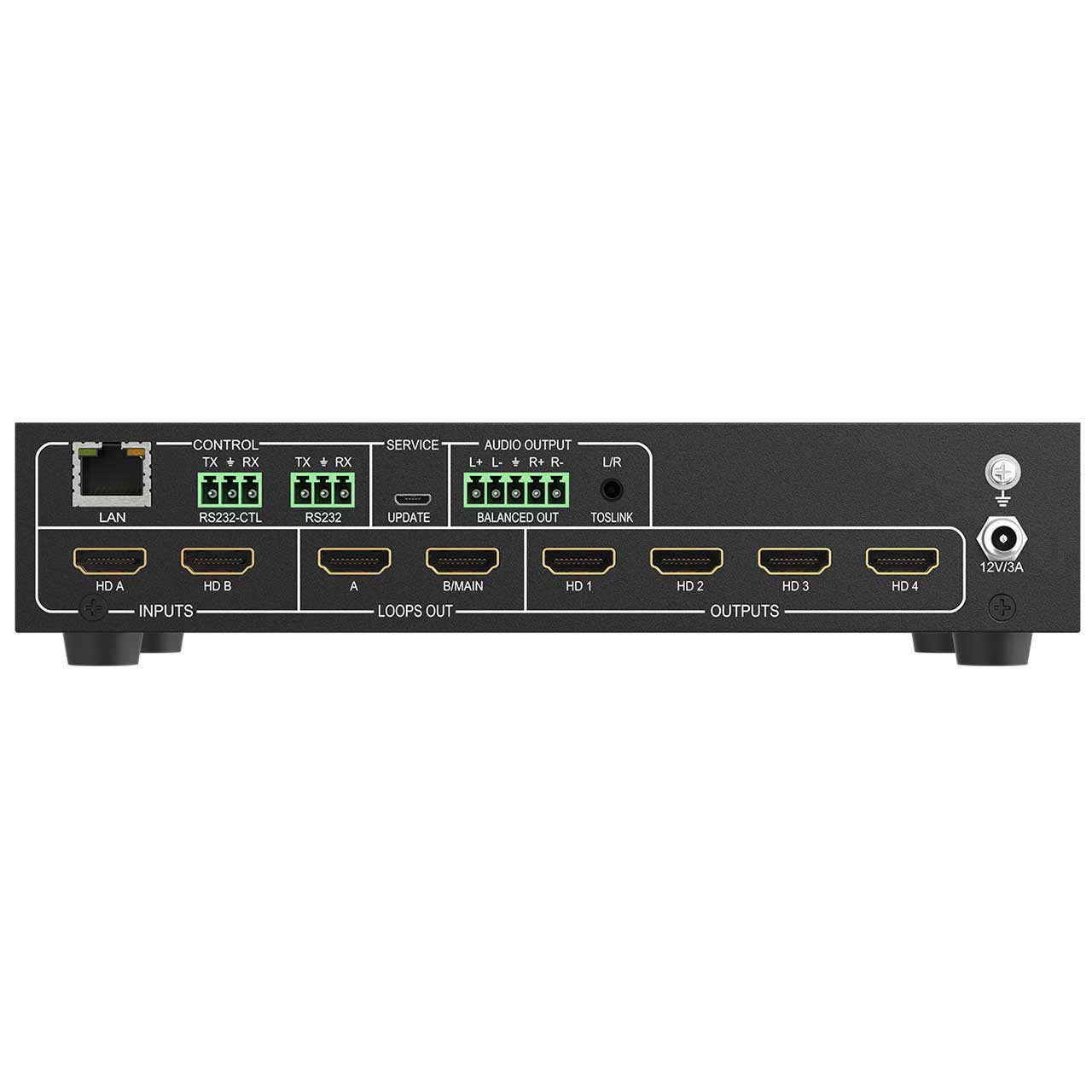

The BG-UHD-VW24’s maximum input resolution is 4K@60Hz and has four 1080p@60Hz HDMI outputs. This device is compliant with both HDMI 2.0 and HDCP 2.2. These HDMI connections support 2.0 channel, 5.1 channel, PCM, Dolby, AC3, and DTS audio formats. Operators can also loop out the HDMI A/B signal for devices connected to each output.
For sound, a balanced 5-pin phoenix connector and 3.5mm stereo TOSLINK audio output are both available for audio extraction.
The connectivity features offered by the BG-UHD-VW24 make it perfect for any small to medium-sized business needing industry-compliant hardware to support 2x2 video walls. The system gives enough room for additional flexibility as well such as audio de-embedding and loop out.
Control
For controlling the unit itself, there are several control methods, including PC Utility software, RS-232, HDMI CEC, or a web-based interface. The PC Utility can provide input and output adjustments for the video wall, including dual-mode bezel compensation and 180° image rotation. The PC Utility software also allows for 16 available predefined EDID options.
The BG-UHD-VW24 can support 2x2 video walls, but it can also create two 2x1 video walls as well. The versatility of this video wall processor makes it a great fit for any user needing 2x2 or 2x1 video walls, enabling them to find a solution that fits their needs.
