Belkin F1DN005U USB CAC Government Smart Card Reader - TAA Compliant - FIPS-201 ISO/IEC 7816/USB CCID/Microsoft WHQL

ITEM #: BKN-F1DN005U MFG #: F1DN005U

Primary Image
  • Product Image Thumbnail 1 of 5
  • Product Image Thumbnail 2 of 5
  • Product Image Thumbnail 3 of 5
  • Product Image Thumbnail 4 of 5
  • Product Image Thumbnail 5 of 5
Free Shipping with $49 Minimum Order

List Price:

$41.46

Our Price:

$37.31

Availability: Typically Ships in 3-10 Business Days
iAvailability Description Popup


    F1DN005U - Overview

    Appropriate for Secure Government Use

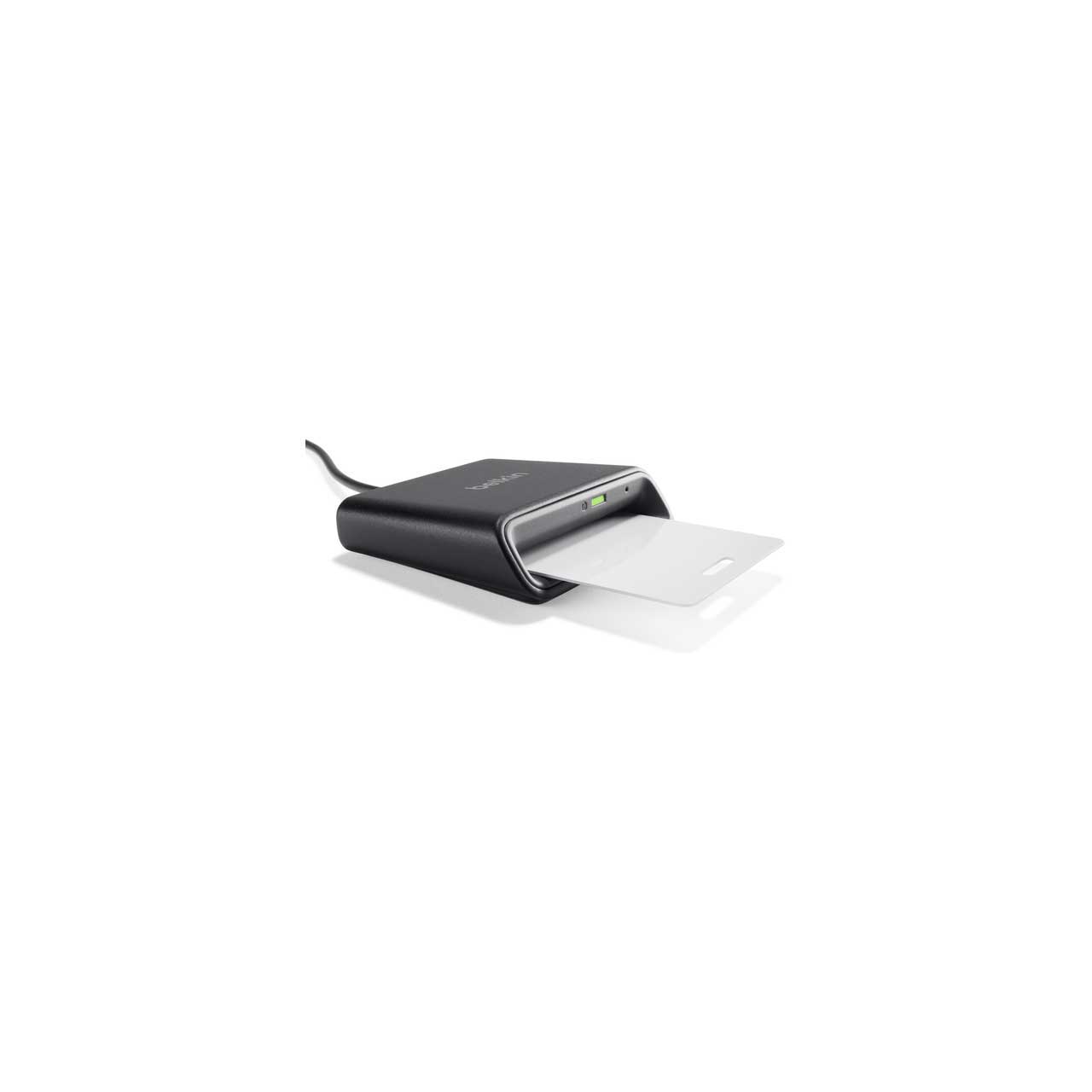

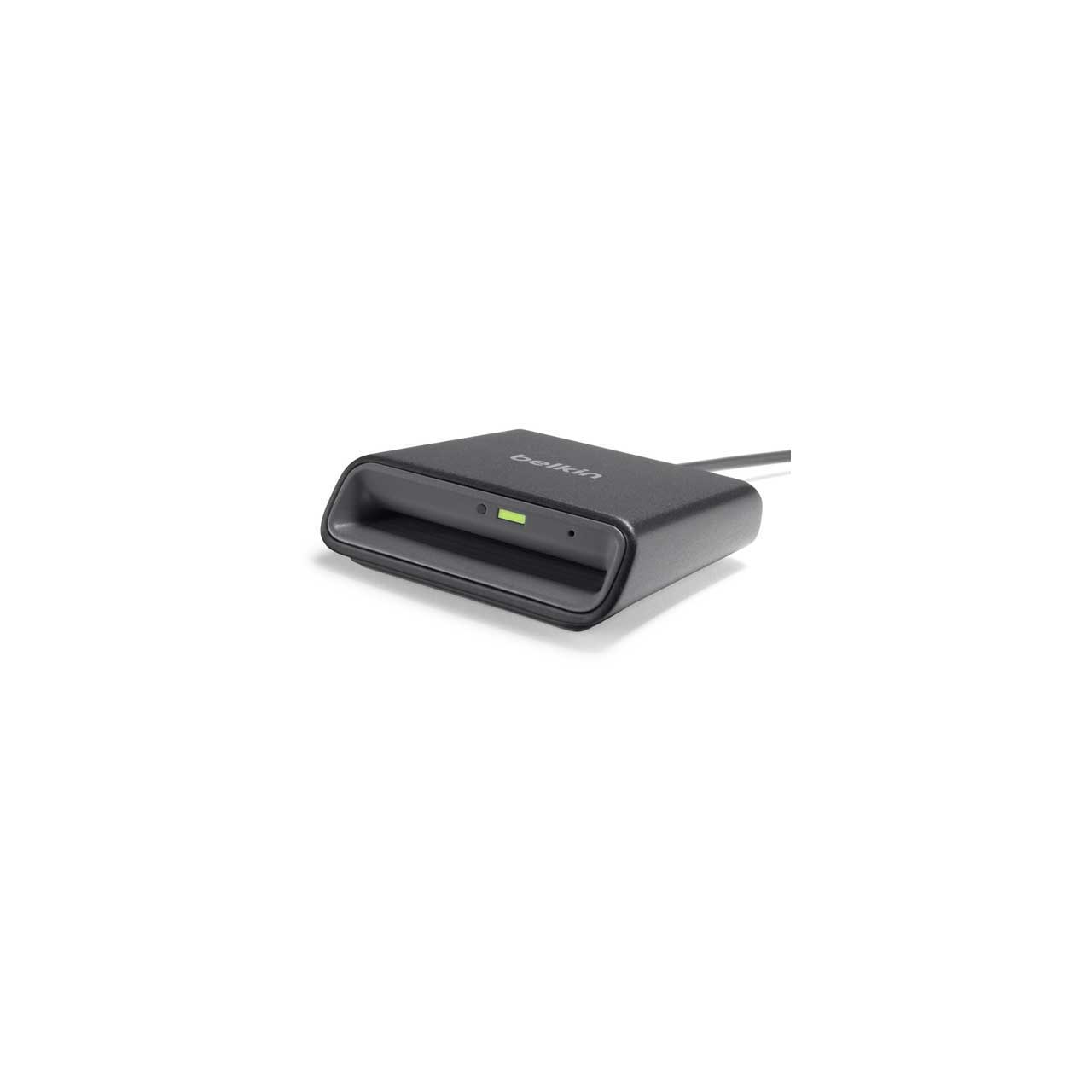

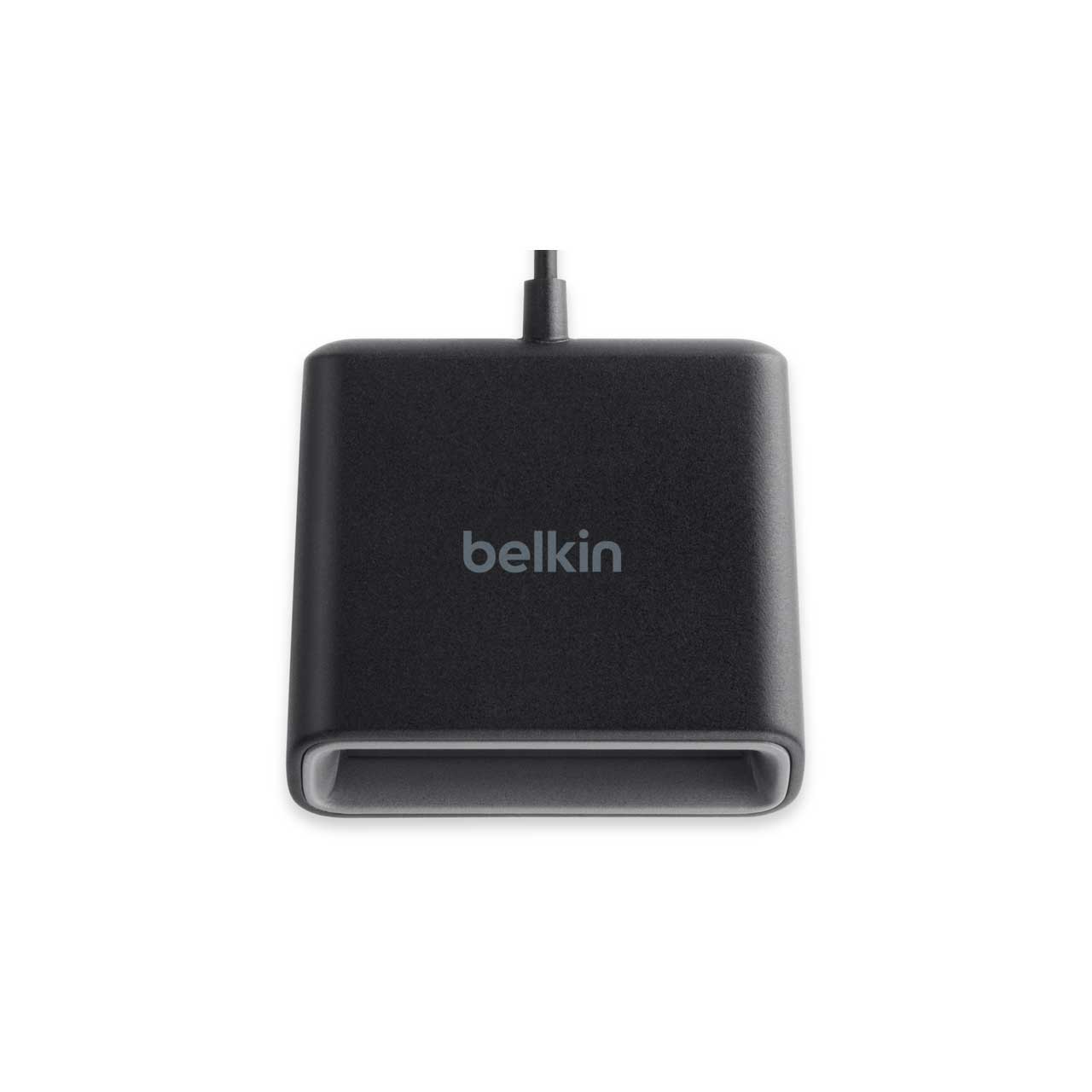

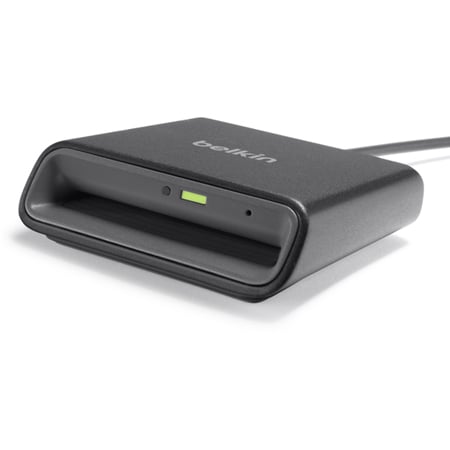

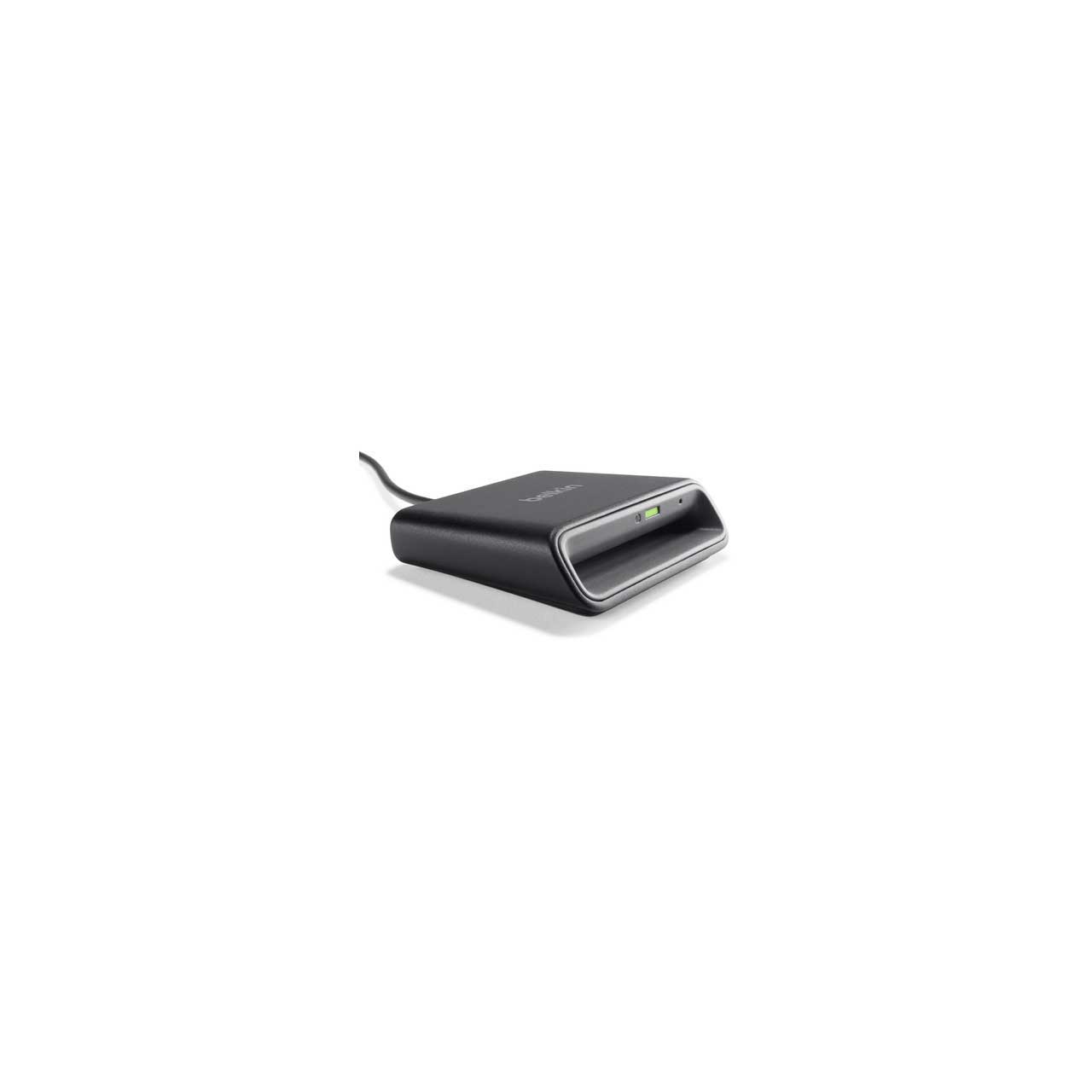

    The Belkin F1DN005U contact smart card reader is designed for the needs of a wide variety of secure applications. Compliant with major industry standards including FIPS-201, ISO/IEC 7816, USB CCID, and Microsoft WHQL, the F1DN005U works seamlessly across multiple operating systems and contact smart cards.

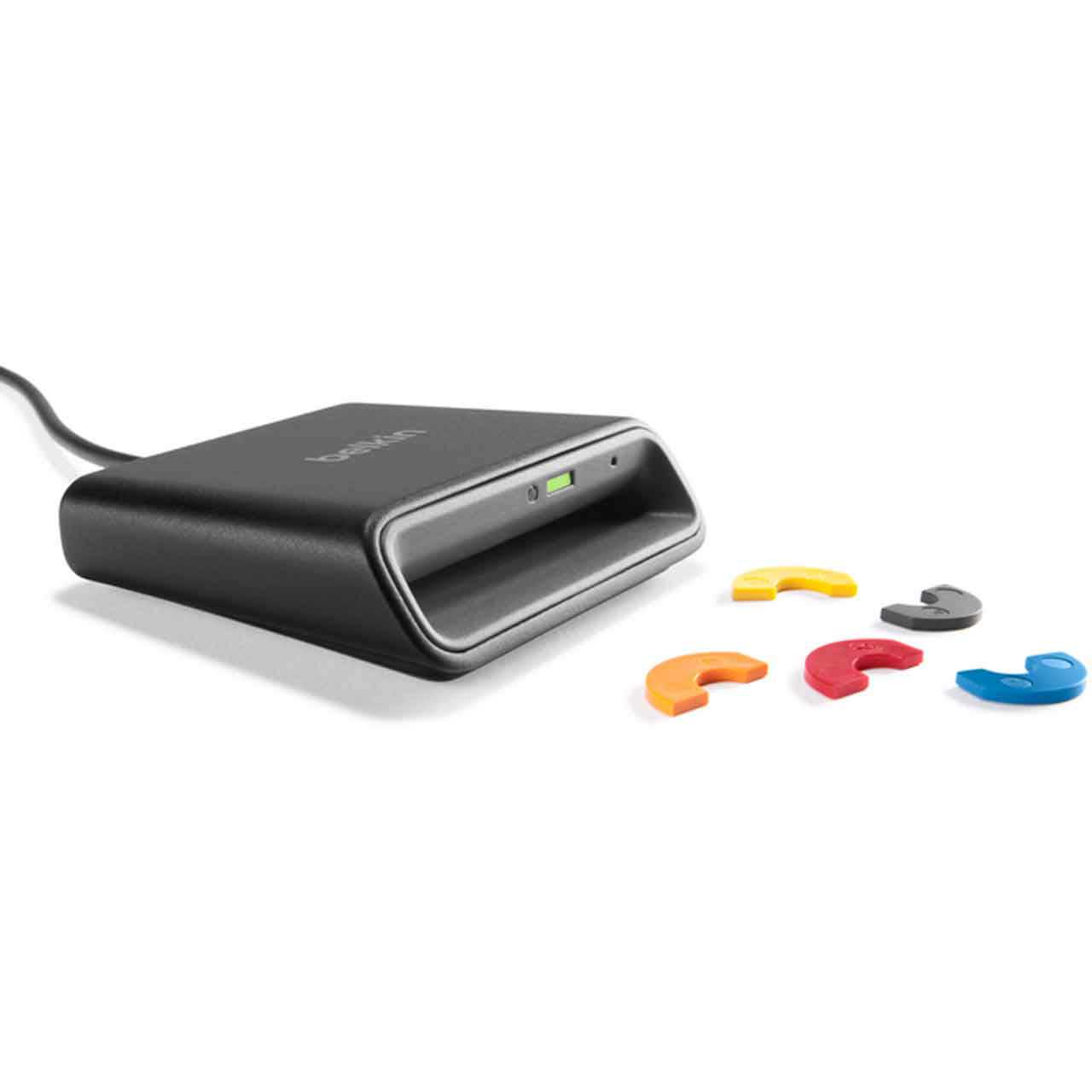

    Designed for high security applications, the F1DN005U comes in a uni-body enclosure that prevents physical tampering of the electronics and uses only Read-Only Memory (ROM) for the firmware. Similar to the Belkin NIAP-certified secure KVMs, an integrated slot can be populated with supplied color chips to visually identify the network the reader is associated with in order to reduce operator error when working across multiple security enclaves.

    The wedge-shaped design optimizes ergonomics while allowing the readers to be mounted on a desk, stacked on top of each other, or mounted under the desk with the included premium, double-sided foam mounting tape.

    • Features:

      • Appropriate for Secure Government Use - Tamper-proof chassis, integrated color chip slot for easy network identification and compliant with FIPS201 certified cards
      • TAA Compliant Designed in California, assembled in Taiwan
      • Broad Support for Standard Smart Cards ISO 7816 Class A/B/C compliant; 5V, 3V, 1.8V
      • Broad Operating System Support - Full support for Microsoft WHQL, Microsoft HCK, and USB CCID for out-of-box compatibility with no additional software or drivers required

    • Specifications:

      • Smart Card Interface
      • Supported Standards: ISO/IEC 7816
      • Contact Protocols: T=0, T=1
      • Contact Type: 8 friction contacts, ISO 7816 placement, Card detect switch
      • Communication Speed: Up to 420 kbps, PPS, F1 parameter
      • Frequency: Up to 8 MHz, PPS, DI parameter
      • Class (ISO 7816): A, B, C (5V, 3V, 1.8V)
      • LED Indicator: 1x for Power/Status/Card Detect
      • Cable Length: 6 feet (2m) USB Type A
      • Supported Operating Systems: MacOS, Windows 7 or higher (32/64-bit), Linux (64-bit)
      • Belkin KVM Compatibility: All Secure KVMs with available CAC port

        Physical
      • Dimensions: 2.7 (W) x 2.5 (D) x 0.9 (H) inches
      • Weight: 3.2 oz

        Power
      • Power Supply: USB bus powered

        Environmental
      • Operating Temperature: 32° to 122° F
      • Humidity Storage & Use: 0-90% RH, non-condensing

        Certification
      • Regulatory Compliance: FIPS-201, GSA, RoHS, FCC, CE Class B, ICES, CISPR

        General Information
      • Made In: Designed in California. Assembled in Taiwan (TAA Compliant)
      • Durability: 100,000 insertions
      • Warranty: 3 Years

    • Item Includes:

      • 1x Belkin F1DN005U USB CAC Government Smart Card Reader - TAA Compliant - FIPS-201 ISO/IEC 7816/USB CCID/Microsoft WHQL

    • Warranty:

      • 3 Years

    • GTIN:

      0722868900420
