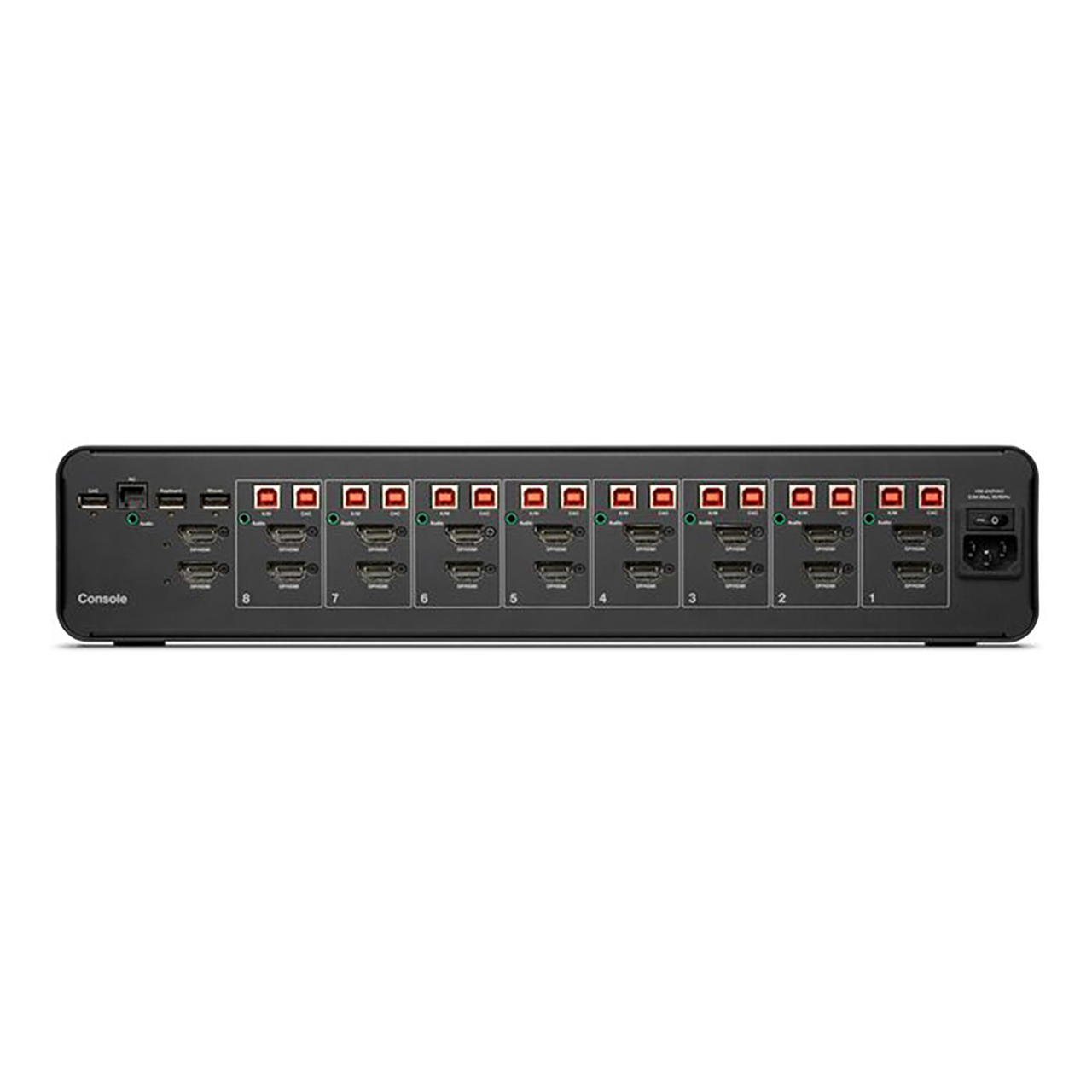

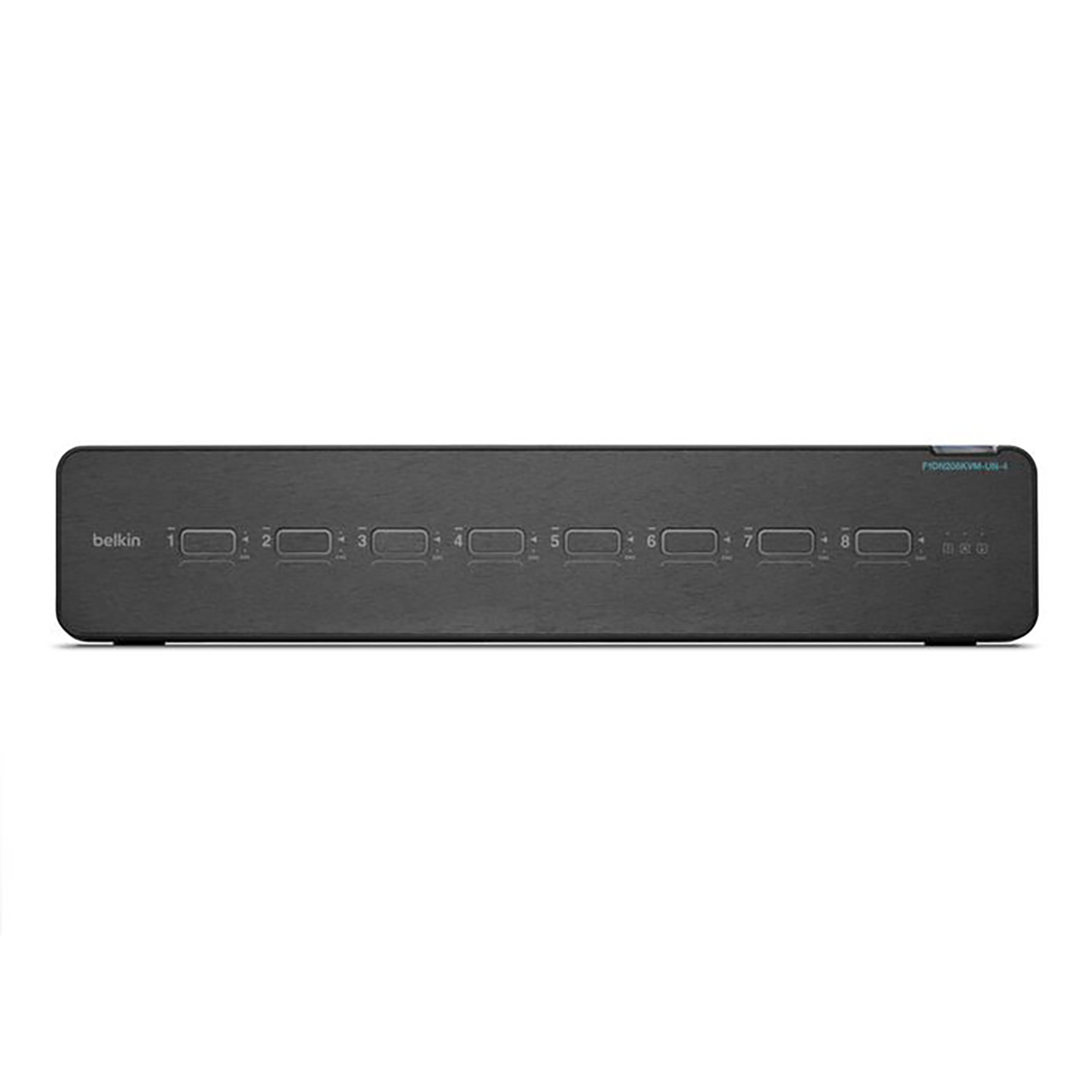

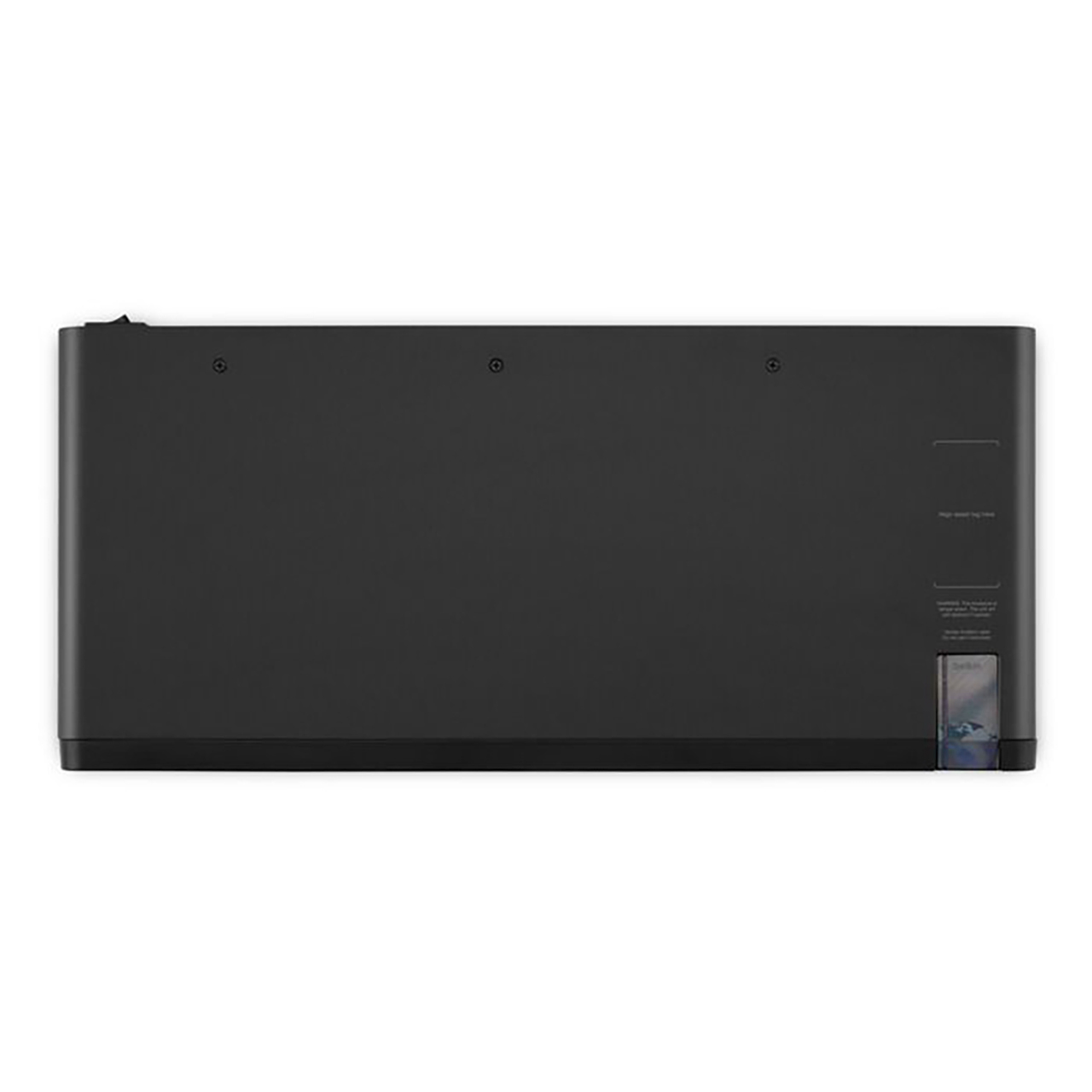

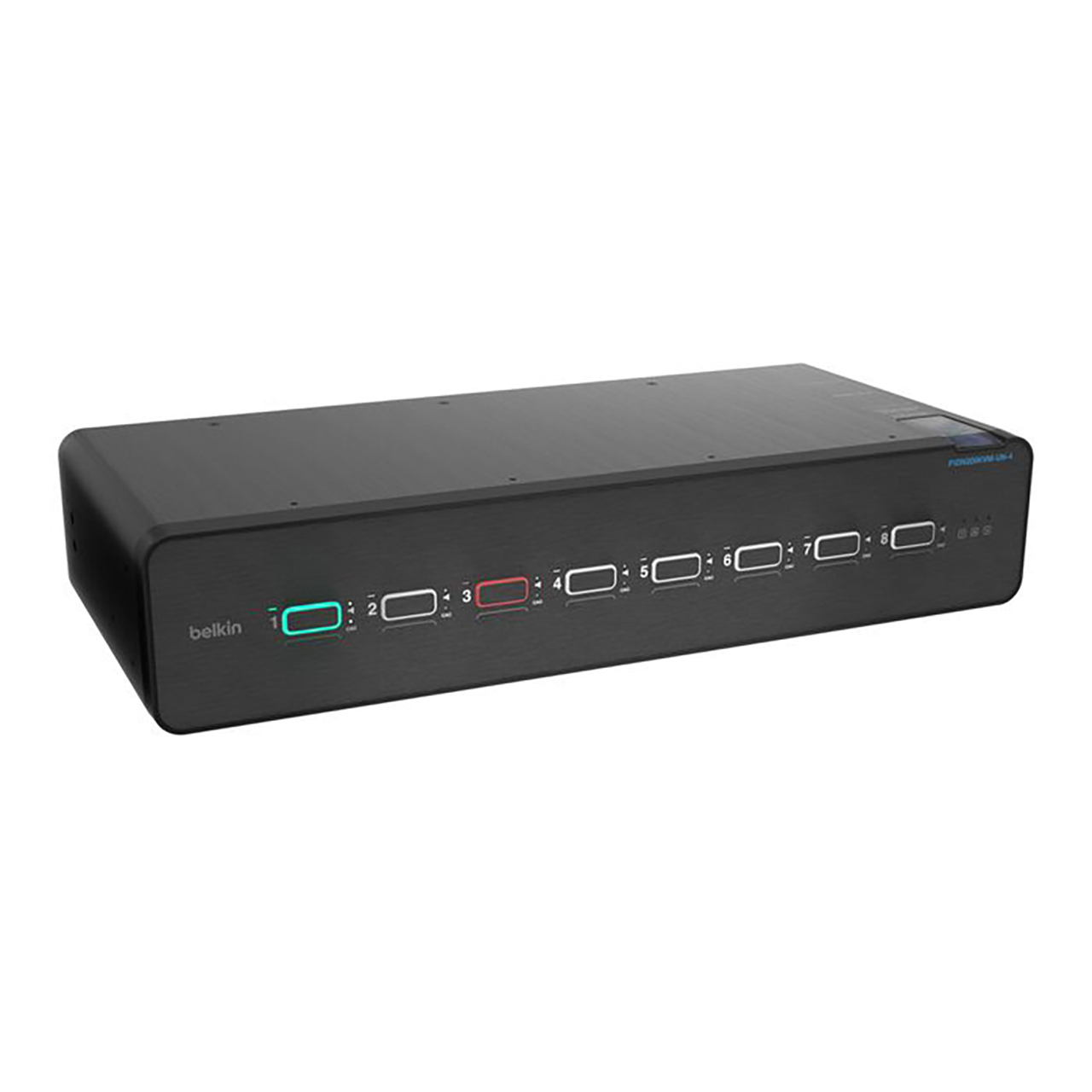

Belkin F1DN208KVM-UN-4 Universal 2nd Gen Secure KVM Switch - 8-Port Dual Head w/CAC and 4K@60Hz Support - TAA Compliant

ITEM #: BKN-F1DN208KVMUN MFG #: F1DN208KVM-UN-4

Primary Image
  • Product Image Thumbnail 1 of 4
  • Product Image Thumbnail 2 of 4
  • Product Image Thumbnail 3 of 4
  • Product Image Thumbnail 4 of 4
Free Shipping with $49 Minimum Order

List Price:

$2,879.99

Our Price:

$2,722.99

Availability: Usually Ships in 5-14 Days.
Please Email, Chat or Call (800) 522-2025 for Detailed Delivery Info
iAvailability Description Popup


F1DN208KVM-UN-4 - Overview

The Belkin F1DN208KVM-UN-4 is a Universal 2nd Gen Secure KVM Switch with an 8-Port Dual Head with CAC and 4K@60hz Support. Created to deliver a streamlined user experience when working across security enclaves, Belkin's Universal 2nd Gen Secure KVM switches are designed to meet the latest in Common Criteria and NIAP Protection Profile for Peripheral Switching Devices version 4.0 requirements.

Compatible with the optional Belkin Secure KVM Remote Control with Integrated Keyboard (sold separately), the Universal 2nd Gen Secure KVMs elevate the user experience while vastly improving enclave awareness and minimizing operator errors. The keyboard combined with a variety of mounting options from Belkin helps declutter the desk without jeopardizing operator control. Optical data diodes and embedded peripheral emulation allow operators to safely share peripherals across multiple security enclaves without exposing potential vectors for attack. Innovative video combo connectors combined with auto-sensing and internal converters make the Universal 2nd Gen Secure KVM series compatible with modern and legacy systems, eliminating the need for external converters and their inherent cost and compatibility problems.

Always on, active anti-tamper and some of the most advanced protections against ultrasonic audio attacks round out the Universal 2nd Gen Secure KVMs. US-manufactured and TAA-compliant, these Secure KVM series are ideal for use in IT environments that demand rigorous cybersecurity provisions-including government, military, and healthcare applications.

  • Features:

    • Designed for NIAP Protection Profile PSD 4.0 Compliance
    • Combo connector video support for up to 4K (3840x2160), @60hz refresh
    • Compatible with the Belkin Secure KVM Remote Control with Integrated Keyboard (Optional)
    • Customizable port coloring and naming on the front panel: Facilitates port identification and reduces user switching errors. Color coding mimicked by Belkin KVM Remote Control with Integrated Keyboard
    • Extrusion form factor that supports an under-counter mount (Optional)
    • Supports TAA combo and video cables for easy deployment
    • Supports up to eight host computers
    • Supports two displays for the user
    • CAC and Audio freeze functionality
    • Dedicated processors with emulators for every port: Isolated port paths for video, audio, and peripherals prevent data leaks between computers
    • Unidirectional data paths: Optical data diodes prevent peripherals from being used to breach systems
    • Display security: Protected display interface prevents data leakage via the monitor
    • Analog audio via 3.5mm jack with ultrasonic audio filtering
    • Peripheral management: USB device detection prevents unauthorized peripheral usage
    • Active Anti-tampering and Secure labeling: Holographic tamper-evident product label provides visual indication and prevention of tampering
    • Fast switching: No keyboard or mouse delays when switching ports, minimal video delay
    • Secure packaging: Tamper-evident packaging ensures product is not tampered with during transport

  • Specifications:

    • Console Ports: 1 Dual Monitors
    • Certifications: FCC Class A UL CE RoHS ICES RCM
    • Display Connection: DP/HDMI
    • Display Type: DP/HDMI
    • Form Factor: Desktop - Rack Mount
    • Host Ports: 8
    • Housing Type: Formed Sheet Steel
    • Indicator Light Status: Port Selected EDID Keyboard Mouse
    • Keyboard Input: 1
    • Keyboard/Mouse Connections: 2
    • Keyboard Type: USB
    • KVM Maximum Resolution Supported: 4K@60Hz
    • Local Console Interfaces: 1 Dual Monitors
    • Maximum Resolution: 4K@60Hz
    • Mouse Input: 1
    • PC Ports: 8
    • Power Rating: 12VDC 4.0A
    • Power Supply Included: Yes
    • Power Supply Type: Internal
    • Remote Control Included: No
    • Supported Audio Formats: Analog via 3.5mm
    • Supported Video Formats: DP/HDMI
    • Input Voltage (AC): 100V - 240V
    • AC Plug Style: IEC Female
    • Ports: CaC/DPP, Computers, Keyboard, Monitors, Mouse, Remote

  • Item Includes:

    • Belkin F1DN208KVM-UN-4 Secure Universal 2nd Gen 8-Port, Dual Monitor Switch
    • 12V, 2.5A Universal Power Supply with Worldwide Adaptors
    • Port Naming Labels
    • Rack mount adaptors
    • Quick Start Guide and Compliance Documentation

  • GTIN:

    0745883800988
