Belden 2183R CMR-LP/Riser 4K UHD Media Cable UL4299-POH/POE HDBaseT F/UTP 4-Pr/23AWG - Black - 1000 Ft/Reel-In-Box

ITEM #: BL-2183R1000BXBK MFG #: 2183R 010A1000

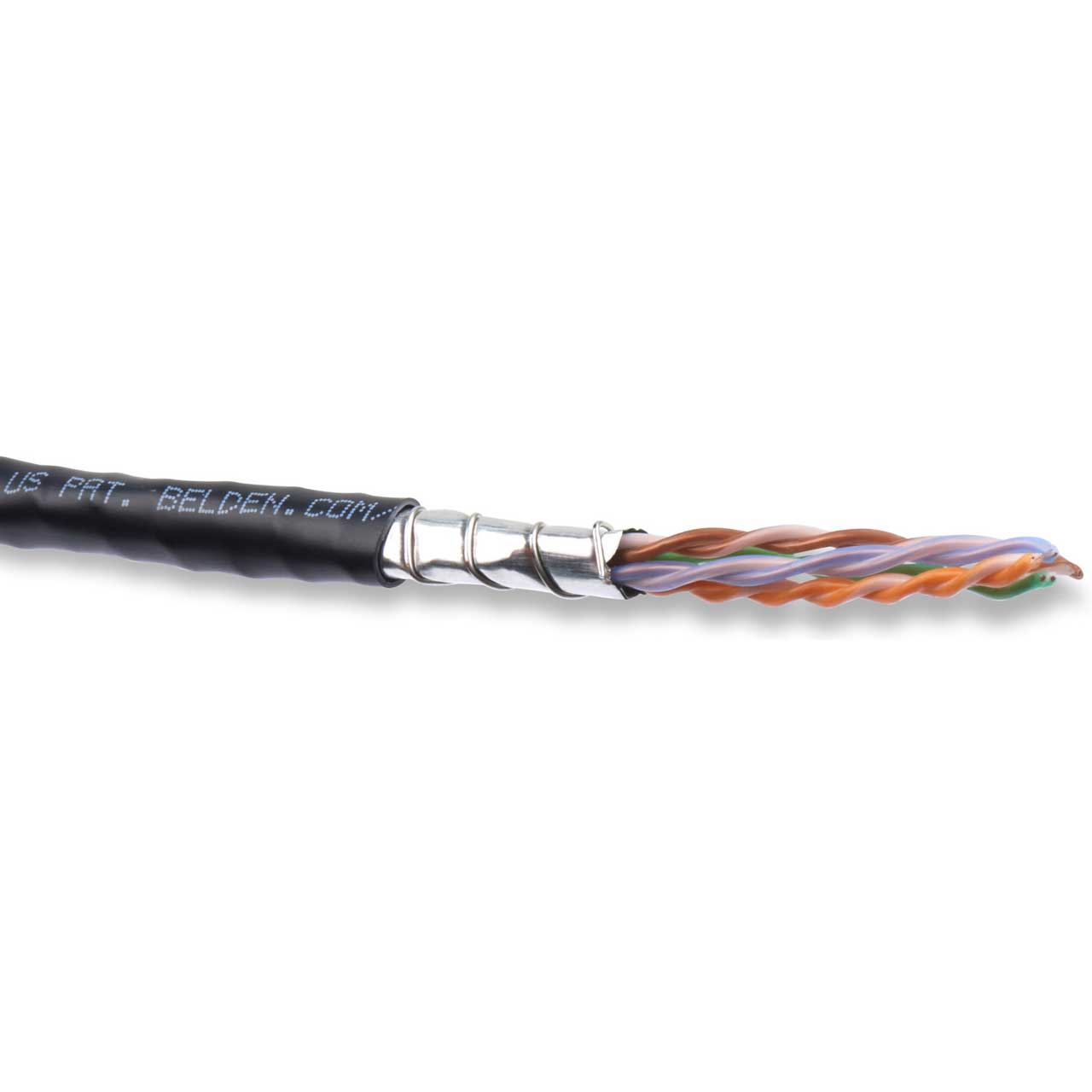

Primary Image
Free Shipping with $49 Minimum Order

Item unavailable. Please select another option.

Ask a Markertek Expert if you need assistance finding an appropriate substitute.

List Price:


Our Price:


Availability: Typically Ships in 3-10 Business Days
iAvailability Description Popup

    2183R 010A1000 - Overview

    Designed specifically for optimal performance in 4K HDBaseT transmission

    Belden 2183R is a CMR-LP/Riser 4K UHD F/UTP Media Cable. It features 4 Pair 23 AWG Solid Bare Copper Conductors with PP Insulation, a Helical TC Drain with Ripcord in a Riser CMR-LP (0.6A) rated PVC Jacket.

    Belden 2183P and 2183R cables were designed specifically for optimal performance in 4K HDBaseT transmission. These shielded cables deliver 4K content over 100 meters in a unique, small, sleek design. Combined with either standard field-mount plugs or Belden's REVConnect connectivity system, it is the easiest to install, most reliable HDBaseT cabling solution available.

    This cable ships in Belden's Reel-In-Box installer packaging.

    Belden's Reel-In-Box packaging makes cable installation quick and easy, featuring dual cut-outs on the top and side of the packaging to enable a clean cable payout. Handle holes on all four sides make for easy carrying and positioning. The Reel-In-Box corrugated fiberboard box has plastic inserts for easy handling and there is a tension control feature that can be adjusted manually for optimum payout during installation. A twist-and-tighten mechanism on the accessible reel hub is convenient for either locking in place during transit or adjusting the tension for the best pulling tension.

    Full 5-Play
    4K (UHD/DCI)
    POH, POE

    • Features:

      • Durable: The cables are resistant to rigors of installation with Bonded-Pair, durable, corrugated flex shield and helical drain
      • Lean: Belden HDBaseT cables are up to 25% smaller than Category 7a cables
      • Optimized: All Belden HDBaseT cables are designed and tested specifically for optimal 4K UHD performance
      • Flexible: The cables are easy to bend and fit into small spaces
      • Tough: Belden 2183P and 2183R have 45 lbs of pull tension
    • Specifications:

      • Conductor Count: 8
      • Total Number of Element: 4
      • Conductor Size: 23 AWG
      • Conductor Stranding: Solid
      • Conductor Material: BC - Bare Copper
      • Insulation Element: Pair(s)
      • Insulation Material: PP - Polypropylene
      • Insulation Nom. Thickness: 0.013 in (0.33 mm)
      • Insulation Color Code: White/Blue Stripe & Blue, White/Orange Stripe & Orange, White/Green Stripe & Green, White/Brown Stripe & Brown
      • Outer Shield Shield Type: Tape
      • Outer Shield Material: Bi-Laminate (Alum+Poly)
      • Outer Shield Coverage: 100%
      • Outer Shield Drainwire Type: 26 AWG (Solid) TC
      • Outer Shiled Notes: Two drain wires applied helically for added flexibility
      • Outer Jacket Nom. Thickness: 0.025 in (0.64 mm)
      • Outer Jacket Material: PVC - Polyvinyl Chloride
      • Outer Jacket Nom. Diameter: 0.290 in (7.37 mm)
      • Outer Jacket Ripcord: Yes
      • Overall Cable Diameter (Nominal): 0.290 in (7.37 mm)
      • Installation Temp Range: 0°C To +75°C
      • Environmental Space: Indoor - Riser
      • UL Temp Rating: 90°C
      • Storage Temp Range: -20°C To +75°C
      • Operating Temp Range: -20°C To +75°C
      • Cold Bend Test: -20°C Compliance per UL 1581
      • Bulk Cable Weight: 37 lbs/1000ft
      • Max Recommended Pulling Tension: 45 lbs
      • Min Bend Radius/Minor Axis: 1.25 in
      • Min Bend Radius/Installation:< 3.0 in
    • Item Includes:

      • 2183R CMR-LP/Riser 4K UHD Media Cable - Black - 1000 Ft/Reel-In-Box
    • Warranty:

      • 10 Year Limited Warranty
