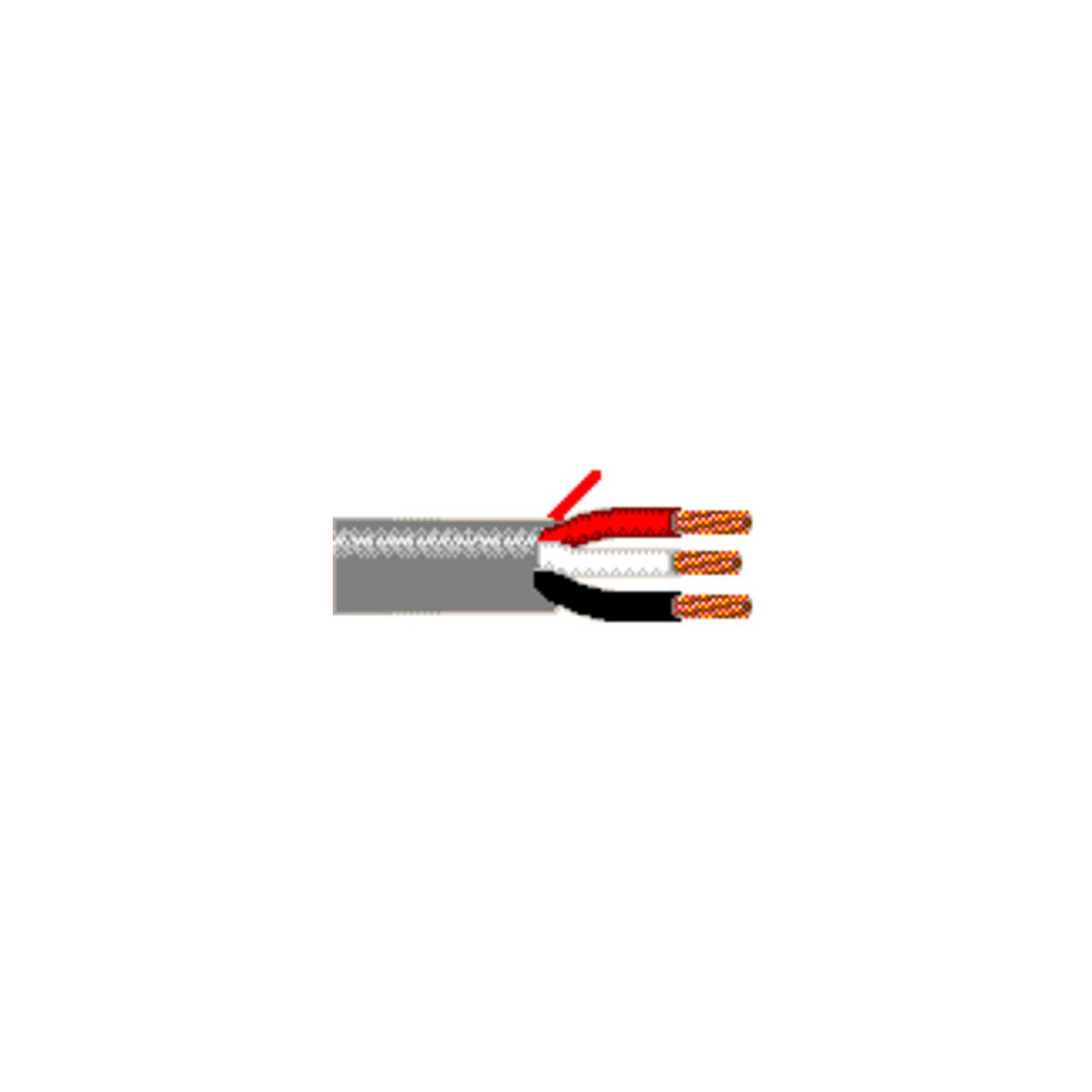

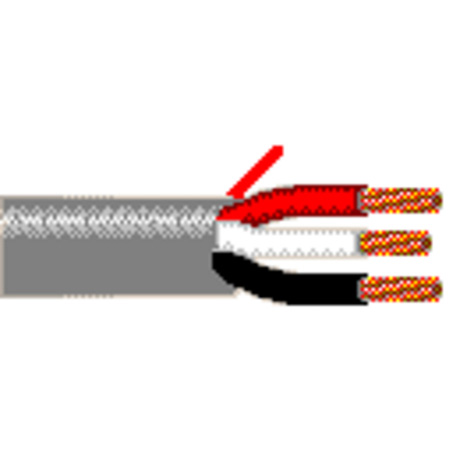

Belden 5101UE Security and Commercial Audio Cable - 14 AWG - Bare Copper - 3 Conductor - Gray - 1000 Foot

5101UE 0081000 - Overview

• Specifications:

  • Conductor: 14 AWG, 4 pair 19x27 stranding bare copper
  • Total Number of Conductors: 3
  • Insulation Material: PP - Polypropylene
  • Outer Jacet Material: PVC - Polyvinyl Chloride - 0.232 Inch
  • Maximum Capacitance (unbalanced): 50 pF/100m
  • Nom. Mutual Capacitance: 17 pF/ft
  • Maximum Conductor DCR: 74 Ohm/100m
  • Maximum DCR Unbalance: 3%
  • Max DCR Unbalanced between pairs: 5%
  • Max Delay @ 100 MHz: 537.6 ns/100m
  • UL Voltage Rating: 300V RMS
  • UL Temp Rating: 75°C
  • Storage Temp Range: -20°C To +75°C
  • Installation Temp Range: +5°C To +50°C
  • Operating Temp Range: -20°C To +75°C
  • Bulk Cable Weight: 47 lbs/1000ft
  • Max Recommended Pulling Tension: 142.5 lbs
  • Min Bend Radius/Minor Axis: 2.375 in
  • Min Bend Radius/Installation: 2.375 in
  • NEC Articles: 725
  • NEC/(UL) Specification: CL3R
  • CEC/C(UL) Specification: CL3R
  • ISO/IEC Compliance: 11801 ed 2.2 (2011) Class EA
  • CPR Euroclass: Eca
  • ANSI/TIA Category: Category 6A
  • ANSI Compliance: S-116-732-2013 Category 6A, ANSI/NEMA WC-66 Category 6A
  • Telecommunications Standards: ANSI/TIA-568-C.2 Category 6A
  • IEEE Specification: POE per 802.3af & POE+ per 802.3at-2009
  • Other Specification: Verified Channel/Category 6A
  • Other Standards: C(UL)US CMP 105C OR (UL) CMP-LP (0.6A) OR
  • CL3P-LP (0.6A)
  • Color: Gray
