    6304FE 8771000 - Overview

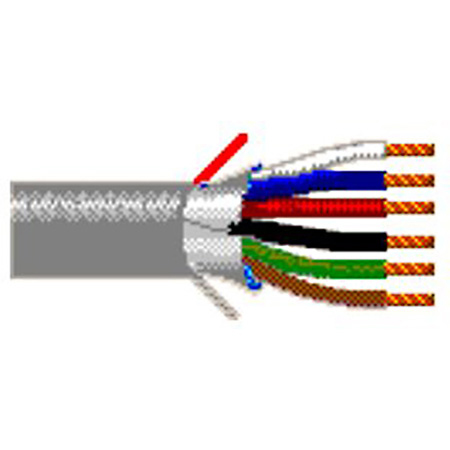

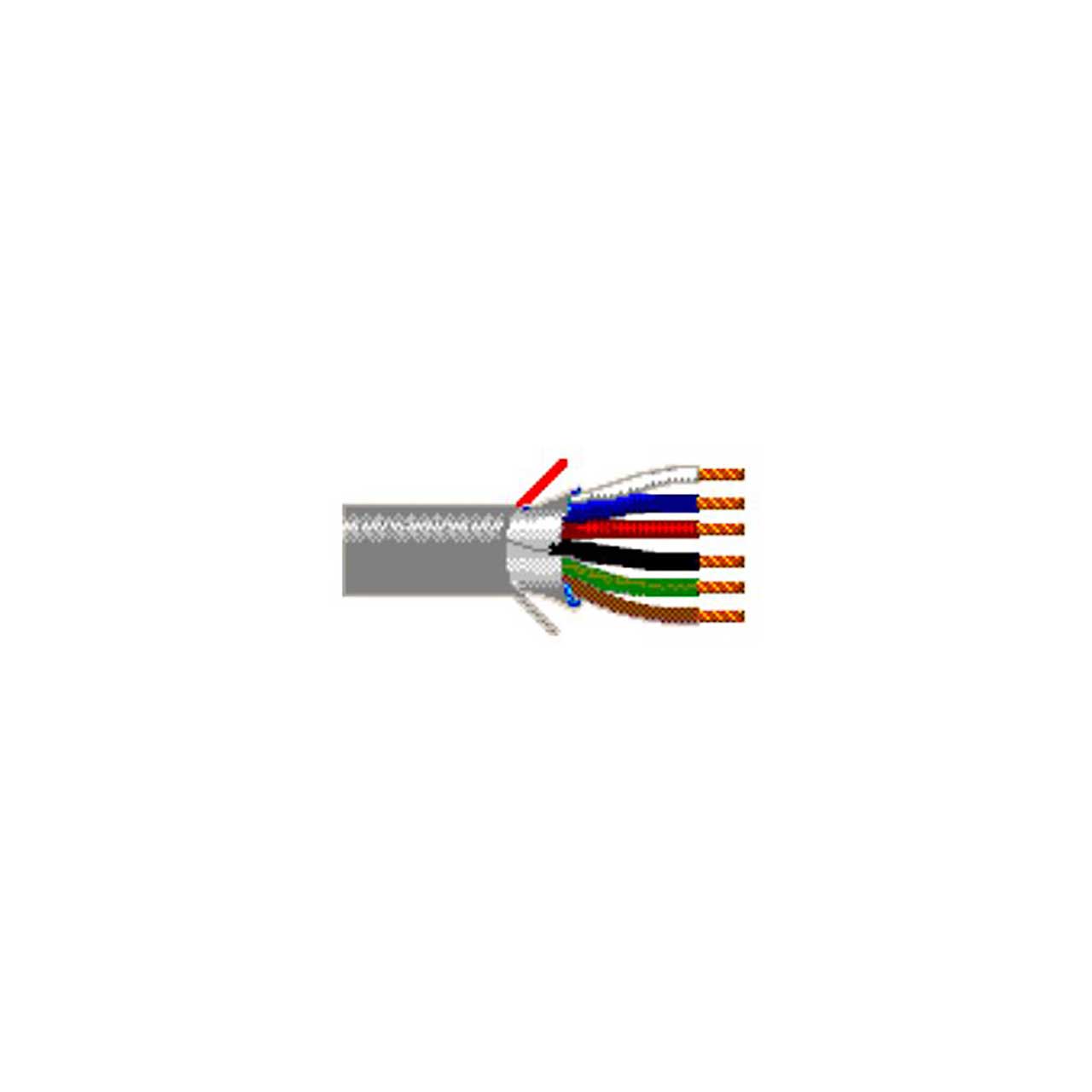

    Belden 6304FE 8771000 Security & Sound Cable, Plenum-CMP, 6-18 AWG stranded bare copper conductors with Flamarrest® insulation, Beldfoil® shield and Flamarrest® jacket with ripcord.

    • Specifications:

      • Conductor Count: 6
      • AWG Size: 18
      • Insulation: LS PVC - Low Smoke Polyvinyl Chloride Flamarrest® 0.009 in
      • Color Chart: 1 - Black; 2 - Red; 3 - White; 4 - Green; 5 - Brown; 6 - Blue
      • Conductor DCR: 6.5 Ohm/1000ft / 14.4 Ohm/1000ft
      • Current: 10C Temperature Rise Per conductor @ 25°C: 3.5 A
      • UL Temp Rating: 75°C
      • Operating Temp Range: 0°C To +75°C
      • Bulk Cable Weight: 48.3 lbs/1000ft
      • Max Recommended Pulling Tension: 148.4 lbs
      • Min Bend Radius/Minor Axis: 2.25 in
      • NEC Articles: 800
      • NEC/(UL) Specification: CMP
      • CEC/C(UL) Specification: CMP
      • CPR Euroclass: Eca


    • GTIN:

      0612825175483
