Belden 7929A 24 AWG 4 Pair Cat 5e DataTuff Twisted Pair Cable - Black - 1000 Foot

Questions? Ask a Markertek Expert:
800-522-2025 Email

Belden 7929A 24 AWG 4 Pair Cat 5e DataTuff Twisted Pair Cable - Black - 1000 Foot

Manufacturer: Belden

Item #: BL-7929A-1000   •   MFG #: 7929A 0101000



List Price:$1,185.40
Our Price:$998.00

free ship


Colors:



Availability:
More on the way, usually ships in 3-10 business days
i
This item is currently out of stock and will ship the minute we receive it – typically 3-10 business days. Need it sooner? Expedited delivery options may be available. Email [email protected] or call customer service at 800-522-2025 and we'll make it happen.


    California Residents:
    8pt-triangleWARNING:
    Cancer and Reproductive Harm - www.P65Warnings.ca.gov

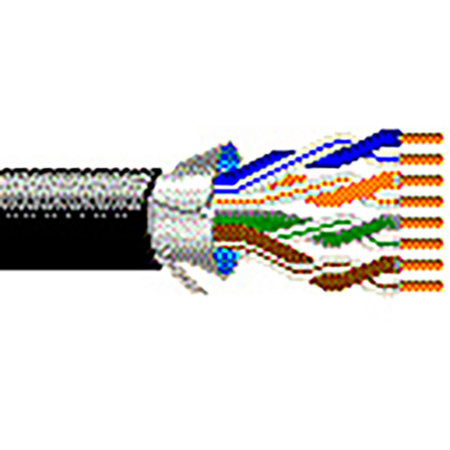

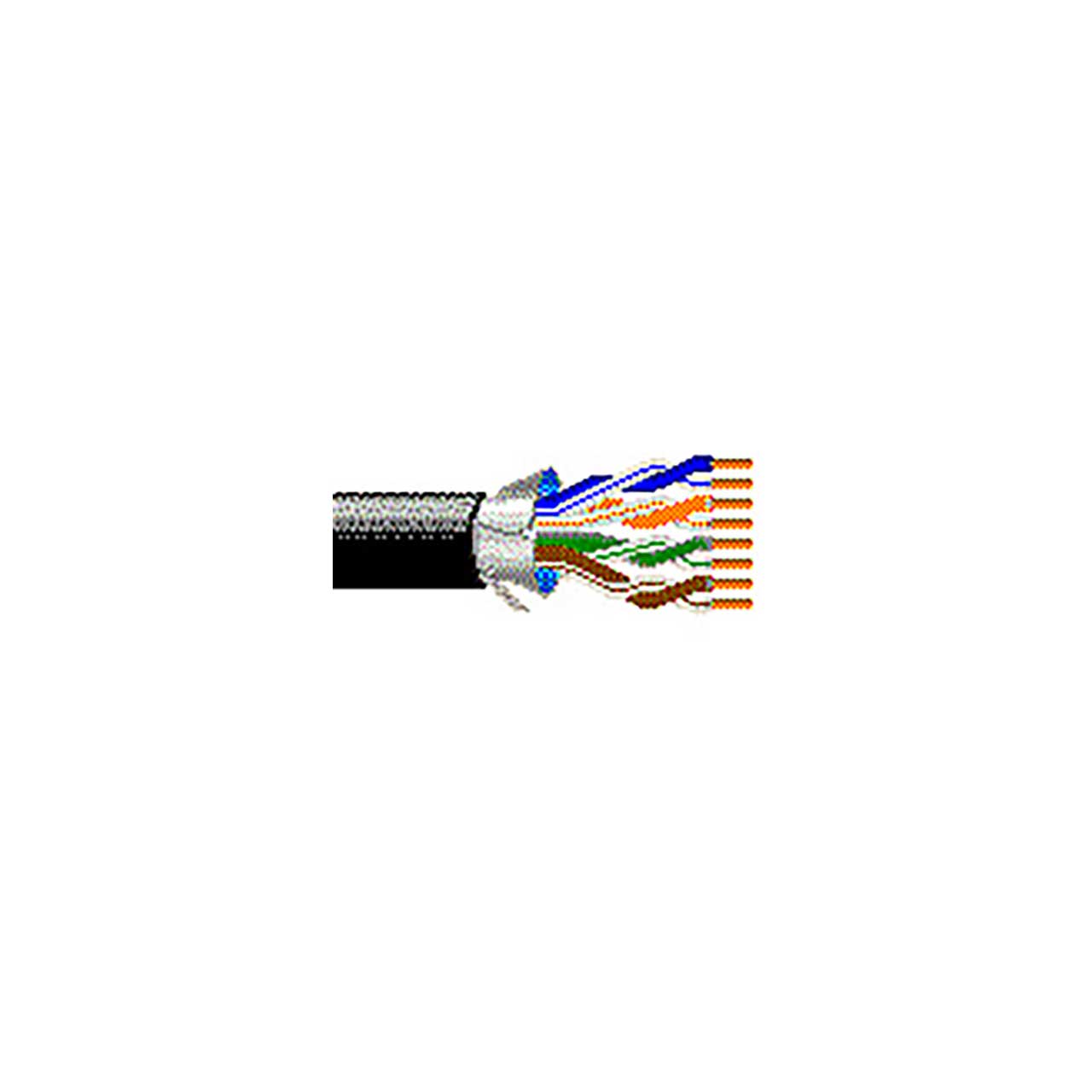

    Belden 7929A Industrial Ethernet Cat 5e, 4 Bonded-Pair 24AWG (Solid) Bare Copper, PO Insulation, Overall Beldfoil Shield, PVC Outer Jacket, CMR CMG. Suitable for mining, harsh environment, IIoT, factory or process automation, IP cameras and devices, data communication, etc applications.

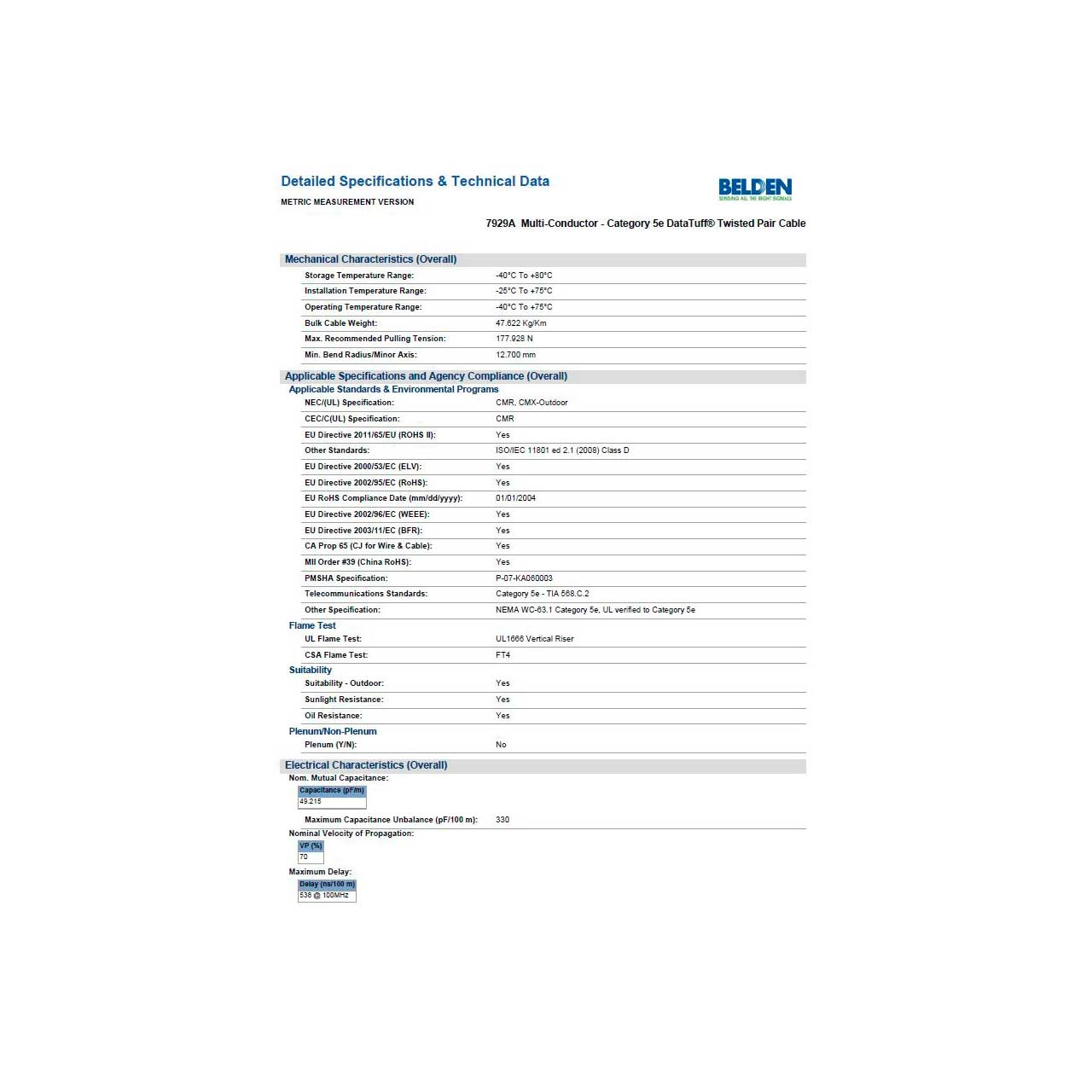

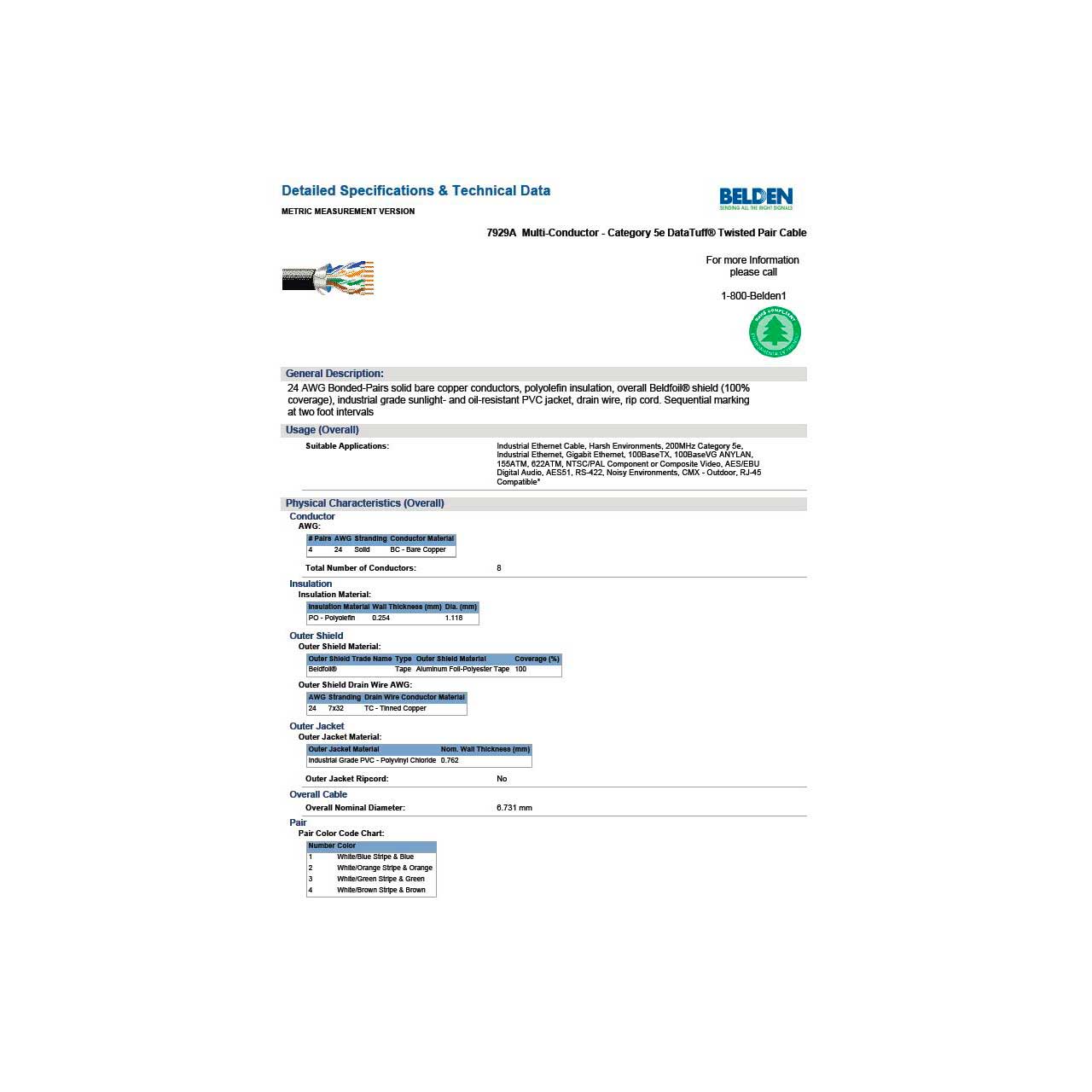

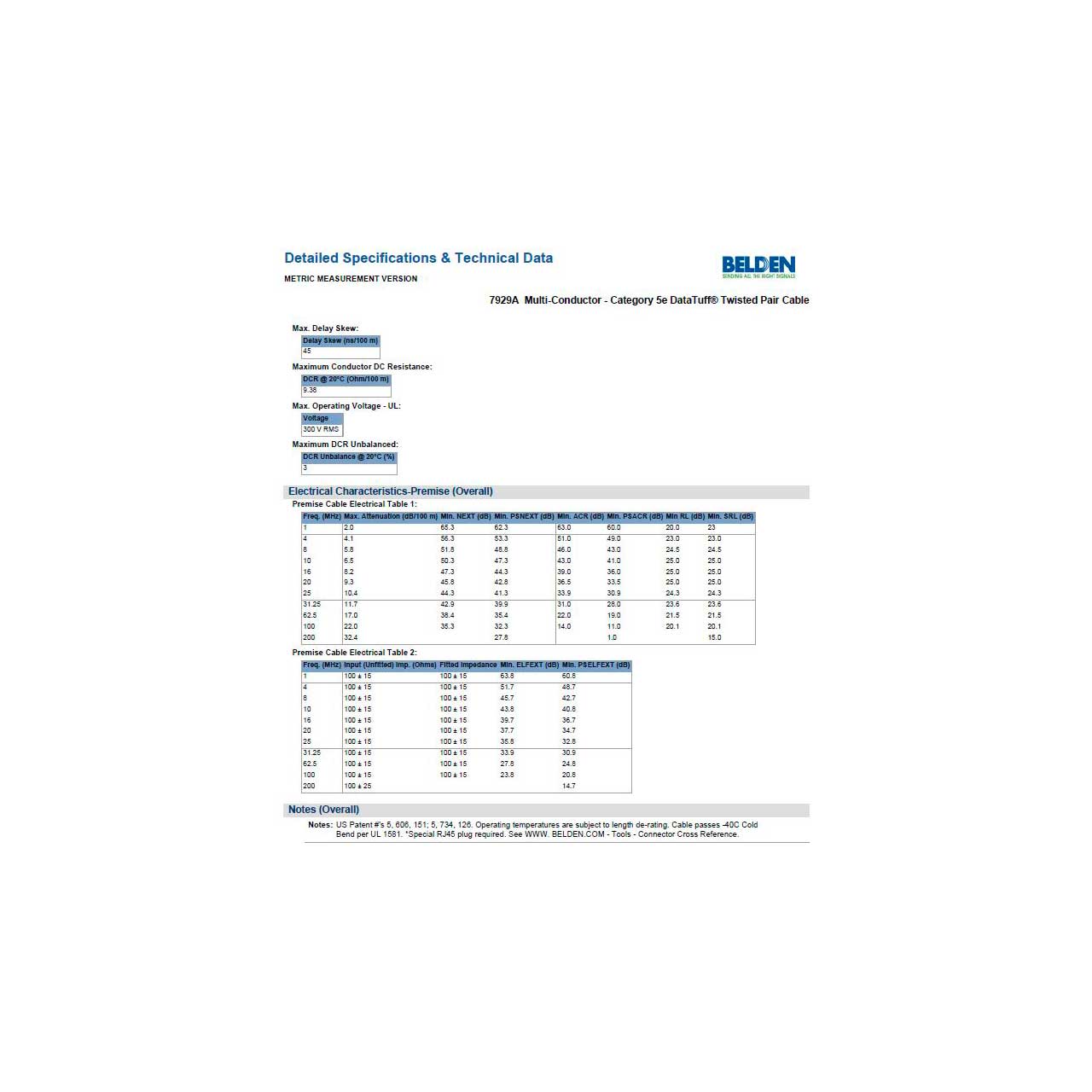

    • Specifications

      • Conductor: 4 pair 24 AWG solid stranding Bare Copper
      • Insulation material: Polyolefin
      • Outer Shield Material: Beldfoil Aluminum Foil-Polyester Tape
      • Outer Jacket Material: Industrial Grade PVC - Polyvinyl Chloride
      • Overall Nominal Diameter: 0.265 in.
      • Storage Temperature Range: -40°C To +80°C
      • Installation Temperature Range: -25°C To +75°C
      • Operating Temperature Range: -40°C To +75°C
      • Bulk Cable Weight: 32 lbs/1000 ft.
      • Max. Recommended Pulling Tension: 40 lbs.
      • Min. Bend Radius/Minor Axis: 0.500 in.
      • Maximum Delay (ns/100 m): 538 @ 100MHz
      • Max. Delay Skew (ns/100 m): 45
      • Maximum Conductor DC Resistance @ 20&dg;C (Ohm/100 m): 9.38
      • Voltage: 300 V RMS
      • Maximum DCR Unbalanced @ 20°C (%): 3
      • UL Voltage Rating: 300 V (CMR), 300 V (CMX-Outdoor)
      • Environmental Suitability: Indoor/Outdoor, Indoor, Outdoor, Sunlight Resistance, Oil Resistance
      • Flammability / Fire Resistance: UL1666 Riser, FT4, FT4, IEC 60332-1-2
      • NEC / UL Compliance: 800, CMR;CMX-Outdoor
      • CEC / C(UL) Compliance: CMG
      • Data Category: Category 5e

    • GTIN:

      0612825191520
