Belden 8279 75 Ohm Coax Cable - 1000 Foot

ITEM #: BL-8279-1000 MFG #: 8279 0101000

Primary Image
  • Product Image Thumbnail 1 of 4
  • Product Image Thumbnail 2 of 4
  • Product Image Thumbnail 3 of 4
  • Product Image Thumbnail 4 of 4
Belden
Free Shipping with $49 Minimum Order

List Price:

$1,727.00

Our Price:

$1,421.60

Add to Wish ListLeasing Options
Availability: Usually Ships in 5-14 Days.
Please Email, Chat or Call (800) 522-2025 for Detailed Delivery Info
iAvailability Description Popup
Report Lower PriceLarge Quantity Quote

8279 0101000 - Overview

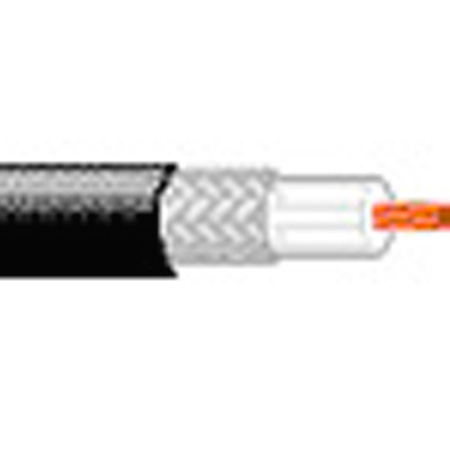

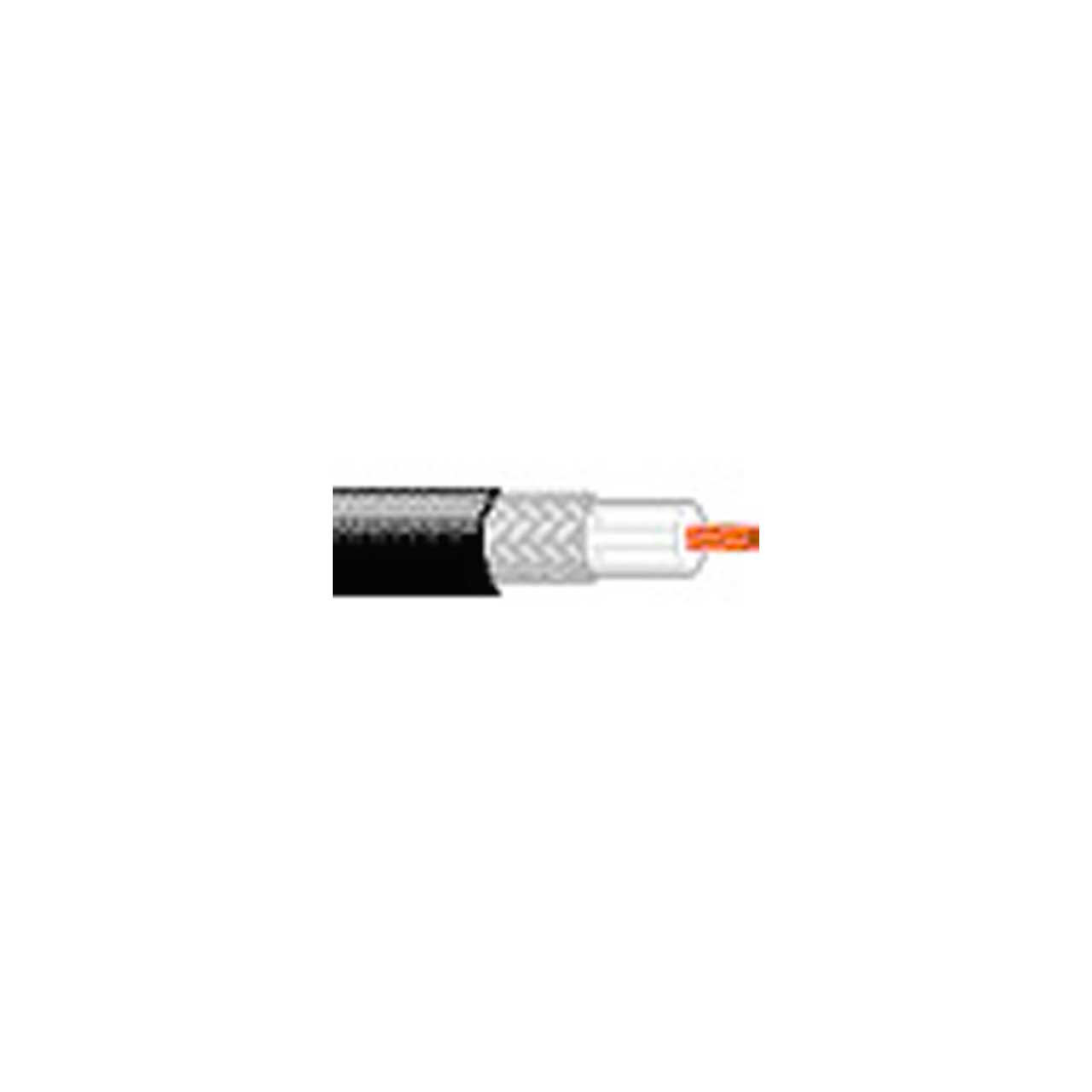

23 AWG stranded (7x32) .023" bare compacted copper conductor, polyethylene insulation, tinned copper braid shield (95% coverage), polyethylene jacket

  • Features:

    • Number of Coax: 1
    • RG Type: Mini 59/U
    • AWG: 23
    • Stranding: 7x32
    • Conductor Material: BCC - Bare Compacted Copper
    • Insulation Material: PE - Polyethylene
    • Outer Shield Material: TC - Tinned Copper
    • Outer Jacket Material: PE - Polyethylene
    • Plenum (Y/N): N
    • Nom. Characteristic Impedance: 75 +/- 2 Ohms


  • GTIN:

    0612825358084
