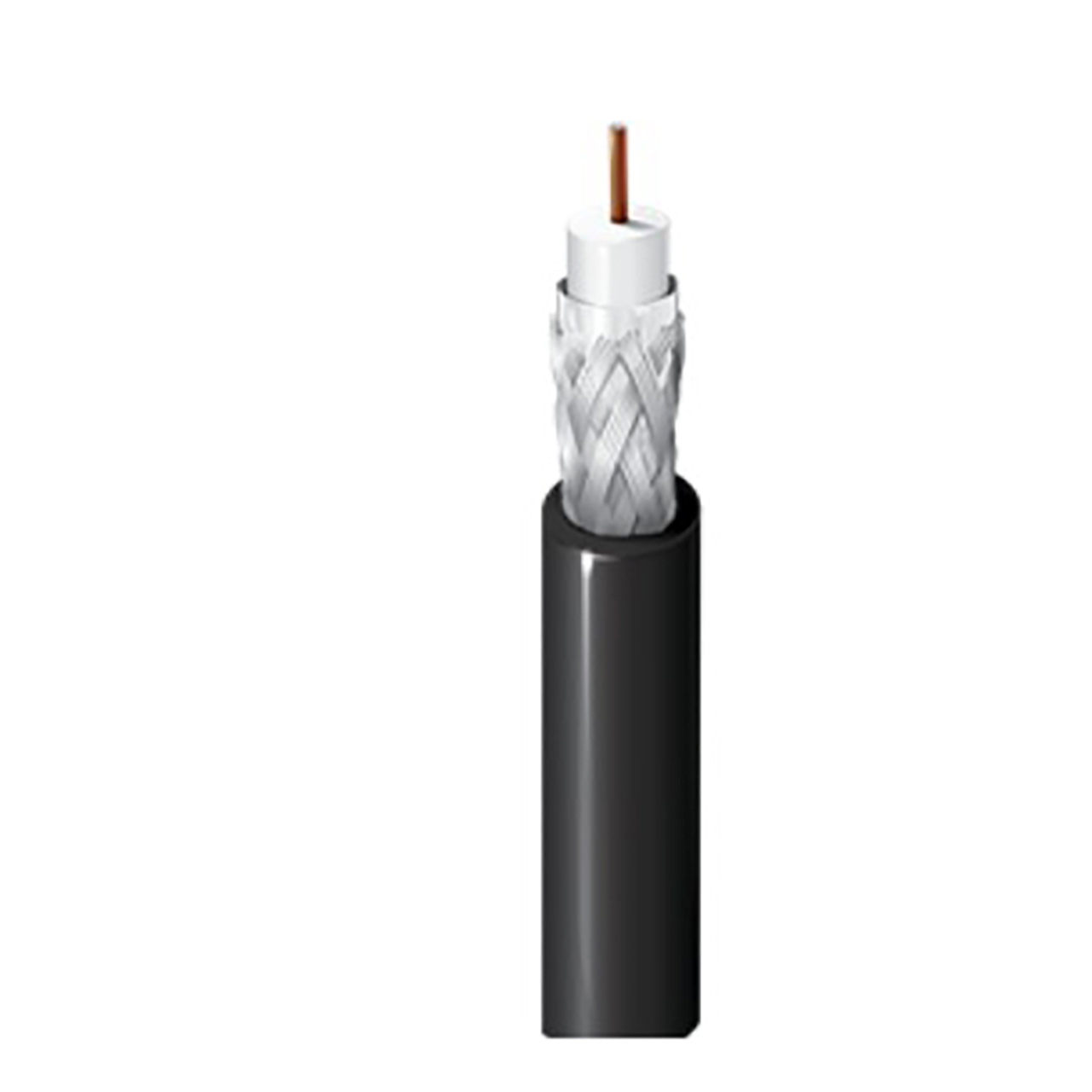

Belden 9116P CMP/Plenum RG6 Broadband Coaxial Cable - Solid Shield/BCCS 18AWG - Black - 1000 Foot/Unreel Box

9116P 010U1000 - Overview

• Features:

  • High Standards: Meets or exceeds applicable ANSI/SCTE standards for drop coaxial cable
  • Environmental Flexibility: Can install in any environment regardless of temperature, water, moisture or humidity
  • Durable: Contains a corrosion resistant center conductor


• Specifications:

  • Number of Coax: 1
  • Series Type: Series 6
  • Conductor AWG: 18
  • Conductor Stranding: Solid
  • Conductor Material: BCCS - Bare Copper Covered Steel
  • Conductor Nom. Diameter: 0.040"
  • Insulation Material: FFEP - Foam Fluorinated Ethylene Propylene
  • Nom. Insulation Diameter: 0.170" (4.32mm)
  • Outer Shield Material Trade Name: Duobond II
  • Outer Shield Material: Dual Shield - Bonded Duofoil/AL - Aluminum
  • Outer Jacket Material Trade Name: Flamarrest
  • Outer Jacket Material: PVC - Polyvinyl Chloride
  • Outer Jacket & Overall Nom. Diameter: 0.235" (5.97mm)
  • Plenum (Y/N): Y
  • Plenum Number: 9116,9116N,9116R
  • Nom. Characteristic Impedance: 75Ω
  • Overall Nominal Diameter: 0.235"
  • Environmental Suitability: Indoor - Plenum, Indoor
  • Sustainability: CA Prop 65
  • Flammability/Reaction to Fire: NFPA 262
  • NEC / UL Compliance: CMP, CATVP
  • CEC / C(UL) Compliance: CMP


• Item Includes:

  • 1x Belden 9116P RG6/18 Plenum Coaxial Cable - Black - 1000 Foot/Unreel


• Warranty:

  • 10 Year Limited Warranty


• GTIN:

  0612825224464
