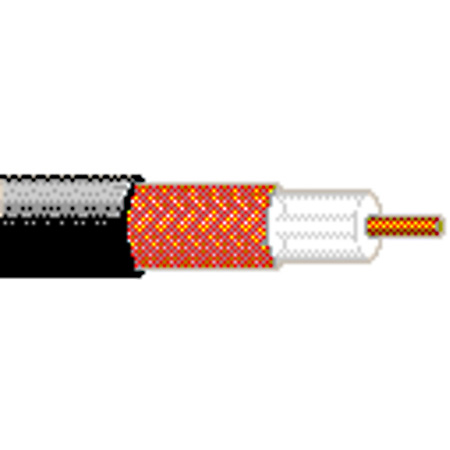

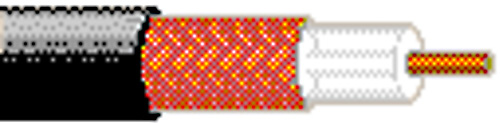

Belden 9201 RG58 52 Ohm Coaxial Cable - Boxed - 1000 Foot

ITEM #: BL-9201-U1000 MFG #: 9201 010U1000

Primary Image

This item is no longer available.
Ask a Markertek Expert if you need assistance finding an appropriate substitute.

(800) 522-2025Email

Items similar to the BL-9201-U1000

9201 010U1000 - Overview

Belden 9201 is a 52 ohm RG-58/U type Coaxial cable with 20 AWG solid .033" bare copper conductor, polyethylene insulation, bare copper braid shield (80% coverage), and a PVC jacket.

  • Specifications:

    • Environmental Space: Indoor (Not Riser or Plenum)
    • Conductor Count: 1
    • Conductor Size: 20 AWG
    • Material: Bare Copper
    • No. of coax: 1
    • Stranding: Solid
    • Non-UL Temp Rating: 75°C
    • Operating Temp Range: -40°C To +80°C
    • Bulk Cable Weight: 23 lbs/1000ft
    • Max Recommended Pulling Tension: 37 lbs
    • Min Bend Radius/Minor Axis: 2 in
