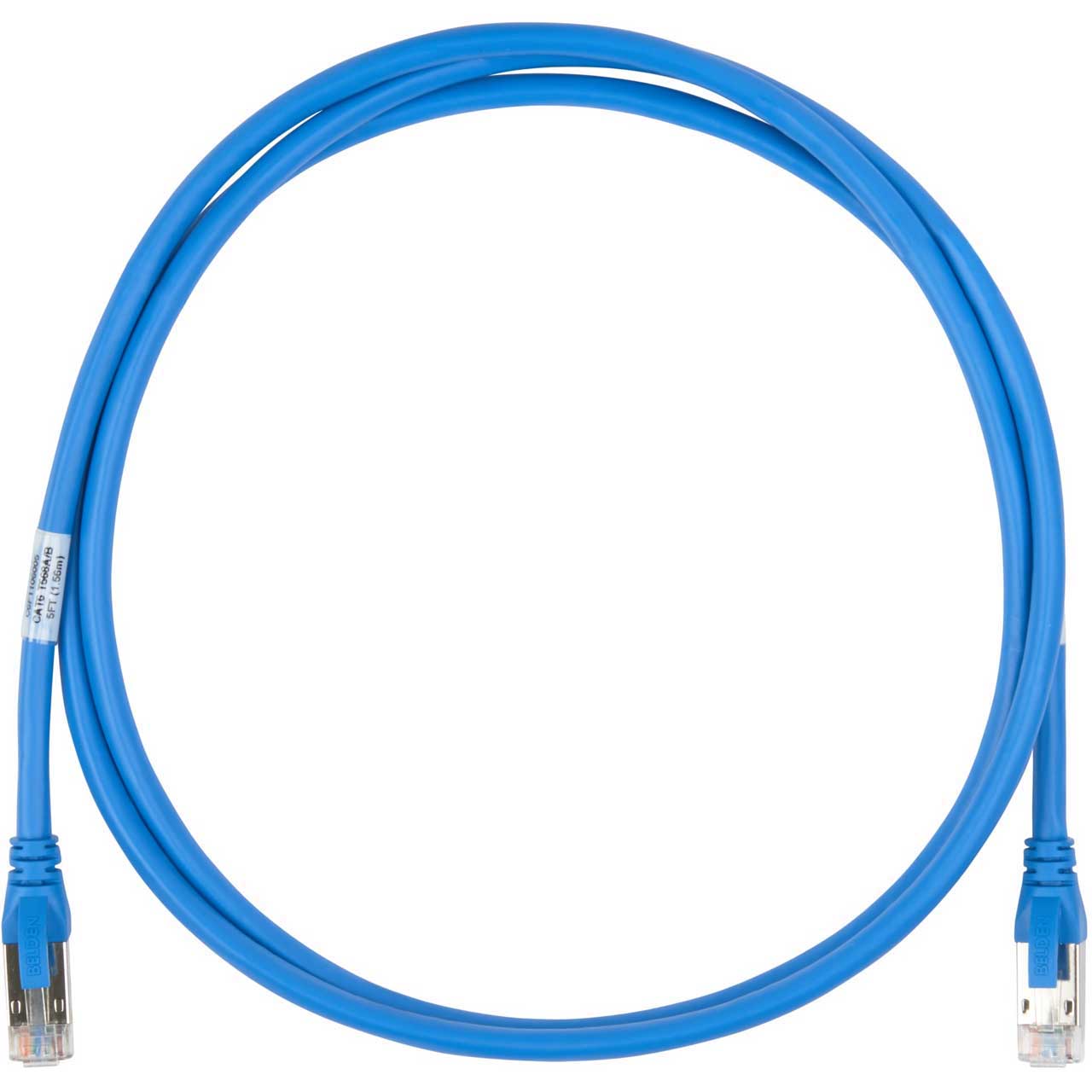

Belden C6F1106007 4-Pair 24 AWG CAT6+ F/UTP CMR Patch Cord - Blue - 7 Foot

ITEM #: BL-C6F1106007 MFG #: C6F1106007

Primary Image
Belden
Free Shipping with $49 Minimum Order

Item unavailable. Please select another option.

Ask a Markertek Expert if you need assistance finding an appropriate substitute.

List Price:

$19.01

Our Price:

$15.71

Add to Wish ListLeasing Options
Availability: Typically Ships in 3-10 Business Days
iAvailability Description Popup
    Report Lower PriceLarge Quantity Quote

    C6F1106007 - Overview

    The Belden C6F1106007 is a 7 Foot, CMR/Riser rated, 4 Pair, Shielded Cat6+ F/UTP 24AWG T568A/B-T568A/B Patchcord in Blue. It's recommended for IBDN Shielded System 2400, TIA Category 6, ISO Class E and 1000BASE-T.

    • Specifications:

      • Environmental Space: Riser
      • Boot: Elastomer
      • Conductor: BC - Bare Copper
      • Total Number of Pairs: 4
      • Conductor Size: 24 AWG
      • Overall Nominal Diameter: 0.26 in
      • Wiring Scheme: T568A/B-T568A/B
      • Packaging: Individually packaged in a clear plastic bag.
      • Front Connection: Blades Phosphor Bronze with 50u inch Gold over Nickel Plating
      • Inner Jacket: PVC - Polyvinyl Chloride
      • Dielectric Strength: 1,000 V RMS @ 60 Hz for 1 minute
      • Current Rating: 1.500 A
      • Insulation Resistance: 500 M-Ohm Minimum
      • Max Contact Resistance: 20 mOhm
      • Installation Temp Range: -10°C To +60°C
      • Storage Temp Range: -40°C To +70°C
      • Operating Temp Range: -10°C To +60°C
      • Min Bend Radius (Overall Cable): 2.080 in
      • Plug /Jack Compatibility: RJ45
      • UL Rating: Riser
      • Data Category: Category 6
      • TIA/EIA Compliance: Category 6 - TIA 568-C.2, Class E - ISO/IEC 11801:2002 Ed.2 Amendment 2
      • Other Standards: FCC Part 68, Subpart F, IEC 60603-7
      • Connection Durabilities: Mated Connection 750 Cycles
      • Safety Listing: c(UL)us Listed
