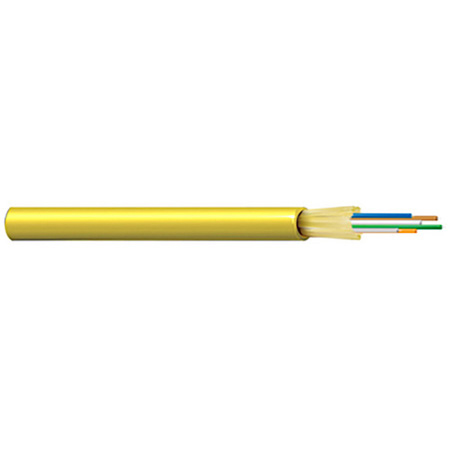

Belden FISD006R9 FX Indoor Riser Cable - OS2 Distribution - Tight Buffer 6 Fibers OFNR Non-Unitized - Yellow - Per Foot

ITEM #: BL-FISD006R9-FT MFG #: FISD006R9

Primary Image
Belden
Free Shipping with $49 Minimum Order

List Price:

$0.30

Our Price:

$0.28

Add to Wish ListLeasing Options
Availability: Typically Ships in 3-10 Business Days
iAvailability Description Popup
    Report Lower PriceLarge Quantity Quote

    FISD006R9 - Overview

    Belden's FISD006R9 is an FX indoor OS2 indoor distribution riser cable with Tight Buffer, 6 Fibers, IFNR, non-unitized, and a yellow jacket.

    • Specifications:

      • Fiber Type: OS2
      • Fiber Count: 6
      • Fiber Color Coding: Blue, Orange, Green, Brown, Gray, White
      • Outer Jacket Color: Yellow
      • Number of Outer Jacket Ripcords: 1
      • Mode Field Diameter: 9.2
      • Fiber Core Diameter: 8.2/125-m
      • Max Attenuation at 1310 nm: 0.5 dB/km
      • Max Attenuation at 1550 nm: 0.5 dB/km
      • Wavelength: 1310 nm / 1550 nm
      • 10 Gigabit Ethernet Performance: 10,000 m / 40,000 m
      • 1 Gigabit Ethernet Performance: 5,000 m / -
      • Min Overfilled Launch (OFL)
      • Bandwidth: 0
      • Min Bend Radius During Installation: 20x Cable OD
      • Min Bend Radius During Operation: 10x Cable OD
      • Max Tensile Strength During
      • Installation: 125 (560)
      • Max Tensile Strength During
      • Operation: 50 (220)
      • Operating Temp Range: -20C to +70C
      • Installation Temp Range: -10C to +60C
      • Storage Temp Range: -40C to +70C
