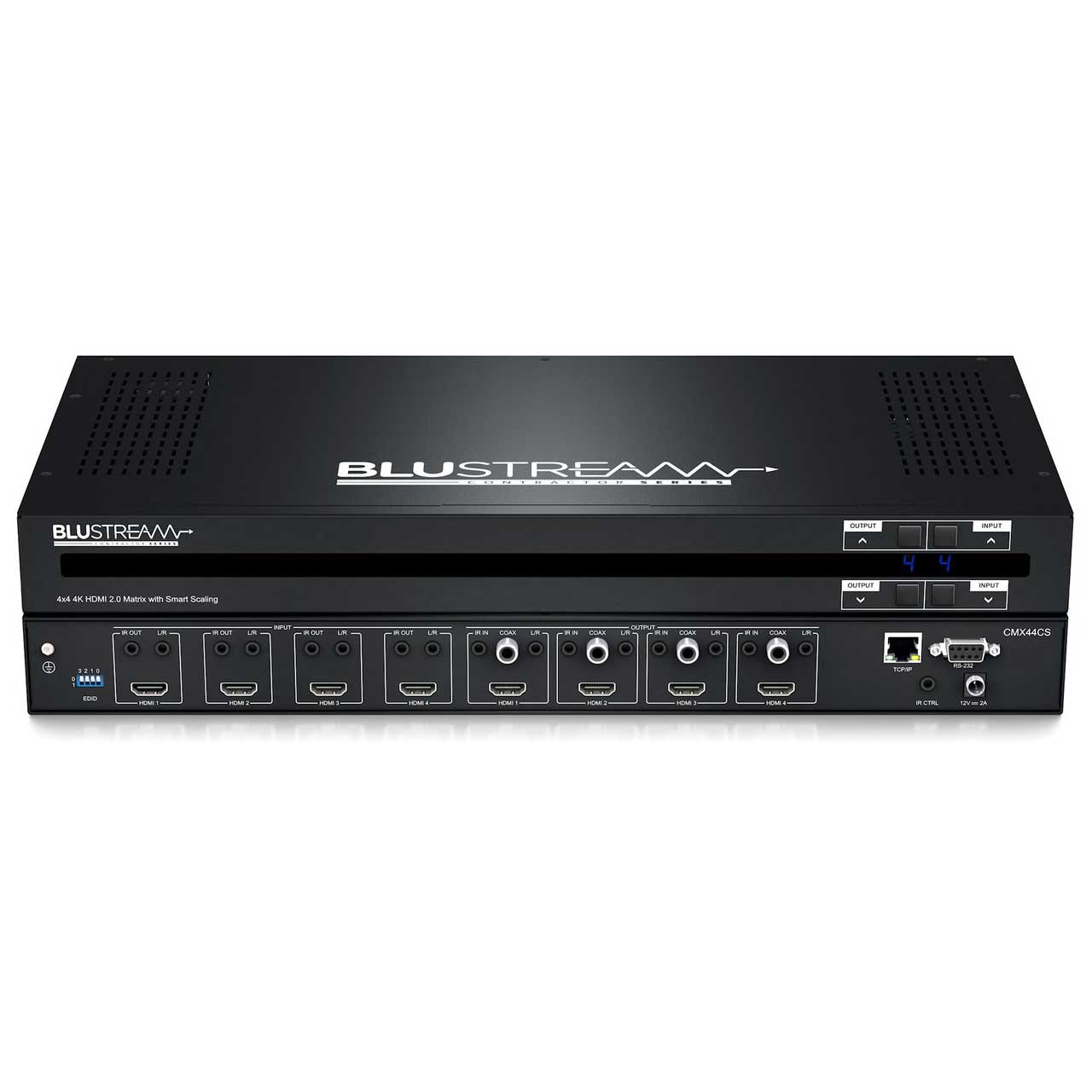

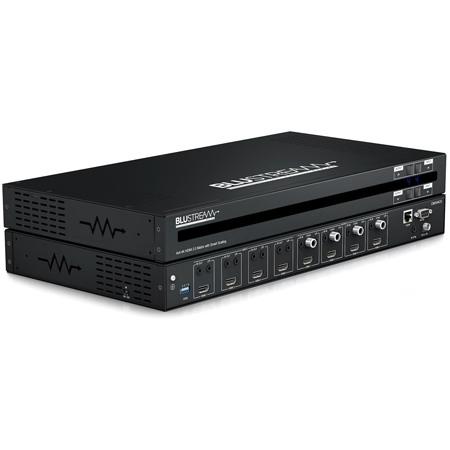

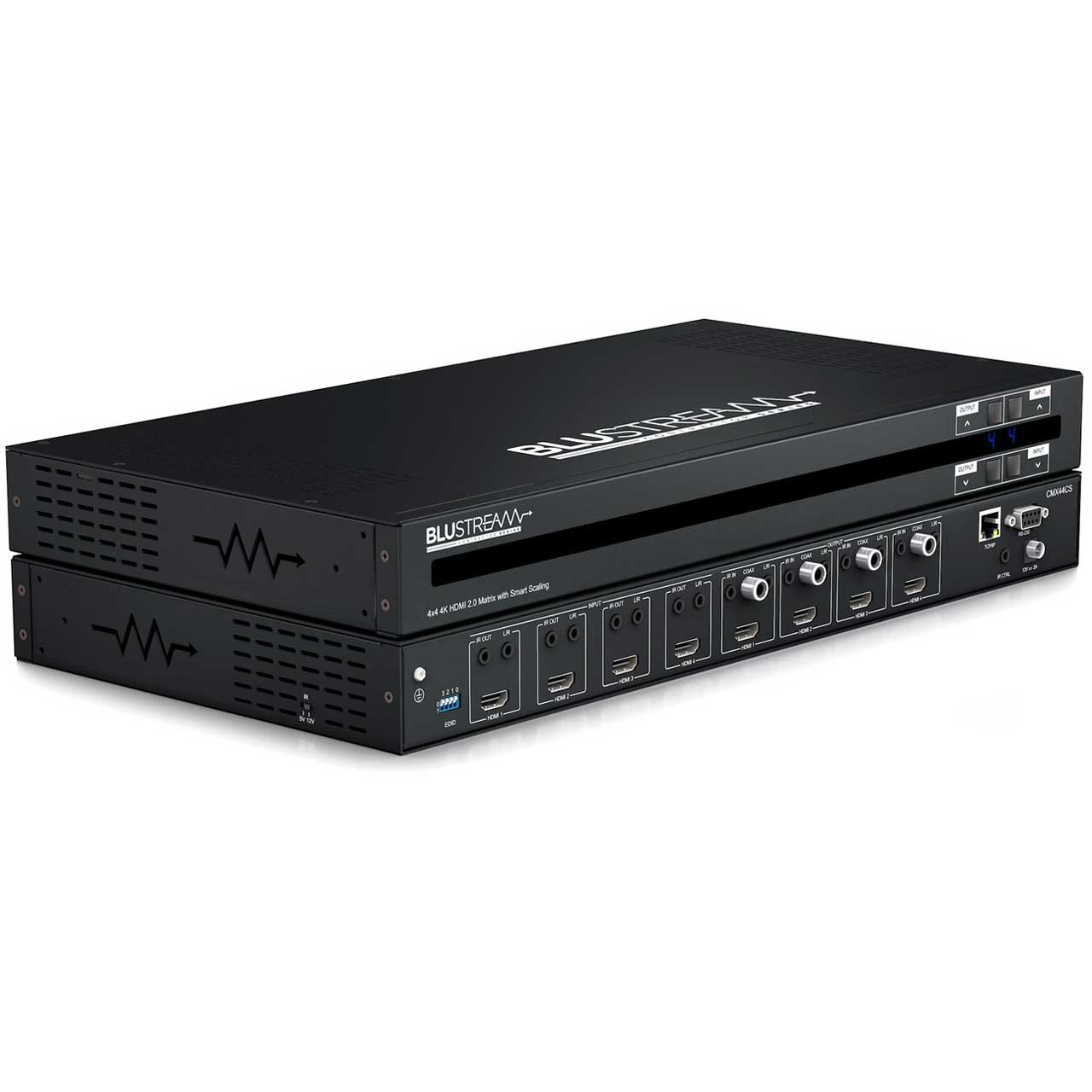

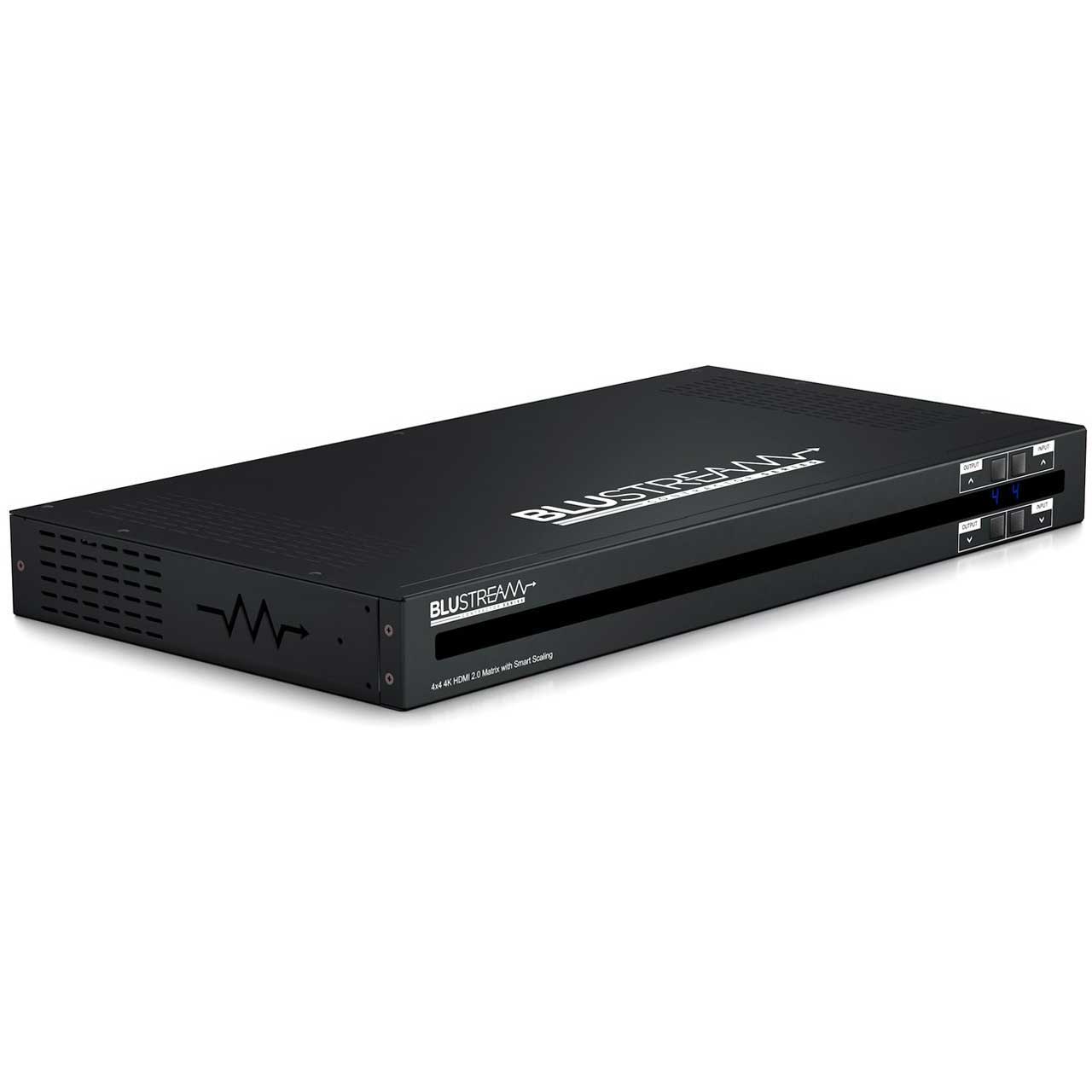

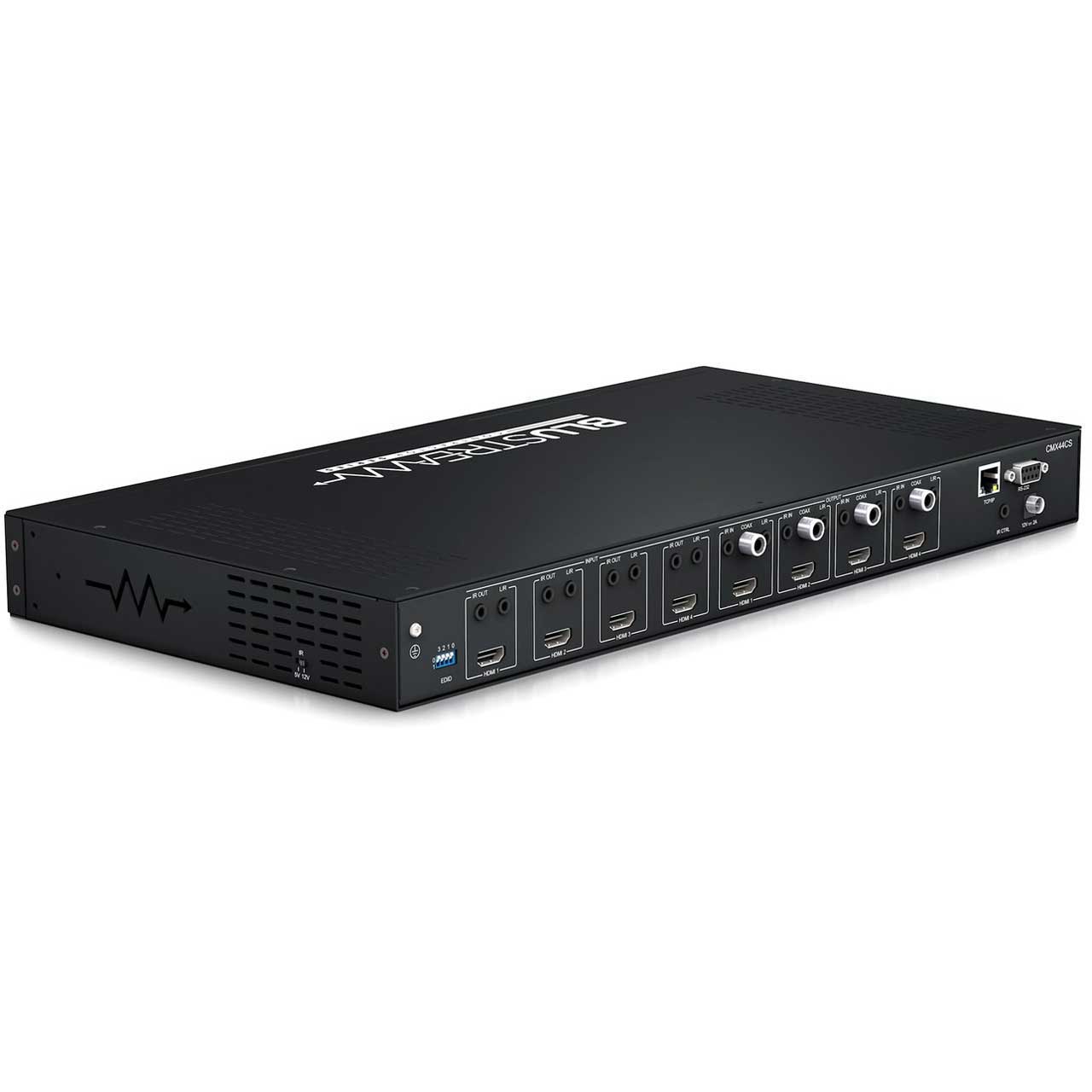

Blustream CMX44CS Contractor 4x4 4K 18Gbps HDMI 2.0 Matrix w/ Audio Breakout/Smart Scaling/EDID Management & IR Routing

CMX44CS - Overview

• Features:

  • Features 4x HDMI inputs which can be independently routed to 4x HDMI outputs
  • Supports HDMI2.0 18Gbps specification including HDR
  • Supports up to 4K UHD 60Hz 4:4:4
  • Video down-conversion on outputs allowing a display only capable of supporting lower video resolutions (4K 60Hz 4:2:0 or 1080p) to receive 4K 60Hz 4:4:4 video content while still showing maximum original 4K UHD resolution on remaining video outputs
  • Supports all industry standard video resolutions including VGA-WUXGA and 480i-4K
  • Supports all known HDMI audio formats including Dolby Atmos, Dolby TrueHD, Dolby Digital Plus and DTS-HD Master Audio transmission
  • HDMI audio breakout to associated output analogue L/R audio and coaxial digital outputs concurrently
  • Control via front panel, IR, RS-232, TCP/IP and Web GUI
  • IR routing
  • Supplied with Blustream 5V IR receivers and emitters
  • 3rd Party drivers available for all major control brands
  • Advanced EDID management
  • HDCP2.2 compliant
  • 1U Design for 19" rack mount integration - Mounting kit included


• Specifications:

  • Video Input Connectors: 4x HDMI Type A, 19-pin, female, locking
  • Video Output Connectors: 4x HDMI Type A, 19-pin, female, locking
  • Audio Output Connectors: 4x RCA (S/PDIF), 4x Analogue audio L/R (3.5mm stereo Jack)
  • Audio Input Connectors: 4x Analogue audio L/R (3.5mm stereo Jack)
  • RS-232 serial port: DB-9, female
  • IR Input ports: 5x 3.5mm stereo jack
  • IR Output ports: 4x 3.5mm mono jack
  • Mounting kit included
  • Casing Dimensions (WxDxH): 440mm x 225mm x 44mm
  • Dimensions Including Connections (W x D x H): 440mm x 231mm x 50mm
  • Shipping Weight: 2.3kg
  • Operating Temperature: 32°F to 104°F (0°C to 40°C)
  • Storage Temperature : -4°F to 140°F (-20°C to 60°C)
  • Power Supply: 12V/2A DC
  • 19" Rack mounting kit included


• Item Includes:

  • 1x CMX44CS
  • 1x 12V/2A DC power supply
  • 1x Remote control
  • 4x IR emitter
  • 5x IR receiver
  • 1x Rack mounting kit
  • 1x Quick Reference Guide
