Ocean Matrix OMX-07HMHM0002 4K 60Hz HDMI 4x1 Switcher with USB Device/Hotkey Switching and Mic/Speaker Function

ITEM #: OMX-07HMHM0002 MFG #: OMX-07HMHM0002

Primary Image
  • Product Image Thumbnail 1 of 5
  • Product Image Thumbnail 2 of 5
  • Product Image Thumbnail 3 of 5
  • Product Image Thumbnail 4 of 5
  • Product Image Thumbnail 5 of 5
Free Shipping with $49 Minimum Order

List Price:

$142.49

Our Price:

$124.95

Availability: In Stock
iAvailability Description Popup


    OMX-07HMHM0002 - Overview

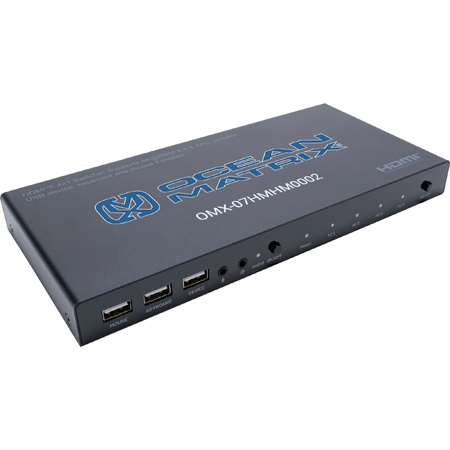

    The Ocean Matrix 07HMHM0002 is a cost effective 4-port HDMI KVM switcher offering complete control of up to 4 desktop or laptop computers utilizing a single monitor, keyboard and mouse. It is a perfect fit for editing suites, educational and corporate applications.

    Users can utilize local push button control or hotkey switching between devices. The Ocean Matrix 07HMHM0002 features isolated input channels for added cyber security. It has a front panel mic input and audio output including an audio on/off switch. The unit fully supports the highest HDMI resolutions including 4K 60Hz and HDR video.

    • Features:

      • Three USB-A ports for Keyboard, Mouse, and other Devices

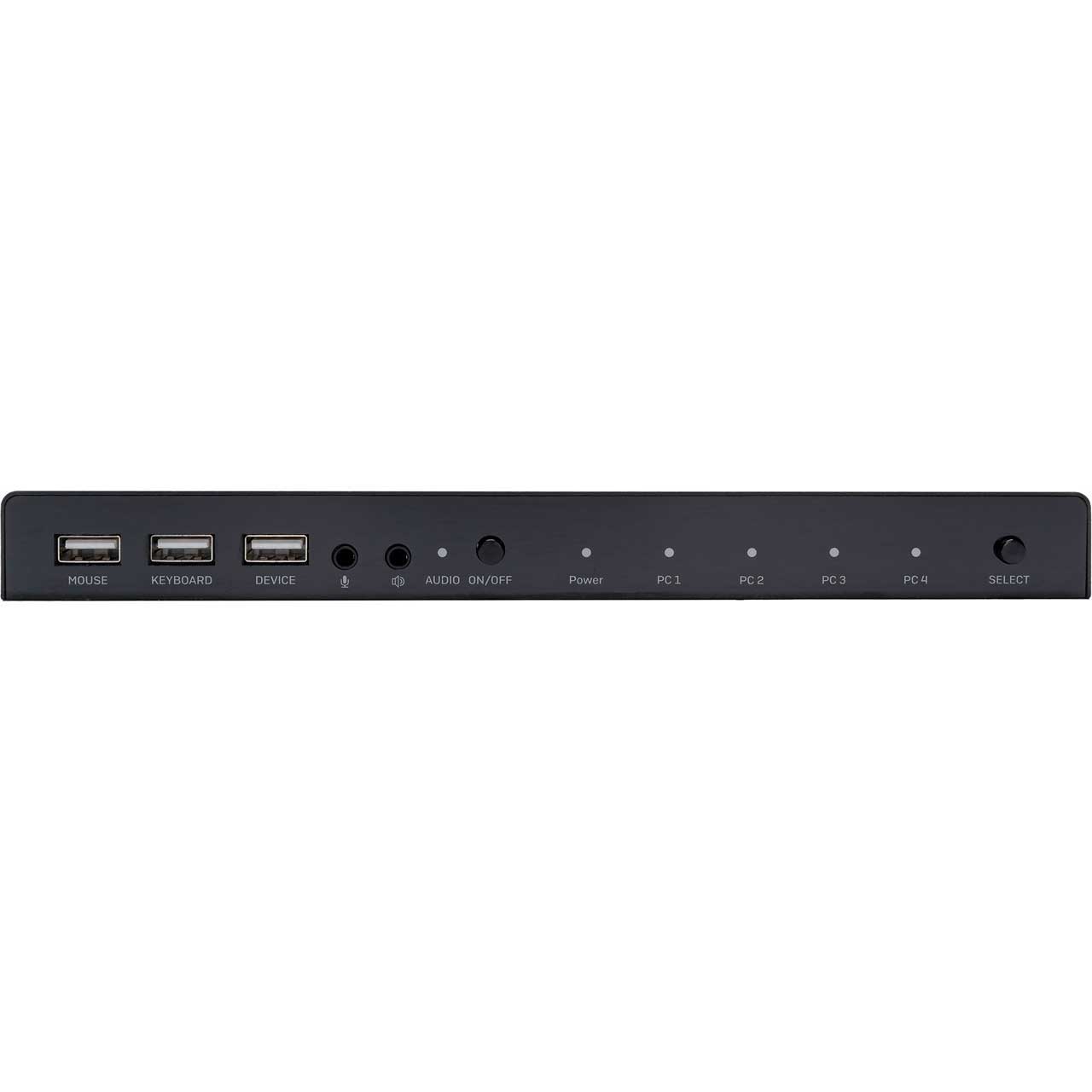

      • Front Panel Allows for Manual Switching or Hotkey Switching Via the Keyboard
      • Supports Resolutions up to 4K@60Hz YUV 4:4:4
      • Supports Full 3D Format, HDR Video and CEC
      • Passes Embedded Audio Through HDMI
      • Features Mic Input Option
      • HDCP 2.2 and HDCP 1.4 Compliant
      • HDMI 2.0 Compliant
      • Data Transfer Rate up to 6Gbps Per Channel (18Gbps All Channels)
      • TMDS Clock up to 600MHz
      • Supports 12bit Per Channel Deep Color (36bit All Channels)
      • Supports LPCM, DTS, Dolby Digital (Including DTS-HD Master Audio and Dolby TrueHD) Audio

    • Specifications:

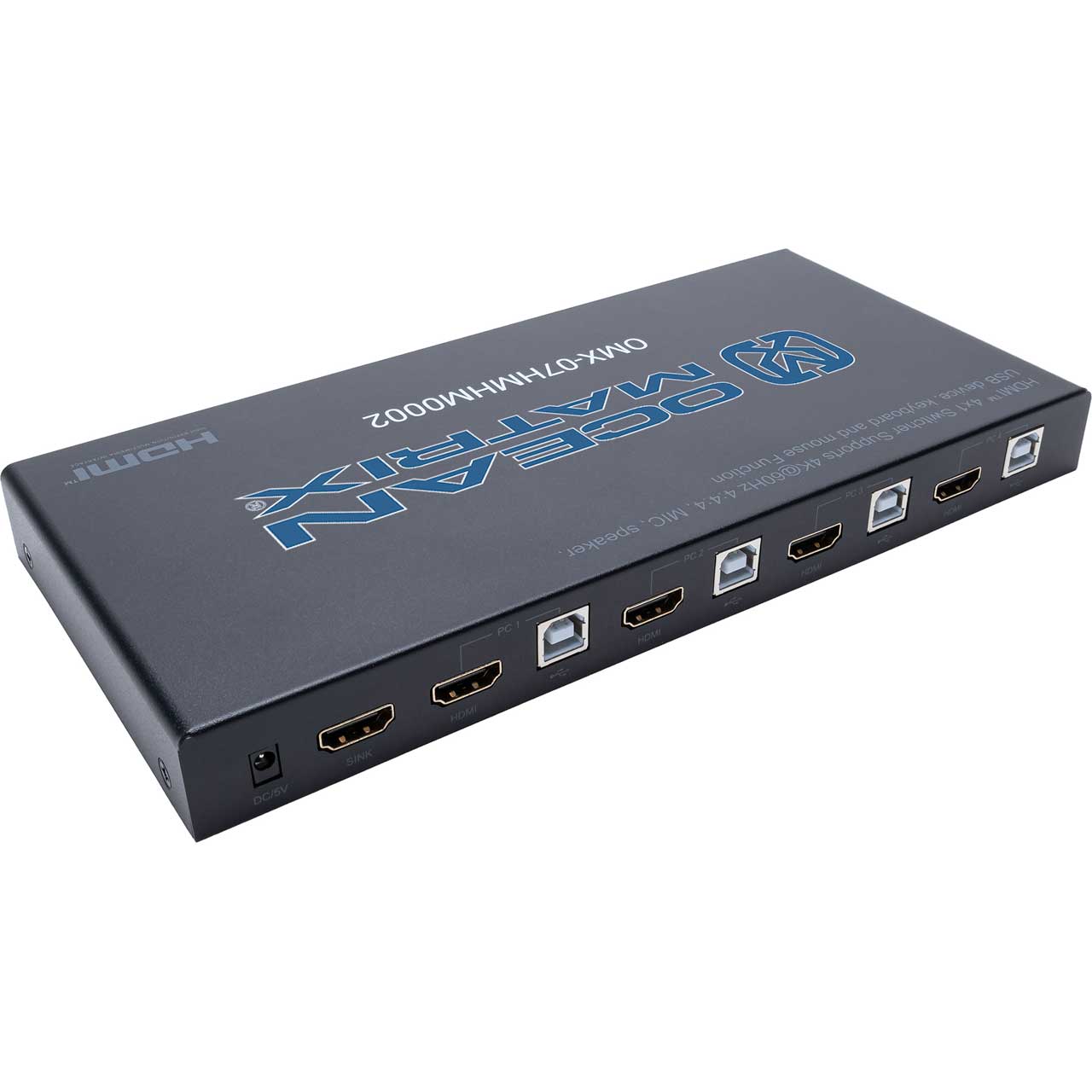

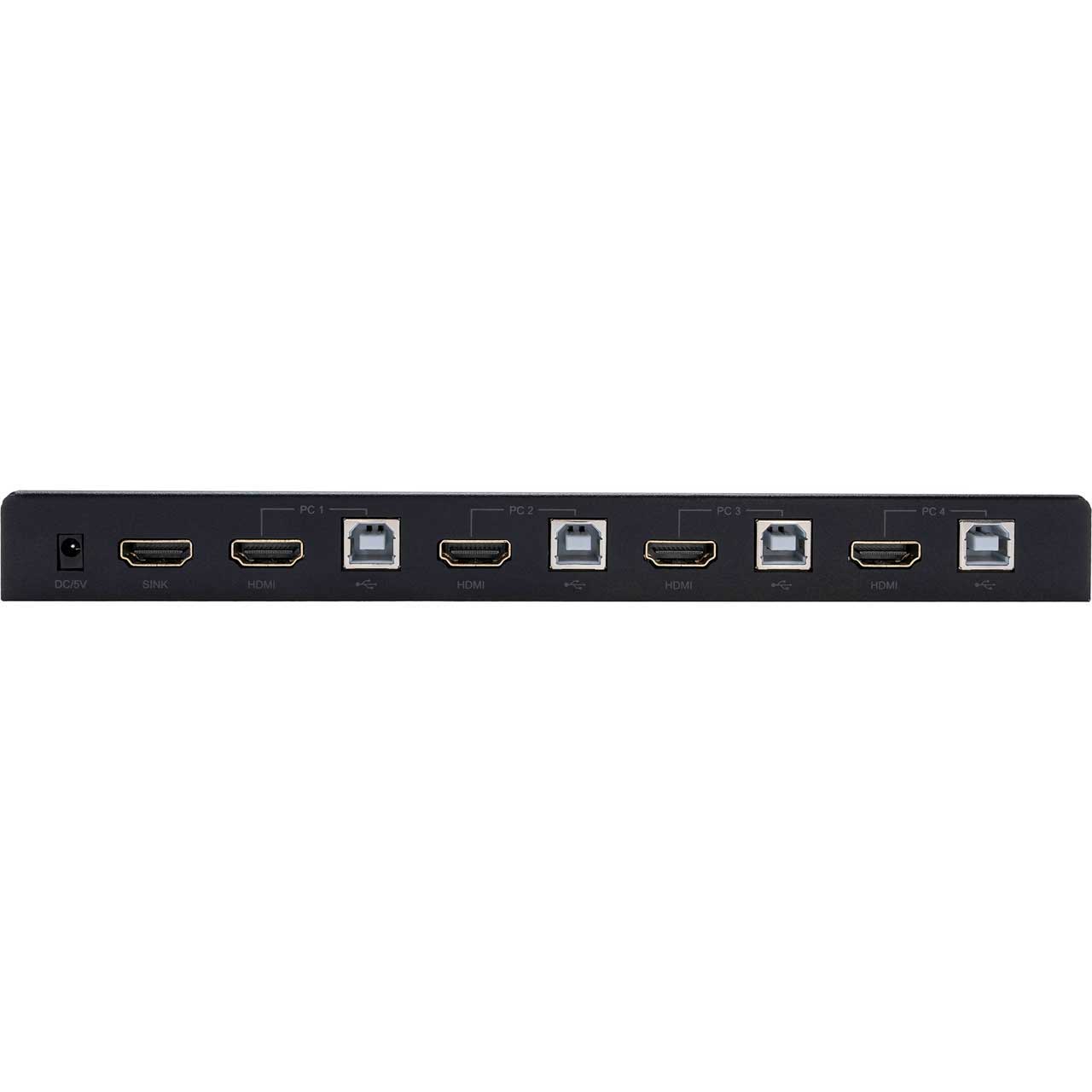

      • Input Ports: HDMI x 4, USB x 4, MIC x 1
      • Output Ports: HDMI x 1, Keyboard x 1, Mouse x 1, USB Device x 1, Audio x 1
      • Vertical Frequency Range: 50 / 60Hz
      • Video Amplifier Bandwidth: 6.0Gbps / 600MHz per Channel (18Gbps all Channels)
      • Interlaced (50 & 60Hz): 480i, 576i, 1080i
      • Progressive (50 & 60Hz): 480p, 576p, 720p, 1080p, 4K@24/25/30/50/60Hz
      • Operating Temperature: 32°F to 122°F / 0°C to 50°C
      • Storage Humidity: 5% to 80% RH Non-Condensation

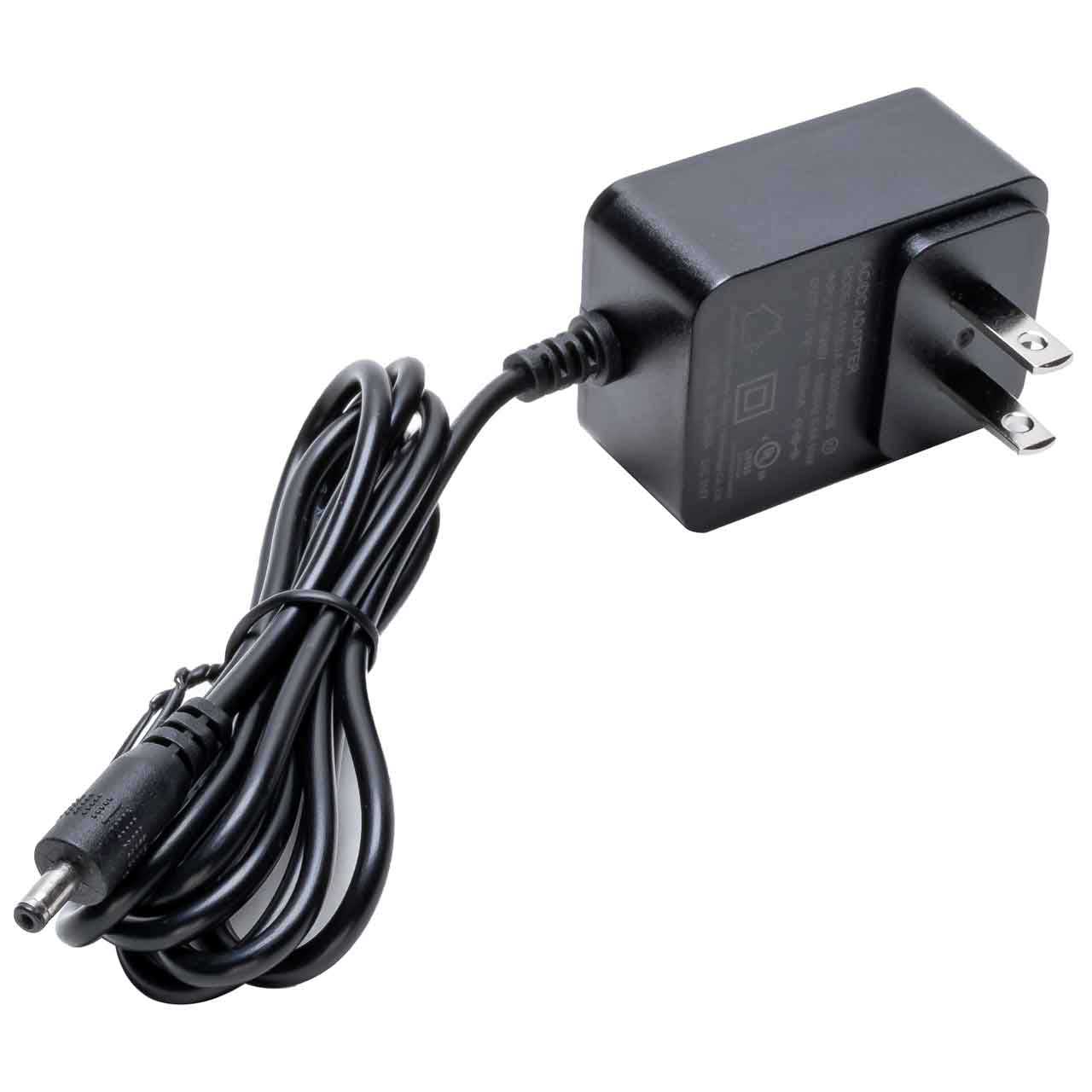

      • Power Supply: DC 5V
      • Power Consumption (Max): 5W
      • Switcher Unit Certification: FCC, CE, RoHS
      • Dimensions (LxWxH): 9 x 4.25 x 0.88" / 231 x 108 x 23mm
      • Weight: 1.26lbs / 515g

    • Warranty:

      • 1 Year
