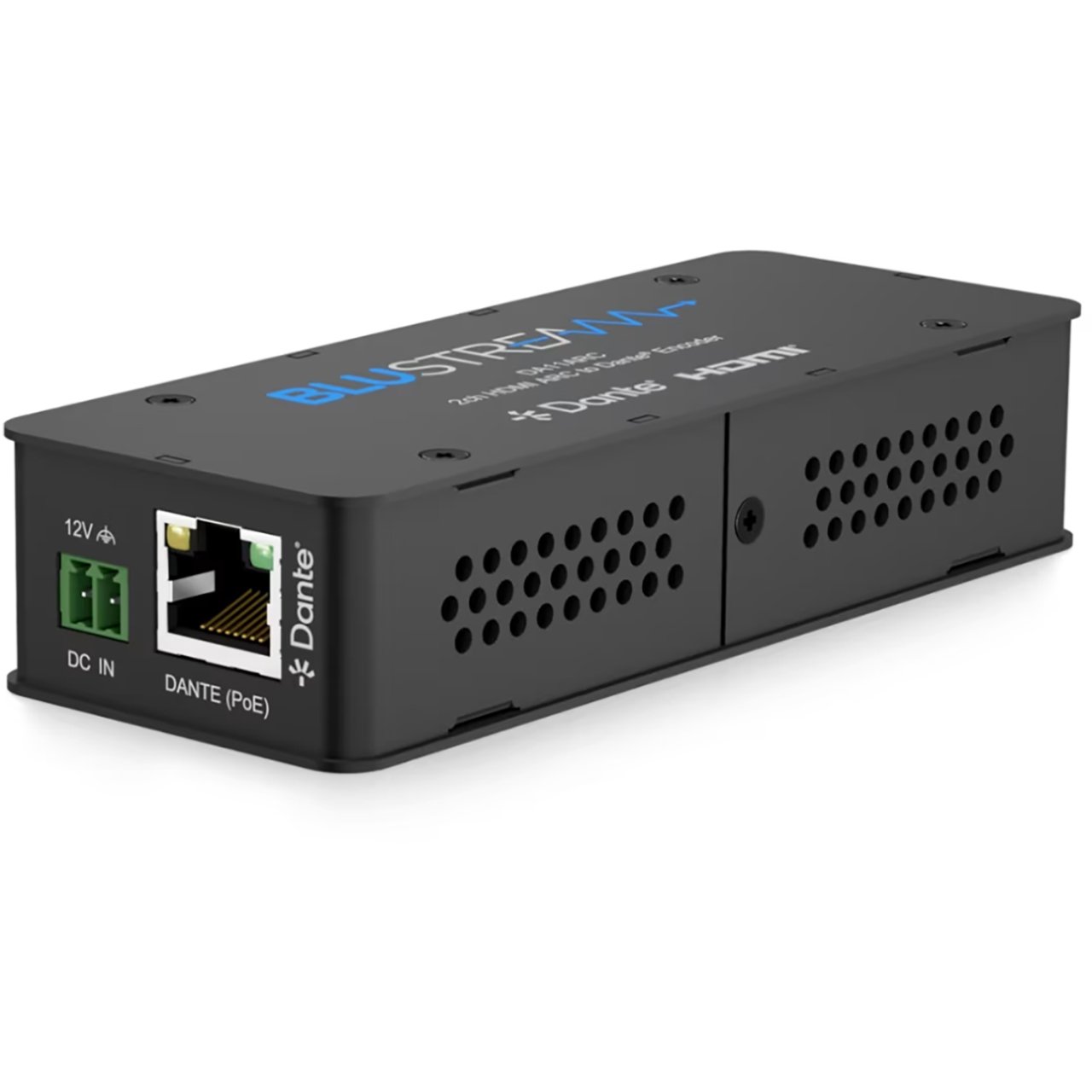

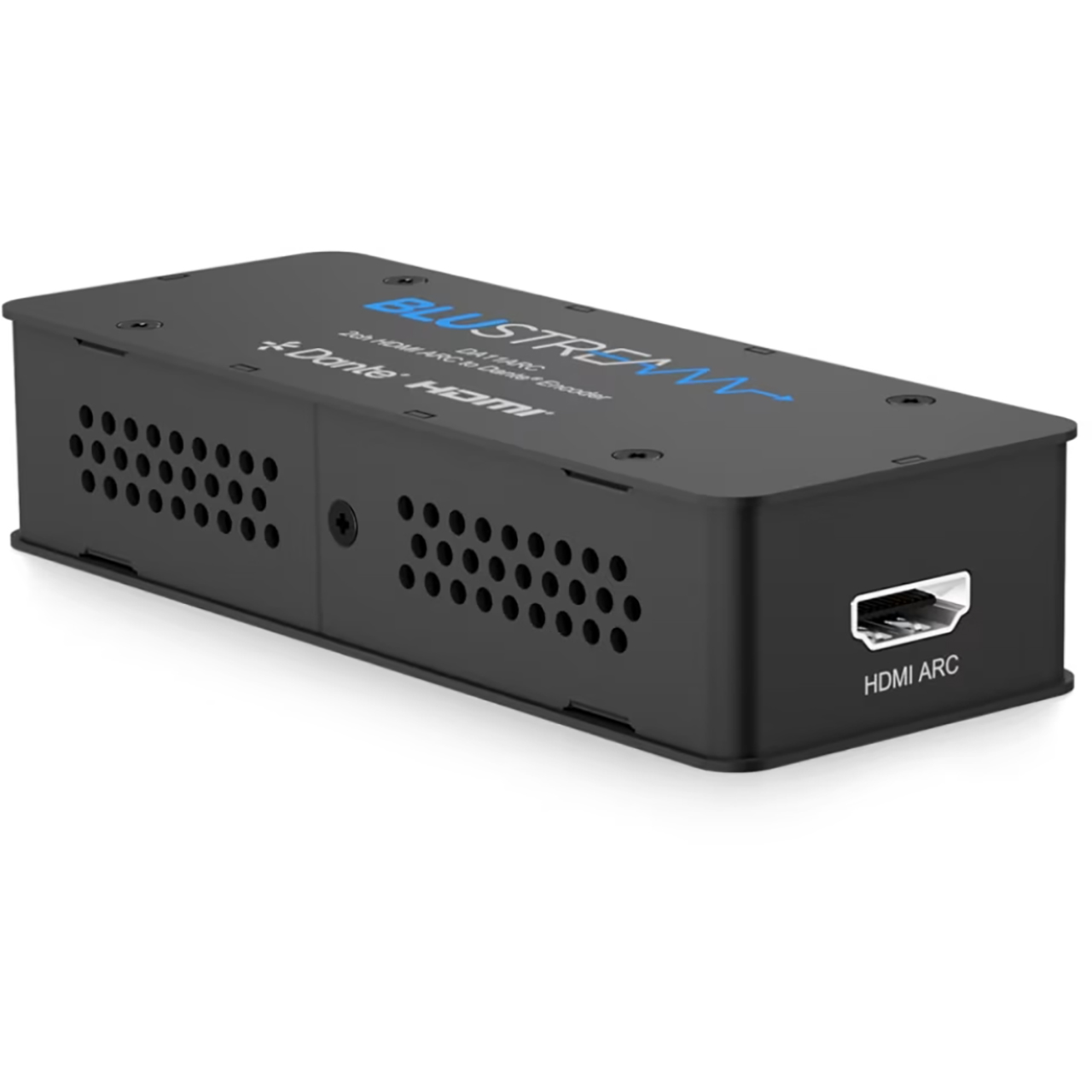

Blustream DA11ARC Two Channel HDMI ARC to Dante Digital Signal Encoder

DA11ARC - Overview

• Features:

  • Encodes HDMI ARC (Audio Return Channel) 2ch audio to a Dante digital signal
  • Supports: 44.1, 48, & 96kHz sample rates @ 24 Bit
  • Configurable Dante device latency (supports 2, 3, 4, 5 or 10ms configurable using Dante Controller)
  • Input sensitivity/volume control adjustable via CEC, web GUI or API
  • Supports AES67 RTP audio transport
  • Features Class 0 802.3af PoE for powering of product from any PoE switch
  • Local 12v power supply input for when network switch does not support PoE


• Specifications:

  • Casing Dimensions (LxWxH): 4.72" x 1.85" x 1.02" (120mm x 47mm x 26mm)
  • Shipping Weight: 0.66lbs (0.3kg)
  • Operating Temperature: 32°F - 104°F (0°C - 40°C)
  • Storage Temperature: - 4°F - 140°F (-20°C - 60°C)

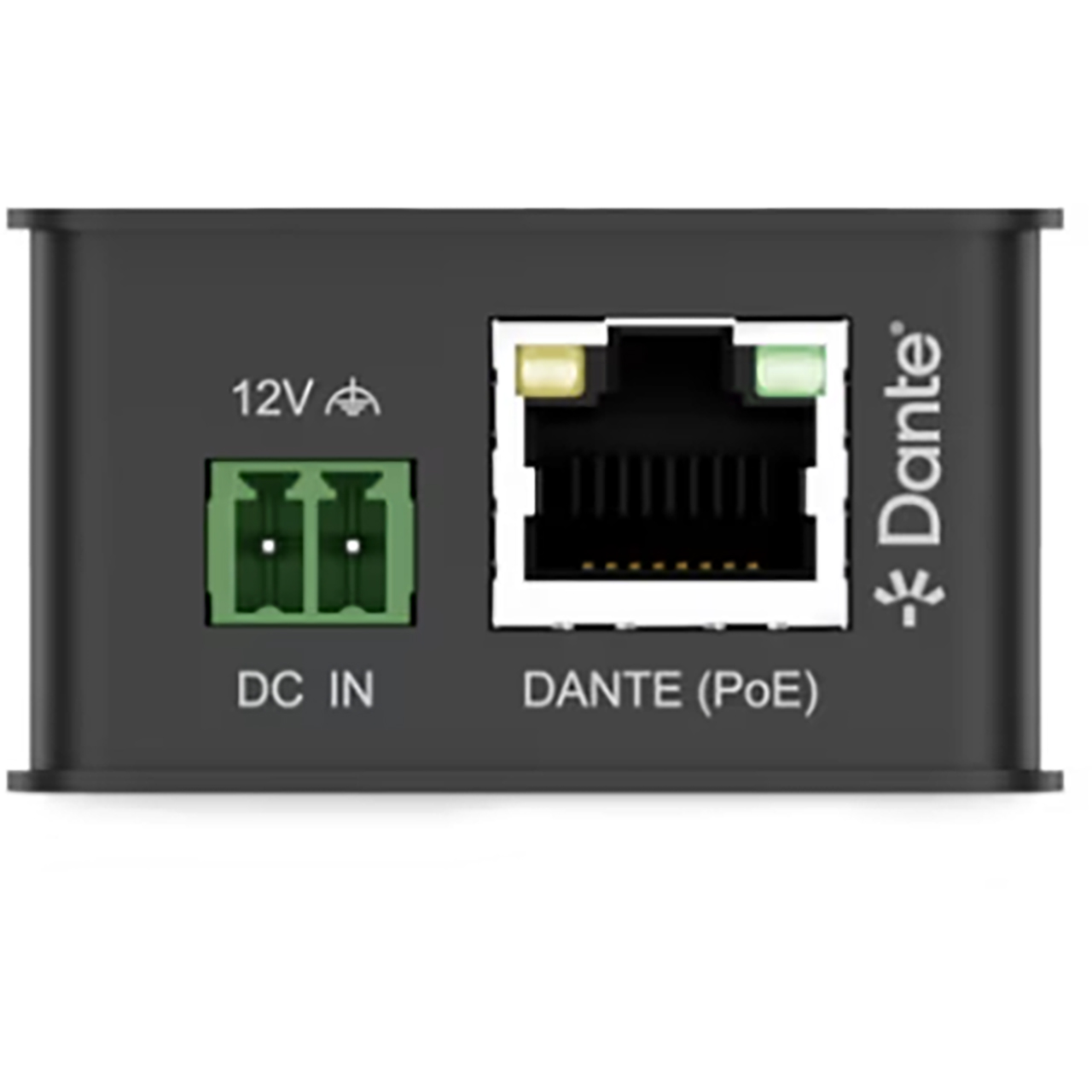

  • Power Supply: Class 0 IEEE 802.3af POE PD or 12V/1A DC 2-pin Phoenix connector
  • Audio Output Connector: 1x RJ45, female (100 Mbps Dante network)

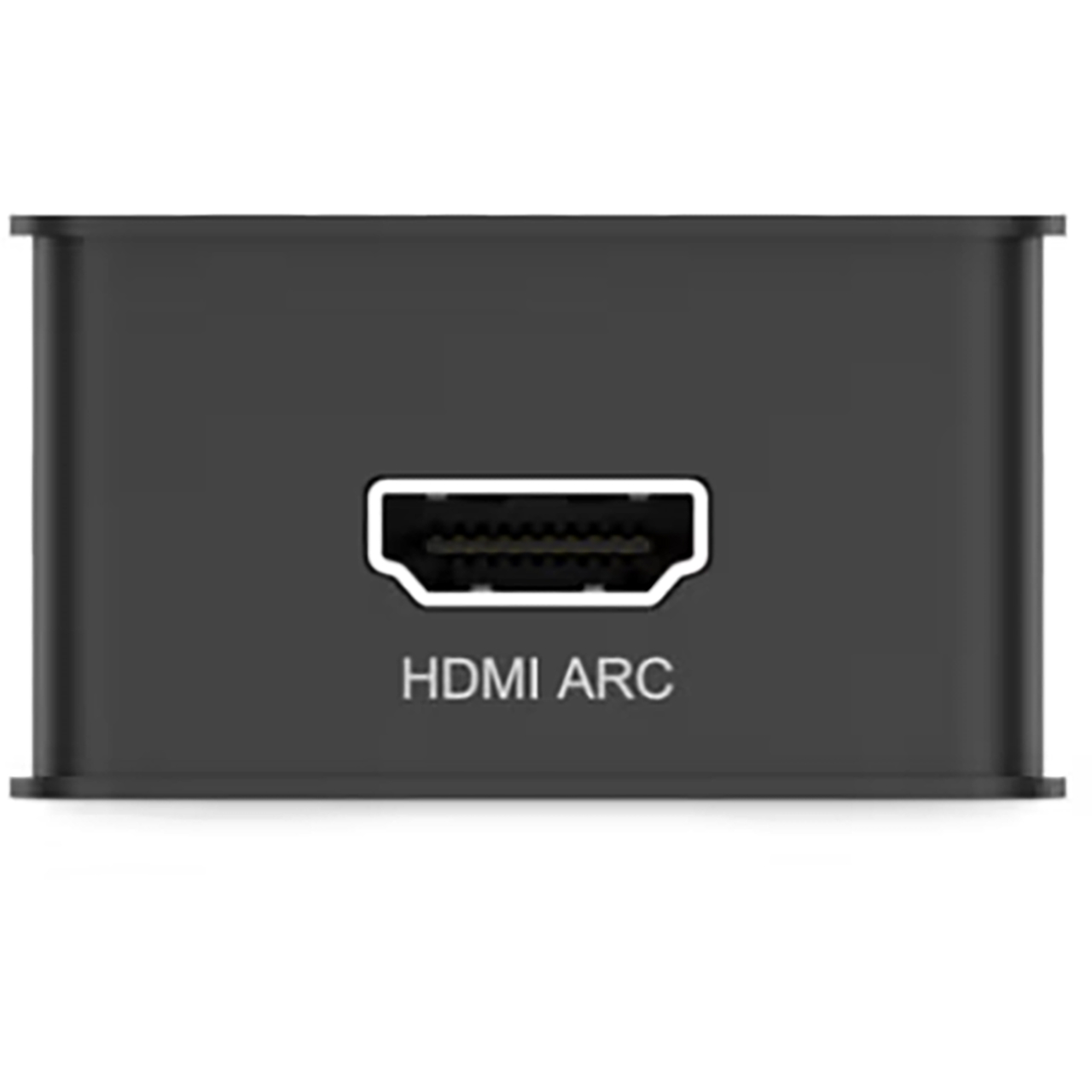

  • Audio Input Connector: 1x HDMI, female (2ch ARC audio only)


• Item Includes:

  • 1x Blustream DA11ARC
  • 1x Quick Reference Guide


• GTIN:

  9340242005182
