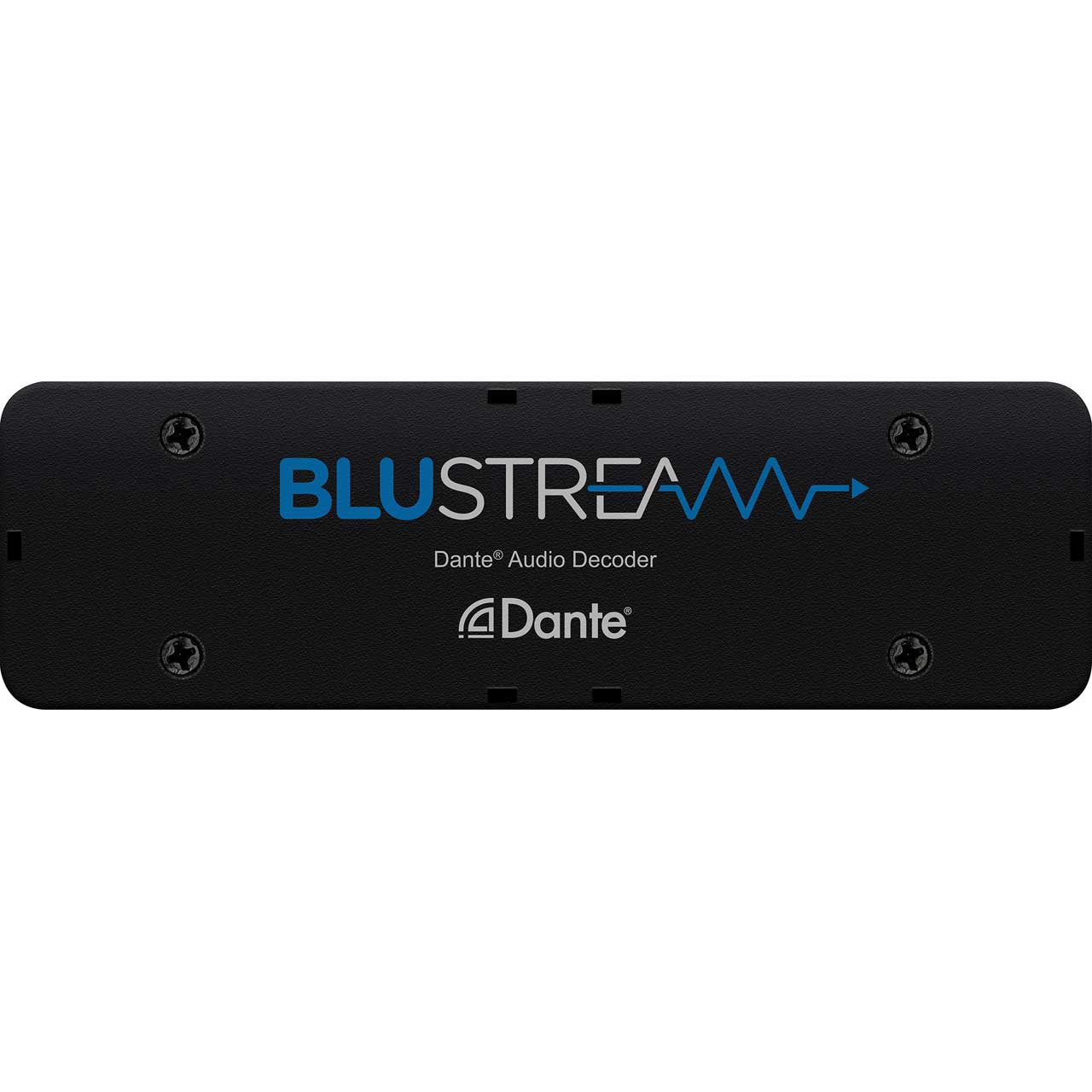

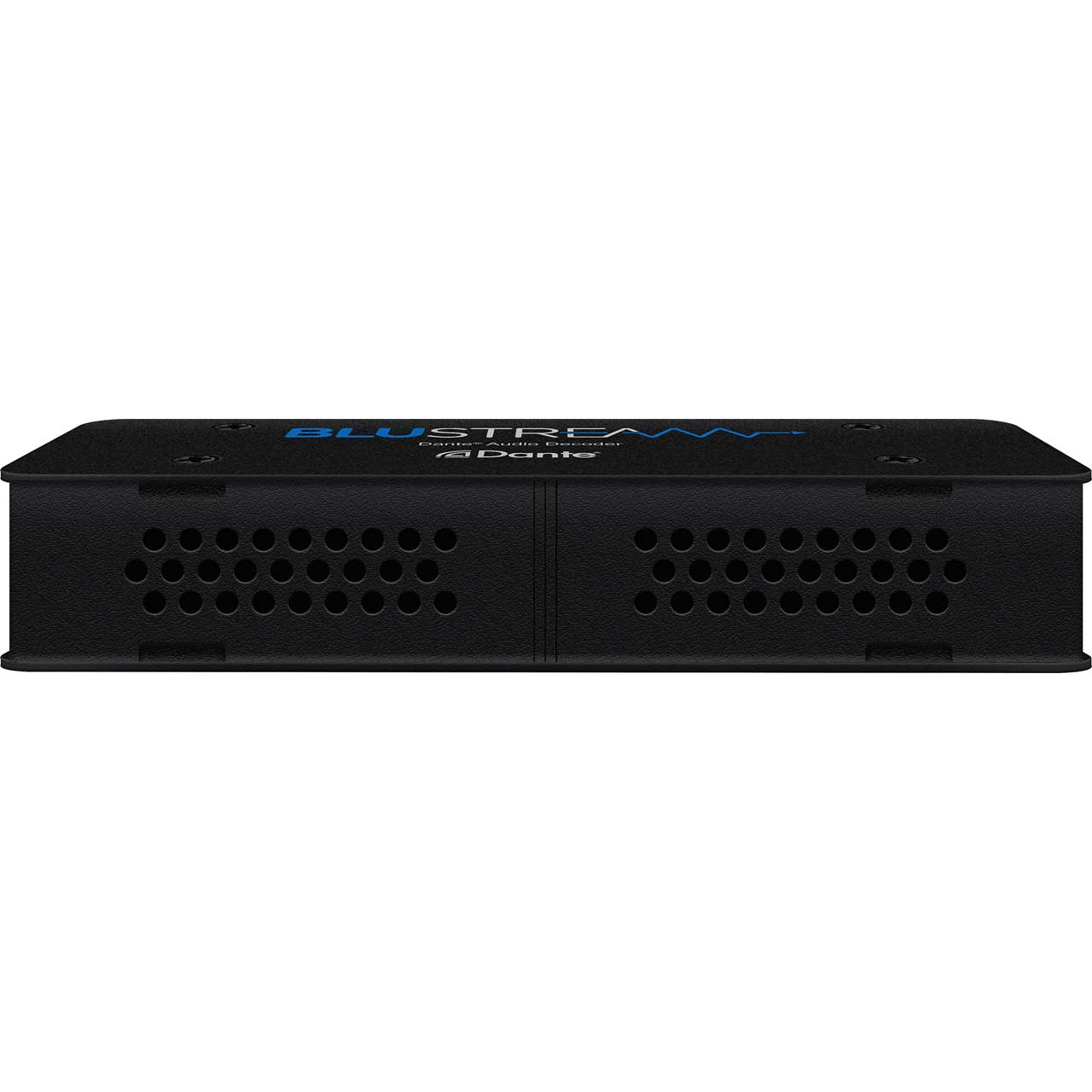

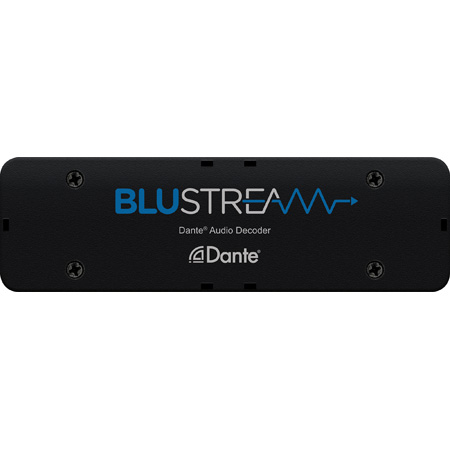

Blustream DA11D Dante to 2 Channel Analog Audio Decoder

ITEM #: BLU-DA11D MFG #: DA11D

Primary Image
  • Product Image Thumbnail 1 of 5
  • Product Image Thumbnail 2 of 5
  • Product Image Thumbnail 3 of 5
  • Product Image Thumbnail 4 of 5
  • Product Image Thumbnail 5 of 5

This item is no longer available.
Ask a Markertek Expert if you need assistance finding an appropriate substitute.

(800) 522-2025Email

Items similar to the BLU-DA11D

DA11D - Overview

The Blustream DA11D has been designed to convert a Dante® digital signal to unbalanced or balanced 2ch analog audio.

The DA11D is a plug & play device that is powered using PoE (Power Over Ethernet) and supports AES67 RTP audio transport.

  • Features:

    • Analog audio outputs support both balanced and unbalanced audio signals
    • Supports 44.1, 48 & 96kHz sample rates @ 24 Bit
    • Configurable Dante® device latency (supports 1, 2 or 5ms configurable using Dante® Controller)
    • Supports AES67 RTP audio transport
    • Features Class 1 802.3af PoE for powering of product from any PoE switch


  • Specifications:

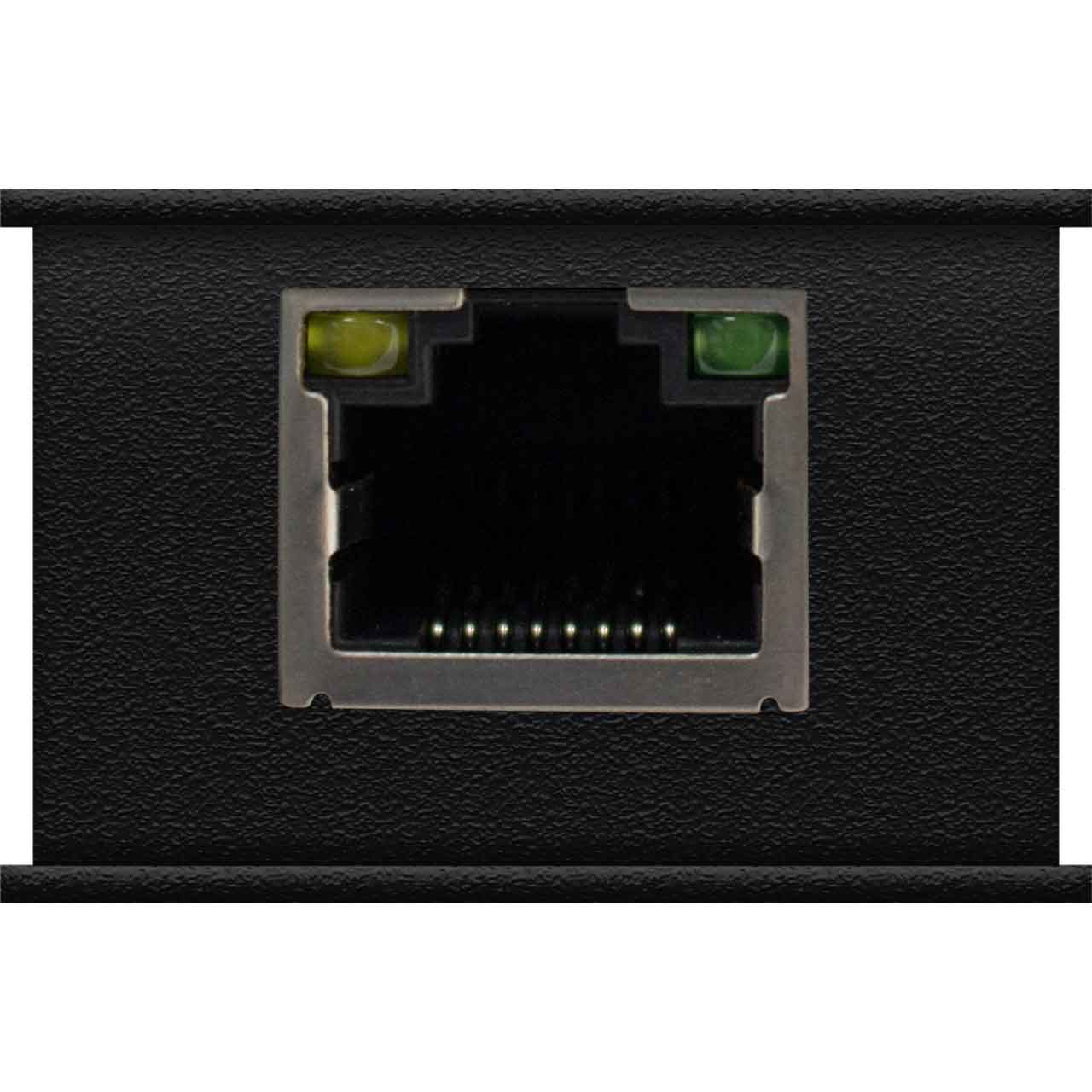

    • Audio Input Connectors: 1 x RJ45, female (100Mbps Dante® network)

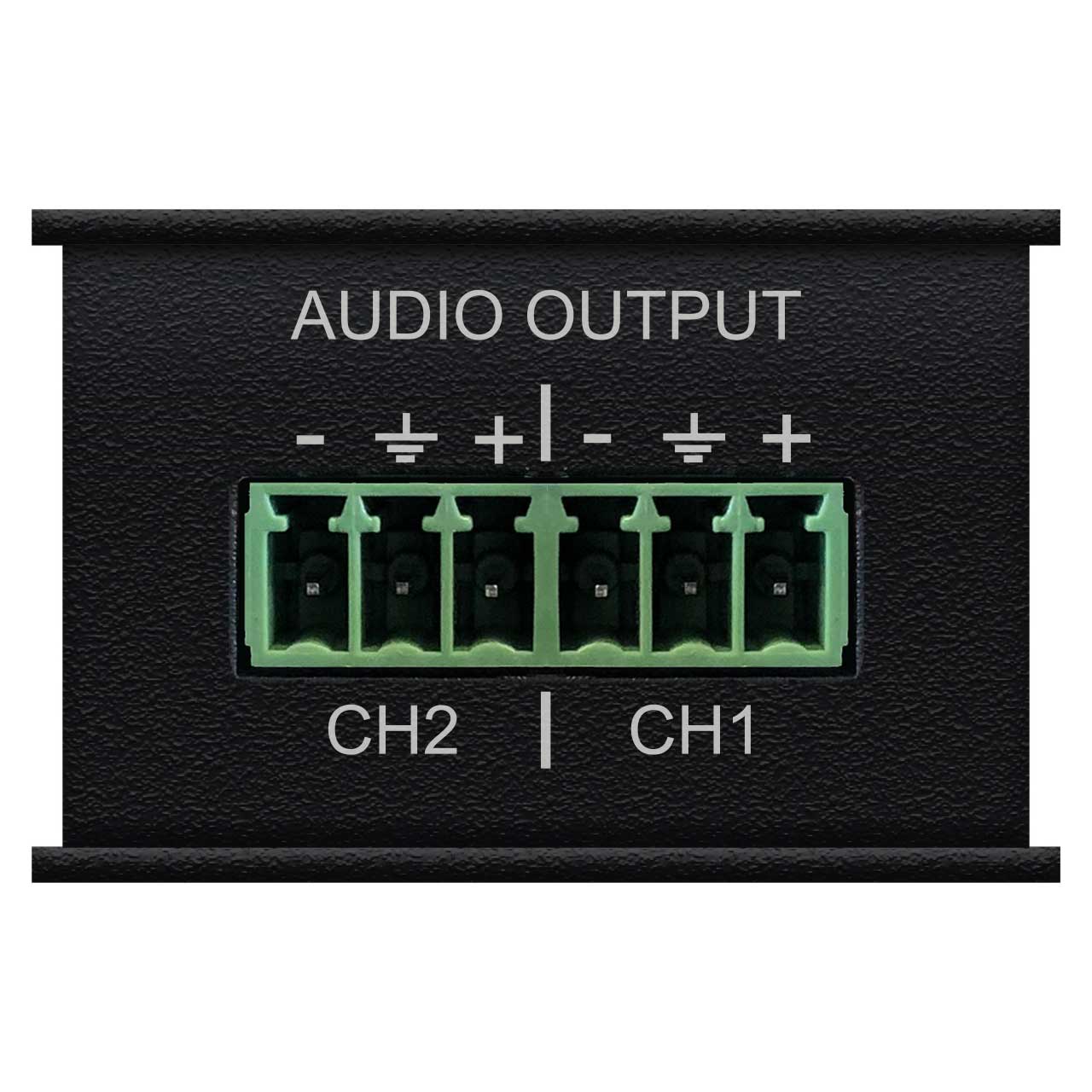

    • Audio Output Connectors: 6-pin Phoenix connector (2ch balanced / un-balanced analog audio)
    • Casing Dimensions (W x H x D): 120mm x 23mm x 34mm
    • Shipping Weight: 0.2kg
    • Operating Temperature: 32°F to 104°F (0°C to 40°C)
    • Storage Temperature: -4°F to 140°F (-20°C to 60°C)
    • Power Supply: Class 1 IEEE 802.3af POE PD


  • Item Includes:

    • 1x DA11D
    • 1x Quick Reference Guide


  • Warranty:

    • 3 Year Warranty


  • GTIN:

    9340242003447
