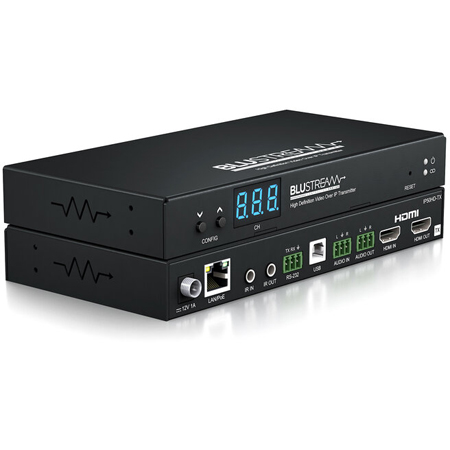

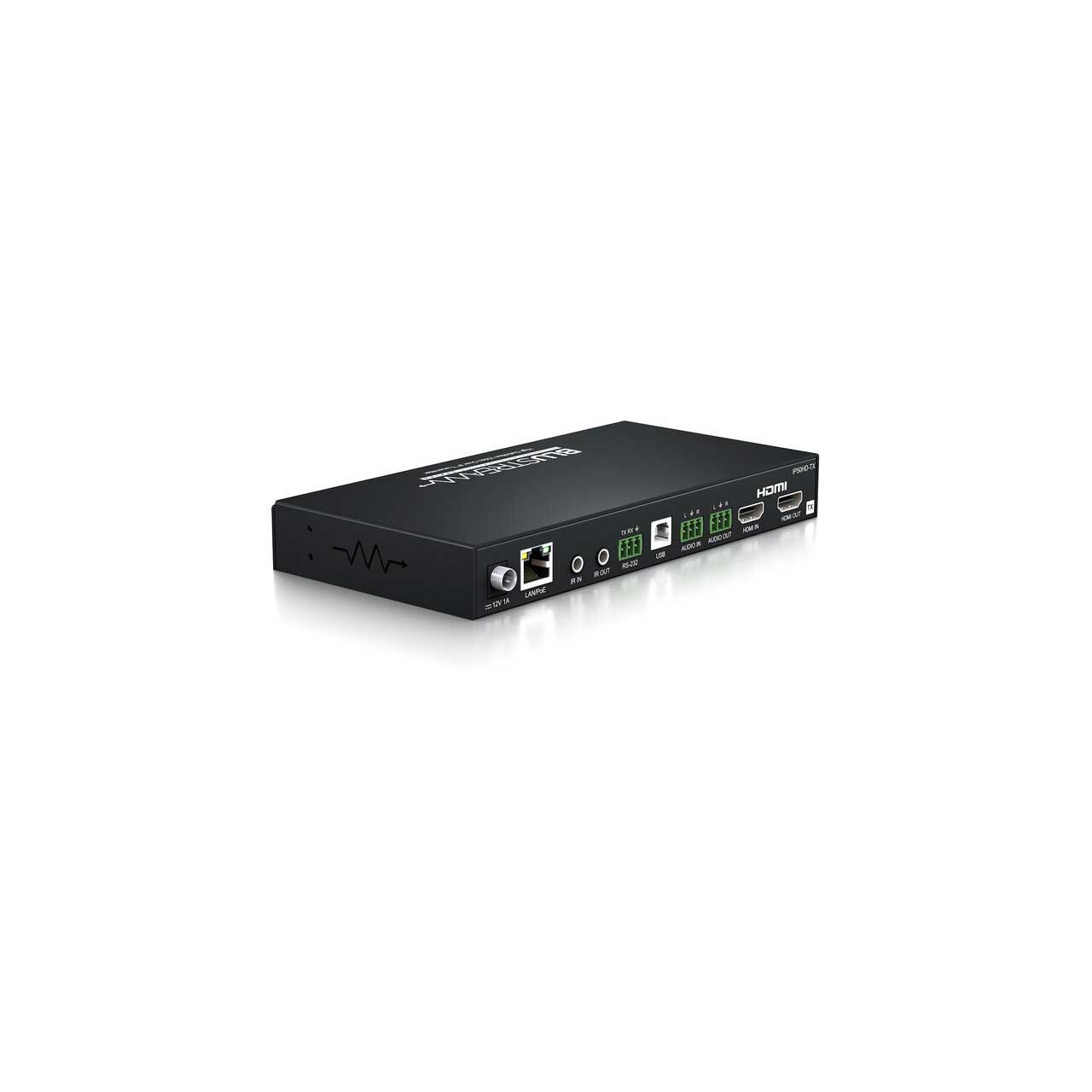

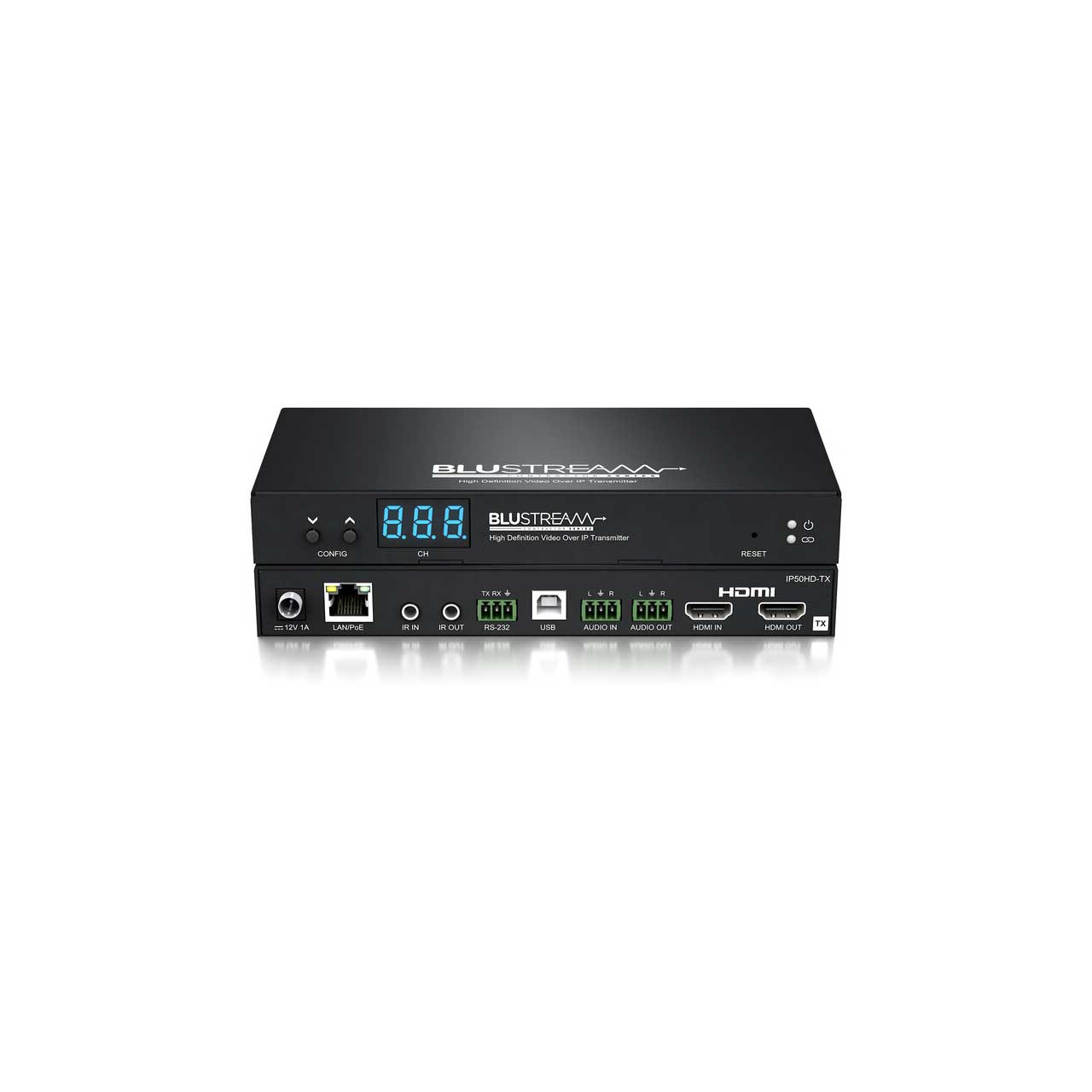

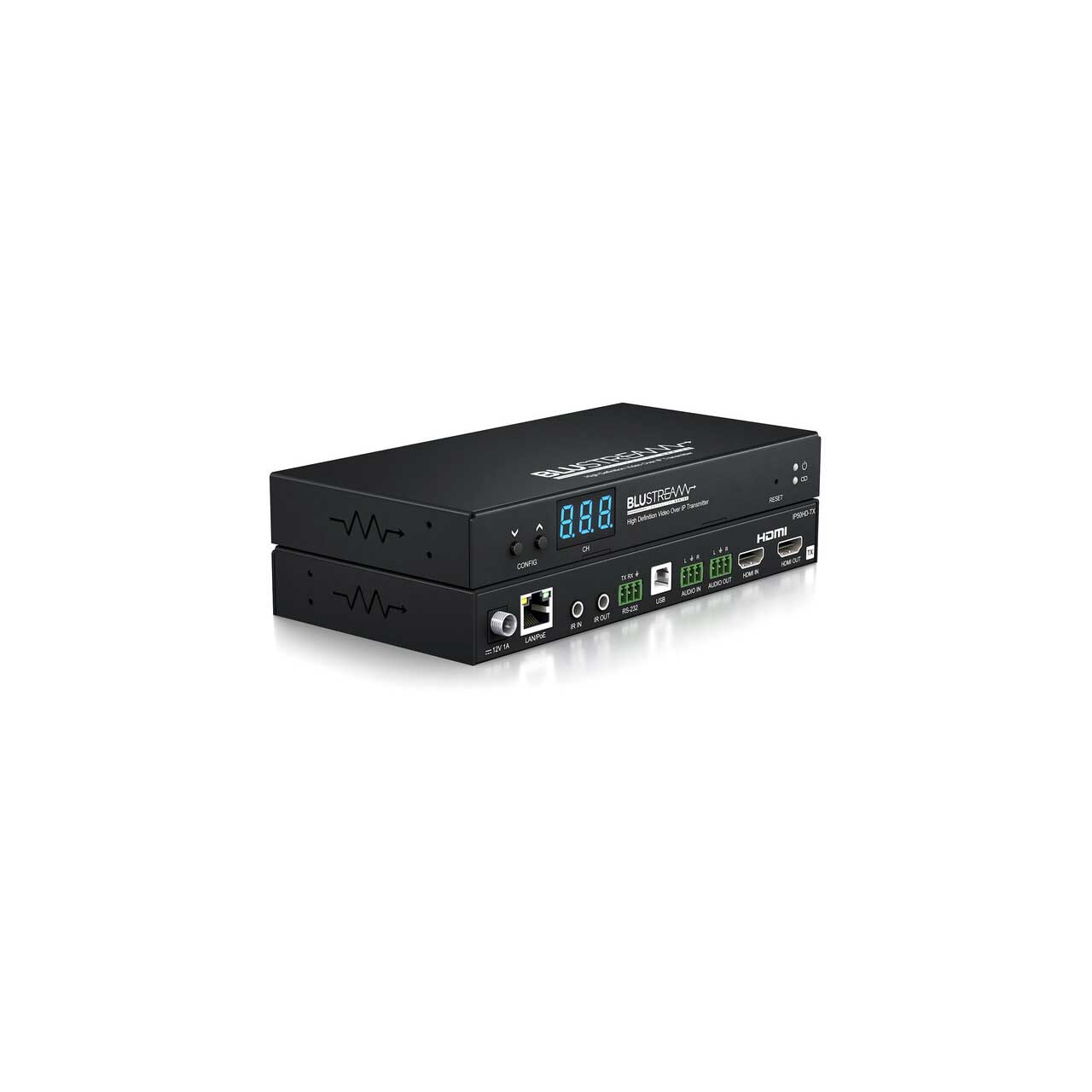

Blustream IP50HD-TX Contractor Series HD Video Transmitter over 100Mbps Network / HDMI Loop-Out and Bi-directional IR

IP50HD-TX - Overview

• Features:

  • Advanced HD video, control and KVM over network infrastructure
  • Extends HDMI up to a distance of 100m over a single CAT cable
  • Supports unicast transmission over unmanaged networks
  • Supports multicast transmission for large managed networks
  • Supports up to 1080p 60Hz
  • Features 1 x HDMI loop-out for integrating local displays or cascading to multiple devices
  • Supports PCM 2.0 channel audio
  • Advanced signal management for independent routing of IR, RS-232, USB/KVM and video/audio
  • PoE (Power over Ethernet) to power Blustream products from PoE switch
  • HDCP 1.4 compliant with advanced EDID management
  • Analog L/R audio embedding and audio breakout
  • Local 12V 1A power supply should Ethernet switch not support PoE (not included)
  • Features 2 operational modes:
    - Matrix distribution (requires 100Mbps network switch)
    - One-to-one HDMI extender (no network switch required)


• Specifications:

  • Video Input: 1x HDMI Type A, 19-pin, female, locking
  • Video Output: 1x LAN RJ45 connector, 1x HDMI Type A, 19-pin, female, locking
  • Audio Input: 1x 3-Pin Phoenix connector
  • Audio Output Connectors: 1x 3-Pin Phoenix connector
  • Ethernet Port: 1x LAN RJ45 connector
  • RS-232 Serial port: 1x 3-Pin Phoenix connector
  • USB/KVM Port: 1x USB-Type B
  • IR Input: 1x 3.5mm stereo jack
  • IR Output: 1x 3.5mm mono jack
  • Dimensions (W x D x H ): 190mm x 95mm x 25mm
  • Dimensions Including Connections (W x D x H ): 190mm x 100mm x 25mm , without feet
  • Operating Temperature: 32°F to 104°F (0°C to 40°C)
  • Storage Temperature : -4°F to 140°F (-20°C to 60°C)


• Item Includes:

  • 1x IP50HD-TX
  • 1x IR Receiver
  • 1x IR Emitter
  • 1x Mounting Kit
  • 4x Rubber Feet


• GTIN:

  9340242003454
