Blustream PRO-8AB Pro Matrix 8x Dual Audio Breakout Board

ITEM #: BLU-PRO-8AB MFG #: PRO-8AB

Primary Image
Blustream
Free Shipping with $49 Minimum Order

Our Price:

$233.00

Add to Wish ListLeasing Options
Availability: Ships Factory Direct, Typically in 3-10 Business Days
iAvailability Description Popup
    Report Lower PriceLarge Quantity Quote

    PRO-8AB - Overview

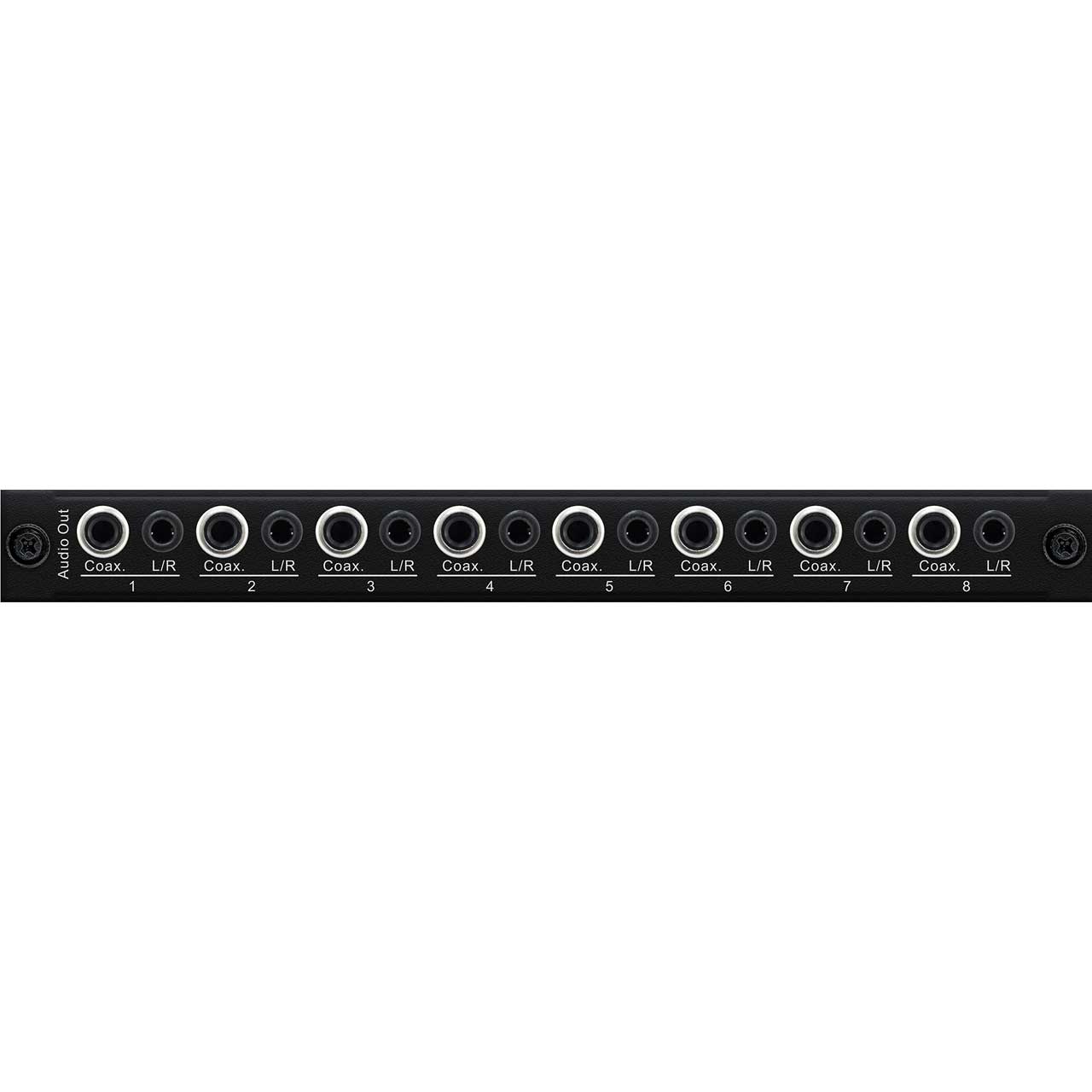

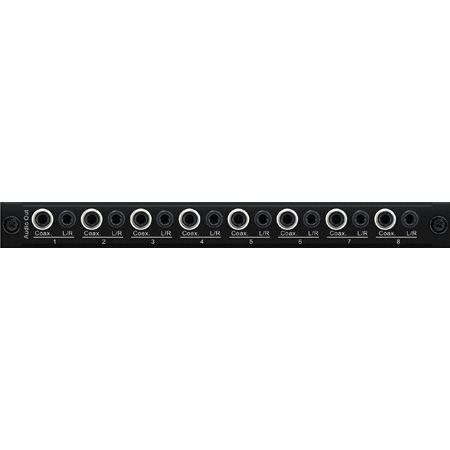

    The Blustream PRO-8AB audio breakout board offers 8x simultaneous coaxial digital and analog L/R audio outputs and features quick release card module fittings allowing simple installation into the Custom Pro Matrix hub.

    • Features:

      • Features 8x HDMI audio breakouts from corresponding video zone outputs to coaxial digital and analog L/R audio outputs (no DSP)
      • Quick release card module fittings allowing simple population of input and output cards in Custom Pro Matrix Hub


    • Specifications:

      • Audio Output Connectors: 8x RCA (SPDIF), 8x 3.5mm stereo jack (L/R)
      • Card Dimensions (W x H x D): 202mm x 22mm x 177mm
      • Dimensions Including Connections (W x H x D): 202mm x 22mm x 188mm
      • Shipping Weight: 0.5kg
      • Operating Temperature: 32°F to 104°F (0°C to 40°C)
      • Storage Temperature : -4°F to 140°F (-20°C to 60°C)


    • Item Includes:

      • 1x PRO-8AB Audio Breakout


    • Warranty:

      • 3 Year Warranty


    • GTIN:

      9340242002174
