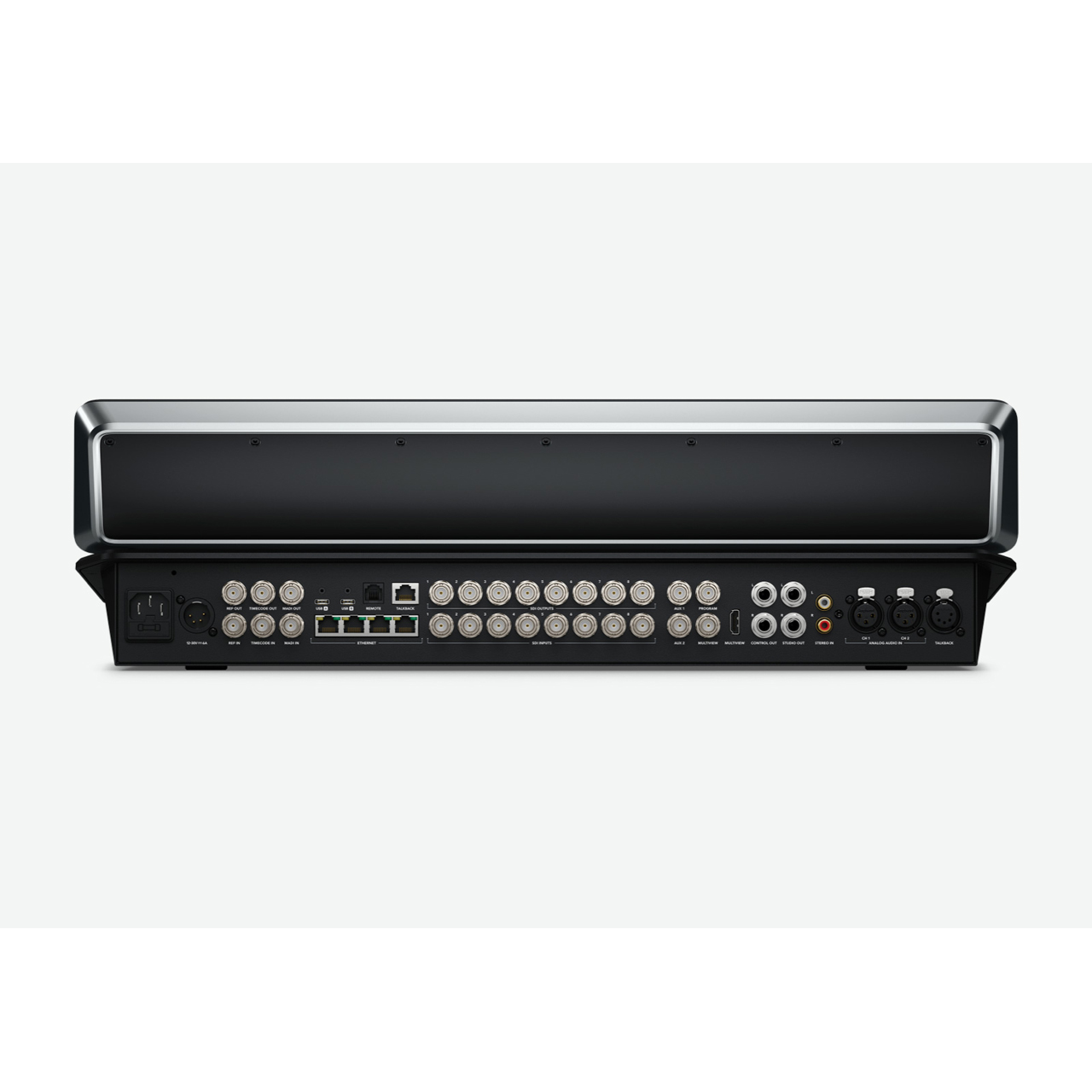

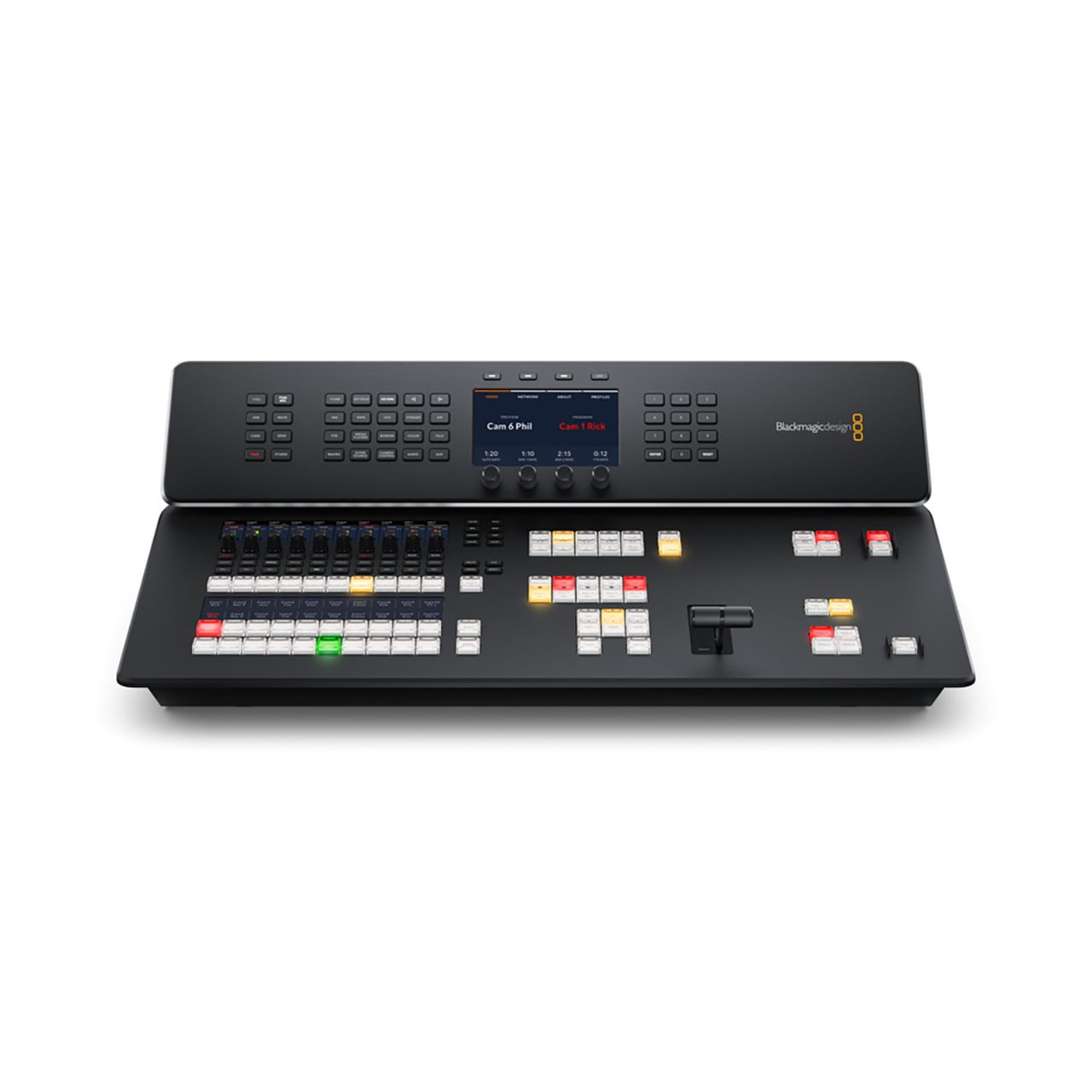

Blackmagic Design ATEM TV Studio HD8 ISO 2TB 3G-SDI Production Switcher with Built-In Control Panel & ISO Recording

ITEM #: BMD-ATEMSTUHD8I2 MFG #: SWATEMTVSTC/HD08ISO/2

Primary Image
  • Product Image Thumbnail 1 of 5
  • Product Image Thumbnail 2 of 5
  • Product Image Thumbnail 3 of 5
  • Product Image Thumbnail 4 of 5
  • Product Image Thumbnail 5 of 5
Free Shipping with $49 Minimum Order

Our Price:

$5,495.00

Availability: Usually Ships in 5-14 Days.
Please Email, Chat or Call (800) 522-2025 for Detailed Delivery Info
iAvailability Description Popup


SWATEMTVSTC/HD08ISO/2 - Overview

The World's Most Portable All-In-One Television Studio!

The ATEM Television Studio HD8 ISO 2TB includes all the features of ATEM Television Studio HD8 plus adds ISO recording of all 8 inputs as separate video files to the 2TB M.2 internal memory, or network or USB storage. Also supports up to 8 remote cameras via local Ethernet or globally via the internet. Remote cameras even support tally and camera control!

The new ATEM Television Studio is a professional live production switcher built into a broadcast control panel so it can be used for high end work while being extremely portable. This means you can use it in small venues that don't have the access for equipment racks or broadcast vans. You get a powerful switcher with 8 standards converted SDI inputs, aux outputs, 4 chroma keyers, 2 downstream keyers, SuperSource, 2 media players and lots of transitions! Plus it includes a whole television studio of features such as hardware streaming, recording, audio mixer, talkback, multiview plus 2TB models include M.2 flash memory. There's even an ISO model that records all 8 inputs for editing!

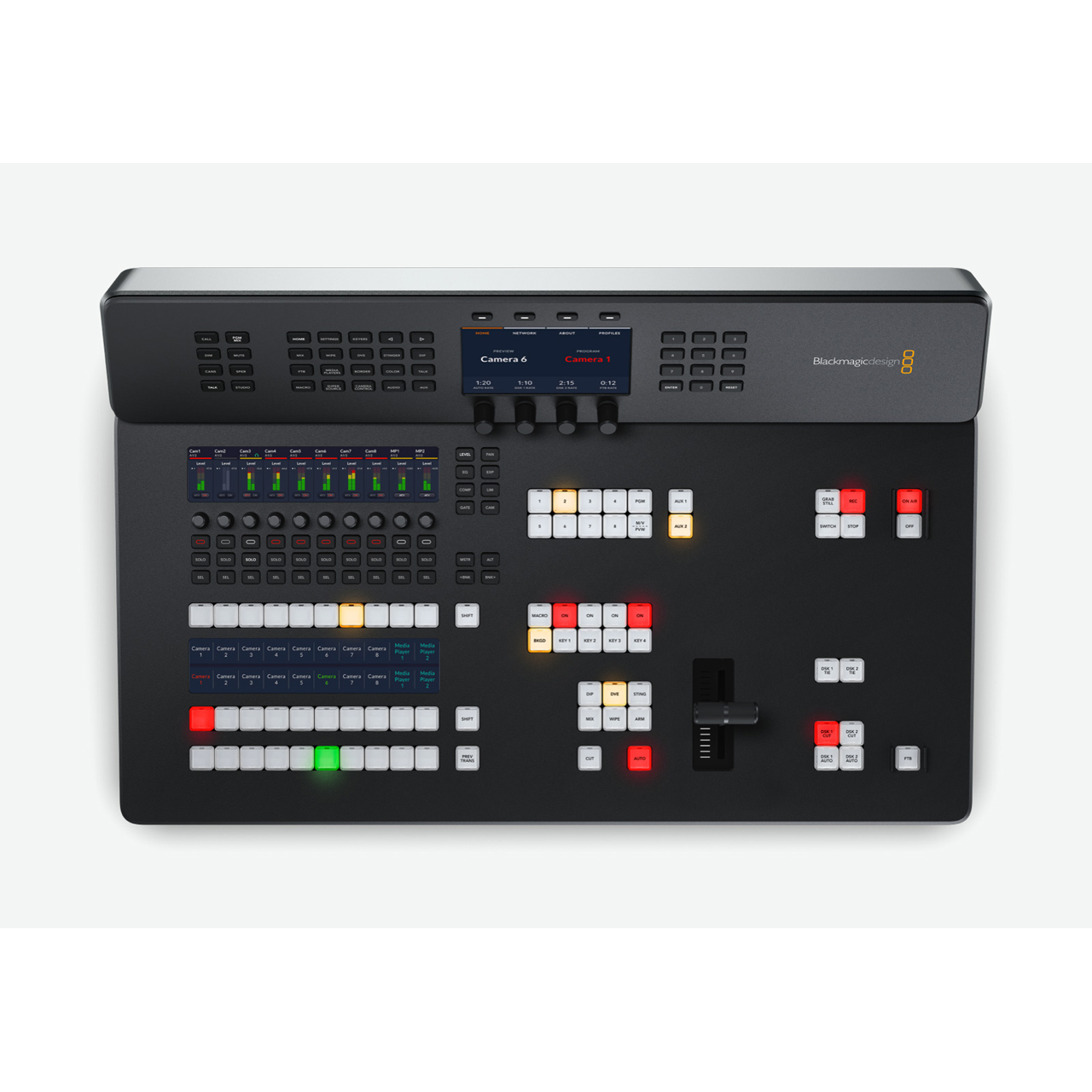

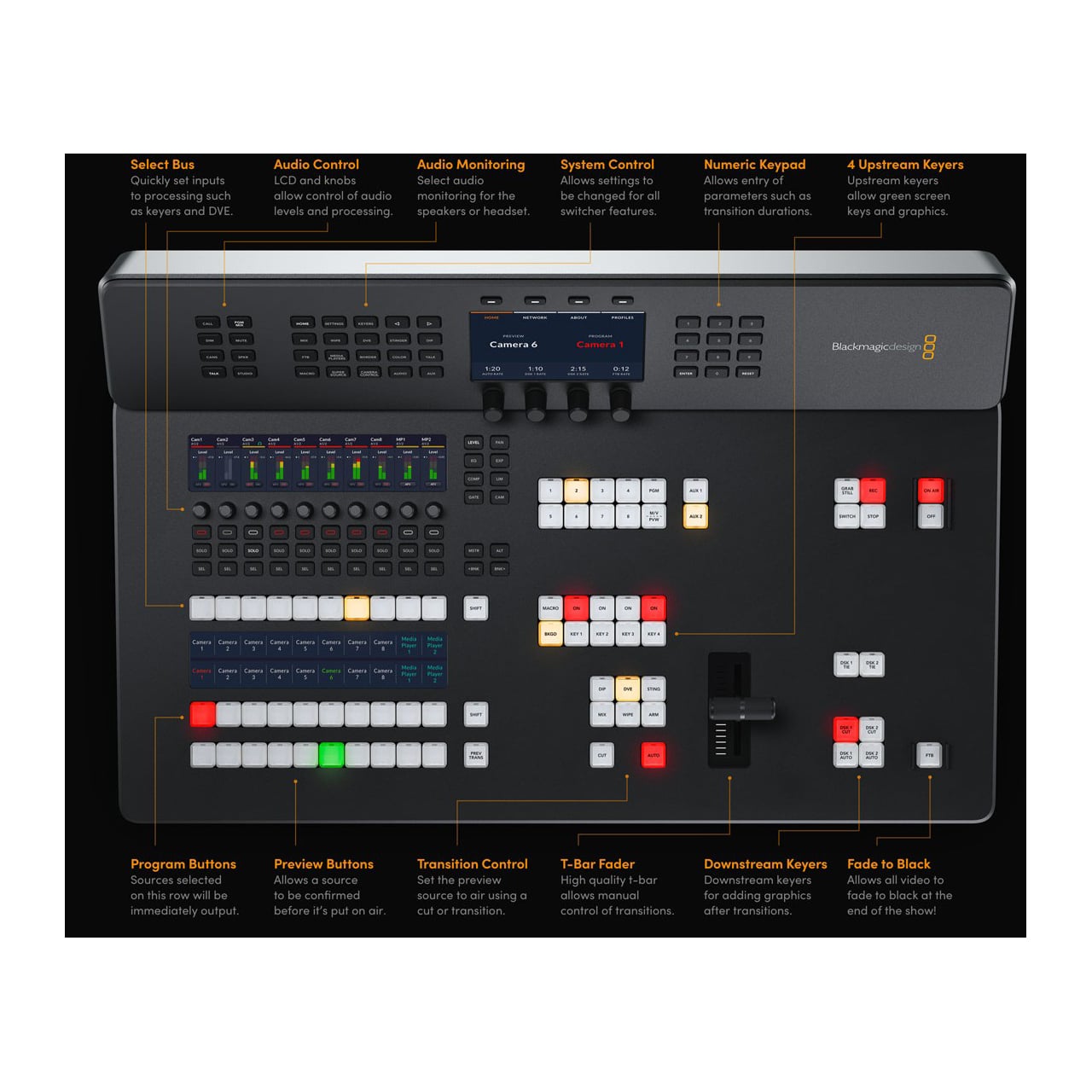

The ATEM Television Studio combines a switcher and control panel into the same unit, so it's extremely portable. You get everything you need! The front panel includes buttons for selecting sources, triggering transitions and setting up video effects. Plus the buttons are the same high-end type used on expensive broadcast switchers! You also get a built in t-bar for manual transition control! The front panel even has an innovative audio mixer control area with live metering on a dedicated LCD. There are also buttons for recording and streaming control, plus live aux switching that lets you change aux outputs between all 8 cameras, program, preview or the multiview.

  • Features:

    • World's most portable all in one live production switcher and control panel
    • ISO recording on all 8 12G-SDI standards converted inputs
    • Supports up to 8 remote cameras via local Ethernet or globally via the internet
    • Designed for broadcast, professional, AV and YouTube live steaming
    • Portable, all in one design is ideal for use in small venues with limited access
    • Fairlight audio mixer, keyers, multiview, DVE, media players, built in streaming

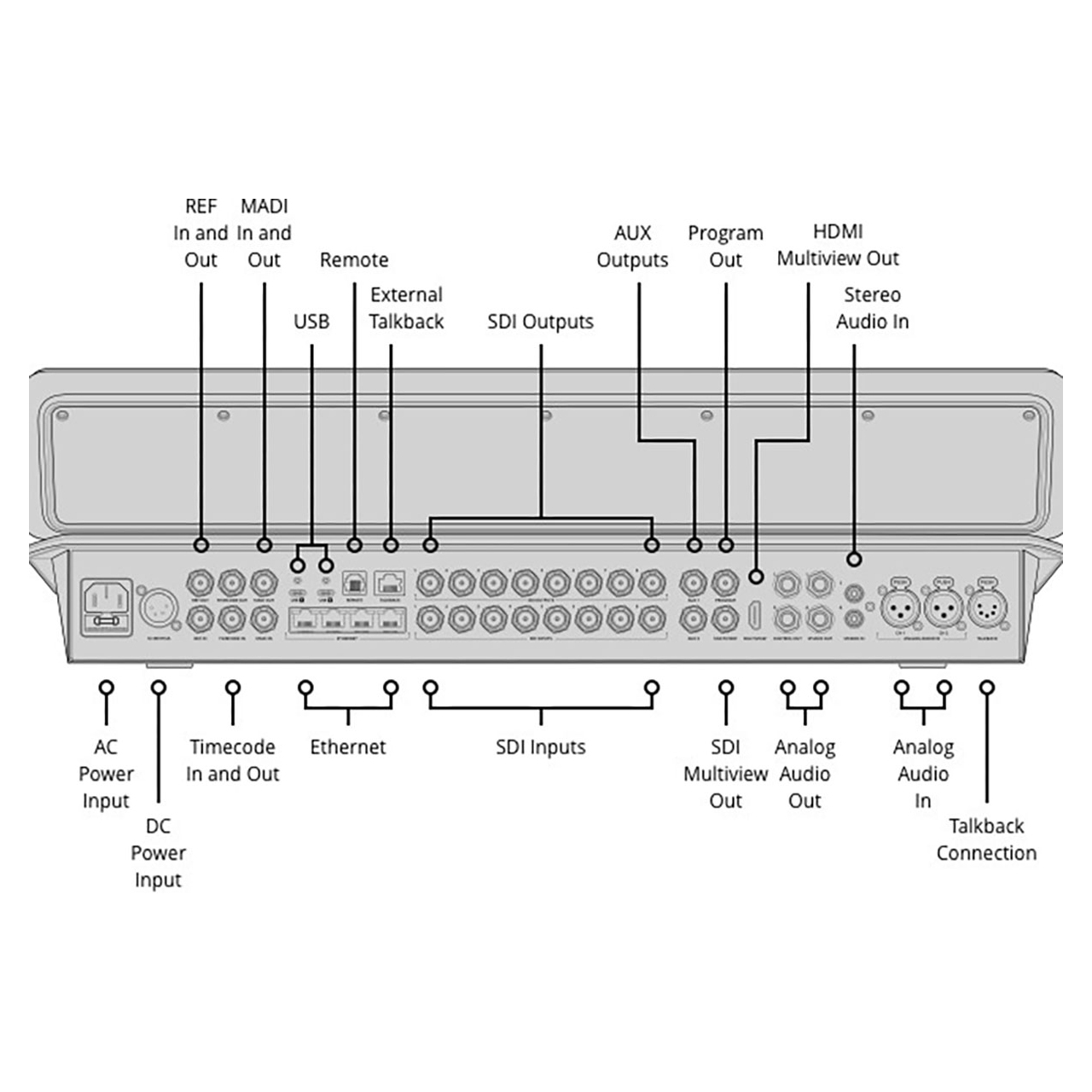

  • Specifications:

    • SDI Video Inputs: 8
    • SDI Video Outputs: 12
    • SDI Rates: 1.5G, 3G
    • HDMI Video Outputs: 1
    • Total Audio Inputs:
      - 2x XLR balanced analog audio
      - 1x BNC 32 Ch MADI digital audio
      - 2x RCA stereo analog audio
      - 1x 5-pin XLR Talkback
    • Total Audio Outputs:
      - 4x 1/4" Jack analog audio
      - 1x BNC 64 Ch MADI digital audio, up to 50 active
      - 1x 5-pin XLR Talkback
    • SDI Audio Inputs: 4 Ch embedded audio on all SDI inputs
    • SDI Audio Outputs: 2 Ch embedded audio on all SDI outputs
    • Timecode Connections:
      - 1x BNC In
      - 1x BNC Out
    • Reference Input:
      - 1x BNC In
      - 1x BNC Out. Tri-Sync or Black Burst
    • Video Input Re-Sync: On all 8 inputs
    • Frame Rate and Format Converters: On all 8 inputs
    • SDI Aux Outputs: 2
    • SDI Program Outputs: 1
    • Webcam Output: 2x USB-C supporting 720p or 1080p at PGM frame rate
    • Total Multi Views:
      - 1x 3G-SDI
      - 1x HDMI
    • Remote: RJ12 supports RS-422
    • Control Panel Connection: Ethernet. Direct connection between panel and chassis, or via network.
    • Internal Timecode Generator: Yes
    • Talkback: RJ45 for 3rd party talkback systems
    • Tally Output: Added via ethernet connection to Blackmagic Design GPI and Tally Interface product (not included)
    • Ethernet: 4x RJ45 with internet network switch. Supports 10/100/1000 BASE-T.
    • Computer Interface: 2x USB-C supports USB 3.0 for external drive recording, webcam out, software control, software updates and switcher connection.
    • HD Video Input Standards: 720p50, 720p59.94, 720p60 1080i50, 1080i59.94, 1080i60, 1080p23.98, 1080p24, 1080p25, 1080p29.97, 1080p30, 1080p50, 1080p59.94, 1080p60
    • SDI Compliance: SMPTE 292M, SMPTE 296M, SMPTE 424M, SMPTE 425M level A and B
    • Video Sampling: 4:2:2
    • Color Precision: 10-bit
    • Color Space: Rec 709
    • SDI Auto Switching: Automatically detects between 1.5G-SDI and level A or level B 3G-SDI
    • Total Streaming Sources: Up to 8
    • Streaming Source Format: RTMP video with audio over a local network or internet connection from compatible Blackmagic Design cameras outputting HyperDeck High, HyperDeck Medium, HyperDeck Low, Streaming High, Streaming Medium or Streaming Low quality setting.
    • Streaming Source Setup: Mapped to inputs in ATEM Software Control Settings
    • Direct Streaming: Supports direct live streaming using Real Time Messaging Protocol (RTMP) over ethernet or a shared internet connection over USB-C
    • Direct Recording Video and Audio: Direct recording to external media via USB-C expansion ports or optional internal M.2 flash memory
    • Video Recording: Program recorded as a H.264 .mp4 file at the streaming quality setting and at the ATEM video standard with AAC audio. SDI inputs recorded as separate H.264 .mp4 files at up to 70Mb/s quality at the ATEM video standard with AAC audio.
    • Audio Recording: Audio inputs recorded as separate 24-bit 48kHz .wav files. Includes 8x SDI 2 channel embedded audio inputs, 4x analog audio inputs and up to 32 channels of MADI digital audio.
    • Switching: Program switching recorded as a DaVinci Resolve project .drp file
    • Media: All media pool stills and clips saved to a separate media folder
    • Media Format: Supports media formatted ExFAT (Windows/Mac). APFS or HFS+ (Mac).
    • Operating Systems: Mac 14.0 Sonoma, Mac 15.0 Sequoia or later, Windows 10 and 11
    • Power Supply:
      - 1x Internal 100V - 240V AC, 50/60Hz with IEC C14 socket
      - 1x 4-pin XLR 12V DC In for external power supply or battery use
    • Power Usage: 100W max

  • Item Includes:

    • ATEM Television Studio HD8 2TB
