Blackmagic Design ATEM Television Studio HD8 ISO with 2TB Built-In Flash Storage

ITEM #: BMD-ATEMTVSHD8I2 MFG #: BMD-SWATEMTVSTC/HD08ISO/2

Primary Image
  • Product Image Thumbnail 1 of 5
  • Product Image Thumbnail 2 of 5
  • Product Image Thumbnail 3 of 5
  • Product Image Thumbnail 4 of 5
  • Product Image Thumbnail 5 of 5
Free Shipping with $49 Minimum Order

Our Price:

$5,495.00

Availability: In Stock
iAvailability Description Popup


BMD-SWATEMTVSTC/HD08ISO/2 - Overview

The more advanced ISO model includes all the features of the ATEM Television Studio HD8 plus adds ISO recording of all 8 inputs to separate video files. Also supports up to 8 remote cameras via local Ethernet or globally via the internet. Remote cameras even support tally and camera control!

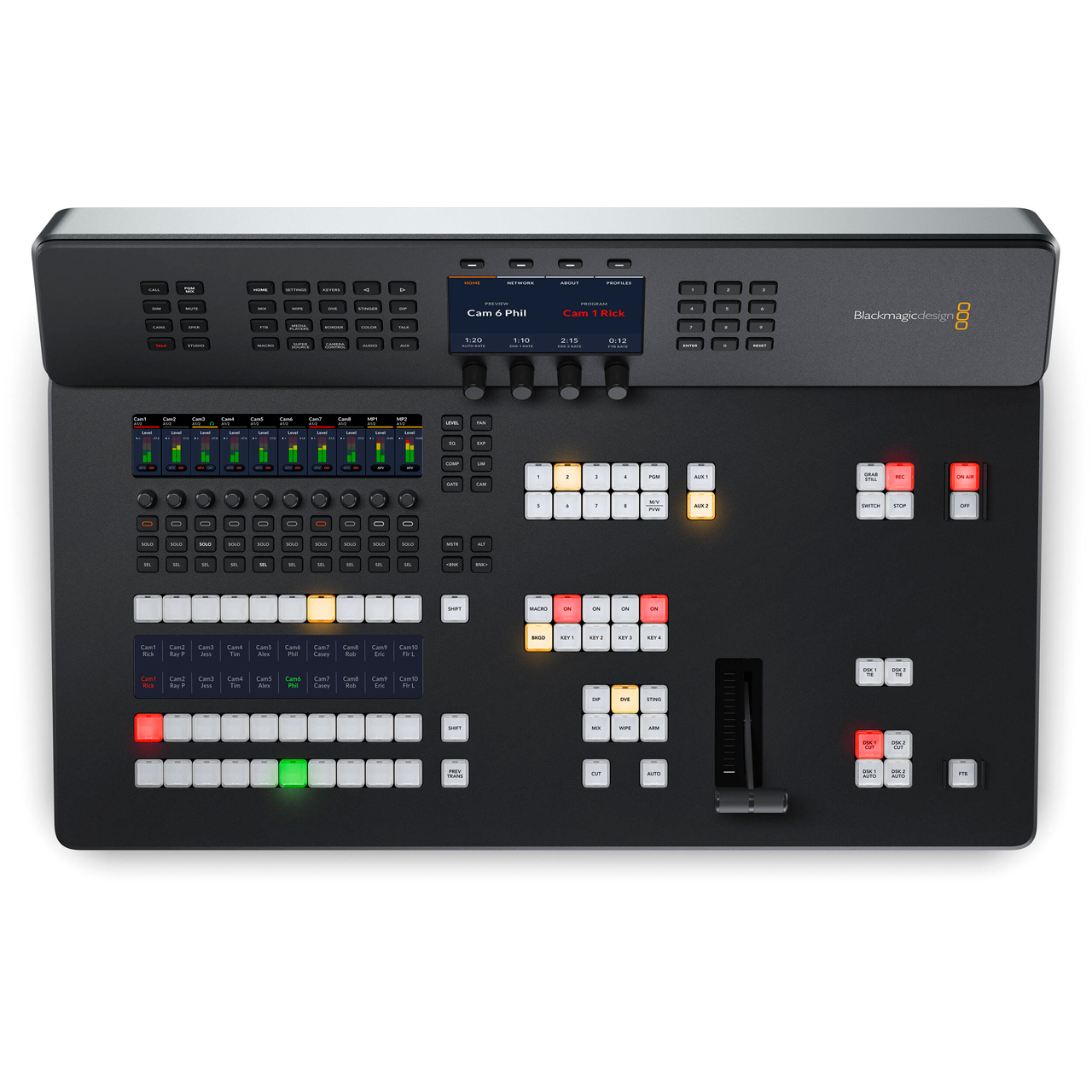

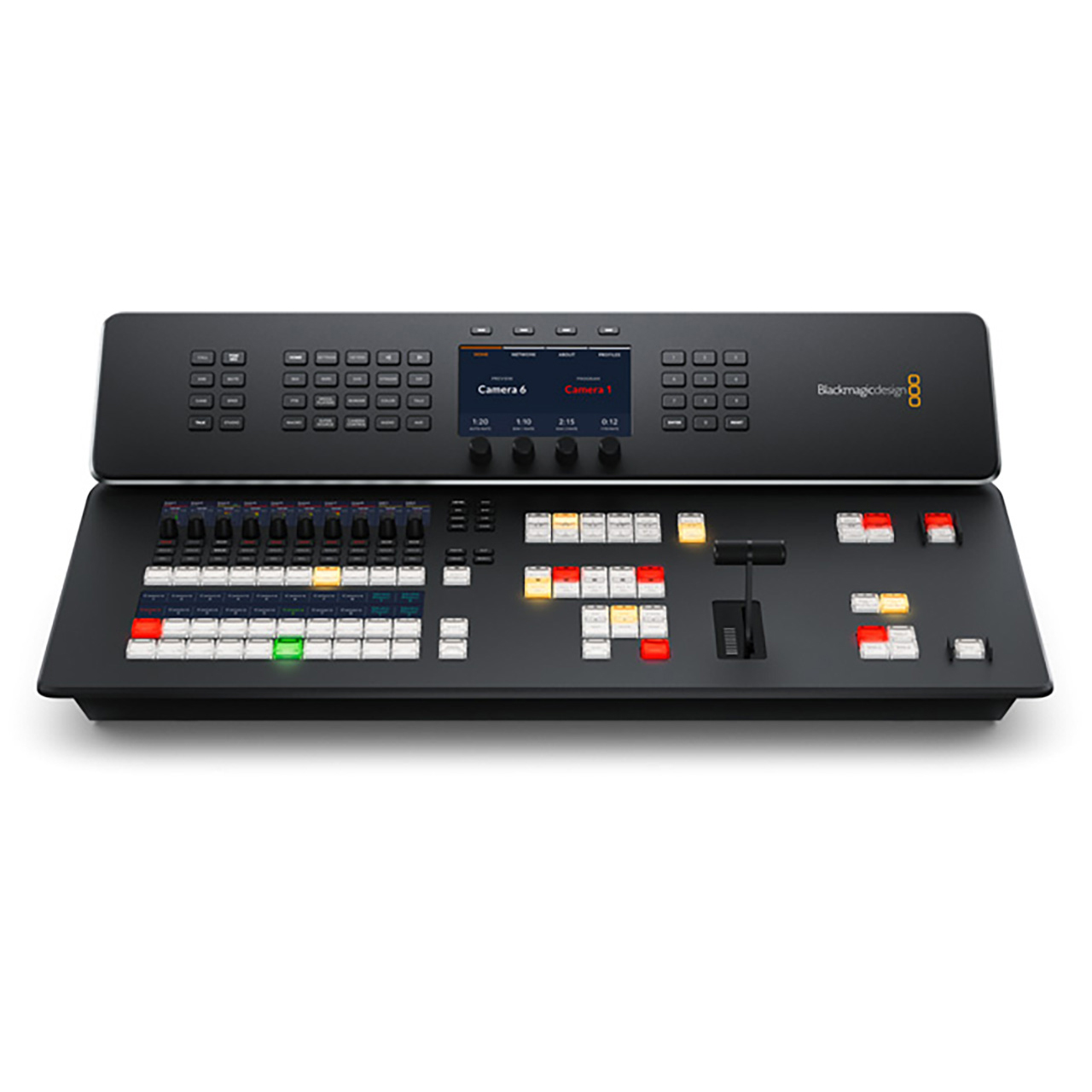

The new ATEM Television Studio HD is a professional live production switcher built into a broadcast control panel so it can be used for high end work while being extremely portable. This means you can use it in small venues that don't have the access for equipment racks or broadcast vans. You get a powerful switcher with 8 standards converted SDI inputs, 2 aux outputs, 4 chroma keyers, 2 downstream keyers, SuperSource, 2 media players and lots of transitions! Plus it includes a whole television studio of features such as hardware streaming, recording, audio mixer, talkback, multiview and optional internal cloud storage. There's even an ISO model that records all 8 inputs for editing!

You get an incredibly powerful 8 input switcher with both program and two aux outputs so you have everything you need for mobile production. That means you can connect up to 8 cameras! Plus you get professional camera control, talkback and audio mixing all designed into a familiar broadcast panel.

The ISO model records all inputs into separate files so you can edit using any NLE that supports multi-cam! That's possible because all files have perfect timecode sync! Plus with built in network storage, you can edit while recording! Multiple users can even share media and collaborate!

With a built in hardware streaming engine, you can live stream your event to a global audience! Recording to H.264 files with AAC audio means you get the correct format to upload to YouTube. Plus you share live broadcasts with your audience by using the aux outputs and large screens and projectors!

  • Specifications:

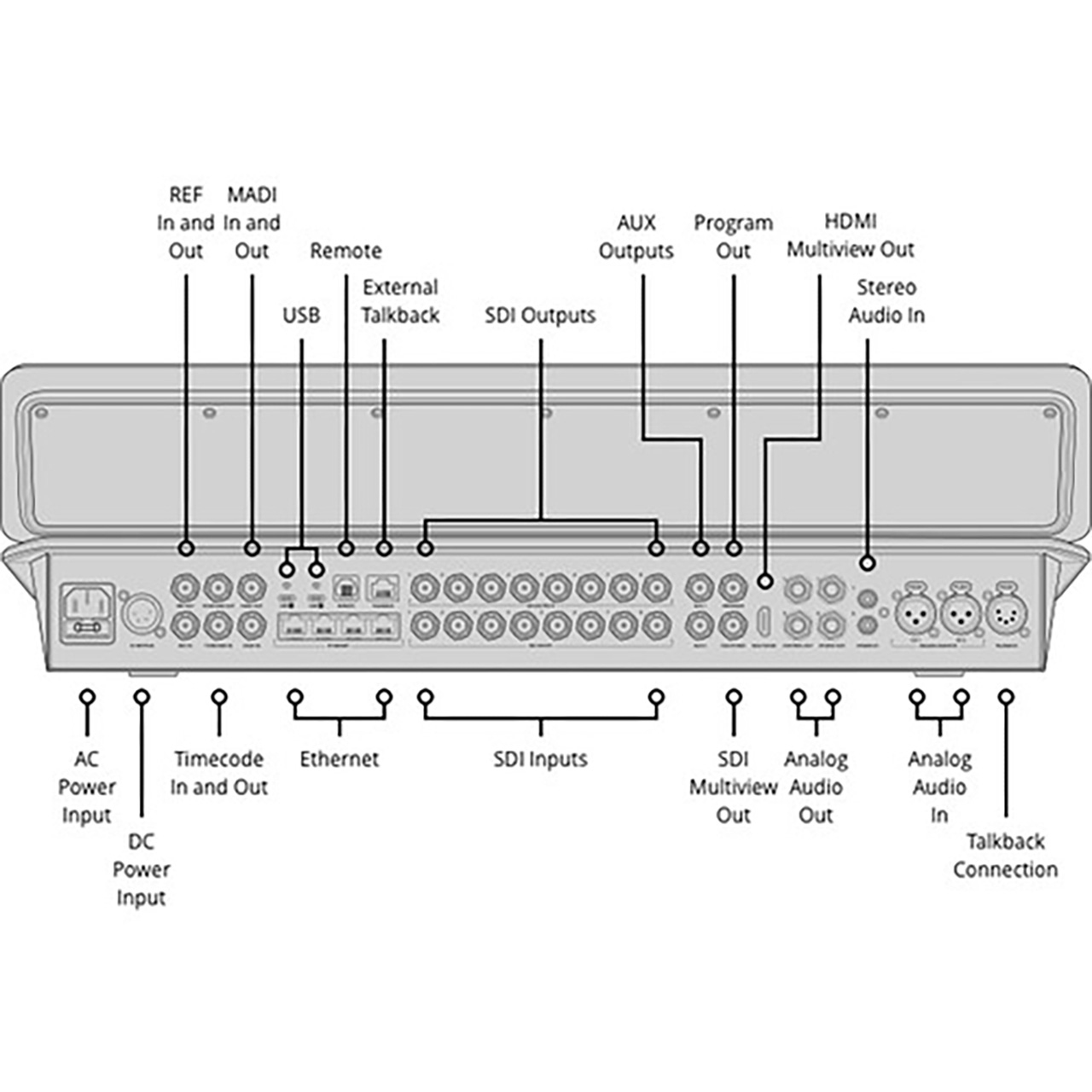

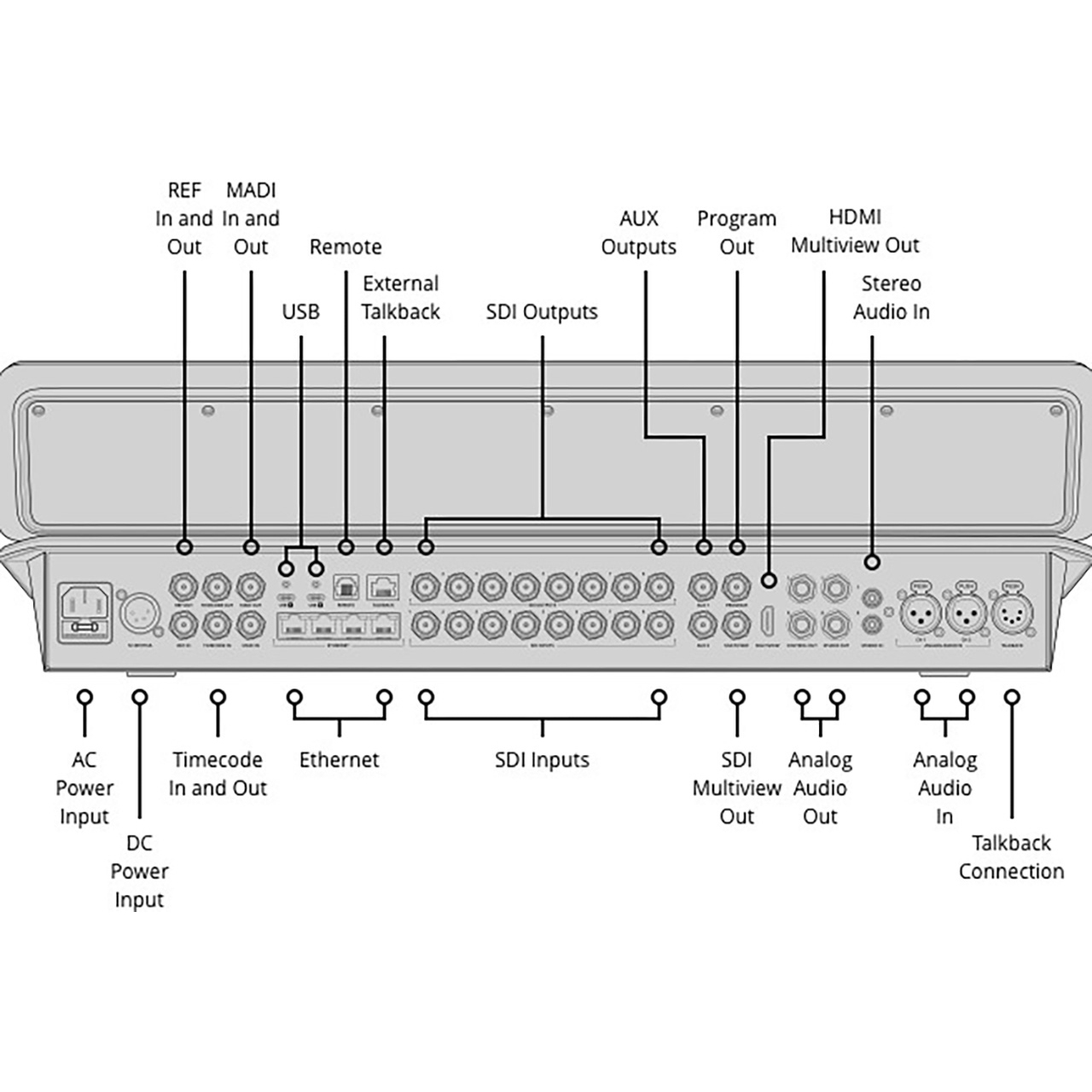

      Connections:
    • SDI Video Inputs: 8
    • SDI Video Outputs: 12
    • SDI Rates: 1.5G, 3G
    • HDMI Video Outputs: 1

      Total Audio Inputs
    • 2x XLR balanced analog audio
    • 1x BNC 32 Ch MADI digital audio
    • 2x RCA stereo analog audio
    • 1x 5-pin XLR Talkback

      Total Audio Outputs:
    • 4x 1/4" Jack analog audio
    • 1x BNC 64 Ch MADI digital audio, up to 50 active
    • 1x 5-pin XLR Talkback

      SDI Audio Inputs: 4 Ch embedded audio on all SDI inputs.
    • SDI Audio Outputs: 2 Ch embedded audio on all SDI outputs.
    • Timecode Connections:
      - 1x BNC In
      - 1x BNC Out
    • Reference Input:
      - 1x BNC In
      - 1x BNC Out
      - Tri-Sync or Black Burst
    • Video Input Re-Sync: On all 8 inputs
    • Frame Rate and Format Converters: On all 8 inputs
    • SDI Aux Outputs: 2
    • SDI Program Outputs: 1
    • Webcam Output: 2x USB-C supporting 720p or 1080p at PGM frame rate
    • Total Multi Views:
      - 1x 3G-SDI
      - 1x HDMI
    • Remote: RJ12 supports RS-422
    • Control Panel Connection: Ethernet. Direct connection between panel and chassis, or via network.
    • Internal Timecode Generator: Yes
    • Talkback: RJ45 for 3rd party talkback systems
    • Tally Output: Added via ethernet connection to Blackmagic Design GPI and Tally Interface product (Not included)
    • Ethernet: 4x RJ45 with internet network switch. Supports 10/100/1000 BASE-T.
    • Computer Interface: 2x USB-C supports USB 3.0 for external drive recording, webcam out, software control, software updates and switcher connection.

      Power Requirements
    • Power Supply:
      - 1x Internal 100V - 240V AC 50/60Hz with IEC C14 socket
      - 1x 4-pin XLR 12V DC In for external power supply or battery use.
    • Power Usage: 100W max

      Environmental
    • Operating Temperature: 32°F - 104°F (0°C - 40°C)
    • Storage Temperature: -4°F - 140°F (-20°C - 60°C)
    • Relative Humidity: 0% - 90% non-condensing
