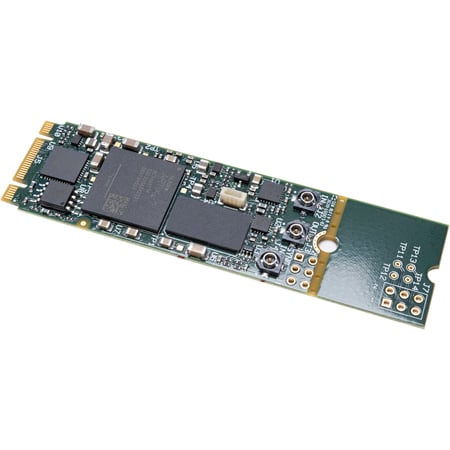

Blackmagic Design BDLKMICROSDI DeckLink Micro Miniature M.2 Capture Card with 3G-SDI - SD & HD Formats up to 1080p60

ITEM #: BMD-BDLKMICROSDI MFG #: BDLKMICROSDI

  • Product Image Thumbnail 1 of 2
  • Product Image Thumbnail 2 of 2
free ship

Our Price:

$125.00

Availability: Typically Ships in 3-10 Days
iAvailability Description Popup
  • This item is not returnable. See Terms & Conditions for details.


BDLKMICROSDI - Overview

The Blackmagic Design BMD-BDLKMICROSDI Miniature M.2 card with 3G-SDI connections for simultaneous capture and playback in all SD and HD formats up to 1080p60. DeckLink SDI Micro also includes Black Burst and Tri-Sync reference input and its miniature size makes it great for use on portable solutions which are based on compact computers!

  • Specifications:

    • Connections: M.2 PCI Express 1 lane generation 3, compatible with B and M key type 2260 and 2280.
    • SD Video Standards: 525i59.94 NTSC, 625i50 PAL

      HD Video Standards
    • 720p50, 720p59.94, 720p60
    • 1080p23.98, 1080p24, 1080p25, 1080p29.97, 1080p30, 1080p50, 1080p59.94, 1080p60
    • 1080PsF23.98, 1080PsF24, 1080PsF25, 1080PsF29.97, 1080PsF30
    • 1080i50, 1080i59.94, 1080i60

    • SDI Video Sampling: 4:2:2, 4:4:4
    • SDI Color Precision: 8, 10, 12-bit RGB 4:4:4 in all modes up to 1080p30 and 8, 10-bit YUV 4:2:2 in all modes.
    • SDI Compliance: SMPTE 259M, SMPTE 292M, SMPTE 296M, SMPTE 372M, ITU-R BT.656 and ITU-R BT.601.

      Operating Systems
    • Windows 8.1 and 10, both 64-bit.
    • Linux

    • Power Requirements: Power Consumption: 4.03W (max)
    • EMC Certifications: EMC, FCC, CE, C-Tick and KCC

      Environmental Specifications
    • Operating Temperature: -25°C to 55°C (-13°F to 131°F)
    • Storage Temperature: -40°C to 75°C (-40°F to 167°F)
    • Relative Humidity: 0% to 90% non-condensing

  • Item Includes:

    • 1x DeckLink SDI Micro
    • 1x Fan and Heat Sink assembly

  • Warranty:

    • 3 Year Limited

  • GTIN:

    9338716005684
