Blackmagic Design BDLKULSASDI UltraStudio SDI
  • Blackmagic Design BDLKULSASDI UltraStudio SDI
  • Blackmagic Design BDLKULSASDI UltraStudio SDI
  • Blackmagic Design BDLKULSASDI UltraStudio SDI
  • Blackmagic Design BDLKULSASDI UltraStudio SDI
Questions? Ask a Markertek Expert:
800-522-2025 Email

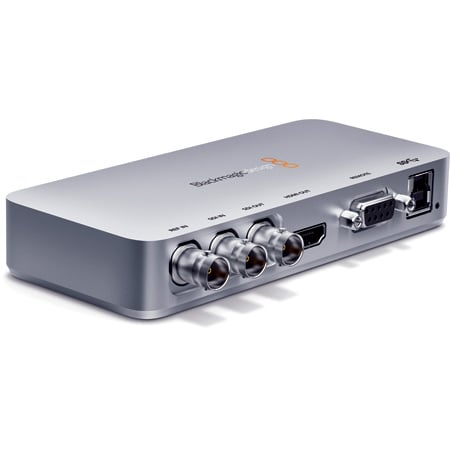

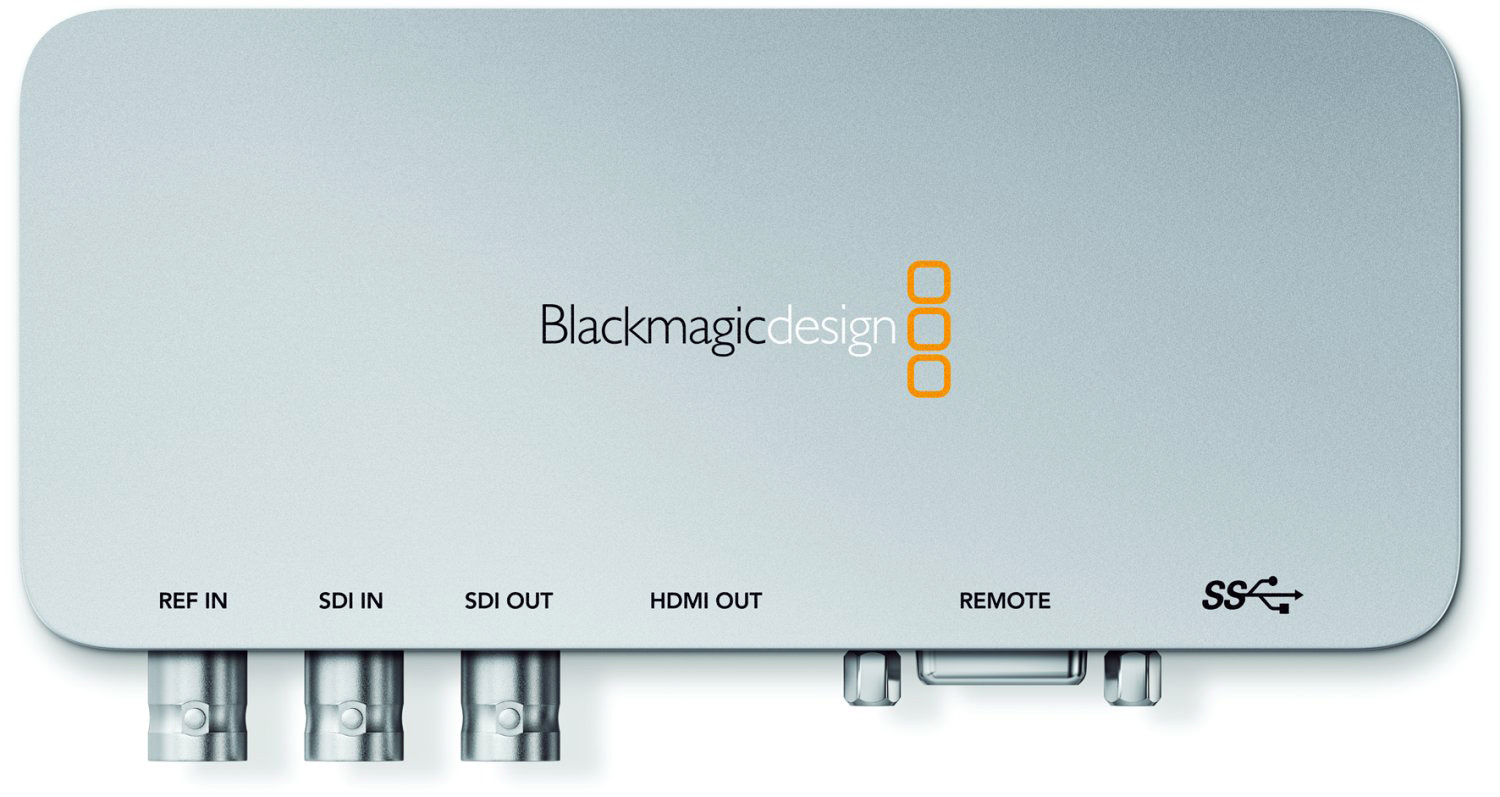

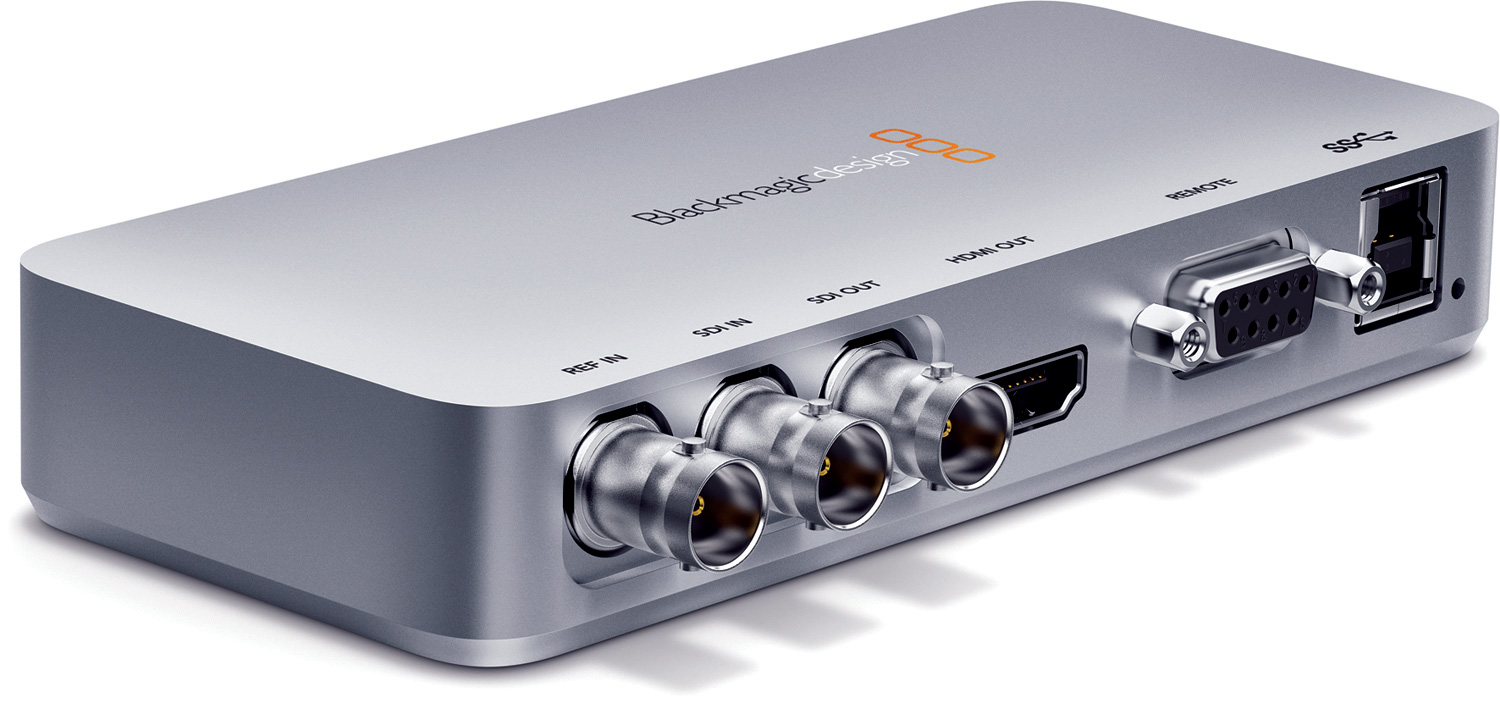

Blackmagic Design BDLKULSASDI UltraStudio SDI

Manufacturer: Blackmagic Design



List Price:$395.00
Our Price:$375.25

free ship
Availability: In Stock
Item is Available for immediate shipping from our warehouse.



    The world's smallest SDI capture and playback solution for USB 3.0 Computers!

    Introducing the world's smallest and most affordable SDI capture and playback solution for USB 3.0 computers! UltraStudio SDI simply plugs in to add 10 bit SDI capture and playback, plus HDMI monitoring to your computer! Because it powers from the USB connection, it's a snap to install! With high quality SDI and HDMI monitoring, plus genlock and RS-422 deck control built in, you get the the highest quality solution for editing, effects, paint and design!

    Broadcast Quality SDI for USB 3.0

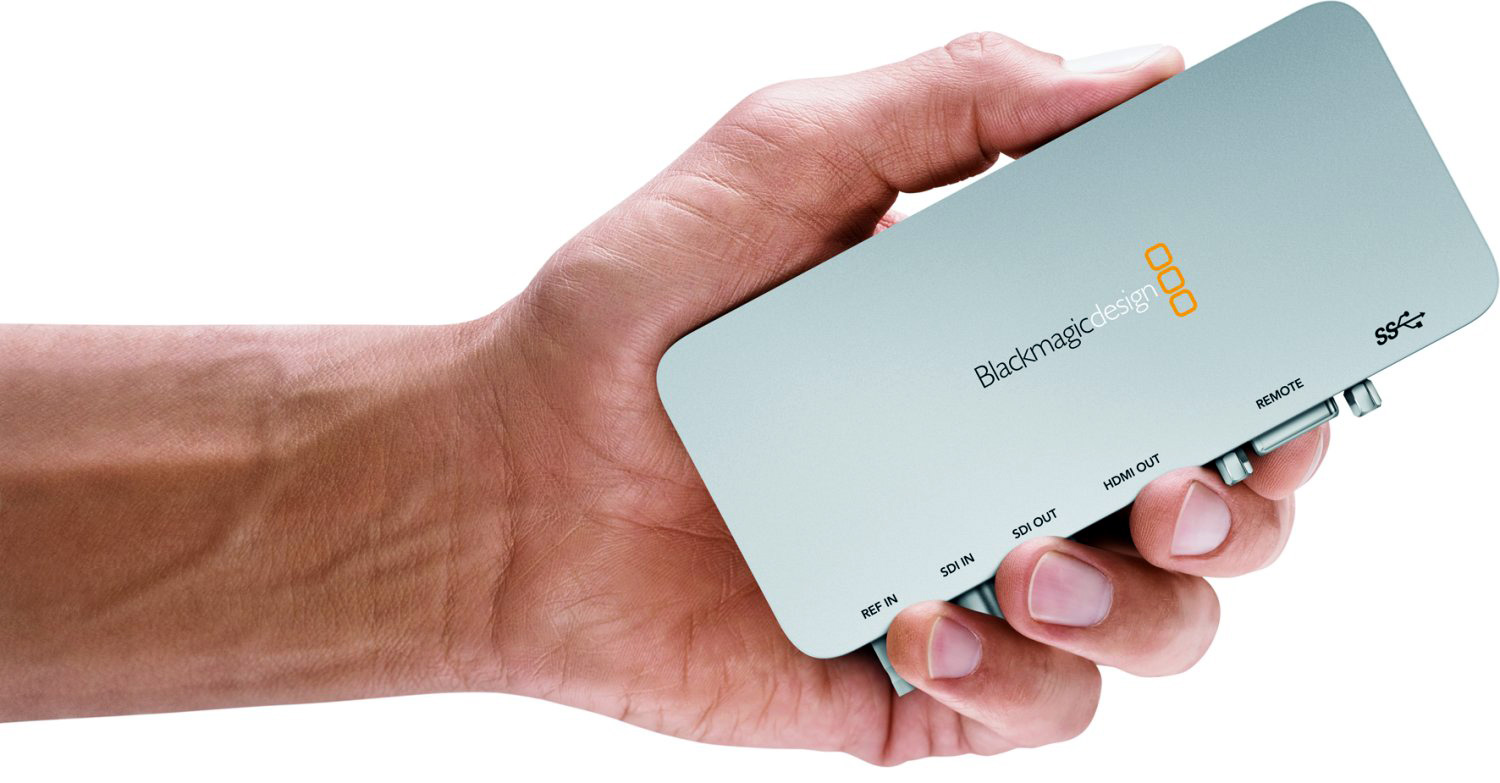

    UltraStudio SDI is so compact it fits right into your hand! UltraStudio SDI can be hidden under desks or taken on location. With an attractive machined aluminum design, it looks great on your desk or on location shoots. UltraStudio SDI includes a built in HDMI 1.4 output so you can even use a low cost television as a broadcast monitor! We also include Photoshop plug-ins, NLE drivers and our award winning Media Express deck control software! Perfect with laptops for SDI acquisition on location, or in large creative groups so all computers can be connected to broadcast routing infrastructure, UltraStudio SDI is the perfect low cost solution!

    Compact Design
    UltraStudio SDI is an attractive and compact design that's machined out of a solid block of aluminum for incredible strength. That means you get a beautifully finished uni-body design that looks great on your desk. UltraStudio SDI includes a mounting bracket that lets you mount it under desks or on walls for added security. UltraStudio SDI eliminates messy power supplies because it powers from the USB 3.0 connection, plus there are no switches or adjustments because it automatically switches between SD, HD and 3 Gb/s SDI video formats.

    Advanced USB 3.0
    For an advanced future proof design, UltraStudio SDI features built in USB 3.0 for a high speed 4.8 Gb/s connection that's up to 10 times faster than USB 2.0 or FireWire. USB 3.0 is built into the latest computers and is more than 3 times the speed of HD video.

    Incredible Quality
    Now high quality broadcast electronics don't need to be ugly and expensive! UltraStudio SDI features super low jitter 3 Gb/s SDI connections plus the latest HDMI 1.4 output for local monitoring. You get both compressed and uncompressed video.

    Everything Included
    UltraStudio SDI includes everything you need for editing, paint or broadcast design. We include a full set of drivers for capture and playback with real time effects in Premiere Pro! Also included is Media Express for batch capture and output to tape.

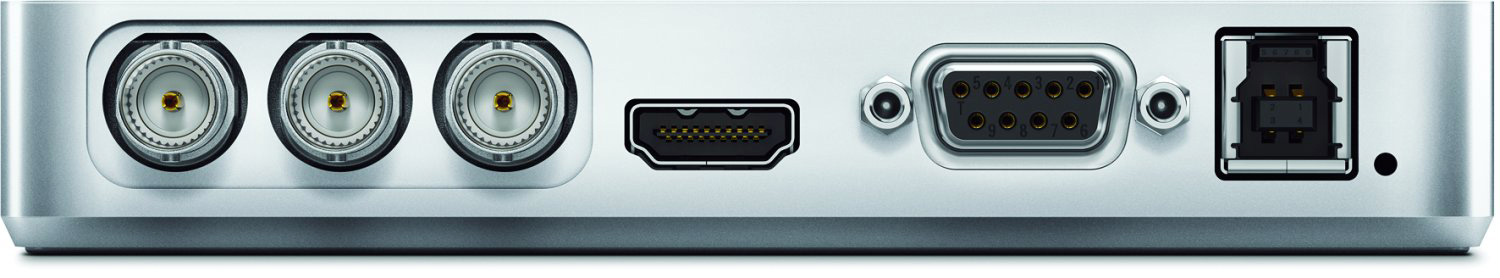

    World's Highest Quality Connections
    UltraStudio SDI includes the highest quality low jitter SDI connections that instantly switch between all SD and HD video formats. Connect to decks such as Digital Betacam, HDCAM, HDCAM-SR, Panasonic D5, Sony PMW-F3 and more! UltraStudio SDI includes HDMI 1.4 out, so you can use any television as a broadcast monitor, dramatically lowering the overall cost of editing systems. HDMI out even lets you connect to video projectors for the most amazing theater style environments! UltraStudio SDI includes deck control, genlock and fully powers via USB 3.0!

    Compatible with Everything!
    Blackmagic Design is the worlds biggest capture card manufacturer, so you get more third party software compatability! Edit on your favorite NLE software such as Adobe Premiere Pro and Sony Vegas. For compositing and broadcast design, UltraStudio SDI works with After Effects, Nuke, Fusion and Photoshop. Audio engineers will love using UltraStudio SDI with Avid Pro Tools and Steinberg Nuendo.

    Compact Size
    With a compact size that's also attractive, UltraStudio SDI has been designed to look great on your desktop, or to be totally hidden from view! UltraStudio SDI features a beautiful machined aluminum design
    with full silicon rubber base that grips to desk surfaces. When you want to mount under desks or in cable ducts, just screw on the mounting bracket and attach it anywhere! UltraStudio SDI is so small and lightweight, it's perfect for your laptop bag, so you can take it everywhere! Because it's USB powered, it's truly a portable solution!

    • Specifications

      • Connections:
      • SDI Video Input: 1 x 10 bit SD/HD switchable.
      • SDI Video Output: 1 x 10 bit SD/HD switchable.
      • HDMI Video Output: 1 x HDMI type A connector
      • SDI Audio Input: 8 Channels embedded in SD and HD.
      • SDI Audio Output: 2 Channels embedded in SD and HD.
      • HDMI Audio Output: 2 Channels embedded in SD and HD.
      • Sync Input: Blackburst in SD, 720p50, 720p59.94, 1080i50 and 1080i59.94 formats or Tri-Sync in any HD format.
      • Device Control: SonyT compatible RS422 deck control ports. Serial ports TxRx direction reversible under software control.
      • Computer Interface: USB 3.0
      • Power: USB 3.0 Bus Powered.
      • Codecs:Supports: AVC-Intra, AVCHD, Canon XF MPEG2, Digital SLR, DV-NTSC, DV-PAL, DVCPRO50, DVCPROHD, DPX, HDV, XDCAM EX, XDCAM HD, XDCAM HD422, Uncompressed 8-bit 4:2:2, Uncompressed 10-bit 4:2:2.
      • Video Standards:
      • SD Format Support: 625/25 PAL, 525/29.97 NTSC and 525/23.98 NTSC.
      • HD Format Support: 720p50, 720p59.94, 720p60, 1080PsF23.98, 1080p23.98, 1080PsF24, 1080p24, 1080PsF25, 1080p25, 1080PsF29.97, 1080p29.97, 1080PsF30, 1080p30, 1080i50, 1080i59.94, and 1080i60.
      • SDI Compliance:SMPTE 259M and SMPTE 292M.
      • SDI Metadata Support: VITC read for 3:2 pulldown removal. VANC capture and playback using up to 3 lines of video in file. HD RP188. Closed captioning.
      • Audio Sampling: Television standard sample rate of 48 kHz at 24 bit.
      • Video Sampling 4:2:2
      • Color Precision: 10-bit
      • Color Space: REC 601, REC 709
      • HDMI Configuration: HDMI automatically configures to connected display.
      • HDMI Resolution: Pixel for pixel HD resolution input to connected device.
      • HDMI Color Precision: 10 bit
      • Multiple Rate support: SDI and HDMI video connections are switchable between standard definition and high definition. SDI switches between 270 Mb/s standard definition SDI and 1.5 Gb/s HD-SDI.
      • Copy Protection: HDMI input is unable to capture from copy protected HDMI sources. Always confirm copyright ownership before capture or distribution of content.
      • Processing
      • Colorspace Conversion: Hardware based real time.
      • HD Down Conversion: Software based down conversion during video playback.
      • HD Up Conversion: Real time standard definition to 1080HD and 720HD during video capture.
      • HD Cross Conversion: Real time 720HD to 1080HD during video capture.
      • Real Time Effects: Adober Premiere Pro Mercury Playback Engine effects. Avid Media Composer internal effects.

    Add Accessories for your BDLKULSASDI:
