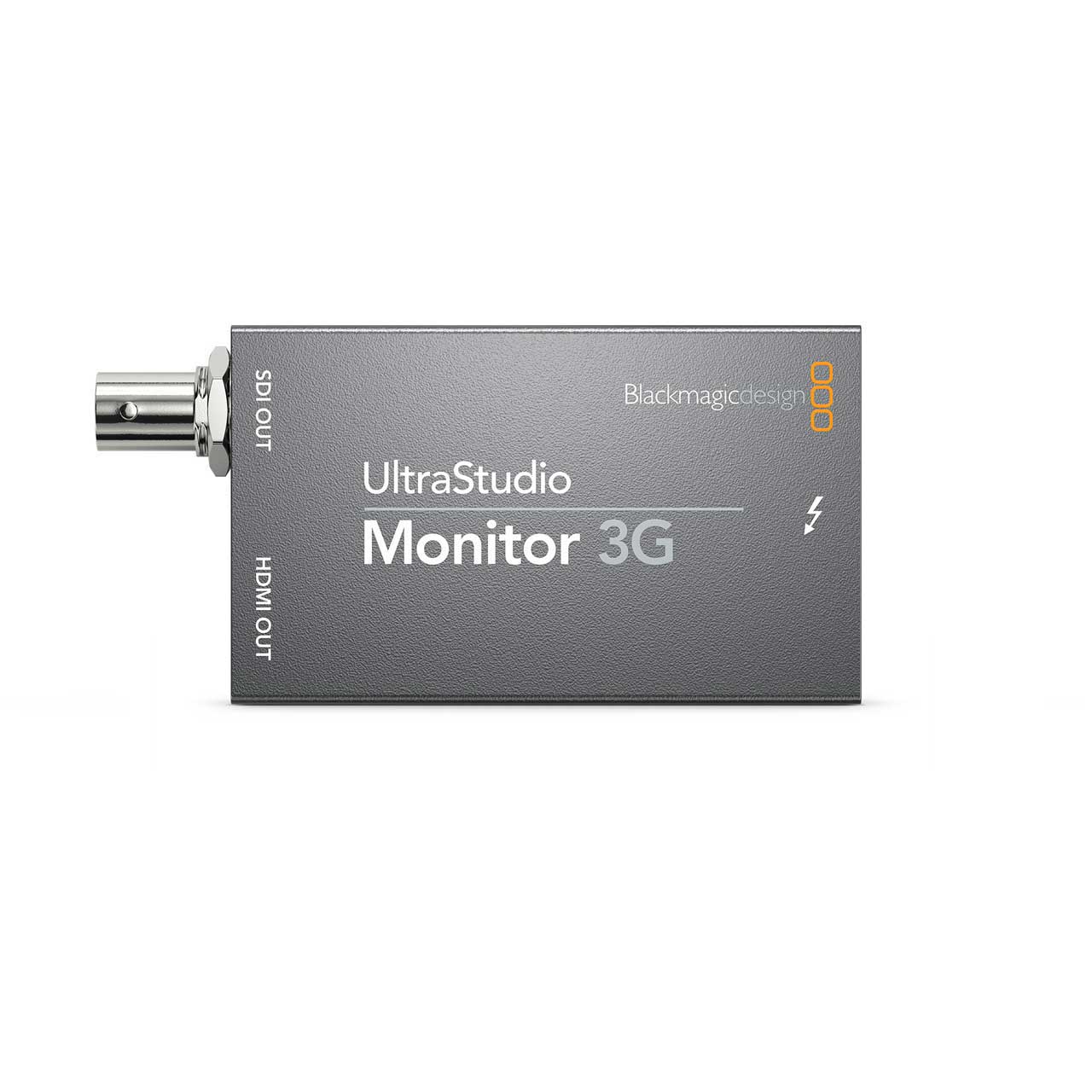

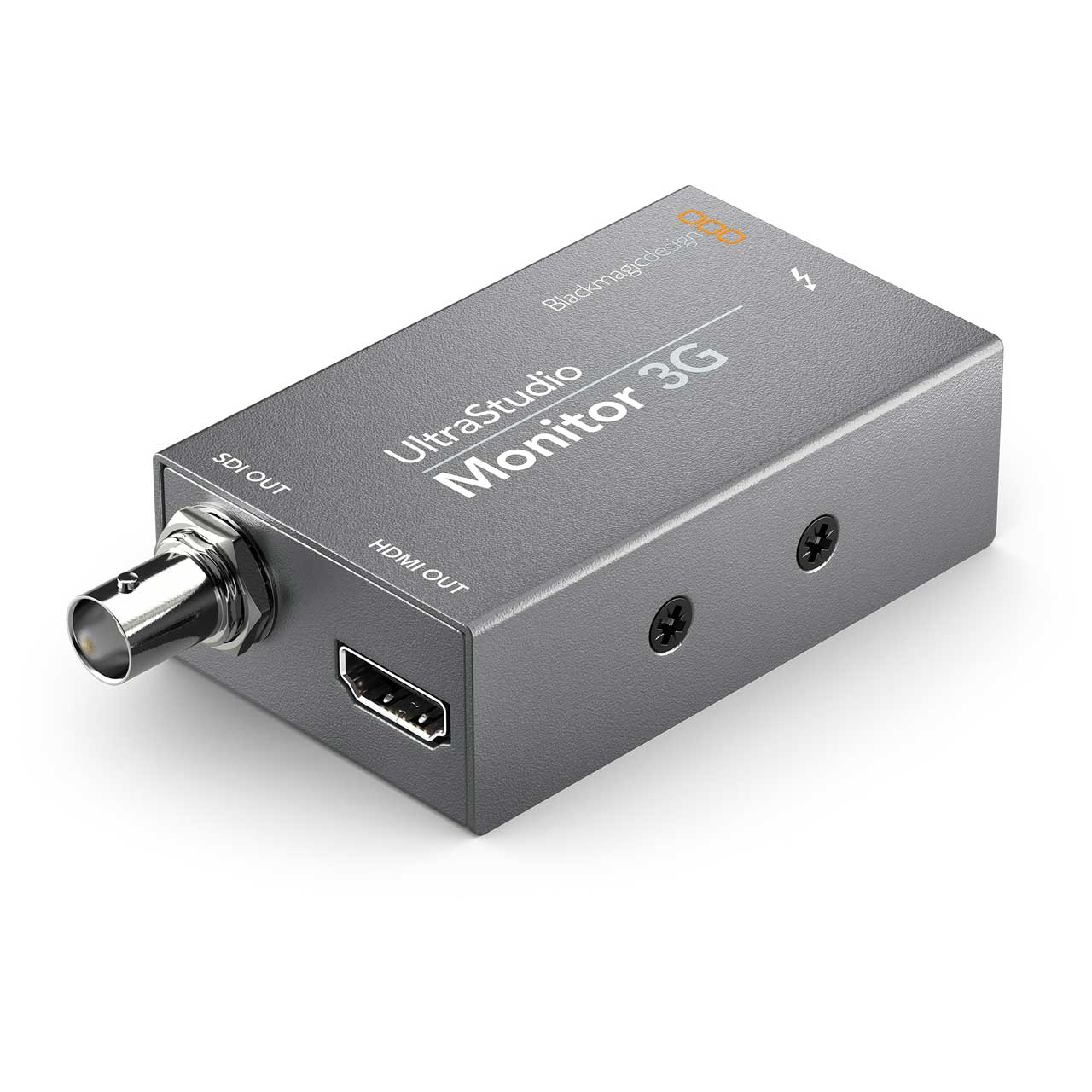

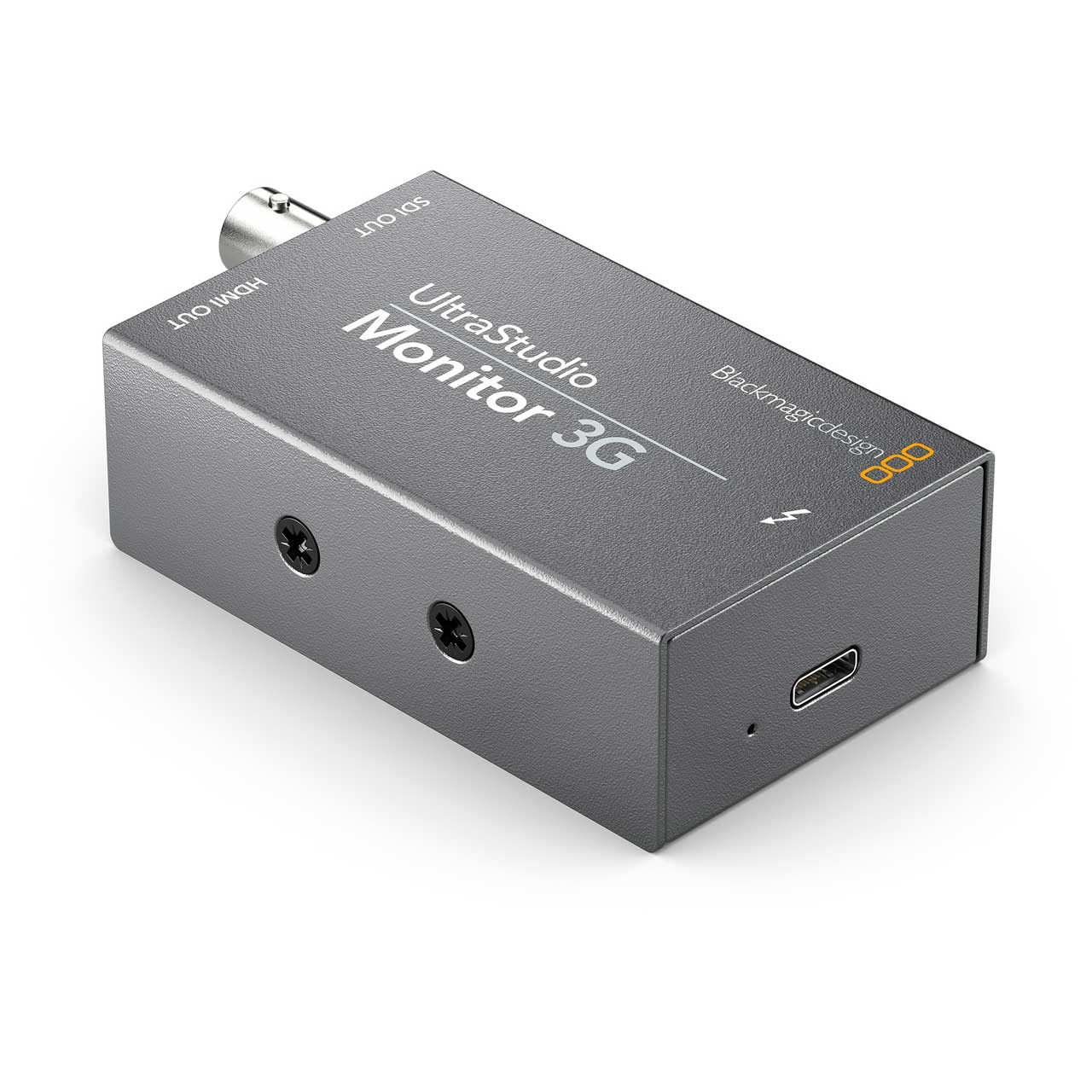

Blackmagic Design BDLKULSDMBREC3G UltraStudio Monitor 3G-SDI and HDMI Video Playback

ITEM #: BMD-BDLKULSDMBRE MFG #: BDLKULSDMBREC3G

Primary Image
  • Product Image Thumbnail 1 of 3
  • Product Image Thumbnail 2 of 3
  • Product Image Thumbnail 3 of 3
Free Shipping with $49 Minimum Order

Our Price:

$125.00

Availability: In Stock
iAvailability Description Popup


    BDLKULSDMBREC3G - Overview

    Get the world's smallest 3G-SDI and HDMI video playback from your Thunderbolt 3 laptop or desktop computer with the Blackmagic Design Ultra Studio Monitor 3G! The perfect solution for edit monitoring on large screen TV's, projectors or broadcast monitors, UltraStudio Monitor 3G supports 3G-SDI and HDMI in all formats up to 1080p60! UltraStudio Monitor 3G supports broadcast quality 10 bit professional SDI and HDMI monitoring from popular editing software such as DaVinci Resolve, Final Cut Pro X, Media Composer and Adobe Premiere Pro CC, plus high end broadcast graphics and titling systems.

    • Specifications:

      • Connections
      • SDI Video Outputs: 1
      • SDI Rates: 270Mb, 1.5G, 3G
      • SDI Audio Outputs: 16 Channels embedded in SD/HD
      • HDMI Video Outputs: 1
      • HDMI Audio Outputs: 8 Channels embedded in SD/HD
      • Computer Interface: Thunderbolt ™ 3 (Mac OS, Windows and Linux)

        Supported Codecs
      • AVC-Intra, AVCHD, Canon XF MPEG2, Digital SLR, DV-NTSC, DV-PAL, DVCPRO50, DVCPROHD, DPX, HDV, HEVC, XDCAM EX, XDCAM HD, XDCAM HD422, DNxHR & DNxHD, Apple ProRes 4444, Apple ProRes 422 HQ, Apple ProRes 422, Apple ProRes 422 LT, Apple ProRes 422 Proxy, Uncompressed 8-bit 4:2:2, Uncompressed 10-bit 4:2:2, Uncompressed 10-bit 4:4:4.

        Software
      • Software Included: Media Express, Disk Speed Test, LiveKey, Blackmagic Desktop Video Utility and Blackmagic driver on Mac OS and Windows. Media Express, Blackmagic Desktop Video Utility and Blackmagic driver on Linux.
      • Internal Software Upgrade: Firmware built into software driver. Software driver loads upgrades at system start or via updater software.
      • Software Applications: DaVinci Resolve, Fusion, Final Cut Pro X, Adobe Premiere Pro CC, Adobe After Effects CC, Adobe Photoshop CC, Adobe Character Animator CC, Avid Media Composer, Avid Pro Tools, Steinberg Cubase, Steinberg Nuendo.
      • Other supported applications include: The Foundry Nuke, Sony Catalyst Production Suite, Tools On Air Just: Play & Live, Magix Movie Edit Pro Premium, Corel VideoStudio Pro, CyberLink PowerDirector, Grass Valley Edius, Softron Mreplay, Telestream Wirecast, Livestream Studio, Resolume Arena, Vegas Creative Software Vegas Pro, VidblasterX Studio and Broadcast, Unimedia Technologies UniplayOne and Uniplay-CG, CasparCG Server, Magicsoft CG, Xsplit Broadcaster, DevTek Easy Media Suite, Boinx Software MimoLive, StudioCoast vMix, Renewed Vision ProPresenter, Ventuz Director, Class X Liveboard and CoralCG, Open Broadcaster Software Studio, Nautilus Studio Nemo3D, Burst Video Webclip2Go, Derivative TouchDesigner, Assimilate Scratch and Live Assist, NewBlue Title Live and Titler Pro, SGO Mistika, Zoom.

        SDI Video Standards
      • SD Video Standards: 525i59.94 NTSC, 625i50 PAL
      • HD Video Standards: 720p50, 720p59.94, 720p60, 1080p23.98, 1080p24, 1080p25, 1080p29.97, 1080p30, 1080p50, 1080p59.94, 1080p60, 1080PsF23.98, 1080PsF24, 1080PsF25, 1080PsF29.97, 1080PsF30,1080i50, 1080i59.94, 1080i60
      • 2K Video Standards: 2Kp23.98 DCI, 2Kp24 DCI, 2Kp25 DCI, 2Kp29.97 DCI, 2Kp30 DCI, 2Kp50 DCI, 2Kp59.94 DCI, 2Kp60 DCI,2KPsF23.98 DCI, 2KPsF24 DCI, 2KPsF25 DCI, 2KPsF29.97 DCI, 2KPsF30 DCI
      • SDI Compliance: SMPTE 259M, SMPTE 274M, SMPTE 296M, SMPTE 424M, SMPTE 425M A/Band SMPTE ST2108-1
      • SDI Metadata Suppor: tRP 188/SMPTE 12M-2 and closed captioning.
      • SDI Audio Sampling: Television standard sample rate of 48 kHz and 24-bit.
      • SDI Video Sampling: 4:2:2, 4:4:4
      • SDI Color Precision: 8, 10, 12-bit RGB 4:4:4 up to 1080p30, and 8, 10-bit YUV 4:2:2 in all standards.
      • SDI Color Space: REC 601, REC 709 and REC 2020
      • SDI HDR Support: HDR metadata packing, HLG and PQ transfer characteristics.
      • Multiple Rate Support: SDI video connection is switchable between SD and HD.

        HDMI Video Standards
      • SD Video Standards: 525i59.94 NTSC, 625i50 PAL
      • HD Video Standards: 720p50, 720p59.94, 720p60, 1080p23.98, 1080p24, 1080p25, 1080p29.97, 1080p30, 1080p50, 1080p59.94, 1080p60,1080i50, 1080i59.94, 1080i60
      • HDMI Audio SamplingT: elevision standard sample rate of 48 kHz and 24 bit.
      • HDMI Video Sampling: 4:2:2 and 4:4:4
      • HDMI Color Precision: 10, 12-bit RGB 4:4:4 up to 1080p30, 8-bit RGB 4:4:4 and 12-bit YUV 4:2:2 in all standards.
      • HDMI Configuration: HDMI 2.0a supports Deep Color and HDR. Automatically configures to connected display.
      • HDMI Color Space: REC 601, REC 709 and REC 2020
      • HDMI HDR Support: HDR metadata packing, HLG and PQ transfer characteristics.
      • Multiple Rate Support: HDMI video connection is switchable between SD and HD.

    • Item Includes:

      • 1x UltraStudio Monitor 3G

    • Warranty:

      • 12 Month Limited Manufacturer's Warranty.

    • GTIN:

      9338716006889
