Blackmagic HDL-SMTVHD SmartView HD 17 Inch SD - HD - 3G/ SDI Rackmount Monitor
  • Blackmagic HDL-SMTVHD SmartView HD 17 Inch SD - HD - 3G/ SDI Rackmount Monitor
  • Blackmagic HDL-SMTVHD SmartView HD 17 Inch SD - HD - 3G/ SDI Rackmount Monitor

Blackmagic HDL-SMTVHD SmartView HD 17 Inch SD - HD - 3G/ SDI Rackmount Monitor

Manufacturer: Blackmagic Design



This item is no longer available.
Ask a Markertek Expert if you need assistance finding an appropriate substitute.



Item unavailable. Please select another option.

Items similar to the BMD-HDL-SMTVHD

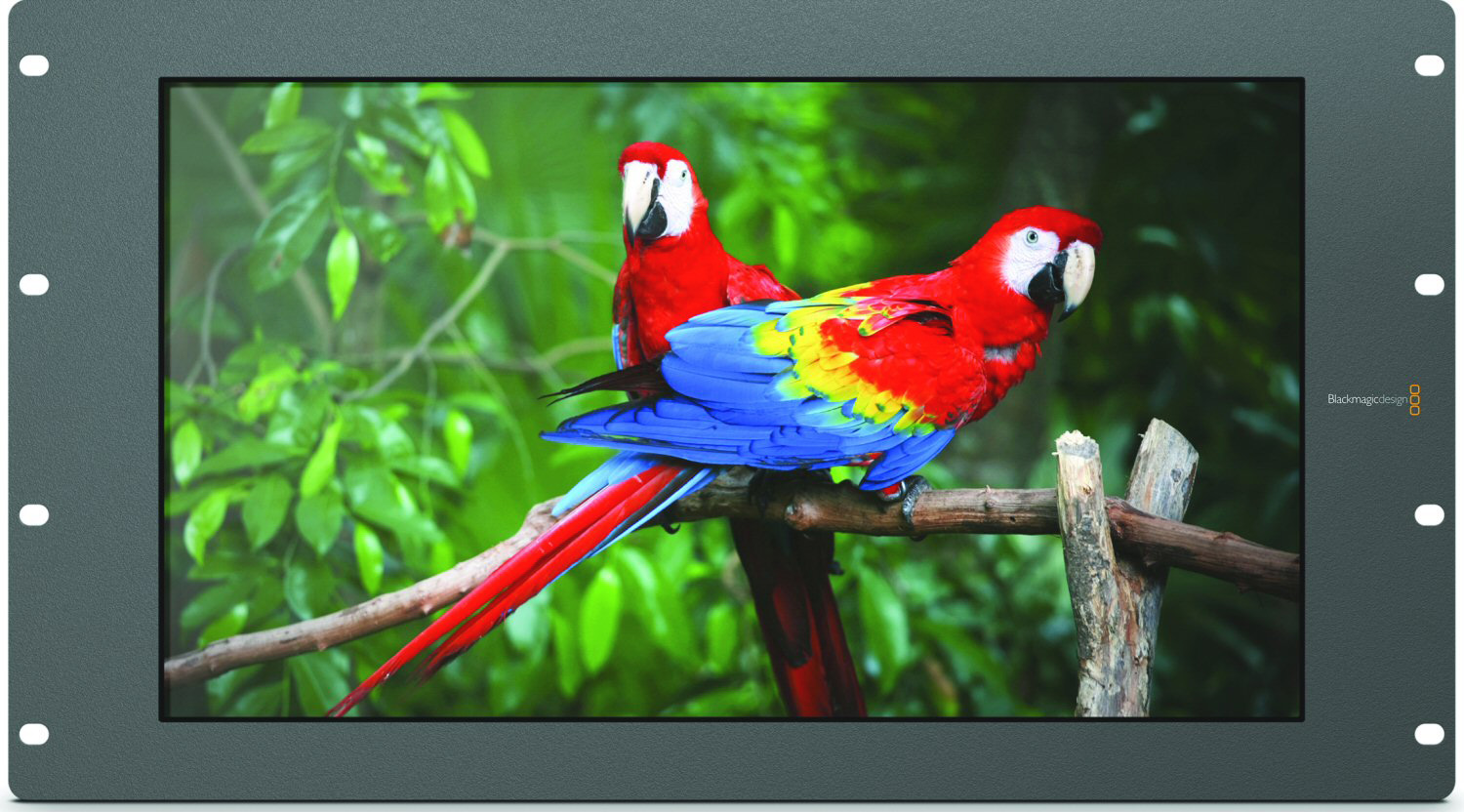

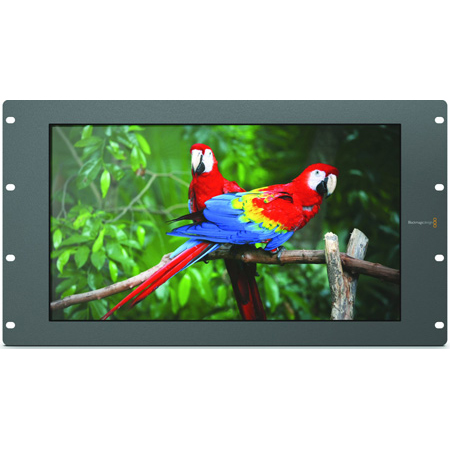

The SmartView HD is the affordable and compact SDI rack monitoring system perfect for post-production, broadcast or live events. The SmartView HD has an exciting ultra-thin compact rack mount design, only an inch thick and the SmartView HD features a large 17" LCD screen for full HD 1920 x 1080 resolution monitoring - you will see every single pixel in your image. The SmartView HD handles all SD, HD and 3 Gb/s SDI video formats and includes built-in ethernet so you can make remote adjustments from your Mac or PC. SmartView HD includes red, green and blue tally indications, perfect for the largest broadcast systems! With SmartView HD monitoring you can afford to put SDI monitoring everywhere you need it!

The SmartView HD is perfectly designed for building a video wall for monitoring all sources into live production switchers, and because it's so incredibly thin, it's even perfect for portable setups where you need to save space. Imagine having all your video sources displayed on a large 17 inch LCD screen so you can see camera focus and quality! Now you can build full live broadcast presentation monitoring that's small enough to be fully portable! SmartView HD is lightweight and thin, so it's perfect for outside broadcast vans or even installed into portable monitor racks to reduce shipping costs of flyway kits!

  • Specifications

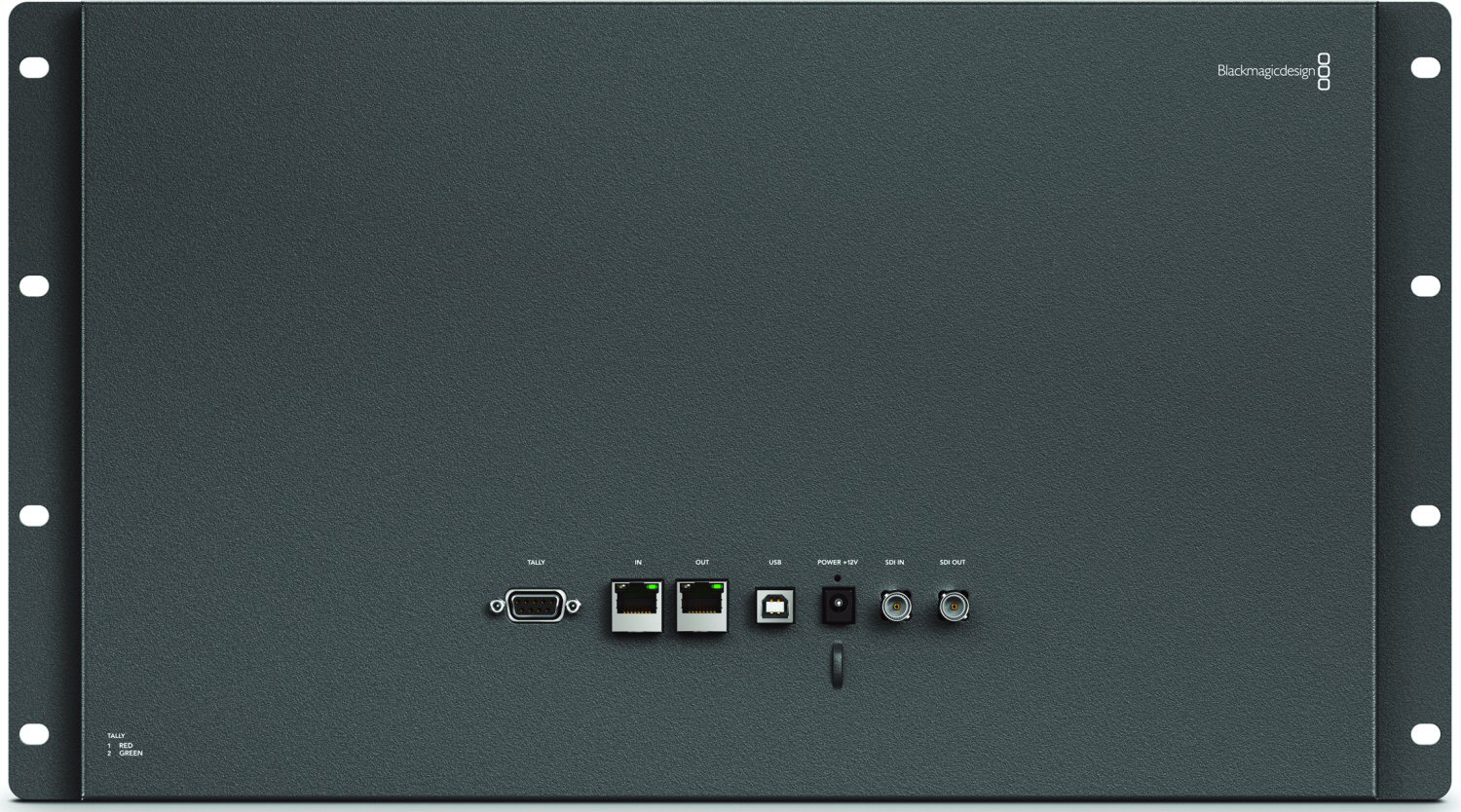

    • Connections
    • SDI Video Input Automatically switches between SD, HD and 3G-SDI. Reclocked loop through output
    • Multi Rate Support: Auto detection of 2K, HD or standard definition inputs
    • Updates and Configuration: Via USB 2.0 high speed (480 Mb/s)
    • Ethernet: 10/100 BaseT with loop through
    • Tally: 9-pin D connector

    • SDI Compliance: SMPTE 259M, SMPTE 292M, SMPTE 296M, SMPTE 372M and SMPTE 425M.
    • SDI Color Space: REC 601, REC 709
    • SDI Auto Switching: Automatically selects between SD, HD and 3 Gb/s SDI
    • Video Sampling: 4:2:2 and 4:4:4
    • SDI Format Support: 525i59.94, 625i50, 720p50, 720p59.94, 720p60, 1080i50, 1080i59.94, 1080i60, 1080PsF23.98, 1080PsF24, 1080PsF25, 1080PsF29.97, 1080PsF30, 1080p23.98, 1080p24, 1080p25, 1080p29.97,1080p30, 1080p50, 1080p59.94, 1080p60, 2048x1080p/23.98, 2048x1080p/24, 2048x1080p/25, 2048x1080PsF/23.98, 2048x1080PsF/24, 2048x1080PsF/25, 2048x1556PsF/23.98, 2048x1556PsF/24, 2048x1556PsF/25

    • Display Element: TFT Active Matrix LCD.
    • Display Resolution: 800 x 480 pixels
    • Response < 15 ms
    • Contrast Ratio: Typically 500:1
    • Color Depth: 16.7 Million Colors.
    • Display Orientation: Displays can rotate upside down for optimum viewing angle

      Power Requirements
    • Power Supply: 12V universal power supply included with international socket adapters for all countries
    • Power Consumption < 20 Watts
    • Operational Voltage Range: 12V - 15V
