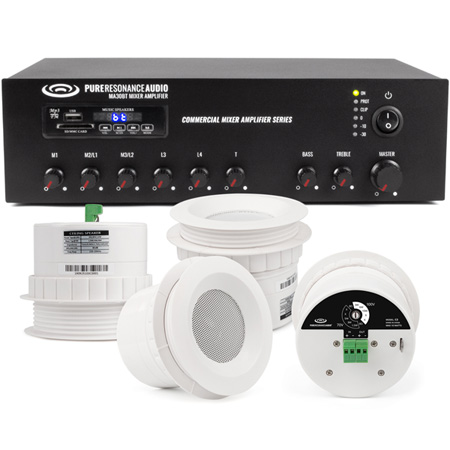

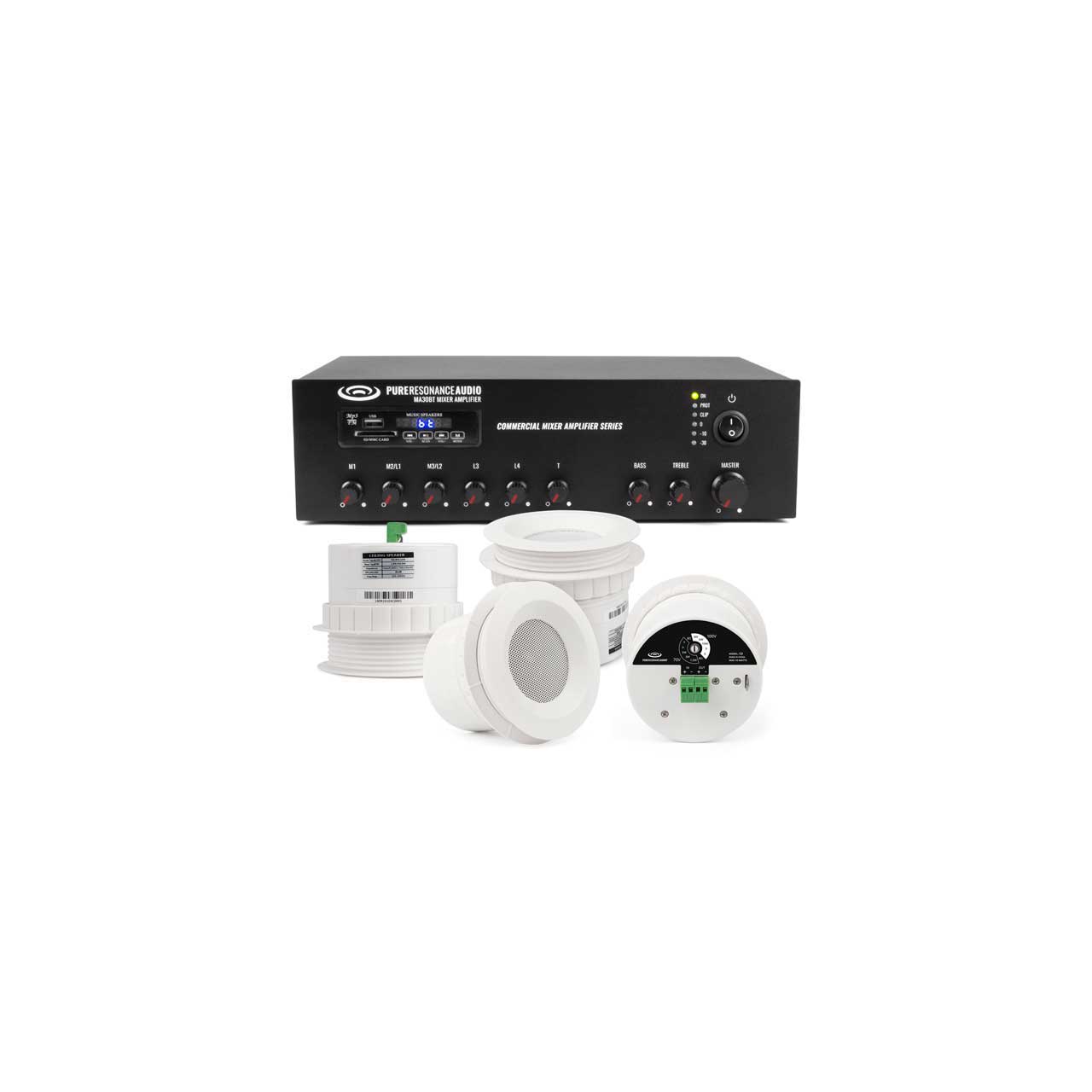

Pure Resonance Audio BMSS-4C3MA30BT Auxiliary System with 4 C3 Speakers & Amplifier with Bluetooth

BMSS-4C3MA30BT - Overview

• Features:

  • Pure Resonance Audio C3 3" Micro Ceiling Speaker with Easy-Mounting Ring
  • Compact and lightweight
  • Smallest possible footprint while maintaining powerful quality sound
  • Intelligent, stylish design that seamlessly blends into the ceiling
  • Power tap transformer switch for selectable 8 ohm or 70V/100V operation for commercial applications
  • Tap settings: 70V: 8 ohm, 1.5W, 3W, 5W - 100V: 8 ohm, 3W, 6W, 10W
  • Quick & easy installation with threaded mounting ring
  • Perfect for background music in offices, retail stores, restaurants, hotels, foyers, and auxiliary spaces

    Pure Resonance Audio MA30BT 7-Channel Mixer Amplifier with Bluetooth
  • 7-channel powered mixer amplifier (6 inputs + Bluetooth Media Player)
  • Volume Controls for Mic 1-3, Line 1-2, MP3/FM Radio, Bass, Treble and Master
  • MP3 Player, FM Radio & Bluetooth (with IR remote control)
  • USB and SD inputs on front panel
  • Power output rating 30 Watts
  • Built-in 70V/100V transformer
  • Speaker outputs: 70V, 100V, 4, 8 and 16 Ohms
  • Mic 1 of balanced XLR input (with phantom power)
  • Mic 2-3 microphone or line switchable
  • Line 1-2 input of RCA inputs
  • DIP switches for Mic/Line, phantom power and microphone priority
  • Unbalanced 6.3 mm phone jack input
  • One RCA line output (0.775 line level 0 dBV)
  • Telephone input (600 Ohm/100mV) with VOX priority and MOH (Music on Hold) (600 Ohm 1 Volt)
  • LED indicators for power clip, protect signal, Mic 1-3, Line 1-2 and telephone inputs
  • Short-circuit, clip, overload and high temp protection
  • 24 VDC Emergency backup supply
  • 115V 60 Hz & 24V DC both operation system


• Specifications:

  • C3 Ceiling Speaker
  • Frequency Response: 120Hz - 20kHz
  • Low Frequency (-10 dB): 180 Hz - 20 kHz
  • Impedance: 8 Ohms with 70V transformer (built-in)
  • Maximum Input Voltage: 17 dBV (7.1V, 6W into 8Ω)
  • Power Taps @ 70V: 1.5W/3W/5W
  • Power Taps @ 100V: 3W/6W/10W
  • Transducer: Full-range 3" driver
  • Nominal Coverage Angle: 130° Conical Coverage
  • Cutout Size: 4.25" (107.95 mm)

    MA30BT Mixer Amplifier
  • Rated Power Output: 30W
  • Speaker Outputs: 70V, 100V and 4 Ohms, 8 Ohms or 16 Ohms
  • Connectors:
    Mic 1 input by balanced XLR with phantom power
    Input 2-3 Mic/Line switchable unbalanced 6.3 mm phone jack
    Line 1-2 inputs by RCA; Line output by RCA
  • Frequency Response: 60Hz - 15kHz (±3dB)
  • Protection: Short-circuit, clip, overload and high temp protection


• Item Includes:

  • 4x Pure Resonance Audio C3 3" Micro Ceiling Speakers with Easy-Mounting Rings
  • 1x Pure Resonance Audio MA30BT 30W Bluetooth Mixer Amplifier
  • 1x IR Remote Control
  • 1x Power Cord
  • 1x (250') Free 18/2 Gauge Speaker Wire


• Warranty:

  • Speakers: 2 Years
  • Amplifiers & Electronics: 1 Year
  • Microphones: 1 Year
  • Accessories: 1 Year
