BSM-243N3G - Overview

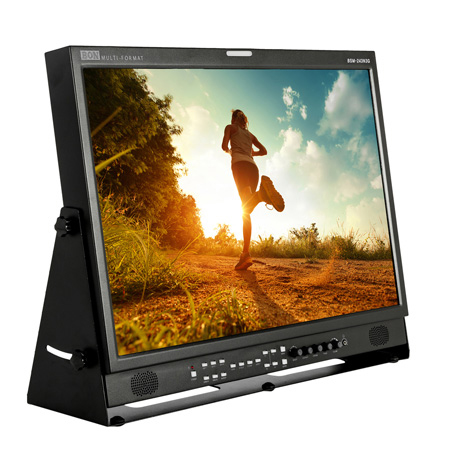

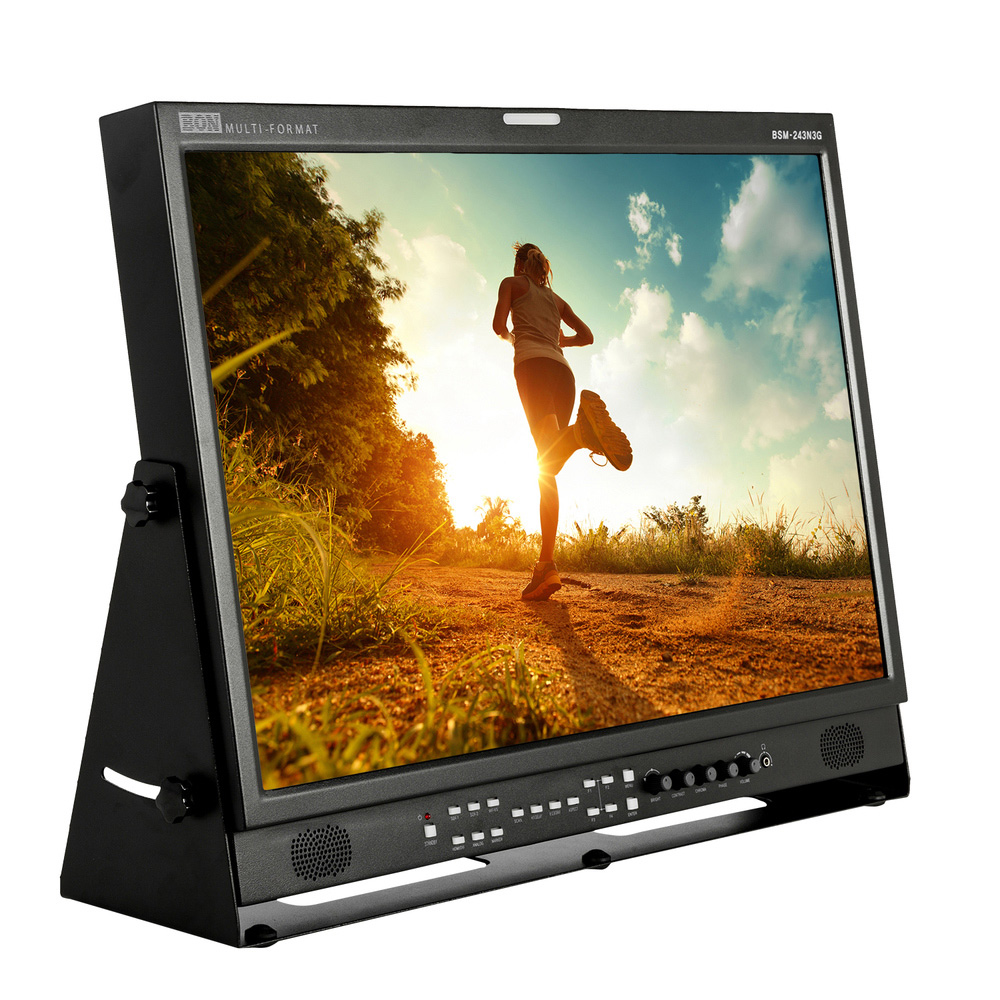

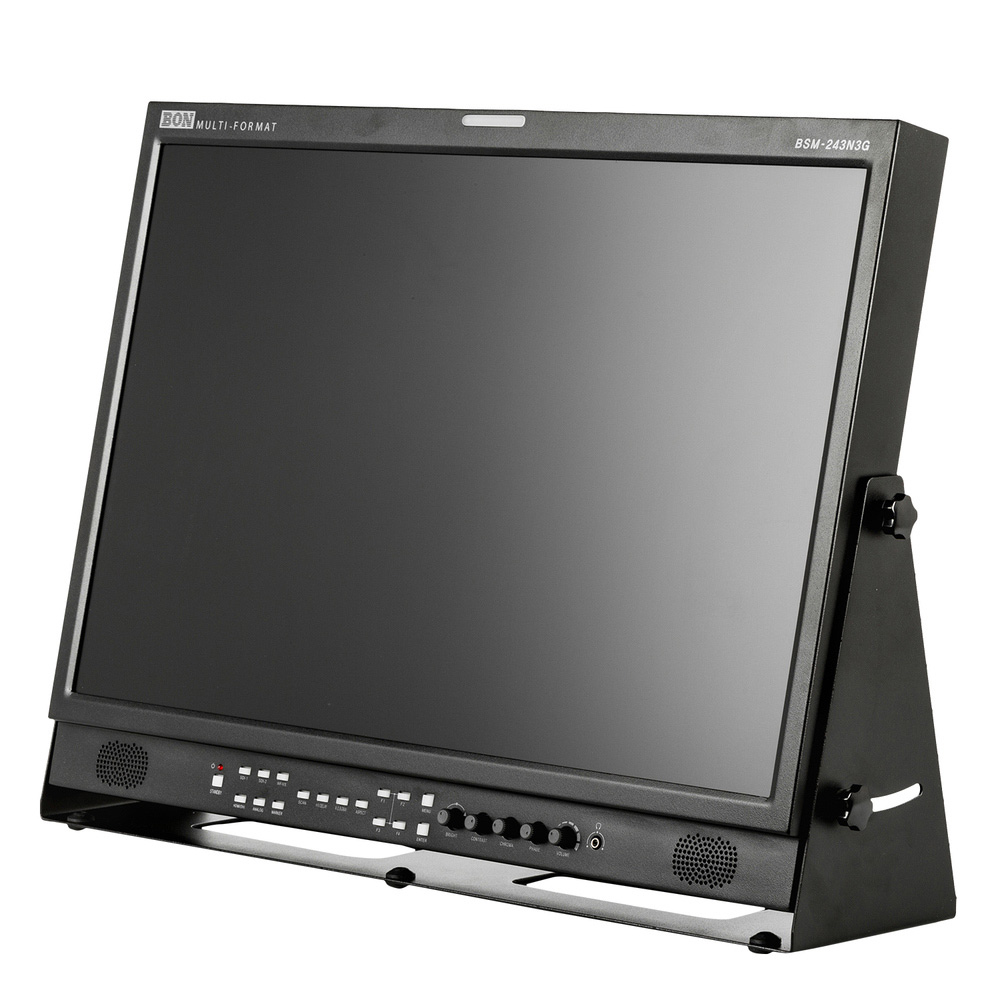

The BON BSM-243N3G is a 24" broadcast monitor that can accept 3G SDI signal. It reproduces high quality picture with wide color range and smooth gradient. The monitor features two SDI input ports with 3G SDI support. Color temperatures are selectable and gamma correction are applied to reproduce precise colors & gradients. Users can update firmware or control monitor via RS-422 or ethernet port. Menu setting can be copied to other monitors with USB stick. Luminance range and color range are monitorable with Waveform/Vectorscope. Users can monitor exact levels of Y/Cb/Cr/R/G/B.


Please Note: Rack mount kit sold seperately!

  • Features:

    • Two SDI inputs with 3G SDI Support
    • Control / Update via network (RS-422 or Ethernet
    • Waveform and Vectorscope
    • 8~16 Channel Audio Level Meter
    • Tally Display
    • UMD/IMD Mode (supports TSL 4.0)
    • Menu Setting Transfer with USB
    • SDI and CVBS Picture in Picture

  • Specifications:

    • LCD
    • Size: 24"
    • Resolution: 1920 x 1200
    • Pixel Pitch: 0.270mm
    • Color: 8 bit
    • Viewing Angle: 178(H), 178(V) (IPS)
    • Luminance of White: 350 cd/m²
    • Contrast: 1000 : 1
    • Back Light: LED
    • Display Area (H x V): 518.4 x 324.0 mm

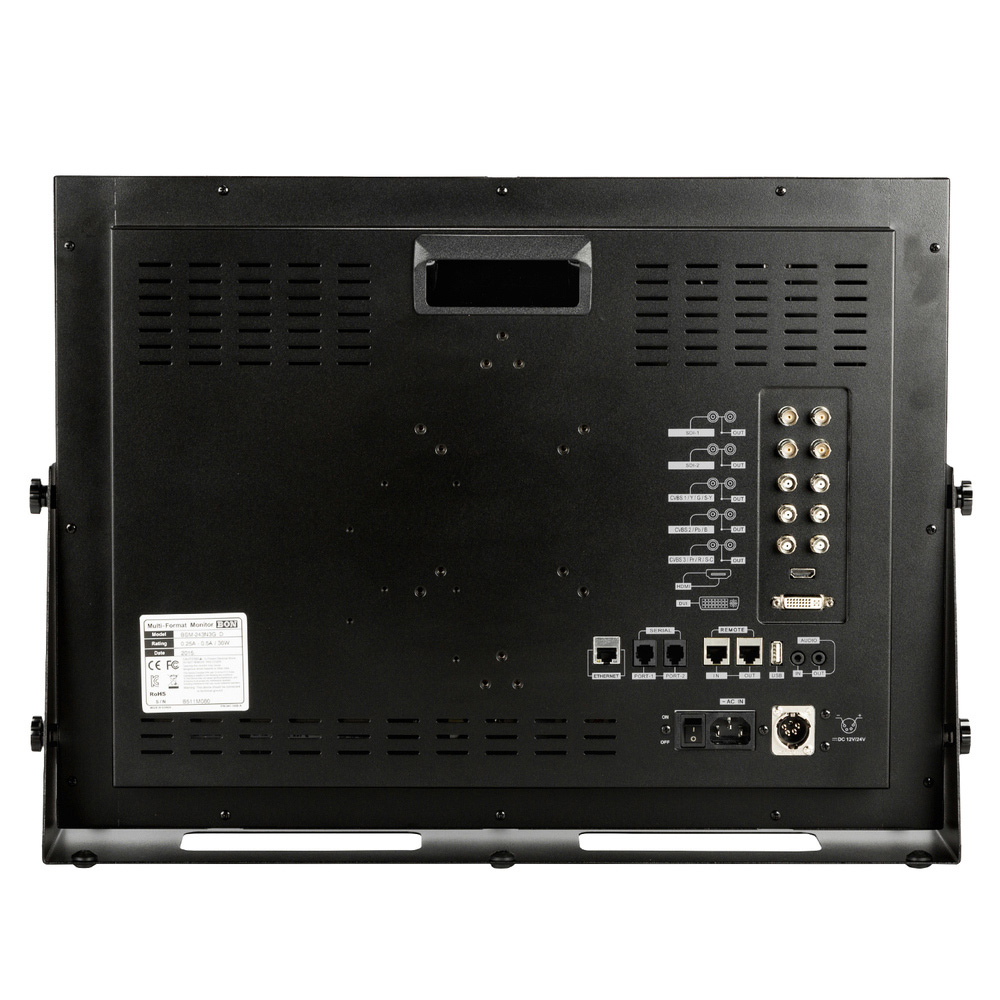

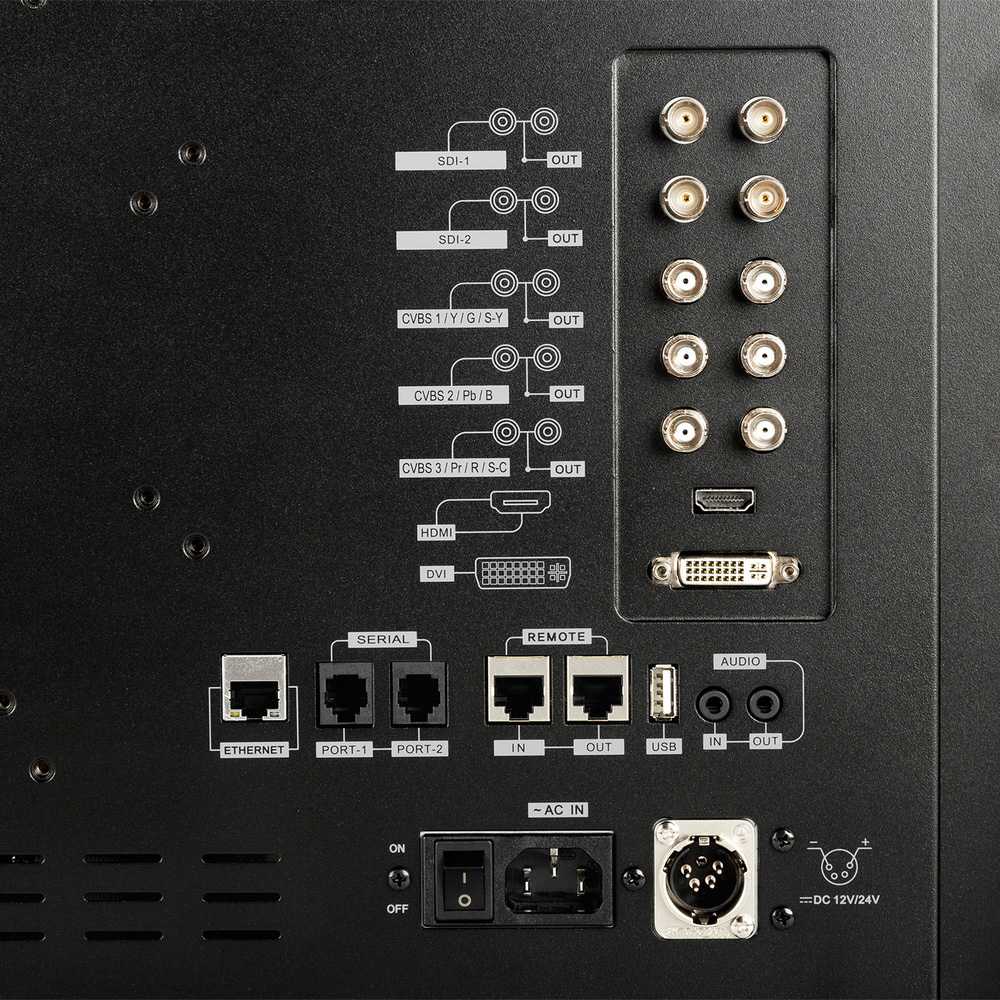

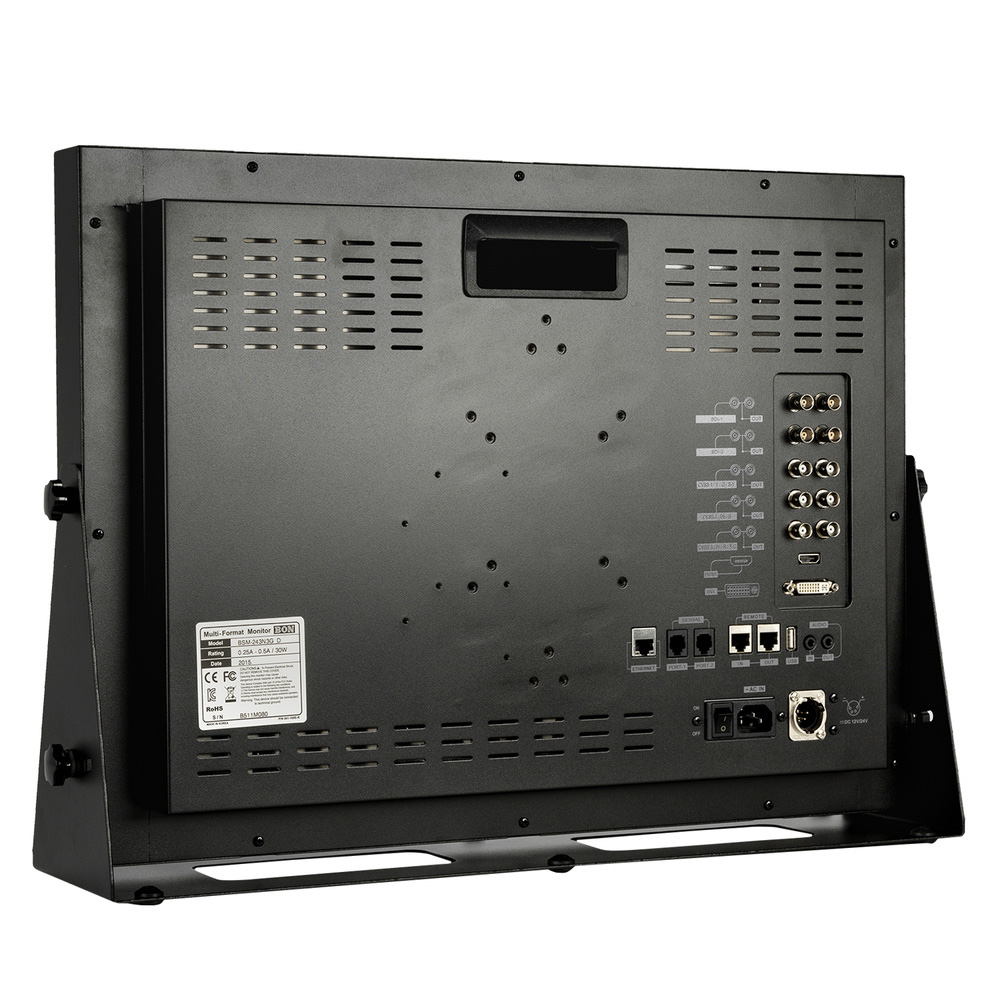

    • Input
    • 2 x BNC: HD/SD-SDI, 3G/1.485G/270M
    • 3 x BNC: Analog(YPbPr/CVBS/S-Video/RGB)
    • 1 x HDMI: HDMI (with HDCP v.1.1), 19pin Female
    • 1 x DVI: DVI-I, 24pin, Female
    • 1 x VGA: DVI-I to VGA Jack (with gender)

    • Output
    • 2 x BNC: SDI-1/2 Active Loop Output
    • 3 x BNC: Analog(YPbPr/CVBS/S-Video/RGB)

    • Analog Input Level
    • Composite: 1.0Vp-p(with sync), NTSC/PAL
    • YC(S-Video): Y :1.0Vp-p, C:0.286Vp-p
    • Component(Y/Pb/Pr): Y :1.0Vp-p, Pb :0.7Vp-p, Pr :0.7Vp-p
    • Component (R/G/B): G :1.0Vp-p(with Sync), B :0.7Vp-p, R :0.7Vp-p
    • PC-RGB,Sync Level: R, G, B : 0.7Vp-p, H/V Sync : 4V ± 1Vp-p

    • Input Signal Format
    • SMPTE 425M AB: 1080p (60/59.94/50/30/29.97/25/24/23.98/30sF/29.97sF/25sF/24sF/23.98sF) 1080i (60/59.94/50)
    • 2K, SMPTE 428M: 2048*1080,24p/psf,23.98p/psf
    • SMPTE 274M/292M: 1920*1080i (60, 59.94, 50)
    • 1920*1080p (30, 29.97, 25, 24, 24sF, 23.98, 23.98sF)
    • SMPTE 296M: 1280*720p/60,59.94,50
    • SMPTE 260M: 1920*1035i/60,59.94
    • SMPTE 125M/259M: 720*480i/60,59.94, 720*576i/50
    • ITU R-BT.656: 576i(50)
    • Composite: 720*480i(NTSC)/576i(PAL)
    • Component, VGA: 480i/p ~ 1920 * 1080i/p
    • DVI Signal: 480i/p ~ 1920 * 1080i/p
    • HDMI Digital: ~ 1920 * 1200i/p(de-embedded Audio 2ch)

    • Audio Input/Output
    • 1 x Phone Jack In: Line In(Stereo)
    • 2 x Phone Jack Out: Line Out(Rear,Stereo), Headphone Out(Front, Stereo)
    • 2 x Speaker Out: 2W+2W, Stereo

    • General
    • 1 x Ethernet: Control/Update, GPI-7 Port, RJ-45P Jack
    • 2 x GPIO: GPI-7 Port, RJ-45P Jack
    • 2 x Serial: RS-422, RJ-11P Jack
    • 1x USB: For firmware update
    • Power Requirements: DC 12V/24V, AC100-230V(50/60Hz)
    • Power Consumption: 55W
    • Operating Temperature: 0°C ~ 40°C
    • Operating Humidity: 20% ~ 80% RH
    • Weight: 9.0 kg / 19.8 lbs
    • Dimensions(WxHxD):
    • Main Body : 553.4 x 403.5 x 62.5(mm) / 21.7 x 15.8 x 2.4 (inch)
    • with stand : 590.4 x 419.0 x 160.0(mm) / 23.2 x 16.5 x 6.3(inch)

    • SPECIFICATIONS:
    • Shipping Dimensions: 21.7 x 27 x 11.2 in.
    • Shipping Dimensions (Metric): 55.1 x 68.5 x 28.4 cm
    • Shipping Weight: 32 lbs
    • Shipping Weight (Metric): 14.5 kg

  • Item Includes:

    • Manual CD
    • Power Cable
    • Screen Cleaning Cloth
    • Tilting Table Stand

  • Warranty:

    • 1 Year

  • GTIN:

    0889716000340
