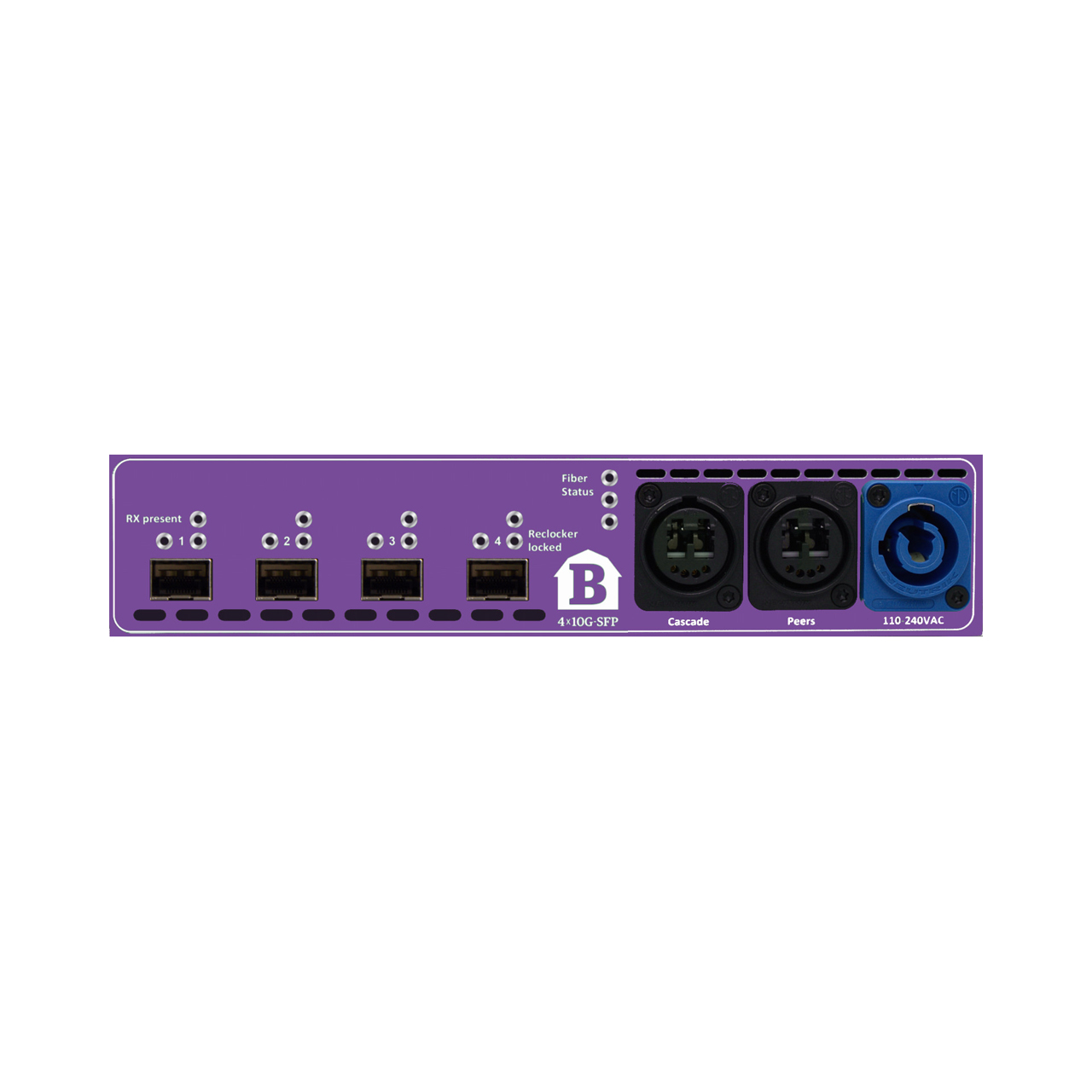

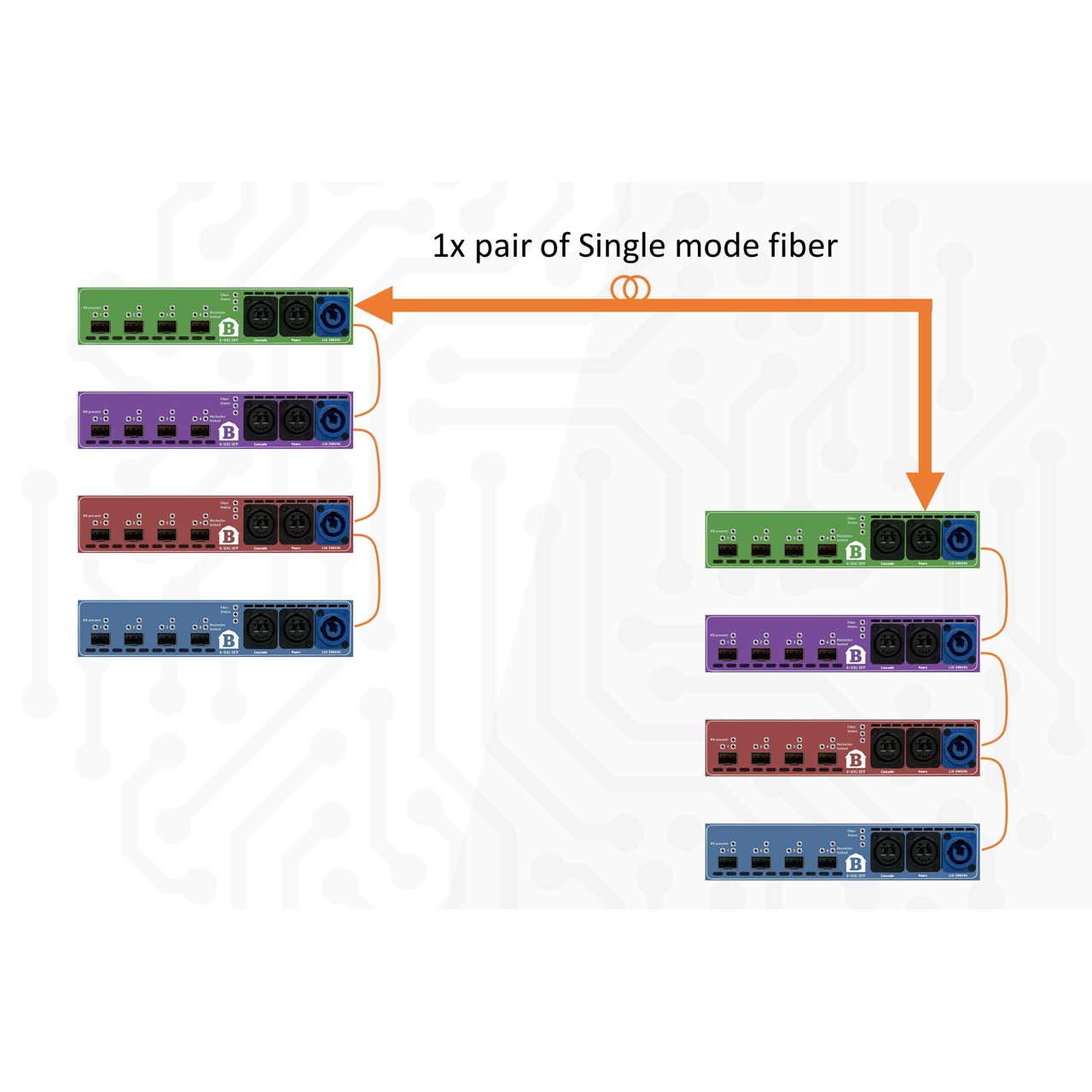

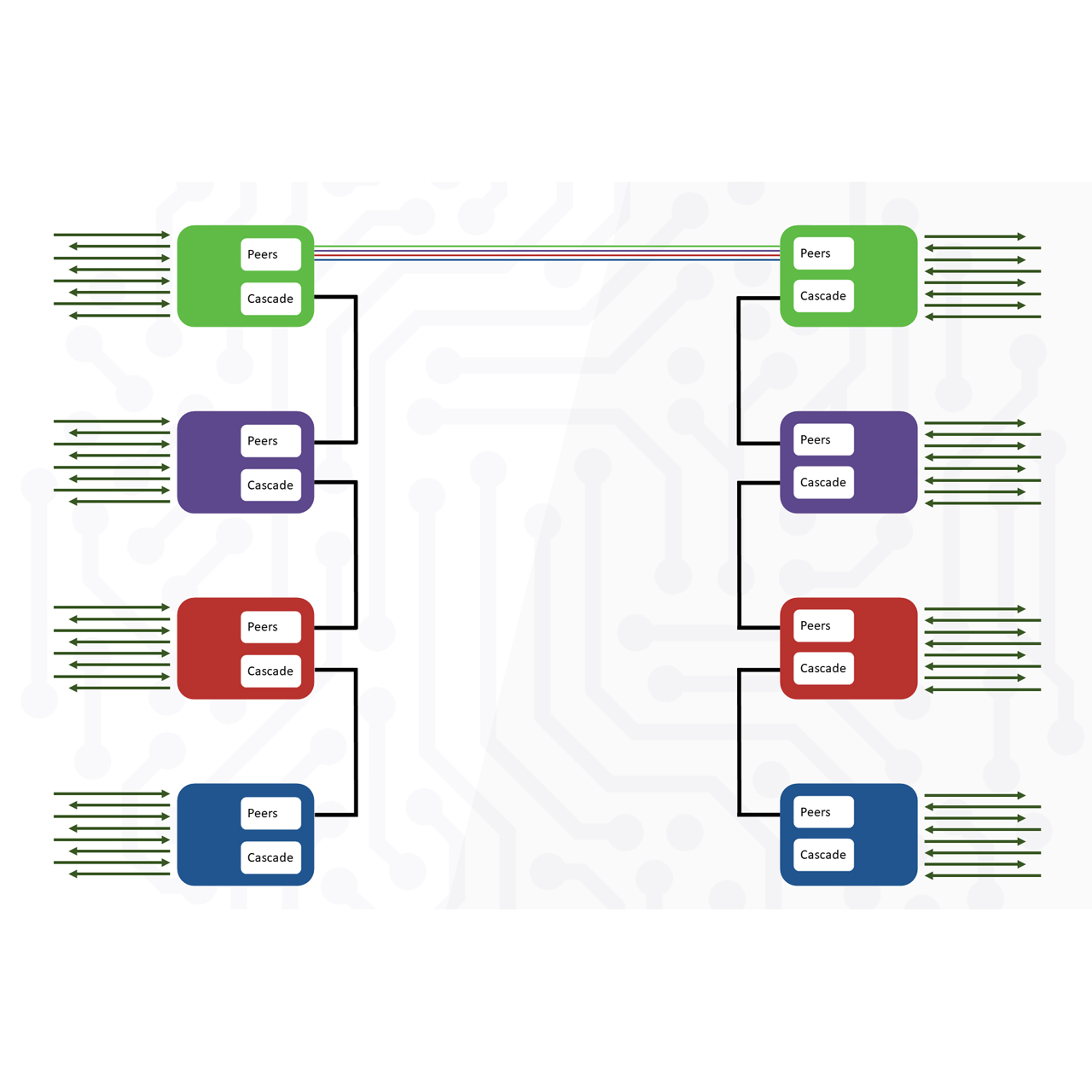

Designed to supplement the highly flexible BarnColor system, the new BarnColor 4xSFP-Flex from Barnfind provides 4 SFP transceiver cages on each unit and allows you to configure your BarnColor-Flex pairs with the signal processing SFPs needed for your unique application. Up to four different color units can be cascaded to each other; the system supports up to 16 transceiver cages on each side and allows the transport of 32 signal feeds; 16 feeds forward and 16 returns. Can be combined with any models in different colors, combing multiple signals both directions on a single fiber cable up to 10km distance.
Both MSA and non-MSA SFP modules can be inserted into this BarnColor with the limitation that dual-TX and dual-RX models will operate in single-channel mode.
Examples of SFPs being used:
• PtP (any wavelength)
• Multimode
• BNC-SFP
• HDBNC-SFP
• HDMI-SFP
• Analog Video-SFP
• IP encap/decap-SFP
• RJ45 for Ethernet
Compatibility

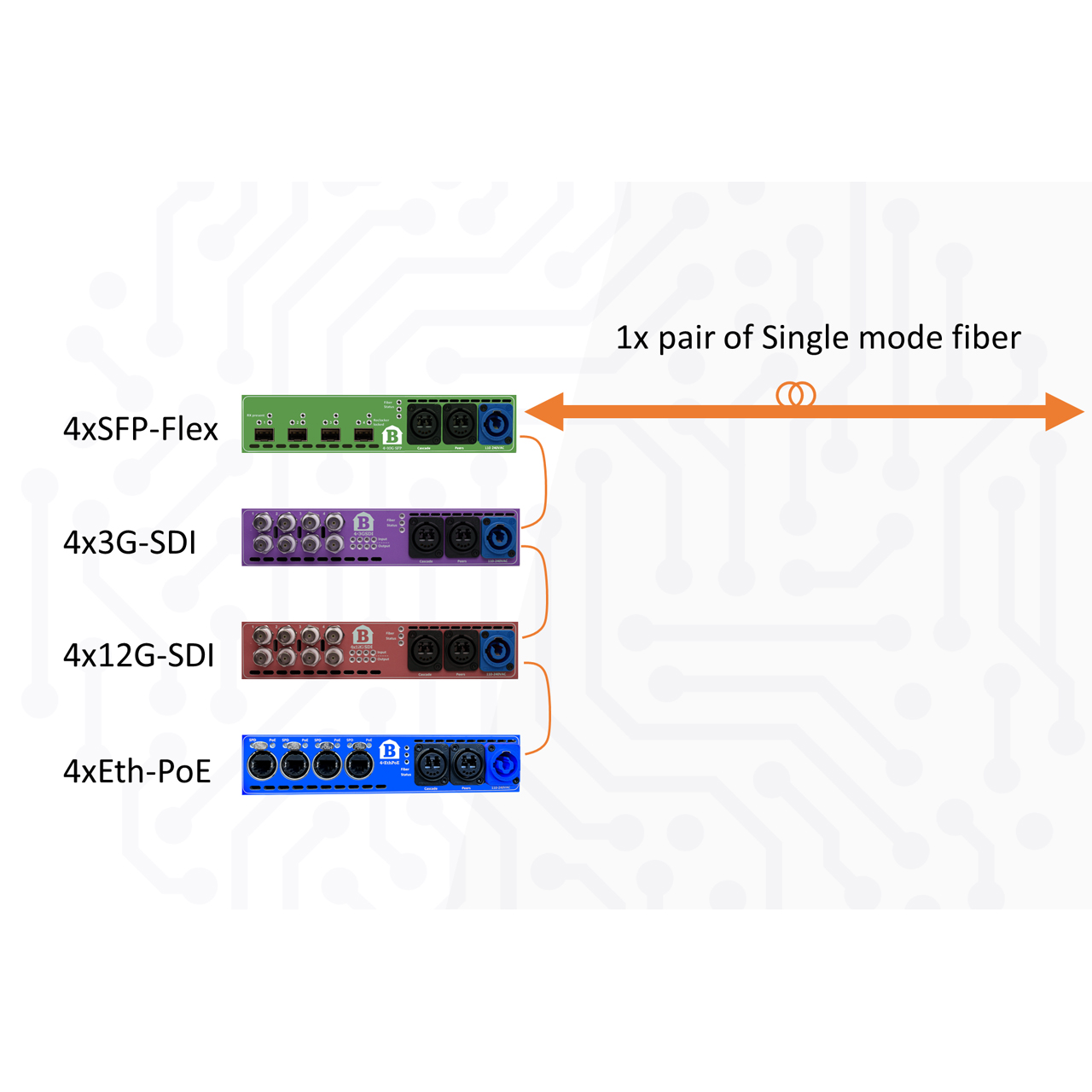

The BarnColor devices can be installed in colored pairs or used as satellites together with a BarnOne system. If building a pure BarnColor system you can start with any color-matching pair and extend the system later as your need expands. You can combine different models of BarnColors or use multiple of the same model in the same system as long as the colors are different.
Singlemode fibers are recommended when linking the BarnColor devices.
