Bosch PRAESENSA 12 Button Keypad Extension for PRAESENSA Call Stations to Make Selections for Business and Alarm Calls

ITEM #: BSH-PRA-CSE MFG #: PRA-CSE

Primary Image
  • Product Image Thumbnail 1 of 2
  • Product Image Thumbnail 2 of 2
Free Shipping with $49 Minimum Order

Our Price:

$569.00

Availability: Typically Ships in 3-10 Business Days
iAvailability Description Popup


    PRA-CSE - Overview

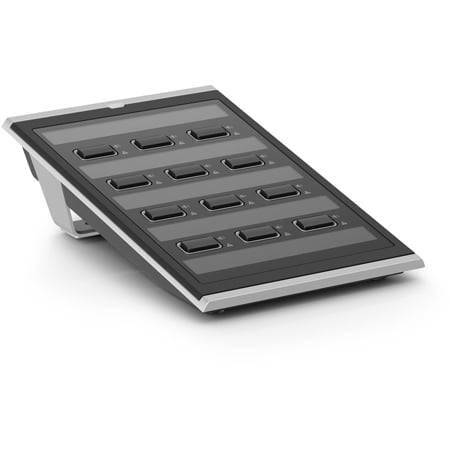

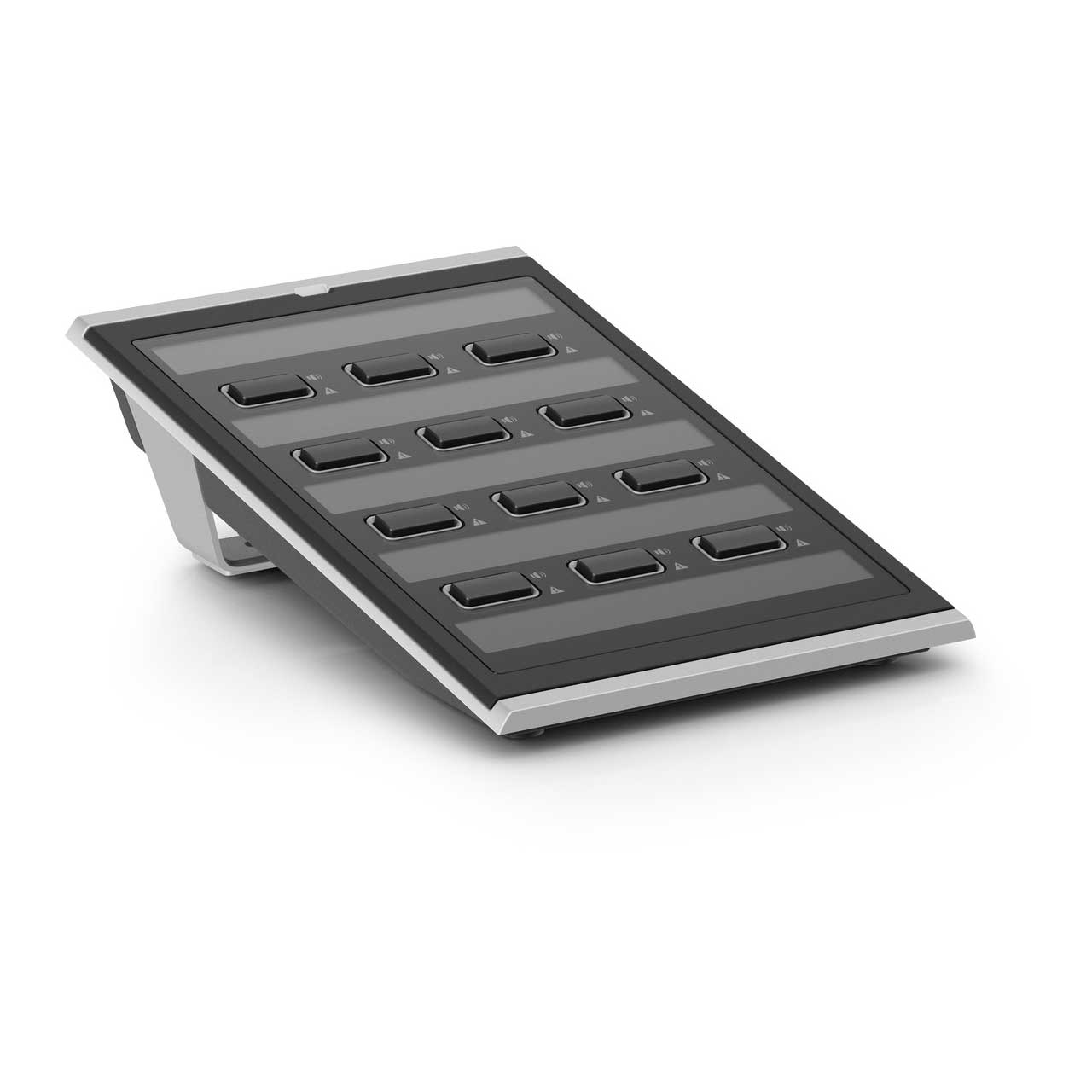

    The Bosch PRA-CSE keypad extension is used in combination with PRAESENSA call stations to make selections for business and alarm calls. One device adds twelve configurable buttons with light ring. Each button has two additional indicators for user feedback, related to the configured functionality of that button. Up to four PRA-CSE can be connected to one call station. Using extension keypads for zone selection allows all zones to be accessible and visible at the same time. It shows a complete status overview of selected and occupied zones or zones with faults. The extension keypad is delivered with a metal coupling plate and patch cable to link it to a call station or other extension keypad. The front cover can be easily removed to insert labels with up to three lines of text per button and a header section on top.

    • Features:

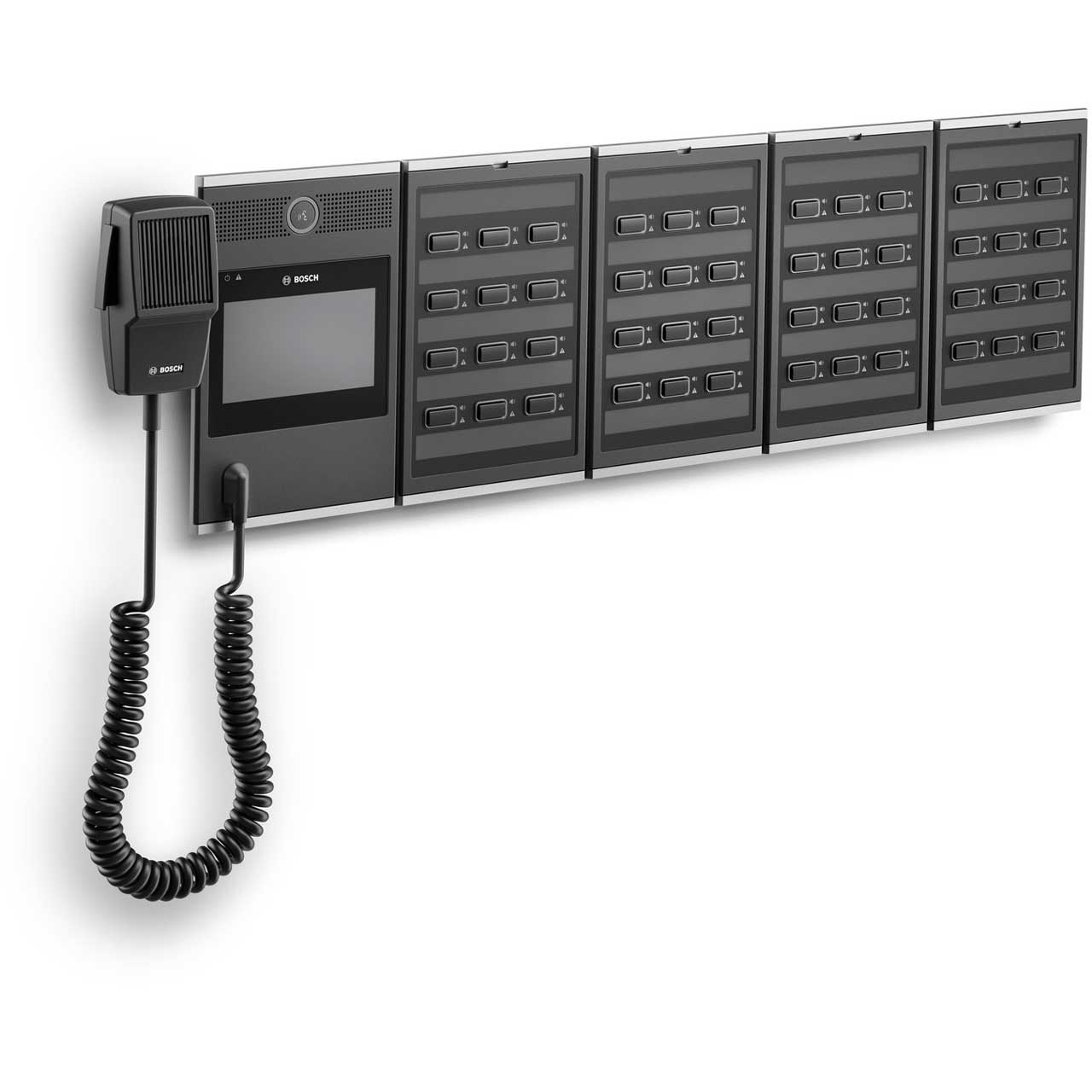

      • Extension keypad for desktop PRA-CSLD and wall-mount PRA-CSLW call station
      • Twelve buttons with tactile feedback and configurable functionality
      • Light ring around each button for selection confirmation
      • Multi-color zone status indicators for buttons configured for zone selection
      • Ergonomic button layout with removable front cover for access to button labels

    • Specifications:

      • Power Transfer
      • Power Supply Input:
        - Input Voltage: 5 VDC
        - Input Voltage Tolerance: 4.5 to 5.5 VDC
        - Power Consumption (Indicators On/Off): .1W / 1W

        Supervision
      • Interconnection: Link Presence
      • Processor: Watchdog

        Reliability
      • MTBF (Extrapolated from Calculated MTBF of PRA-AD608): 2.000.000 h

        Climatic Conditions
      • Operating Temperature: 23 to 122 °F
      • Storage and Transport Temperature: -22 to 158 °F
      • Humidity (Non-Condensing): 5 to 95%
      • Air Pressure (Operating): 560 to 1070 hPa
      • Altitude (Operating): -1640 to 16404 Ft
      • Vibration (Operating):
        - Amplitude: < .35 mm
        - Acceleration: < 5 G
      • Bump (Transport): < 10 G

        Enclosure
      • Dimensions: 5.12 x 2.44 x 7.44 In (WxHxD)
      • Ingress Protection: IP30
      • Base Material: Zamak
      • Base Color: RAL9017
      • Panel Material: Zamak
      • Panel Color: RAL9017/RAL9022HR
      • Weight: .88 lb

    • Item Includes:

      • 1x Call station extension
      • 1x Bracket (attached to bottom)
      • 1x Metal coupling plate + 4 screws
      • 1x RJ12 interconnection cable
      • 1x Button cap (x3)
      • 1x Quick Installation Guide
      • 1x Safety information

    • GTIN:

      0800549826075
