Blonder Tongue AQD PLUS ASI ATSC/QAM Demodulator Plus Broadcaster AFD Software

    Questions? Ask a Markertek Expert:
    800-522-2025 Email

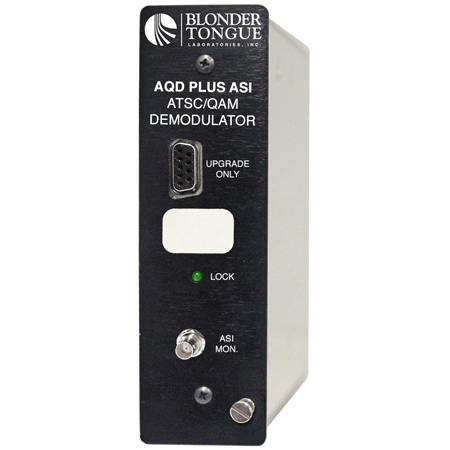

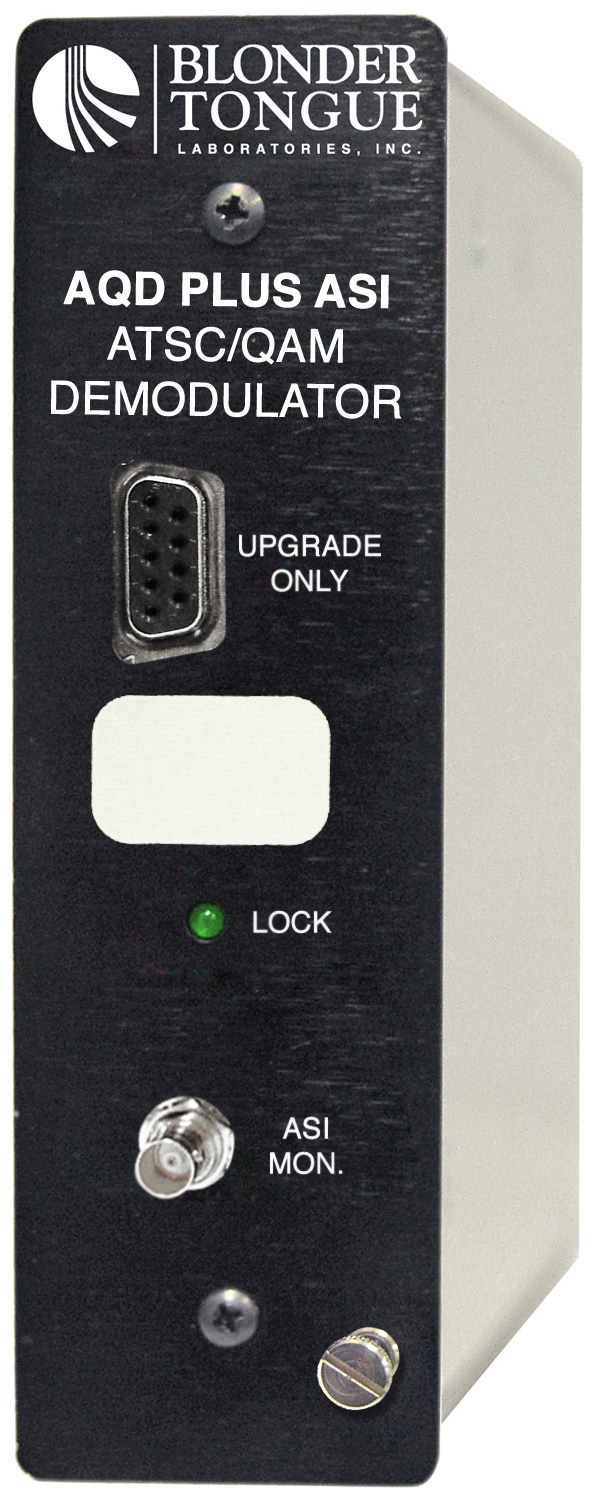

    Blonder Tongue AQD PLUS ASI ATSC/QAM Demodulator Plus Broadcaster AFD Software

    Item #: BT-AQD-PLUS-ASI   •   MFG #: AQD-PLUS-ASI



    List Price:$874.00
    Our Price:$749.90

    free ship


    Availability: Direct Ship From Manufacturer
    i
    Item ships directly from the manufacturer. Normal delivery time is 2-7 business days and is subject to manufacturer availability. Need it sooner? Call 800-522-2025, or email Customer Service for expedited delivery options.


    • 2 - 7 Day Normal Delivery Time - Faster Shipping Options at Checkout or Call Us.


    Share!





    AQD (ATSC/QAM Demodulator) accepts one input in 8VSB (digital off-air) or QAM (digital cable) format, and delivers one output in NTSC composite analog Audio/Video format, and two identical outputs in ASI format. AQD allows delivering of a digital off-air program to viewers with an analog TV set. It also allows an operator to cherry-pick channels from a "clear" QAM cable lineup. AQD PLUS is the same as AQD, but includes the AFD broadcast package. AFD (Active Format Description) is a standard set of codes embedded in the video stream and used by digital television broadcasters to optimally display a 16:9 video format on an analog television set designed for 4:3 video format.


    • Features

      • Input standards supported are digital off-air (8VSB) and digital cable (QAM 64 and 256)
      • NTSC Composite Analog Audio/Video output is in 480i format and supports Closed Captioning (EIA-608)
      • Optional AQD-RCS module allows remote monitoring and configuration of up to 80 AQD modules
      • Optional AQD-SPS unit provides standby utility power to the primary power supply (AQD Power & Control module)




    Add Accessories for your AQD-PLUS-ASI:
