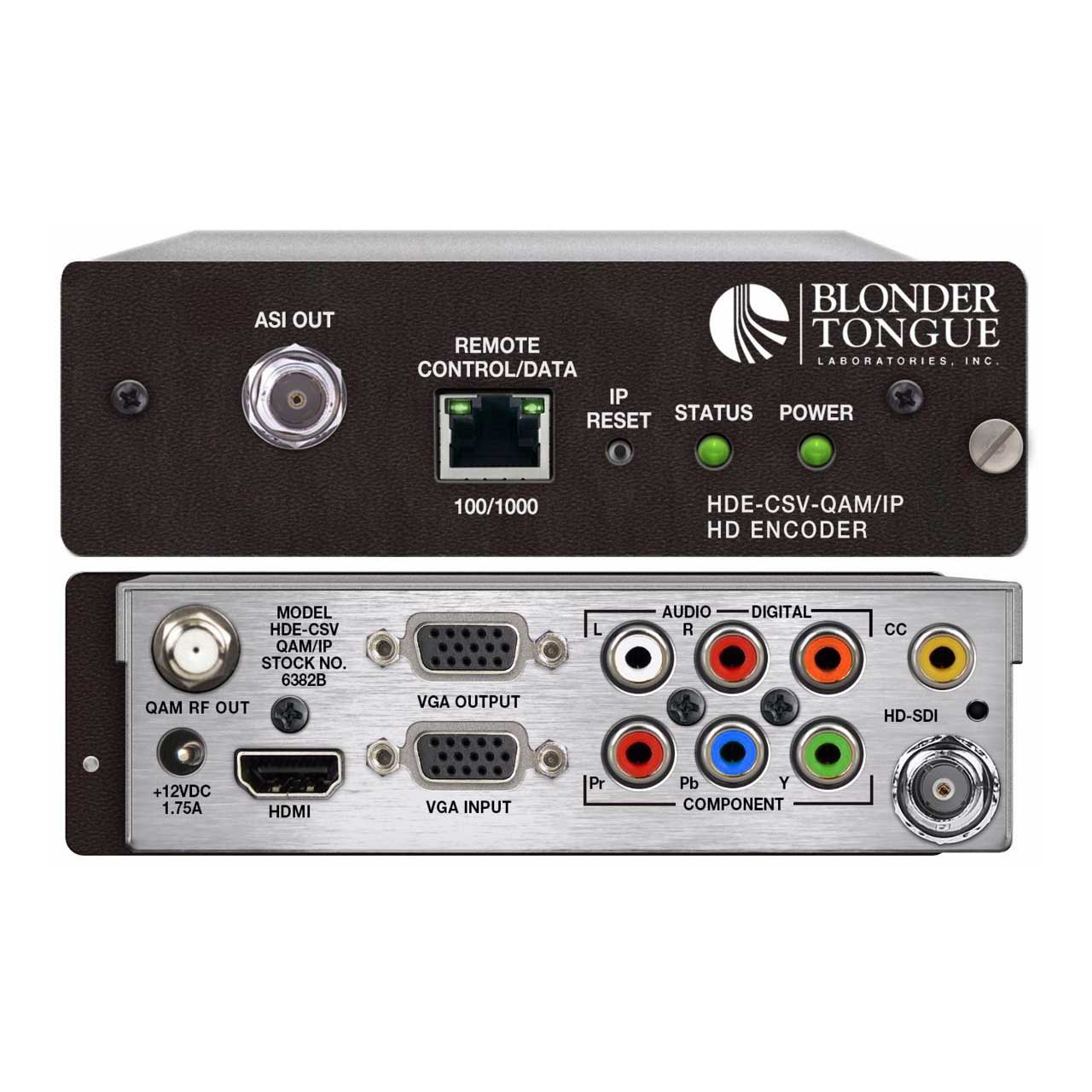

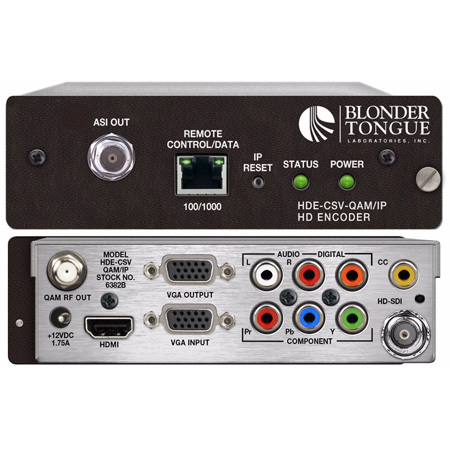

Blonder Tongue HDE-CSV-QAM/IP High Definition MPEG-2 Encoder Module

    Questions? Ask a Markertek Expert:
    800-522-2025 Email

    Blonder Tongue HDE-CSV-QAM/IP High Definition MPEG-2 Encoder Module

    Item #: BT-HDE-CSV-QAMIP   •   MFG #: HDE-CSV-QAM/IP



    List Price:$3,061.00
    Our Price:$2,475.00

    free ship


    Availability: Usually ships in 3-10 business days
    i
    This item is currently out of stock and will ship the minute we receive it – typically 3-10 business days. Need it sooner? Expedited delivery options may be available. Email [email protected] or call customer service at 800-522-2025 and we'll make it happen.




      Share!

      California Residents:
      8pt-triangleWARNING:
      Cancer and Reproductive Harm - www.P65Warnings.ca.gov





      The new and improved HDE-CSV-QAM/IP accepts one HD program from any of the following inputs: 1xComponent, 1xHD-SDI, 1xHDMI (unencrypted), 1xVGA, and 1xComposite. The MPEG-2 encoded outputs are available in the following formats simultaneously: 1xQAM, 1xASI, and 1xIP (100/1000Base-T Ethernet).

      The 1xQAM RF output is frequency agile over the entire CATV frequency range of 5-1002 MHz, including sub channels T7-T14, and 2-158, with an output level of +40 dBmV. Comprehensive remote monitoring and control is accomplished using any standard Web browser via a front-panel 100/1000 Ethernet connection. A rear-panel VGA output port is available for loop-through applications.


      • Features

        • Accepts one (1) program from any of the following inputs: 1xComponent, 1xHD-SDI, 1xHDMI (unencrypted), 1xVGA, and 1xComposite
        • Simultaneously delivers 1xQAM, 1xIP, and 1xASI outputs
        • Provides full QAM output coverage from 5 to 1002 MHz (sub channels T7-T14, and 2-158)
        • Provides +40 dBmV QAM RF output level
        • Supports custom video and transport stream bit rate settings
        • Supports user-defined PSIP configuration
        • Supports Real-time Dolby Digital audio encoding
        • Supports Closed Captioning EIA-608 and EIA-708
        • Provides comprehensive GUI-based monitoring and control via standard Web browsers
        • Compact design permits installation of up to 3 Encoder modules in 1RU

      • Specifications

        • Input
        • Component Connectors: 3x RCA for Video (Y, Pb, Pr)
        • HD-SDI Connectors: 1x BNC (SMPTE 292M)
        • HDMI Connectors: 1x HDMI (480i, 720p, & 1080i)
        • VGA Connectors: 2x Female VGA (Input + Loop-through Output)
        • Composite Connectors: 1x RCA for Video (Y) (480i Resolution)

          Encoding Profile
        • Output Format: MPEG-2 HD [email protected]; ISO 13818-2
        • Chroma: 4:2:0
        • Resolution: 480i, 720p, & 1080i
        • Frame rate: 29.97 fps (480i); 29.97 fps (1080i); 59.97 fps (720p)
        • Aspect Ratio: 4:3 & 16:9
        • GOP Structure: I & P frames (user-selectable)
        • Video Bit Rate: Variable (user-selectable)
        • Video Pre-filter: Variable (user-selectable)
        • Color Space: YCbCr and RGB
        • Audio Output Format: Dolby Digital
        • Sampling rate: 48 kHz
        • Bit rate: Variable; 96 - 448 Kbps (user-selectable)

          Alarms/Monitoring/Control
        • Local Monitoring: 1x Power LED; 1x Status LED
        • Local Control: 1x IP Reset button
        • Remote Monitoring/Control: GUI-based menu via Web browser

          Output
        • Connector: 1x "F" Female (Rear-panel)
        • Modulation: QAM 16, 32, 64, 128, and 256
        • Standards: ITU-T J.83; Annex A and B
        • DVB Symbol Rate: Variable; up to 7 MSymbol/sec (MBaud)
        • Frequency Range: 5 to 1002 MHz
        • Tuning: CATV Channel Selectable (Ch. T7 to T14, 2 to 158)
        • Channels' Bandwidth: 6 MHz
        • RF Level: +40 dBmV ±1 dB
        • RF Level Adjustment: +35 to +42 dBmV, 1 dB increment
        • Frequency Tolerance: ± 0.5 kHz @ 77 °F
        • Frequency Stability: ± 5 kHz over 32 to 122 °F
        • Amplitude Flatness: ± 0.25 dB (over 6 MHz channel)
        • Phase Noise: -98 dBc (@ 10 kHz)
        • Spurious: -60 dBc
        • Broadband Noise: -70 dBc (@ +40 dBmV output level, 5.5 MHz bandwidth)
        • Impedance: 75 Ω
        • Spectral Inversion: Auto Recognition
        • Carrier Suppression: 45 dB
        • Return Loss: 14 dB typical
        • Signal-to-Noise Ratio (SNR): 40 dB typical
        • MER: 40 dB typical
        • I/Q Phase Error: Less than 1 degree
        • I/Q Amplitude Imbalance: Less than 1%
        • ASI Connector: 1x BNC (Front-panel)
        • Format: DVB-ASI
        • Standard: ETSI EN 50083-9
        • IP Connector: 1x RJ45 (Front-panel)
        • Standard: 100/1000Base-T Ethernet
        • TS Bit Rate: Variable (user-selectable)
        • UDP/RTP: Supported (user-selectable)

          General
        • Dimensions (W x D x H): 5.65 x 14.10 x 1.72 inches
        • Power: External Power Supply (Input 120 VAC / Output 12 VDC @ 3 Amps)
        • Power Dissipation: 20W
        • Weight: 1.75 lbs
        • Operating Temperature: 32 to 122 °F
        • Storage Temperature: -13 to 158 °F
        • Operating Humidity: 0 to 95% RH @ 35 °C max, non-condensing
        • Storage Humidity: 0 to 95% RH @ 35 °C max, non-condensing
