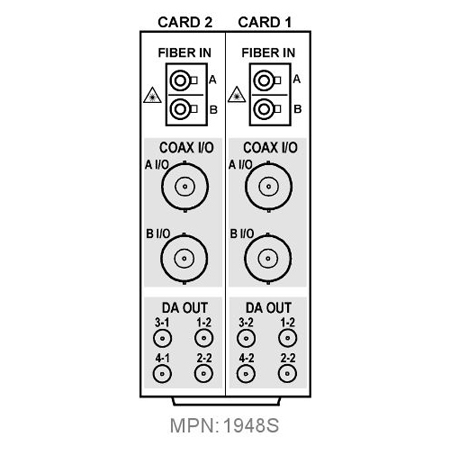

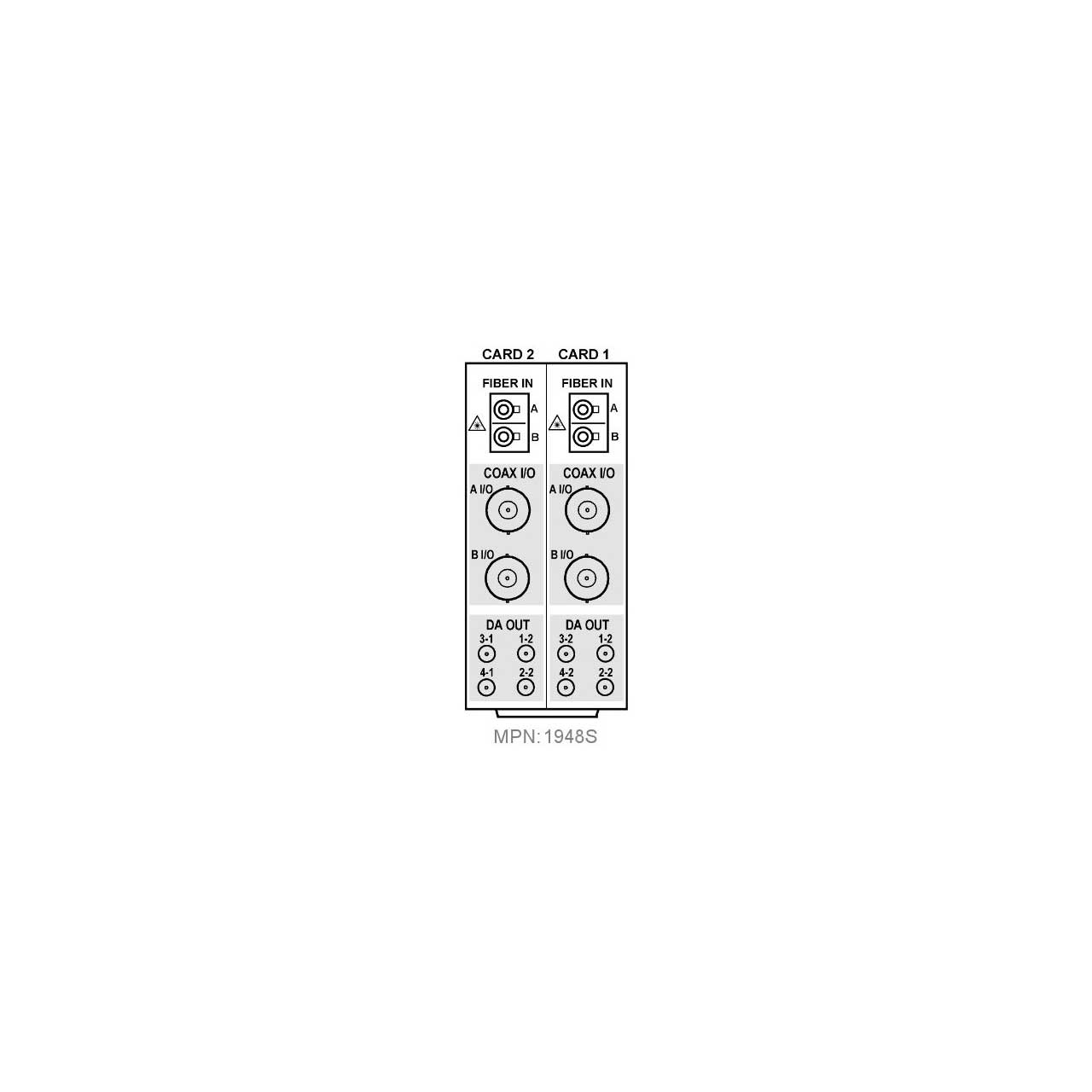

The Cobalt Dgital RM20-9410DA-2OE-D/S-DIN is a 20-Slot Frame Rear I/O Module for the The Cobalt 9410DA-2OE openGear card (Split; supports 2 cards) .I/O's are listed as (2) 3G/HD/SD-SDI / ASI / MADI input/outputs, (2) Fiber in (LC connectors), (6) DA coaxial outputs (connections are per card; coaxial connectors are DIN1.0/2.3)
The Cobalt 9410DA-2OE 3G/HD/SD-SDI / ASI / MADI Fiber Dual OE Transport/Distribution Amplifier with Full-Flexibility Crosspoint provides a card-based solution for high-density conversion from fiber to coax (with two independent OE channels), as well as coaxial distribution. The 9410DA-2OE is multi-rate, and supports SDI and ASI/DVB on all inputs and outputs with non-inverting outputs.
