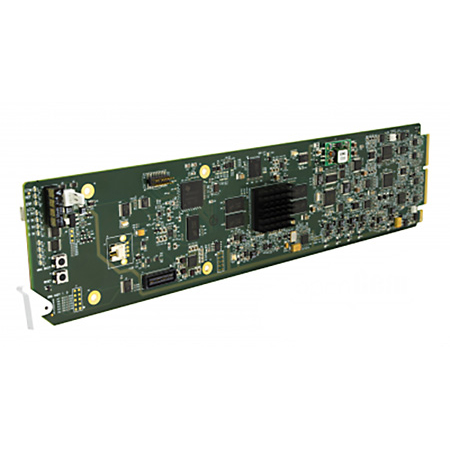

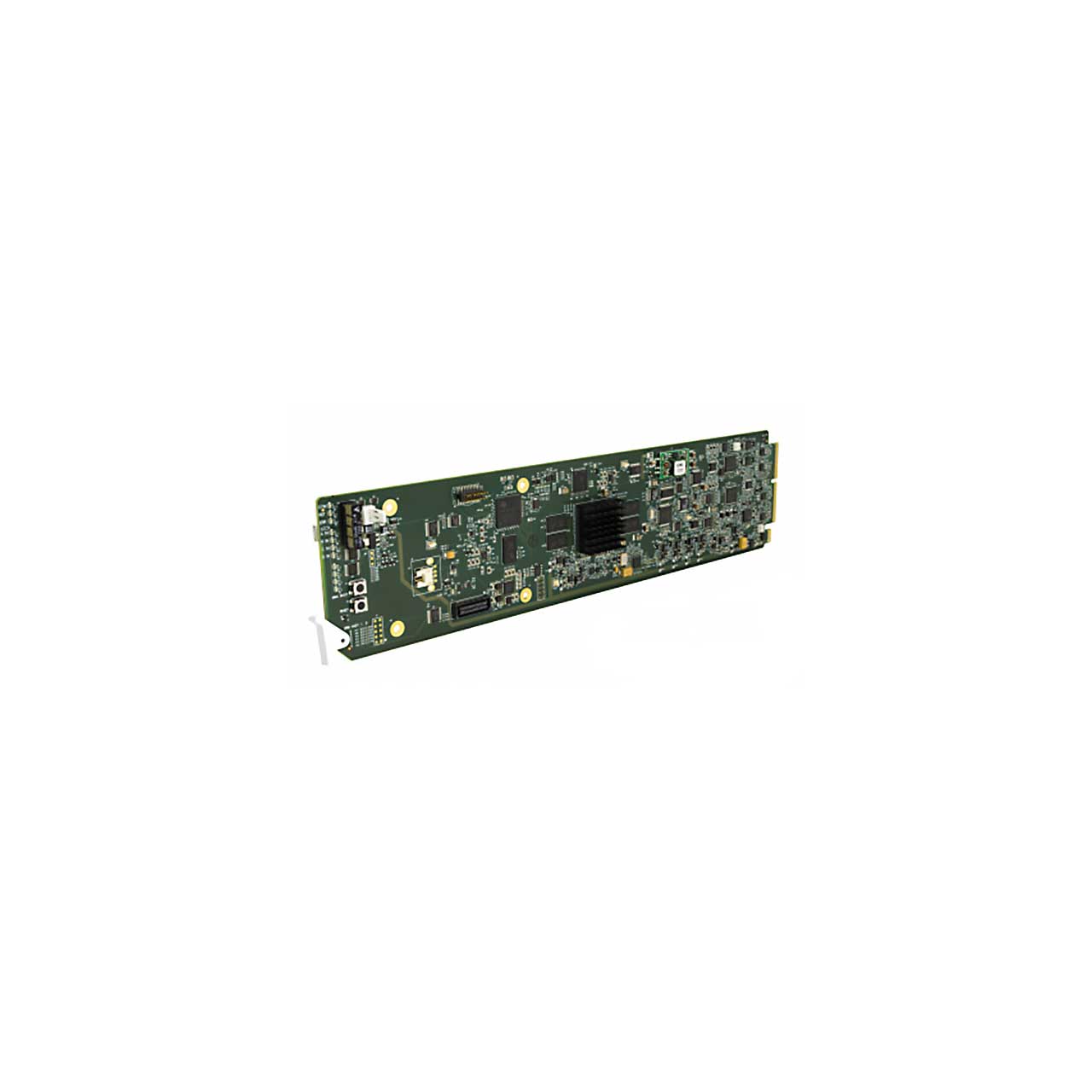

Cobalt 9922-FS openGear Card 3G/HD/SD-SDI Frame Sync with A/V Processing AES/Analog Audio Embed/De-Embed & CVBS I/O

ITEM #: CB-9922-FS MFG #: 9922-FS

free ship

Our Price:

$3,295.00

Availability: Typically Ships in 3-10 Days
iAvailability Description Popup


    9922-FS - Overview

    The Cobalt® 9922-FS 3G/HD/SD-SDI Frame Sync with Audio/Video Processing, AES/Analog Audio Embedding/De-Embedding, and CVBS I/O offers frame sync, and advanced audio and ancillary data support, plus many other powerful features. Frame sync can select from multiple reference inputs, with failover to alternate selected sources. Full audio support includes per-channel audio delay. Option +2FS adds a second independent processing path, offering two signal paths on a single openGear® card, with both paths providing independent frame sync and audio embedding /de-embedding.

    Advanced frame sync features include per-channel audio delay, audio/video offset, and output rate conversion to and from 23.98/29.97/29.94 to 24/30/60 frame rates. Frame sync can select from multiple reference inputs, with failover to alternate selected sources.

    Audio embed adaptive SRC allows asynchronous 48 kHz AES audio to automatically sync with program video 48 kHz timing for glitch-free embedding. Individual, per-pair SRC auto-detects and disables SRC when a Dolby pair is detected on an input pair. Bulk and per-channel audio delay controls easily address lip-sync issues.

    Option +TTS provides high-quality Text-To-Speech synthesis, directly converting EAS text to digital audio speech with no baseband signal breakouts or add-ons. It interfaces with industry standard Windows Share folder systems to receive non-proprietary text, XML, or similar plain text files, and converts and inserts realistic human-voice audio into user-configured audio channels. Option +EAS provides the ideal solution for keying Emergency Alert System (EAS) text crawls in the active video. Option +EAS directly converts serial crawl text data from EAS generators (such as Sage™ or Dasdec™) to a keyed scrolling text insertion. User-configurable fill background color and text size can be correlated to event severity. Option +EAS provides EAS crawl burn-ins directly from industry standard EAS devices such as Sage™.

    With option +ANC, the 9922-FS offers full VANC/HANC ancillary data packet de-embedding and embedding to and from external serial and IP interfaces.

    A convenient input crosspoint with RP168 clean switching can select from up to four SDI inputs. The input crosspoint allows manual selection of input via remote control or GPIO, or failover to alternate inputs on loss of input conditions. Two discrete character burn strings can be inserted on output video, with each string inserted as static text and/or insert only upon LOS. With option +T-SLATE, import of user trouble slate graphics is also supported in addition to standard test pattern insert as an input LOS/quality event marker. A moving-box insertion can serve as a dynamic raster confidence check even when the input video image is static. Included standard is closed captioning absence/presence detection for CEA 608/708 and line 21 SD closed captioning.

    Preset save/load allows saving custom card settings while allowing one-button revert to factory settings. Layered presets allow invoking changes related only to a specific area of concern (audio routing, for example) while not changing any other processing settings or aspects. Full user DashBoard™ or Remote Control Panel remote control allows full status and control access locally or across a standard Ethernet network. GPIO allows direct input routing control and status monitoring.

    • Features:

      • Multi-input RP168 clean switch, with manual selection or GPI controlled input selection
      • Closed-captioning absence detection
      • Auto-Changeover can be set to invoke failover for basic input loss. Quality Check option (+QC) provides alert actions on criteria such as black/frozen frame, audio silence, and closed-captioning absence. Threshold and hold-off are user configurable.
      • Moving-box/motion insertion enable serves as a dynamic raster confidence check even in cases where the input video image is static
      • Dual independent burn-in text string insertion allows condition-based insertion (such as basic ID text for valid input and different text message for failover conditions)
      • Frame Sync with full H/V offset and manual/LOS video pattern generator
      • Timecode processing can prioritize, filter for, and convert between specific SMPTE embedded-video or audio LTC, with output/burn-in timecode using selected format
      • Advanced audio processing allows routing, gain, delay, and flexible mixing as standard features
      • Full audio crosspoint with delay control and 5.1-to-stereo downmix available for all audio outputs
      • CVBS analog video I/O and analog/AES embed / de-embed available
      • Pattern generator can provide raster/test pattern and patterns for LOS failover insertion
      • Video options include color correction and keying
      • Option +TTS provides Text-To-Speech synthesis, directly converting EAS text to high-quality digital audio speech with no baseband signal breakouts or add-on units
      • Option +ANC adds full user VANC/HANC packet insertion/extraction access to DID/SDID ancillary data such as camera PTZ, SCTE 104, closed captioning, and other specialized user payloads. Multi-mode setup includes Bridge mode (card internal path with bypass bridging) or Insert/Extract modes for insert/extract to or from IP/serial external interfaces. SMPTE 337 embed/de-embed allows serial user data to be embedded and de-embedded over unused embedded audio pairs.
      • Low-power/high-density design - less than 18 Watts per card
      • Remote control/monitoring via Dashboard™ software or OGCP-9000 remote control panels

    • Warranty:

      • 5 Year
