Cobalt RM20-9410DA-EO-E/S-DIN 20-Slot Frame Rear I/O Module

ITEM #: CB-RM20-9410DA-E MFG #: RM20-9410DA-EO-E/S-DIN

Primary Image
Free Shipping with $49 Minimum Order

List Price:

$149.00

Our Price:

$139.00

Availability: Typically Ships in 3-10 Business Days
iAvailability Description Popup


    RM20-9410DA-EO-E/S-DIN - Overview

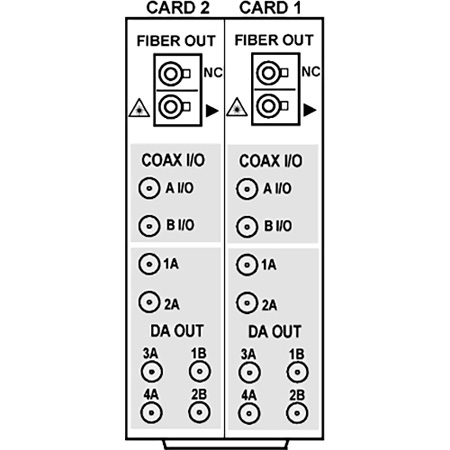

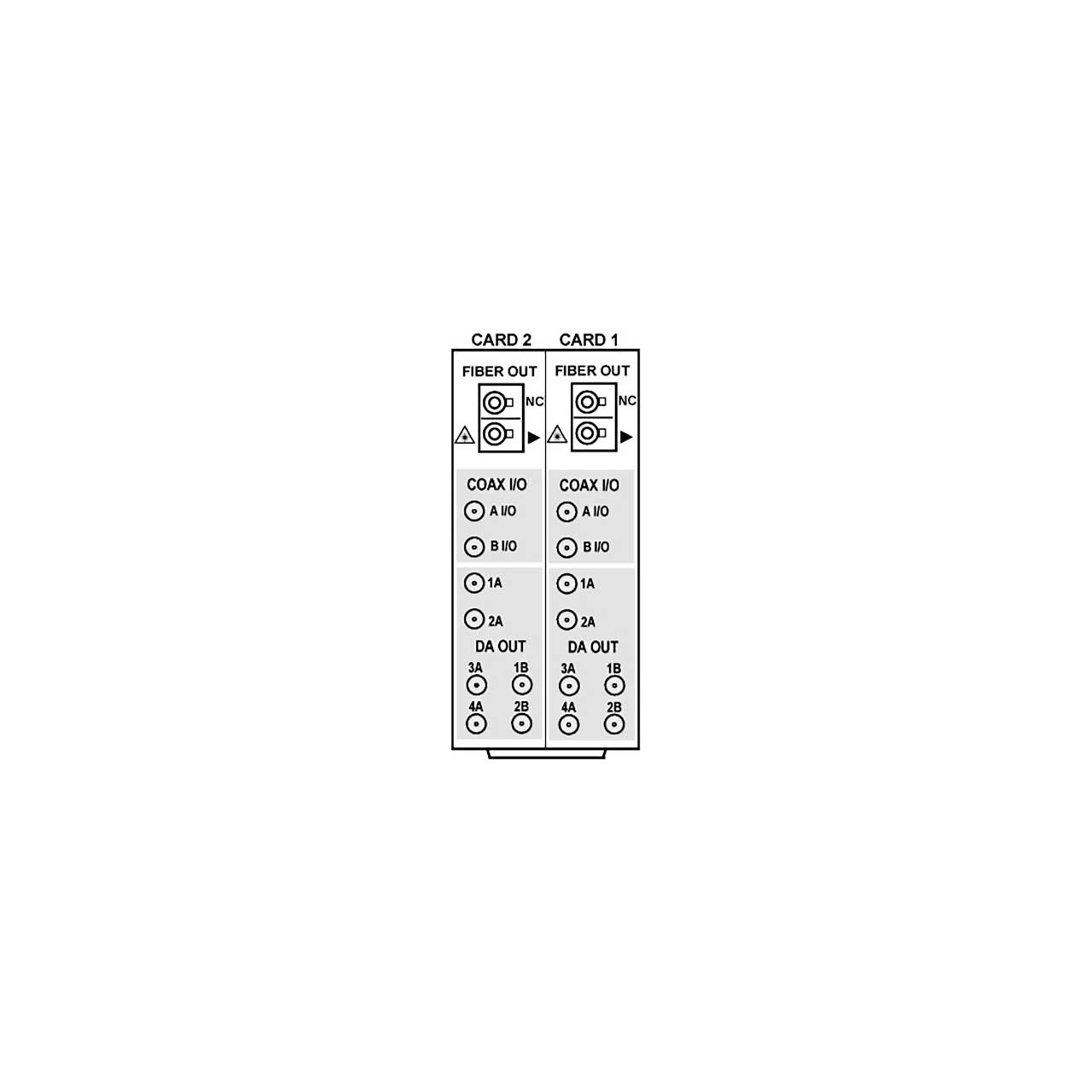

    The Cobalt® RM20-9410DA-EO-E/S-DIN / ASI / MADI Fiber Dual OE Transport/Distribution Amplifier with Full-Flexibility Crosspoint provides a card-based solution for high-density conversion from fiber to coax (with two independent OE channels), as well as coaxial distribution. The 9410DA-2OE is multi-rate, and supports SDI and ASI/DVB on all inputs and outputs with non-inverting outputs.

    SFP-based OE converters provide state-of-the-art fiber performance, power consumption, and compactness. A crosspoint (which is user-configurable via DashBoard™ GUI remote control) allows the card to apply any of the card inputs to various coax DA outputs as well as two independent fiber input channels. Up to 10 flexibly-sourced coaxial DA outputs are available per each card.

    Using a high-density low-power design along with a high-density split rear module, up to 20 cards can be installed in a frame, providing 40 channels of OE fiber conversion as well as up to 200 coaxial DA outputs. Excellent receive performance allows receive EQ for up to 110m 3G, 180m HD, and 360m SD cable length (1694A). Full user DashBoard™ or Remote Control Panel remote control allows full status and control access locally or across a standard Ethernet network.

    Note: Inputs/outputs are a function of rear I/O module
    All coaxial connectors are DIN1.0/2.3

    • Features:

      • Dual independent fiber-to-coax input channels. Fiber inputs can serve as source for any card coaxial outputs.
      • Full support of 3G/HD/SD-SDI and ASI/DVB
      • Fully-flexible coaxial crosspoint/DA provides up to 10 copies per card. Crosspoint can select from any card input or output.
      • Excellent coax receive performance - EQ allows 1694A cable lengths up to 110m (3G) / 180m (HD) / 360m (SD)
      • Input user selectable as fiber or coaxial
      • SFP-based OE converters provide state-of-the-art fiber performance, power consumption, and compactness
      • Automatic reclocking for all SDI data rates (auto-bypass for non-SDI data rates)
      • Optical Rx receive power status fields allow optical receive assessment
      • All outputs are non-inverting - ASI can be outputted on any output
      • DashBoard™ status and full remote control
      • Five year warranty

    • Specifications:

      • Power
      • < 10 Watts

        3G/HD/SD-SDI / ASI / MADI Inputs/Outputs (Coaxial Primary)
      • (2) 75O BNC input/outputs max (A-I/O and B-I/O)
      • SDI Formats Supported: SMPTE 259M, SMPTE 292M, SMPTE 424M

        Coaxial Receive Performance (Cable Length; Belden 1694A)
      • SDI Receive Cable Length (1694A): 110m/180m/360m (3G/HD/SD)

        Fiber Receive Input
      • (2) Fiber input; LC connectors
      • Receive Sensitivity: -23 dBm; 1260 to 1620 nm (with internal power meter status display)

        3G/HD/SD-SDI / ASI / MADI Outputs (DA Outputs)
      • Four, 1x2 75O BNC outputs (8 total, max). Each DA pair can receive any primary or opposite-channel DA signal.
      • Signal Level: 800 mV nominal
      • Alignment Jitter: 3G/HD/SD: < 0.3/0.2/0.2 UI
      • Timing Jitter: 3G/HD/SD: < 2.0/1.0/0.2 UI

    • Item Includes:

      • 1x Cobalt RM20-9410DA-EO-E/S-DIN 20-Slot Frame Rear I/O Module
