Cobalt RM20-9904-F-HDBNC Rear Module Option For 9904-UDX-4K Card

ITEM #: CB-RM209904FHDBN MFG #: RM20-9904-F-HDBNC

  • Product Image Thumbnail 1 of 2
  • Product Image Thumbnail 2 of 2
free ship

List Price:

$479.00

Our Price:

$466.99

Availability: Typically Ships in 3-10 Days
iAvailability Description Popup


    RM20-9904-F-HDBNC - Overview

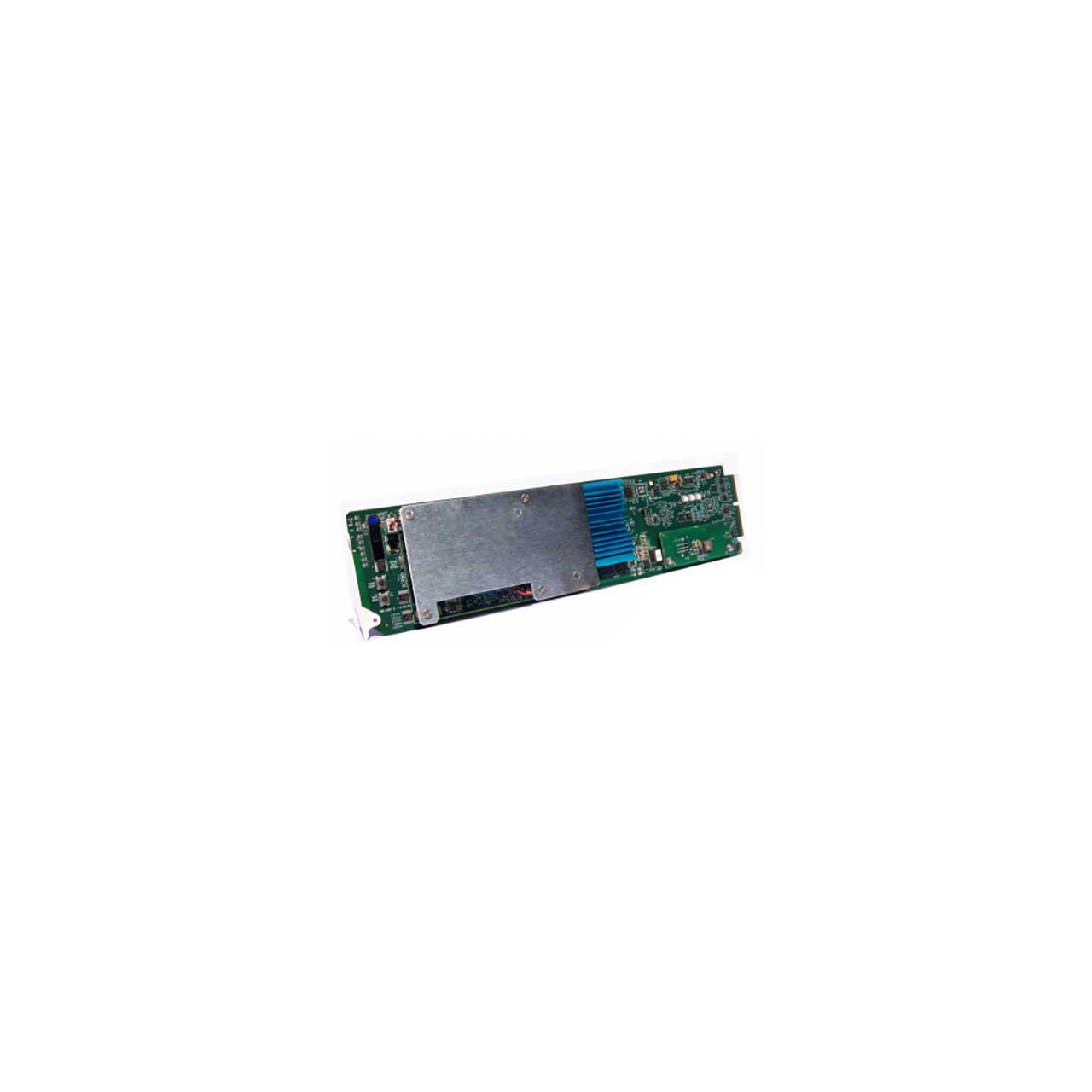

    The Cobalt® 9904-UDX-4K 12G/6G/3G/HD/SD UHD Up/Down/Cross Converter/Frame Sync/Embed/De-Embed Audio Processor (RM20-9904-F-HDBNC) is Cobalt's next generation of advanced scaler/frame synchronizers for the openGear® platform. The 9904-UDX-4K upconverts 12G/6G/3G/HD/SD to either UHD1 3840x2160 Square DIvision Multiplex (SDM) or Two-Sample Interleave (2SI) quad 3G-SDI based formats, or can output ST 2082 12G-SDI for single-wire 4K transport. With both 12G-SDI and quad 3G-SDI inputs, the 9904-UDX-4K can downconvert 12G and quad UHD. The 9904-UDX-4K provides an HDMI 2.0 output for economical 4K video monitoring. The 9904-UDX-4K offers numerous options, including SDR-to-HDR conversion and color correction.

    The 9904-UDX-4K-IP model offers the same functionality as the 9904-UDX-4K SDI-based model, but additionally also provides dual 10GigE ports providing support for the emerging uncompressed video/audio/data over IP standards.
    The 9904-UDX-4K-DSP model provides the same functionality as the 9904-UDX-4K SDI-based model, and also offers a DSP-based platform that supports multiple audio DSP options, including Dolby® Real-Time Loudness Leveling automatic loudness processing, Dolby® E/D/D+ encode/decode, and Linear Acoustic® UPMAX™ automatic upmixing.

    The high-density openGear® design allows for up to five 9904-UDX-4K cards to be installed in one 2RU openGear® frame. Card control/monitoring is available via DashBoard user
    interface, or Cobalt's RESTful-based Reflex protocol.

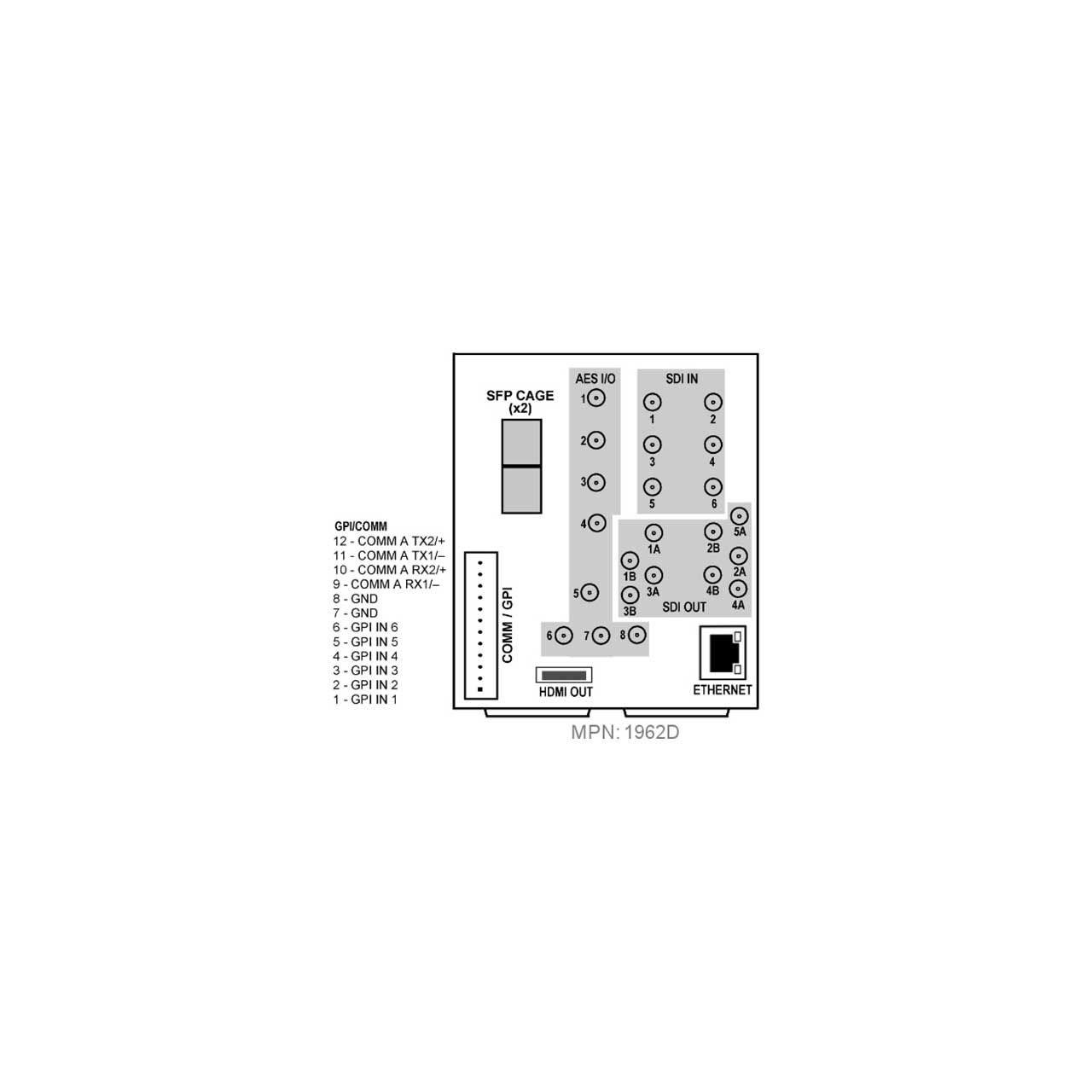

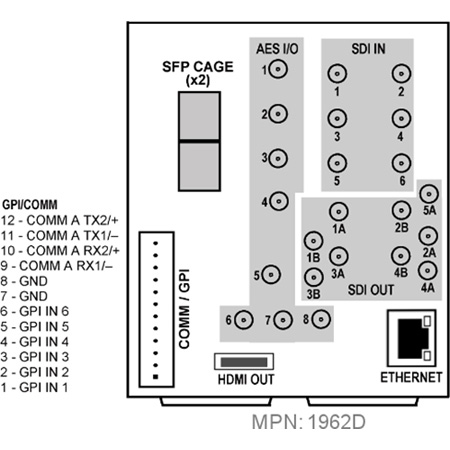

    RM20-9904-F-HDBNC 20-Slot Frame Rear I/O Module (Double-Width) (6) 12G/6G/3G/HD/SD/SD-SDI Inputs, (9) 12G/6G/3G/HD/SD/SD-SDI Processed Outputs, (8) AES I/O, GPI/COMM, HDMI 2.0 Output (type A standard connector), (2) SFP cage receptacles (when used in conjunction with option -UDX-SFP or -UDX-SFP-MSA), 100/1000 BaseT Ethernet Port. MADI Compatible. (All coaxial connectors HD-BNC.)

    • Features:

      • High-density openGear comprehensive UHD UDX solution
      • Supports all popular formats: 480i, 576i, 720p, 1080i, 1080pSF, 1080p
      • Full up/down conversion between HD/3G, ST 2082 12G-SDI single-wire, and SDQS/2SI quad 3G-SDI based formats, with ST 2082 12G-SDI single-wire and quad 3G UHD available at both input and output
      • Supports Square Division Multiplex (SDM) and Two-Sample Interleave (2SI) quad UHD
      • 12G-SDI and quad 3G frame sync and user delay
      • Supports Cobalt's Reflex (JSON) Protocols
      • Noise Reduction and Detail Enhancement provide image quality optimization
      • Remote control/monitoring via Dashboard™ software, OGCP-9000 remote control panels, or Cobalt's RESTful-based Reflex protocol
      • Hot-swappable

    • Specifications:

      • 12G/6G/3G/HD/SD-SDI Input/Outputs
      • (6) 75Ω inputs (max)
      • (8) 75Ω outputs (max)
      • SDI Formats Supported: SMPTE ST2082-1,10, 424M, 292M, SMPTE 259M-C. All inputs/outputs 12G compliant and SDQS/2SI quad 3G compliant.
      • Return Loss:
        > 15 dB up to 1.485 GHz
        > 10 dB up to 3 GHz
        > 7 dB up to 6 GHz
        > 5 dB up to 12 GHz
      • Input Cable Length:
        45m Belden 1694A cable at 11.88 Gbps
        120m Belden 1694A cable at 2.97 Gbps
        240m Belden 1694A cable at 1.485 Gbps
        400m Belden 1694A cable at 270 Mbps
      • Output Signal Level: 800 mV ±10%
      • DC Offset: 0 V ± 50 mV
      • Rise and Fall Time @ 11.88 Gbps: < 45 ps
      • Alignment Jitter (12G/3G/HD/SD): < 0.3/0.3/0.2/0.2 UI

        Frame Sync Audio/VIdeo Delay
      • Max offset: 20 frames
      • Latency (min): 1 frame

        User Audio Delay Offset from Video
      • Bulk delay control: -33 msec to +3000 msec.
      • Per-channel delay controls: -800 msec to +800 msec

        AES Audio Inputs/Outputs
      • (8) 75Ω coaxial ports (max); port direction assignable as inputs or outputs in groups of 4 ports.
      • Note: Hardware rev -E and later has 8 AES ports; earlier versions have 4 port max.

        MADI Audio Inputs/Outputs
      • (2) 75Ω coaxial ports (max)
      • Note: Not all rear modules support full MADI I/O. MADI I/O is a function of Rear Module used and is available only on card with on rev C (or later) hardware with firmware supporting MADI I/O.
      • See Rear Module illustrations for specific information.

        HDMI Input (Option -H2S only)
      • HDMI 2.0 Input; mini connector

        HDMI Output
      • HDMI 2.0 Output; type A standard connector

        GPIO
      • 6 GPI (max); 2 GPO (max)
      • Note: GPIO max capacity is a function of Rear Module used. See Rear Module Options tab for specific information.

        Frame Reference Input
      • (2) reference from frame bus. SMPTE 170M/318M "Black Burst", SMPTE 274M/296M "Tri-Level"

        Frame Loading (Max. recommended number of 9904 cards supported per Frame Model)
      • OG3 Frame: (5) cards
      • HPF-9000 Frame: (5) cards
      • oGx Frame: (7) cards
      • Note: In all cases, it is recommended to leave a 1RU gap above the frame and set frame Network Controller Card to run the frame cooling fans at full (max.) speed.

    • Warranty:

      • Five year warranty
