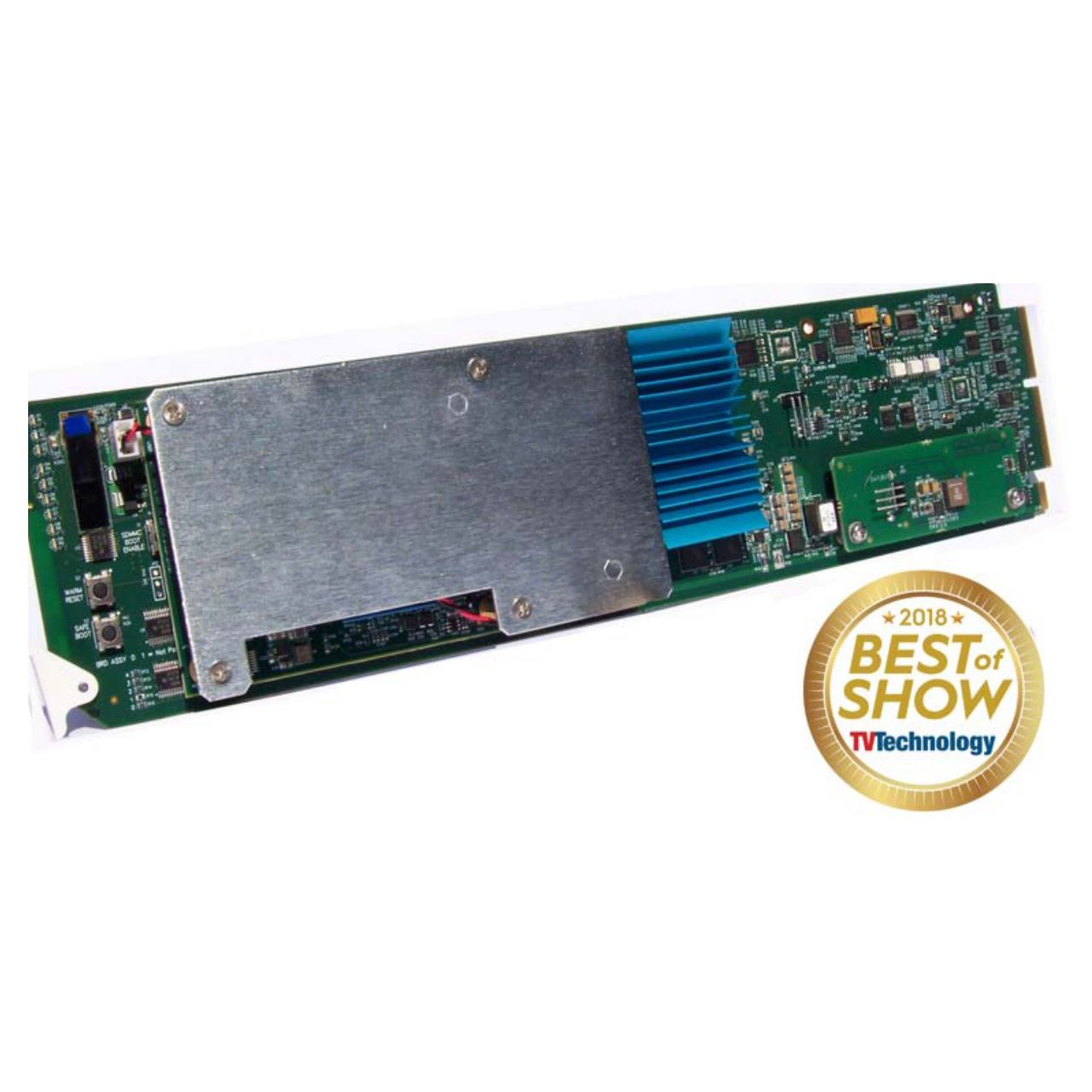

Cobalt Digital 9904-UDX-4K-DSP 12G/6G/3G/HD/SD UHD Up/Down/Cross Converter/Frame Sync openGear Card

ITEM #: CB-9904-UDX4KDSP MFG #: 9904-UDX-4K-DSP

Primary Image
  • Product Image Thumbnail 1 of 2
  • Product Image Thumbnail 2 of 2
Free Shipping with $49 Minimum Order

List Price:


Our Price:


Availability: Typically Ships in 3-10 Business Days
iAvailability Description Popup

    9904-UDX-4K-DSP - Overview

    Cobalt Digital openGear Card 9904-UDX-4K-DSP 12G/6G/3G/HD/SD UHD Up/Down/Cross Converter/Frame Sync with DSP

    The Cobalt Digital 9904-UDX-4K-DSP12G/6G/3G/HD/SD UHD Up/Down/Cross Converter/Frame Sync with DSP Advanced Audio Processing is Cobalt's next generation of advanced scaler/frame synchronizers for the openGear platform.

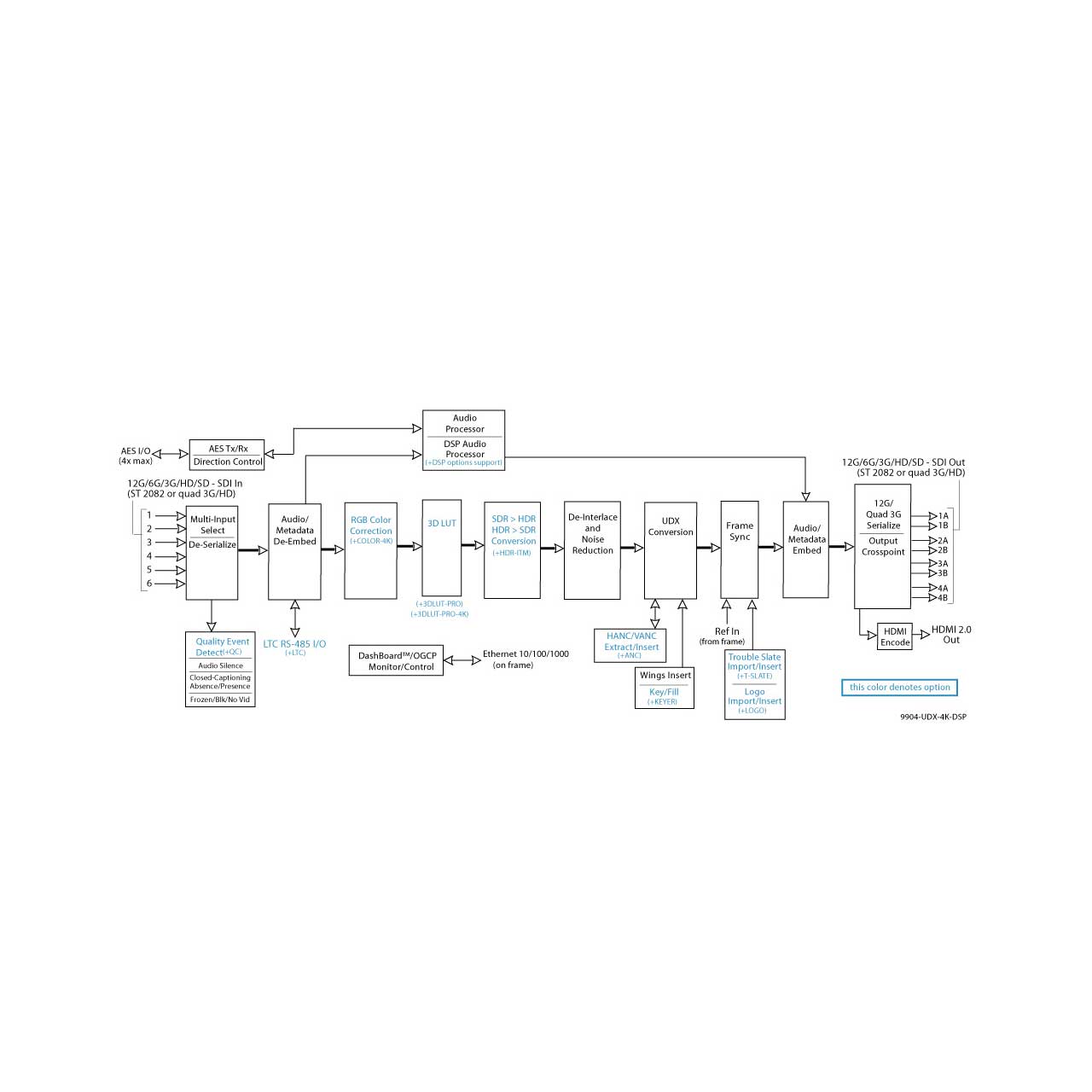

    The 9904-UDX-4K-DSP upconverts 12G/6G/3G/HD/SD to either UHD1 3840x2160 Square DIvision Multiplex (SDM) or Two-Sample Interleave (2SI) quad 3G-SDI based formats, or can output ST 2082 12G-SDI for single-wire 4K transport. With both 12G-SDI and quad 3G-SDI inputs, the 9904-UDX-4K can downconvert 12G and quad UHD. The 9904-UDX-4K provides an HDMI 2.0 output for economical 4K video monitoring. The 9904-UDX-4K-DSP offers numerous options, including SDR-to-HDR conversion and color correction.

    The Cobalt Digital 9904-UDX-4K-DSP offers a DSP-based platform that supports multiple advanced audio DSP options, including Dolby Real-Time Loudness Leveling automatic loudness processing, Dolby E/D/D+ encode/decode, and Linear Acoustic UPMAX automatic upmixing. Embedded audio and metadata are properly delayed and re-embedded to match any video processing delay, with full adjustment available for audio/video offset.

    The high-density openGear design allows for up to five Cobalt Digital 9904-UDX-4K-DSP cards to be installed in one 2RU openGear frame. Card control/monitoring is available via DashBoard user interface, integrated HTML5 web interface, SNMP, or Cobalt's RESTful-based Reflex protocol.

    • Features:

      • High-density openGear comprehensive UHD UDX solution
      • Full up/down conversion between HD/3G, ST 2082 12G-SDI single-wire, and SDM/2SI quad 3G-SDI based formats, with ST 2082 12G-SDI single-wire and quad 3G UHD available at both input and output
      • Supports Square Division Multiplex (SDM) and Two-Sample Interleave (2SI) quad UHD formats
      • Optional SDR-to-HDR, 4K color correction, and 3D LUT processing options available
      • 12G-SDI and quad 3G frame sync and user delay
      • Supports SNMP and Cobalt's Reflex (JSON) Protocols
      • DSP-based platform supports multiple audio DSP options, with multiple instances available using allocatable license "credits"
      • Dolby encoding/decoding, Dolby Real-Time Loudness Leveling (RTLL) loudness leveling with full parametric control setup, and Linear Acoustic UPMAX upmixing DSP audio options available
      • Full embedded audio processing with user delay offset and AES I/O
      • Noise Reduction and Detail Enhancement provide image quality optimization
      • Remote control/monitoring via Dashboard software, OGCP-9000 remote control panels, integrated HTML5 web interface, SNMP, or Cobalt's RESTful-based Reflex protocol
      • Five year warranty
      • Available Options
      • SDR/HDR Conversion Options (+HDR-ITM-4K, +HDR-ITM): Provides sophisticated and comprehensive (yet easy to use) Technicolorr Intelligent Tone ManagementT SDR-to-HDR conversion. Provides basic one-button Basic modes, as well as full-parameter expert modes.
        SL-HDR Options (+SL-HDR-4K, +SL-HDR): Provides SL-HDR functionality that allows HDR metadata encoding, accommodating SDR and HDR devices/decoders on a single stream, as well as specific SL-HDRv1 and/or SL-HDRv2 functionality. Contact Cobalt Sales for more information, or to arrange a hardware demo/evaluation.
        3D LUT Options (+3DLUT-PRO-4K, +3DLUT-PRO): 3D LUT (Lookup Table) options provide 33 cube LUT mapping between 10-bit RGB and HDR color spaces.
        Color Correction Options (+COLOR-4K, +COLOR): Provides full RGB color corrector (offset, gain, gamma) with extended YCbCr proc controls with white hard clip, white soft clip, black hard clip, and saturation clip.
        Audio LTC I/O Option (+LTC)
        Dolby Real-Time Loudness Leveling Automatic Loudness Processing Options (+DSP-RTLL): Provides advanced loudness processing with comprehensive parametric controls. Available as surround 5.1 and stereo 2.0. (See Ordering Information for full details.)
        Dolby Encoder Options (+DSP-ENC): Available as Dolby Digital/Digital Plus encode. (See Ordering Information for full details.)
        Dolby Decoder Options (+DSP-DEC): Provides Dolby Digital, Digital Plus, and E decode.
        Linear Acoustic UPMAX Upmixing (+DSP-UPMIX-LA): Provides automatic 2.0-to-5.1 Linear Acousticr UPMAXT upmixing.
    • Specifications:

      • 12G/6G/3G/HD/SD-SDI Input/Outputs
      • (6) 75O inputs (max)
      • (8) 75O outputs (max)
      • SDI Formats Supported: SMPTE ST2082-1,10, 424M, 292M, SMPTE 259M-C. All inputs/outputs 12G compliant and SDQS/2SI quad 3G compliant.
      • Return Loss:
      • > 15 dB up to 1.485 GHz
      • > 10 dB up to 3 GHz
      • > 7 dB up to 6 GHz
      • > 5 dB up to 12 GHz
      • Input Cable Length:
      • 60m Belden 1694A cable at 11.88 Gbps
      • 120m Belden 1694A cable at 2.97 Gbps
      • 240m Belden 1694A cable at 1.485 Gbps
      • 400m Belden 1694A cable at 270 Mbps
      • Output Signal Level: 800 mV ±10%
      • DC Offset: 0 V ± 50 mV
      • Rise and Fall Time @ 11.88 Gbps: < 45 ps
      • Alignment Jitter (12G/3G/HD/SD): < 0.3/0.3/0.2/0.2 UI

        Frame Sync Audio/VIdeo Delay
      • Max offset: 20 frames
      • Latency (min): 1 frame

        User Audio Delay Offset from Video
      • Bulk delay control: -33 msec to +3000 msec.
      • Per-channel delay controls: -800 msec to +800 msec

        HDMI Output
      • HDMI 2.0 Output; type A standard connector

        Frame Reference Input
      • (2) reference from frame bus. SMPTE 170M/318M "Black Burst", SMPTE 274M/296M "Tri-Level"

        Frame Loading (Max. recommended number of 9904 cards supported (by Frame Model)
      • OG3 Frame: (5) cards
      • HPF-9000 Frame: (5) cards
      • oGx Frame: (7) cards

        Note: In all cases, it is recommended to leave a 1RU gap above the frame and set frame Network Controller Card to run the frame cooling fans at full (max.) speed.
