Clear-Com MA-704 Encore Intercom System Program Interrupt/IFB Master Control and Access Station

ITEM #: CC-MA-704 MFG #: MA-704

Primary Image
  • Product Image Thumbnail 1 of 5
  • Product Image Thumbnail 2 of 5
  • Product Image Thumbnail 3 of 5
  • Product Image Thumbnail 4 of 5
  • Product Image Thumbnail 5 of 5
Free Shipping with $49 Minimum Order

Our Price:

$1,145.00

Availability: Ships Factory Direct, Typically in 3-10 Business Days
iAvailability Description Popup
  • Special Order Item: non-cancelable, non-returnable, non-refundable.


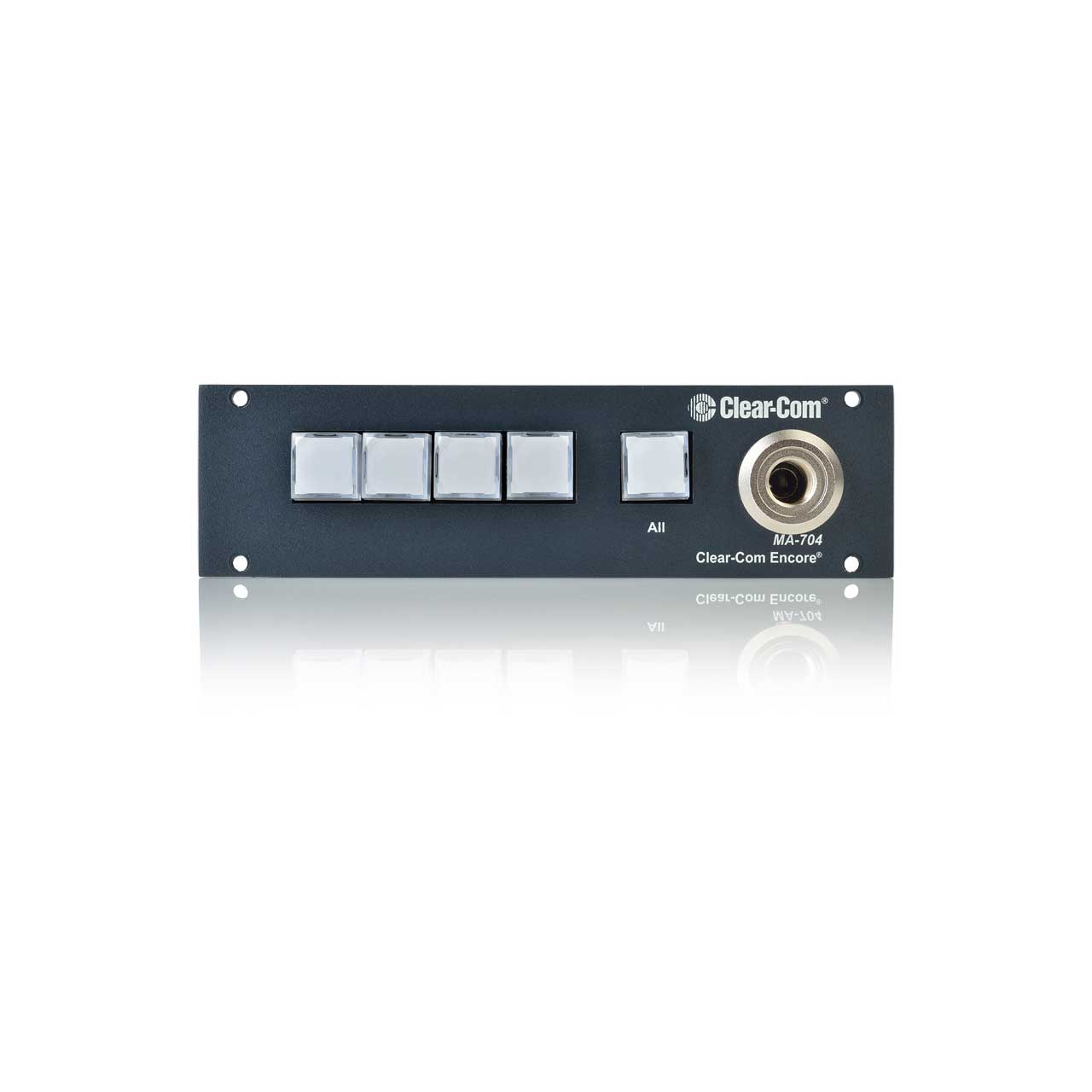

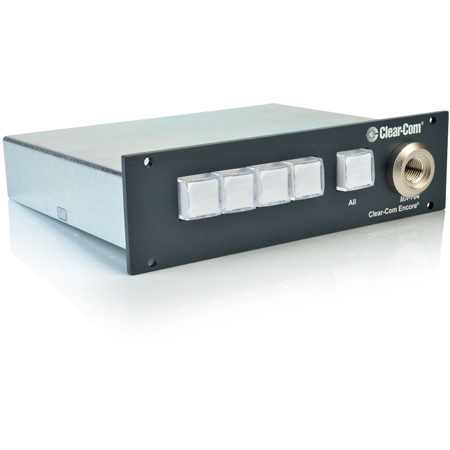

MA-704 - Overview

The ClearCom MA-704 is the Master Control and Talent Access Station that provides individual access to the four Talent channels on the Encore PIC-4744 Program Controller when combined with the AX-704 Expansion Station and TR-50 Talent Receiver (all sold separately). The ALL button simultaneously accesses all Talent positions of the MA-704 and each AX-704 expansion station.

Each MA-704 talent access station contains four momentary push buttons, each of which is associated with a separate talent output from the PIC-4744 Controller. All pushbuttons contain "tally" lamps to indicate IFB channels in use. An optional rack mount kit holds up to three access stations, providing control of 12 IFB channels in one rack space. The MA-704 Master Control and Talent Access Station provides individual access to the four Talent channels. The ALL button simultaneously accesses all Talent positions of the MA-704 and each AX-704 expansion station. It contains the audio line-driver circuits for cue audio. One MS-704 is required at each talent access control location. The AX-704 Expansion Station connects to an MA-704, expanding the IFB channel selection capabilities by four additional channels per AX-704. Multiple AX-704's may be linked together to control a maximum of 96 talent channels.

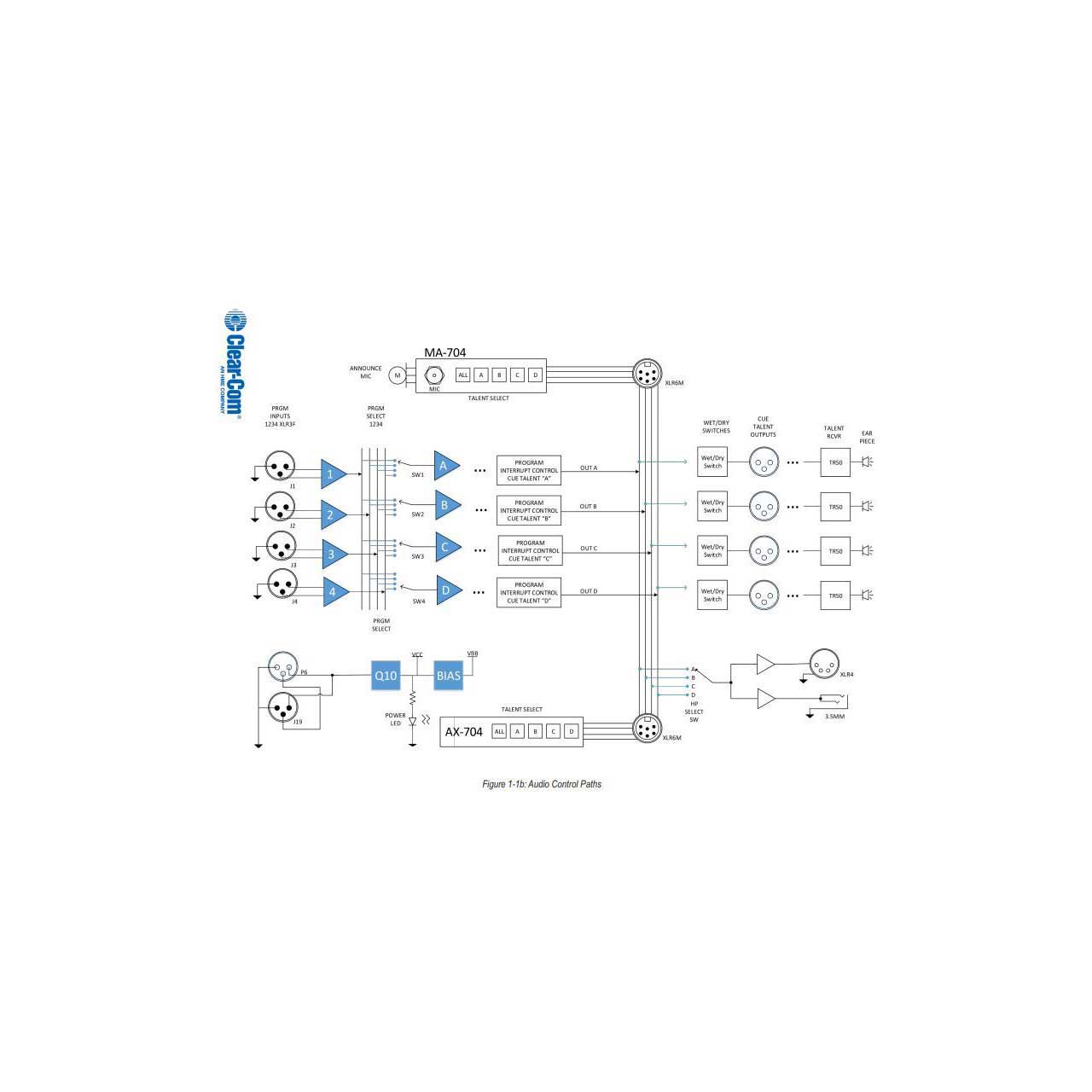

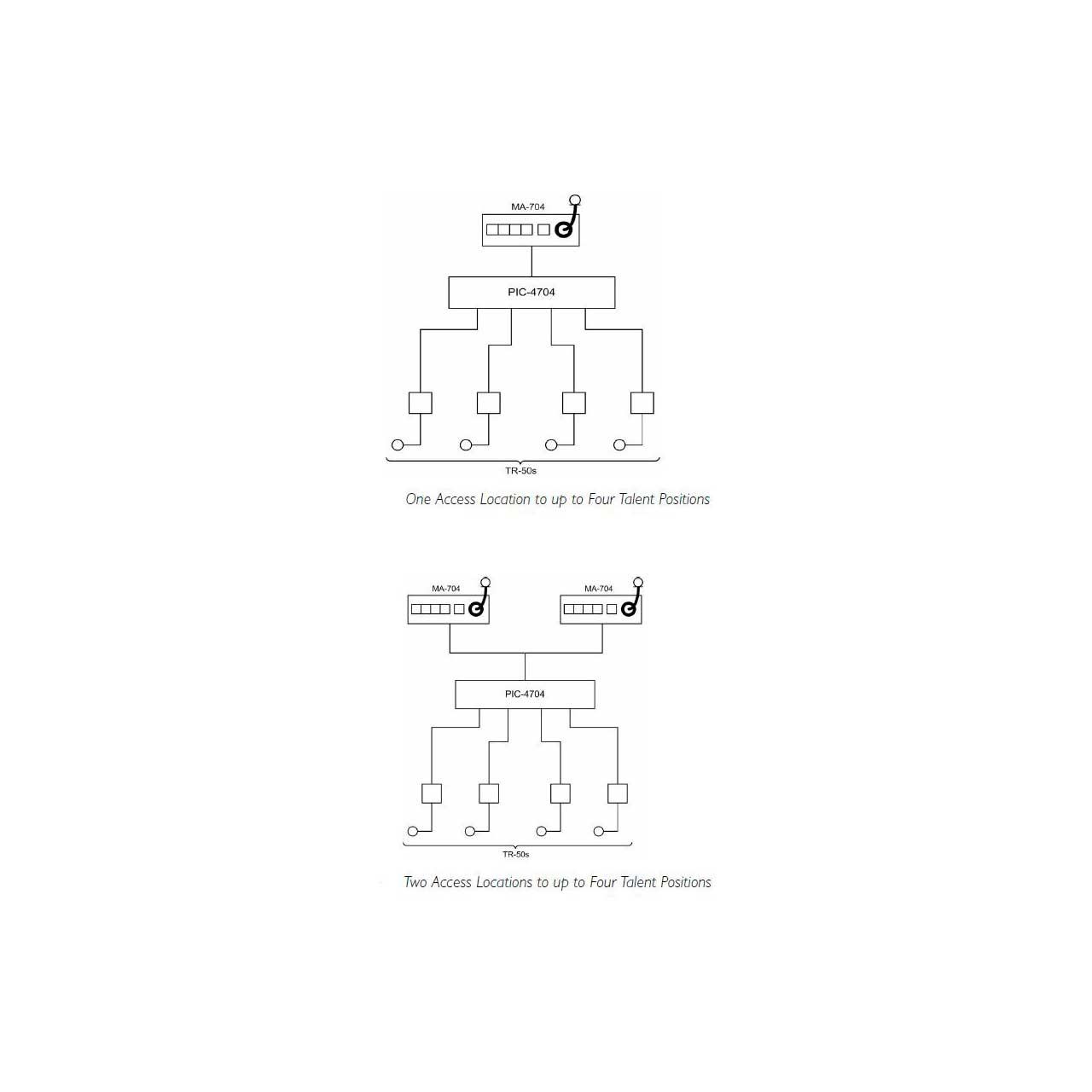

Please Note! This item is just one component of a larger system. Please refer to the diagram for ideas and recommendations for your Clear-Com intercom system. Diagram shown is a recommendation for a small broadcast station with simple partyline.

  • Features:

    • Program Interrupt and IFB Master Control and Access Station for PIC-4744 IFB System (sold separately)
    • Four Talent channels
    • All IFB button simultaneously access all Talent channels
    • Tally lights indicate IFB channels in use
    • Optional rack mount kit for up to 12 talent access buttons in a 1RU
    • Powered by the intercom line

  • Specifications:

    • Panel Microphone Input
    • Input Type: Electret
    • Input Impedance: >=2K Ω
    • Mic Limiter Threshold: 0dB ± 3dB
    • Mic Limiter Range: >= 15dB

      Frequency Response
    • Panel Mic - Talent: 200 - 18KHz ± 3dB
    • Extension Line - Talent: 200 - 18KHz ± 3dB

      Max Distortion
    • Panel Mic - Talent: <= 0.5%
    • Extension Line - Talent: <= 0.1%

      Noise
    • Panel Mic - Talent: < -65dBu
    • Extension Line - Talent: < -85dBu

      Max Gain
    • Panel Mic - Talent: <= 40dB
    • Program Input - Talent: <= -45dB

      Power
    • Input Voltage Range: 20-30 VDC
    • Input Current (Idle): <= 140mA
    • Input Current (Max): <= 180mA

      Rear Panel Connectors
    • IFB Input: (1) XLR6F
    • IFB Extension: (1) XLR6M
    • Extension Bus Out: (1) 1/4 jack
    • External Line In: (1) 1/4 jack
    • Mic Gain: (1) Gain adjust

      Front Panel Controls & Indicators
    • (5) Talk buttons
    • (1) 1/4 microphone jack socket

  • GTIN:

    0609385868320
