Chauvet CDASHBATTENQ6 Colordash Batten Quad 6 Linear Stage Wash Multi Color LED Light
  • Chauvet CDASHBATTENQ6 Colordash Batten Quad 6 Linear Stage Wash Multi Color LED Light
  • Chauvet CDASHBATTENQ6 Colordash Batten Quad 6 Linear Stage Wash Multi Color LED Light
Questions? Ask a Markertek Expert:
800-522-2025 Email

Chauvet CDASHBATTENQ6 Colordash Batten Quad 6 Linear Stage Wash Multi Color LED Light

Manufacturer: Chauvet Professional



List Price:$359.99
Our Price:$269.99

free ship
Availability: Usually ships in 3-10 business days
This item is currently out of stock and will ship the minute we receive it – typically 3-10 business days. Need it sooner? Expedited delivery options may be available. Email [email protected] or call customer service at 800-522-2025 and we’ll make it happen.

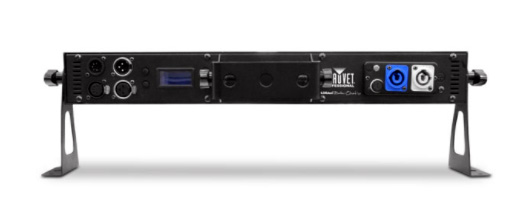

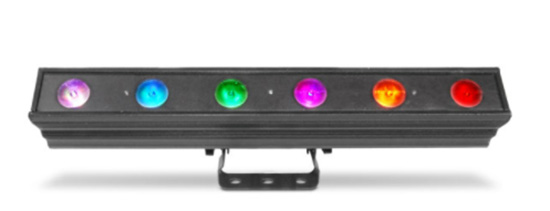

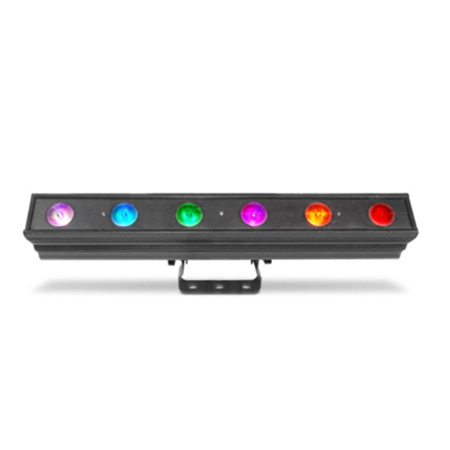

    COLORdash Batten-Quad 6 is a linear wash fixture with six individually controllable quad-colored RGBA LEDs outputting any variation of white as well as richly saturated colors, thanks to the inclusion of amber LEDs. It pixel maps beautifully when used in multiples because it maintains an even pixel pitch. Setup is easy with a hanging bracket, floor trunnions, 3- and 5-pin DMX connectors and secure Neutrik powerCON power in and out.

    • Features

      • Metal construction for added durability;
      • Individual pixel control;
      • Silent flicker-free operation;
      • Simple and complex DMX channel profiles for programming versatility;
      • Mount multiple units in stack or end-to-end to maintain pixel pitch;
    • Specifications

      • Light Source: 6 LEDs (quad-color RGBA) 7 W, (500 mA), 50,000 hours life expectancyColor Temperature (range): 2,800 to 10,000 KInstalled Optics: 20 degreeBeam Angle: 17 degree Field Angle: 33 degree Illuminance (total): 390.7 lux at 5 mPWM Frequency: 600 Hz;
      • Dimmer: ElectronicShutter/Strobe: ElectronicStrobe Rate: 0 to 20 HzStandalone Color Mixing: YesColor Temperature Presets: YesBuilt-in Automated Programs: Yes;
      • Dimensions: 22 x 2.6 x 6.5 in (560 x 65 x 164 mm)Weight: 5 lb (2.3 kg)Exterior Color: Black;
      • Power Connection: Edison plug to Neutrik powerCONPower Input: Neutrik powerCONPower Output: Neutrik powerCONData Connectors: 3- and 5-pin XLRCable Length (power): 5 ft (1.5 m);
      • Control Protocol: DMXDMX Channels: 4, 6, 10, 24 or 28Modes/Personalities: 5 personalities (4, 6, 10, 24, 28);
      • Input Voltage: 100 to 240 VAC, 50/60 Hz (auto-ranging)Power Linking: 17 units @ 120 V; 30 units @ 208 V; 33 units @ 230 VPower and Current: 90 W, 0.76 A @ 120 V, 60 HzPower and Current: 94 W, 0.45 A @ 208 V, 50 HzPower and Current: 96 W, 0.41 A @ 230 V, 50 Hz;
    • Item Includes

      • COLORdash Batten-Quad -6 Neutrik powerCON connectors- power cord- 2 Trunnions
