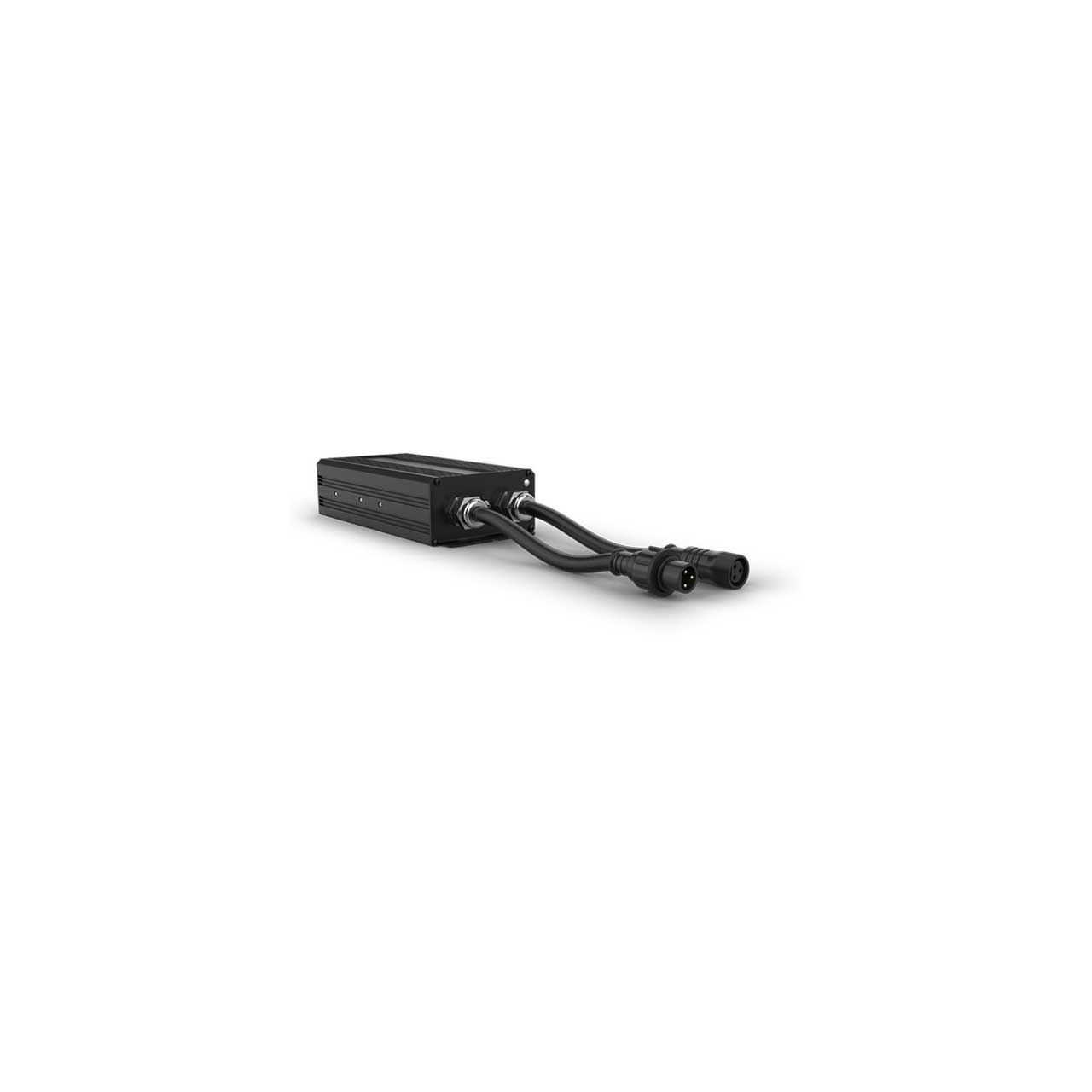

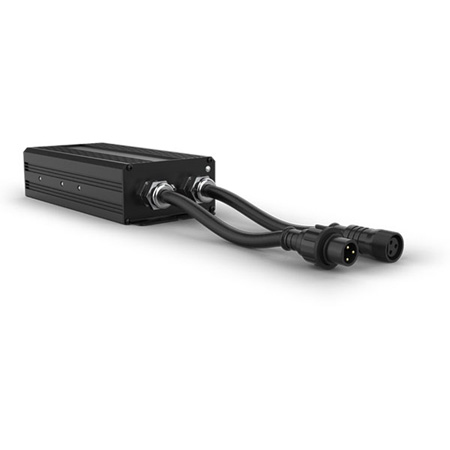

Chauvet Epix Flex Boost - 24V In-line Voltage Booster - Doubles the Capacity of Each Output on the EPIX Flex Drive

EPIX FLEX BOOST - Overview

EPIX FLEX BOOST - Overview

EPIX FLEX BOOST - Details

• Features:

  • IP65 outdoor rated in-line voltage booster for ÉPIX Flex 20
  • Works when connected to the outputs of the ÉPIX Flex Driver


• Specifications:

  • Construction / Physical
  • Dimensions: 8.13 x 3.56 x 1.83 in (206.5 x 46.5 x 90.5 mm)
  • Weight: 4.4 lb (2 kg)
  • Exterior Color: Black
  • Housing Material: Aluminum

    Connections
  • Connection: Edison (Local) plug to Seetronic Powerkon IP65
  • Power Input: Seetronic Powerkon IP65
  • Device inputs: (1) 3-pin male IP Flex
  • Device Outputs: (1) 3-pin female IP Flex
  • Physical Linking: 2 inline ÉPIX Flex 20
  • Cable Length (signal): 1.16 ft (0.355 m)
  • Cable Length (power): 5 ft (1.5 m)

    Electrical
  • Input Voltage: 100 to 240 VAC, 50/60 Hz (auto-ranging)
  • Power and Current: 200 W, 1.6 A @ 120 V, 60 Hz
  • Power and Current: 200 W, 0.87 A @ 230 V, 50 Hz

    Certifications / Qualifications
  • CE, MET
  • IP Rating: IP65, outdoor/wet, with pressure equalizing M14 GORE valve
  • Temperature (Ambient): -4 °F to 113 °F (-20 °C to 45 °C)

    Required Accessories
  • Accessories (required): ÉPIX Flex Drive
  • Compatible Mounting Options: M12 Bolt/Clamp

    Optional Accessories
  • Clamps
  • IP Flex Cables
  • Seetronic Powerkon cables
  • DMX Cables


• Item Includes:

  • 1x ÉPIX Flex Boost
  • 1x Seetronic Powerkon power cord


• GTIN:

  0781462218713
