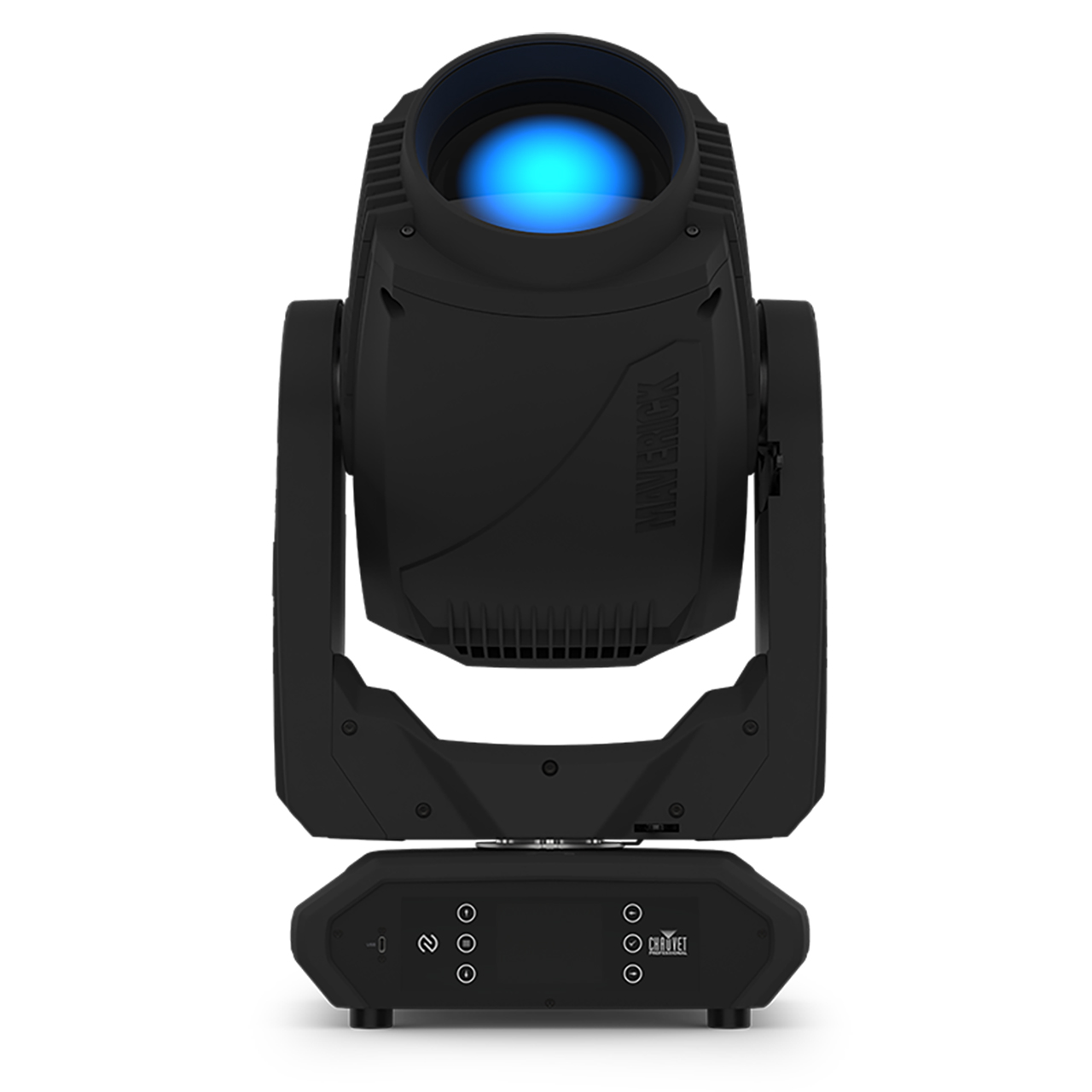

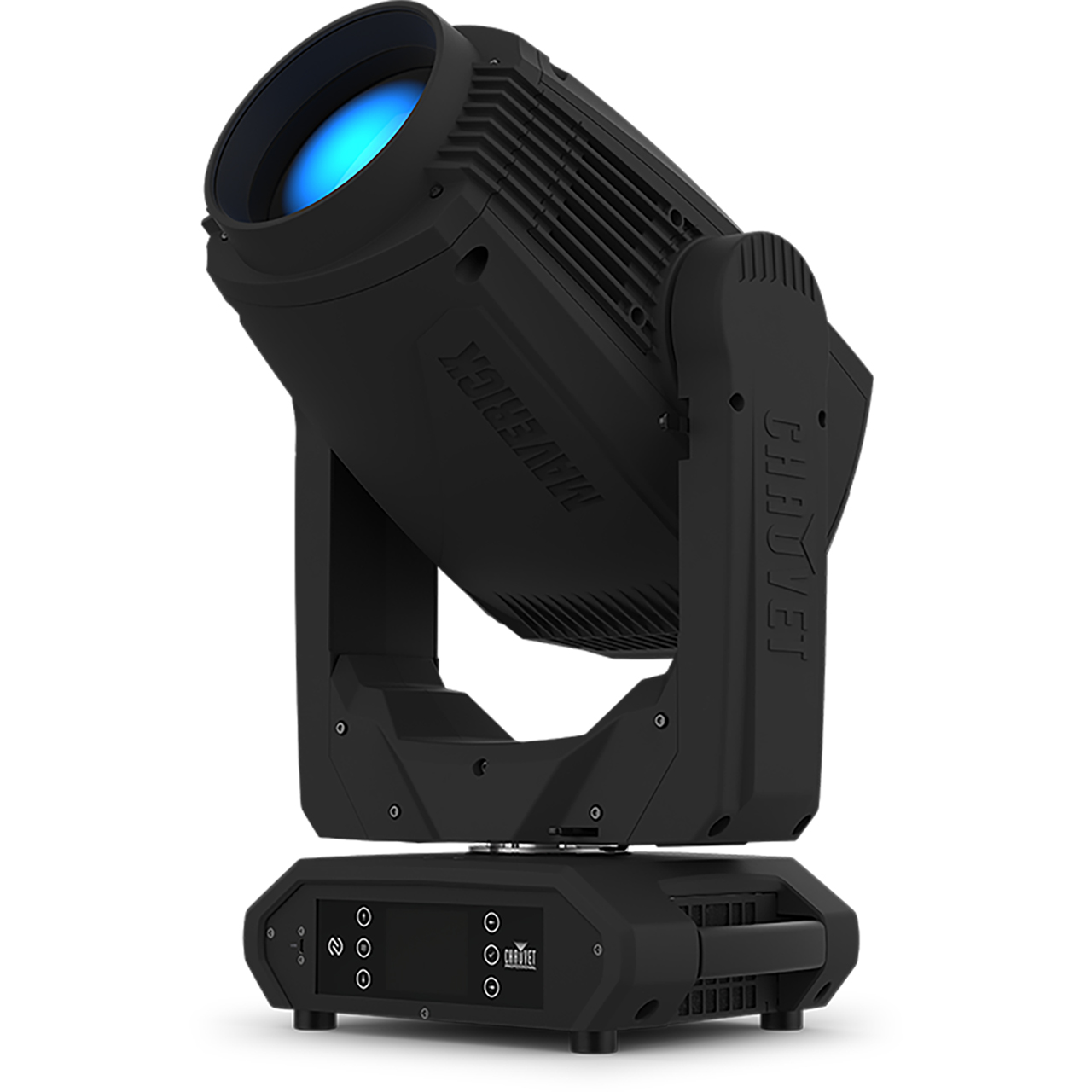

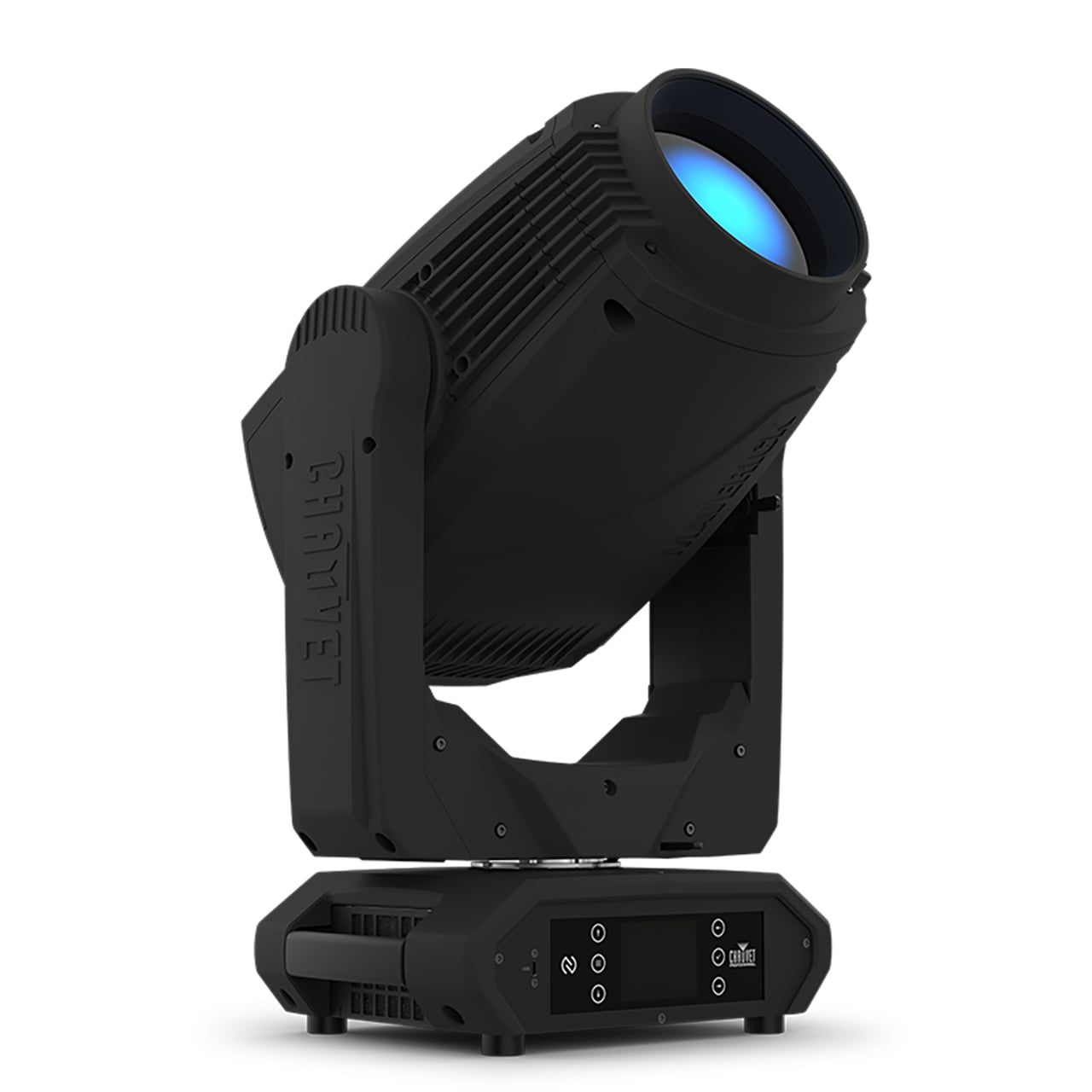

Chauvet Maverick Force X Spot 520W LED Light Fixture with Color Wheel and Zoom Optics

MAVERICKFORCEXSPOT - Overview

• Features:

  • Fully featured, compact and lightweight 520W LED yoke spot fixture including CMY color mixing, a color wheel, zoom optics, and two gobo wheels: one rotating, and one static
  • 16-bit dimming of master dimmer for smooth control of fades
  • 65,000 PWM for use with the fastest frame cameras, but still maintains fantastic dimming
  • Variable CMY color mixing system to create a wide pallet of colors
  • DMX, CRMX, sACN, and Art-Net for full flexibility of control options
  • RDM-enabled for remote addressing and trouble shooting
  • 3.5° to 57.7° zoom range for variable beam sizes
  • Iris, 5-facet prism, and frost for beam control
  • True-1 compatible power input
  • Three setup menu presets and preset sync for cross loading to multiple like fixtures for easy shop setup
  • USB slot for software uploads
  • Battery backup display with auto-rotate depending on fixture orientation
  • Failsafe Ethernet connectivity allows data to pass even if fixture power is lost
  • NFC for quick/easy fixture setup in the shop or in the field


• Specifications:

  Optical
  • Light Source: 1 LED (CW) 520W, (4.2A), 6462K, 50,000
  • Color Temperature (at full): 6462K
  • Front Lens Diameters: 145mm
  • CRI: 72.2
  • CRI with CRI Filter: 90
  • Beam Angle: 3.5° - 51.3°
  • Field Angle: 3.7° - 56.3°
  • Cutoff Angle: 3.9° - 57.7°
  • Zoom Range: 3.5° - 57.7°
  • Lumens - Output: 17,325
  • Illuminance (3.5°): 93,084 lux @ 5m
  • Illuminance (57.7°) : 1,135 lux @ 5m
  • Selectables PWM : 600Hz, 1500Hz, 2000Hz 65000Hz

    Dynamic Effects
  • Pan and Tilt: 540°/270°
  • Pan and Tilt Ranges:
    - Pan: 540°, 360°, 180°
    - Tilt: 270°, 180°, 90°
  • Colors: 7 (including CRI and CTB filters) + white, split colors, continuous scroll at variable speeds
  • Colors: CMY wheels
  • Color Macros: # macros
  • Gobos (1): 7 + open (1 metal + 6 glass), rotating, interchangeable, indexing, slot-n-lock, continuous scroll at variable speeds
  • Gobos (2): 9+ open (9 metal) continuous scroll at variable speeds
  • Gobo Size: Gobo Wheel 1 (rotating): 24mm (outside), 14mm (image), 1.1mm (max. thickness)
  • Dimmer: Electronic
  • Shutter/Strobo: Electronic
  • Zoom: Motorized
  • Focus: Motorized
  • Frost: Motorized
  • Iris: Motorized
  • Prism: 5-facet, motorized, rotating
  • Strobe Rate: 0Hz - 25Hz
  • Move-in-Black: Yes
  • Dim Curves: 5

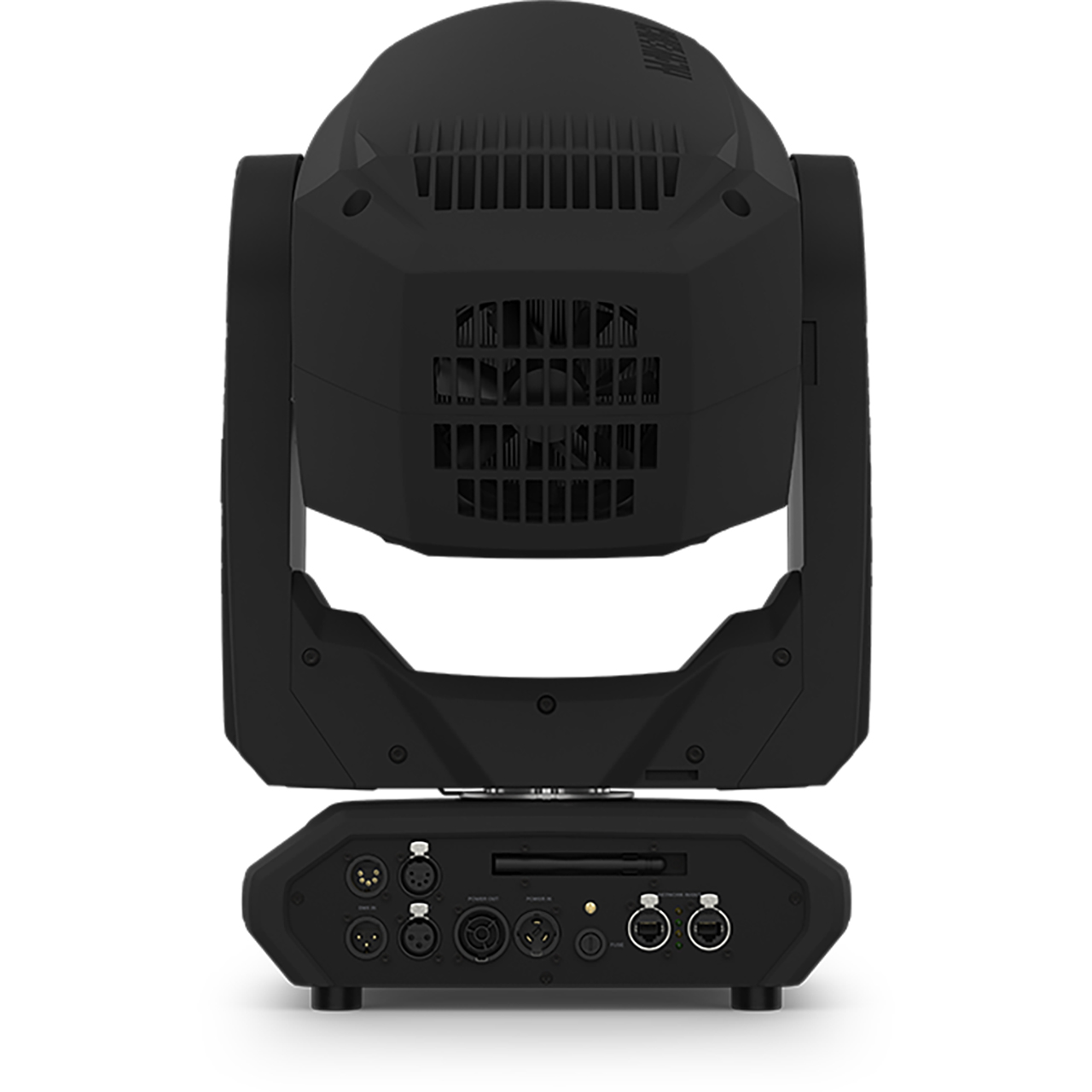

    Connections
  • Power Connection: Edison plug to Seetronic Powerkon IP65
  • Power Input: Seetronic Powerkon IP65
  • Power Output: Seetronic Powerkon IP65
  • Data Connectors: 3- and 5-pin IP65 XLR, Seetronic etherCON
  • Cable Length (signal): 5ft (1.5m)

    Control
  • DMX Channels: 22 or 29
  • Art-Net Channels : 22 or 29
  • Modoes/Personalities: 2 personalities (22, 29)

    Electrical
  • Input Voltage: 100V - 240VAC, 50/60Hz
  • Power Linking: 2 units @ 120V; 4 units @ 208V; 5 units @ 230V
  • Power and Current:
    - 554W, 4.64A @ 120V, 60Hz
    - 541W, 2.68A @ 208V, 60Hz
    - 542W, 2.44A @ 230V, 50Hz

    Battery
  • Battery Type: Lithium Ion (display screen backup)
  • Rechargable: Yes
  • Battery Charge Time: 5 hours
  • Battery Life: 1 hour
  • Battery Power: 3.7V, 500mAh

    Construction/Physical
  • Dimensions: 14.21" x 9.40" x 25.43" (361mm x 239mm x 646mm)
  • Weight: 44.2lbs (20kg)
  • Temperature (Ambient): -4°F - 113°F (-20°C - 45°C)
  • Exterior Color: Black
  • Housing Material: Aluminum die-cast, High-impact flame-retardant polymer, Steel

    Certifications/Qualifications
  • CE, MET, FCC, UKCA
  • IP Rating: IP20, dry location


• Item Includes:

  • 1x Maverick Force X Spot
  • 1x Seetronic Powerkon IP65 power cable
  • 2x Omega brackets with mounting hardware
  • 1x Quick Reference Guide
