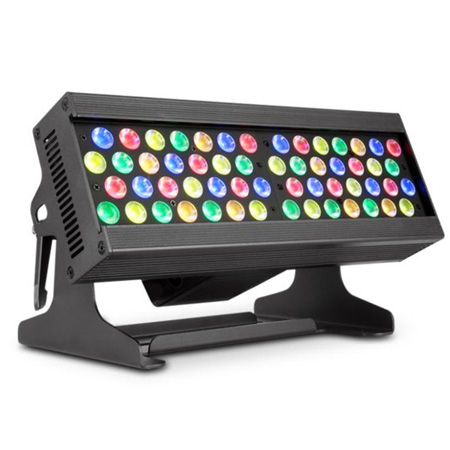

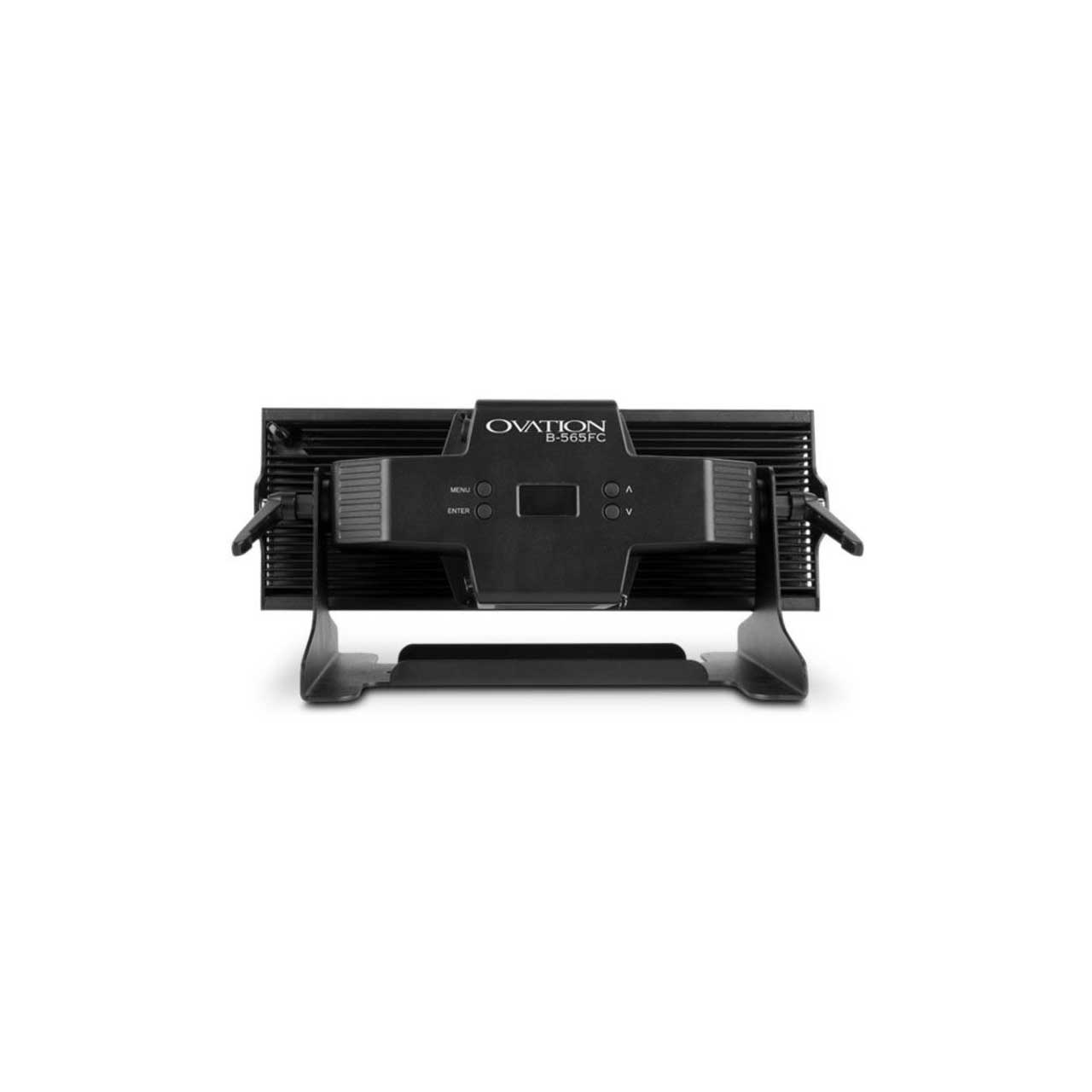

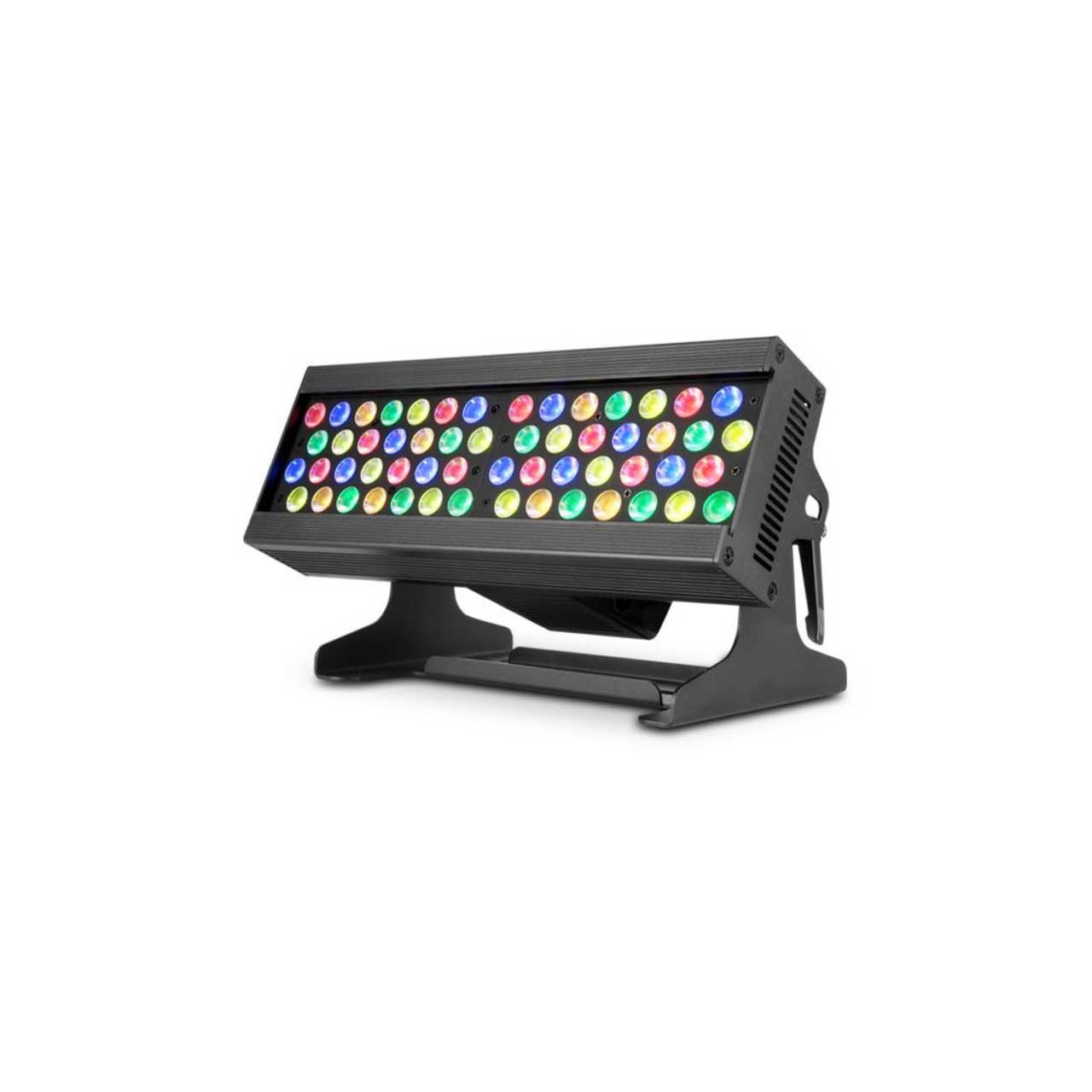

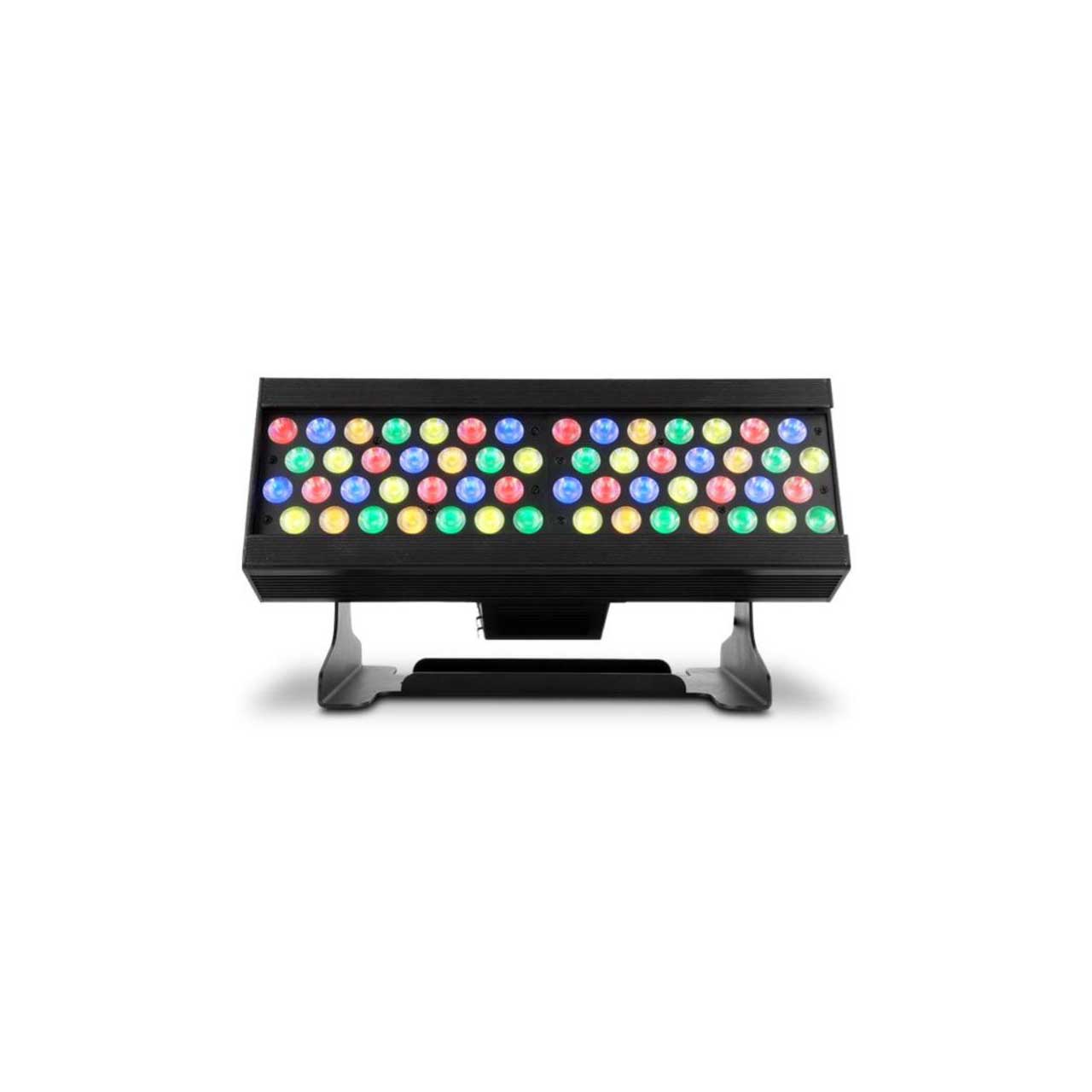

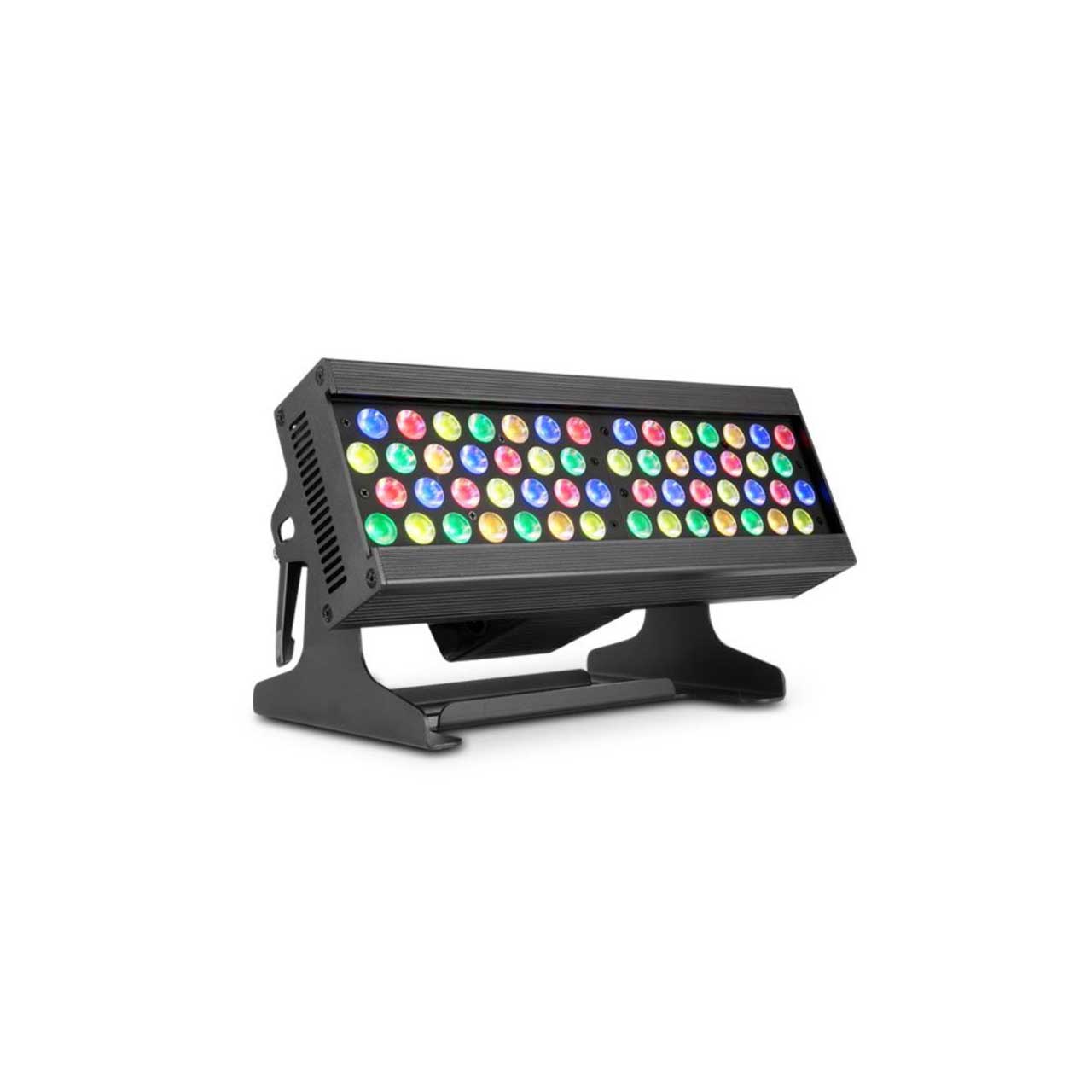

Chauvet OVATION B-565FC Color Batten Stage Lighting

OVATIONB565FC - Overview

• Features:

  • Full Color LED (RGBAL) batten fixture for theatre, film and production
  • Theatre-ready with 16-bit dimming of master dimmer and individual colors
  • Multiple control personalities with one or two sections of control
  • Included holographic filter locks in place for ultra-smooth color mixing with a more elliptical wash pattern
  • Virtual Color wheel with color matched to popular gel colors
  • Art-Net, sACN, 3- and 5-pin DMX and RDM (Remote Device Management) for added control flexibility
  • Neutrik powerCON and Amphenol etherCONr compatible connections for power and data linking
  • Adjustable PWM (Pulse Width Modulation) to avoid flickering on camera
  • Nearly silent operation for use in studio and theatre applications


• Specifications:

  • Optical
  • Light Source: 56 LEDs (12 red, 12 green, 12 blue, 8 amber, 12 lime) 3 W, (650 mA), 50,000 hours life expectancy
  • Color Temperature (range): 2800 K to 10000 KCRI (3200 K): 80
  • Installed Optics: 20°
  • Beam Angle (horizontal): 19°; (vertical): 20°; (horizontal w/filter): 36°; (vertical w/filter): 20°
  • Field Angle (horizontal): 37°; (vertical): 37°; (horizontal w/filter): 66°; (vertical w/filter): 40°
  • Illuminance: 1,637 lux @ 5 m
  • Illuminance (w/filter): 470° @ 5 m
  • Selectable PWM: 600 Hz, 1200 Hz, 2000 Hz, 4000 Hz, 6000 Hz, 25,000 Hz

    Dynamic Effects
  • Dimmer: Electronic
  • Shutter/Strobe: Electronic
  • Strobe Rate: 0 to 30 Hz
  • Standalone Color Mixing: Yes
  • Color Temperature Presets: Yes
  • Dim Modes: 4
  • Built-in Automated Programs: Yes

    Construction/Physical
  • Dimensions: 13.9 x 7.48 x 8.14 in
  • Weight: 11.6 lb
  • Exterior Color: Black
  • Housing Material: Aluminum die-cast
  • Accessory Holder/Gel Frame Size: 13.86 x 3.66 in

    Connections
  • Power Connection: Edison (Local) plug to Neutrik powerCON
  • Power Input: Neutrik powerCON
  • Power Output: Neutrik powerCON
  • Data Connectors: 3- and 5-pin XLR, Amphenol etherCON Compatible
  • Cable Length (power): 5-ft

    Control
  • Protocol(s): Art-Net, DMX, RDM, sACN
  • DMX Channels: 1 Cell: 3, 4, 5, 8, 9, 10, 10, 17 - 2 Cell: 6, 8, 10, 15, 17, 19, 20, 31
  • Art-Net Channels: 1 Cell: 3, 4, 5, 8, 9, 10, 10, 17 - 2 Cell: 6, 8, 10, 15, 17, 19, 20, 31
  • Modes/Personalities: 16 personalities

    Electrical
  • Input Voltage: 100 to 240 VAC, 50/60 Hz (auto-ranging)
  • Power Linking: 13 units @ 120 V; 22 units @ 208 V; 23 units @ 230 V
  • Power and Current: 125 W, 1.04 A @ 120 V, 60 Hz
  • Power and Current: 120 W, 0.61 A @ 208 V, 60 Hz
  • Power and Current: 119 W, 0.51 A @ 230 V, 50 Hz


• Item Includes:

  • OVATION B-565FC
  • Neutrik powerCON power cord
  • Wall Washing Filter


• GTIN:

  0781462215842
