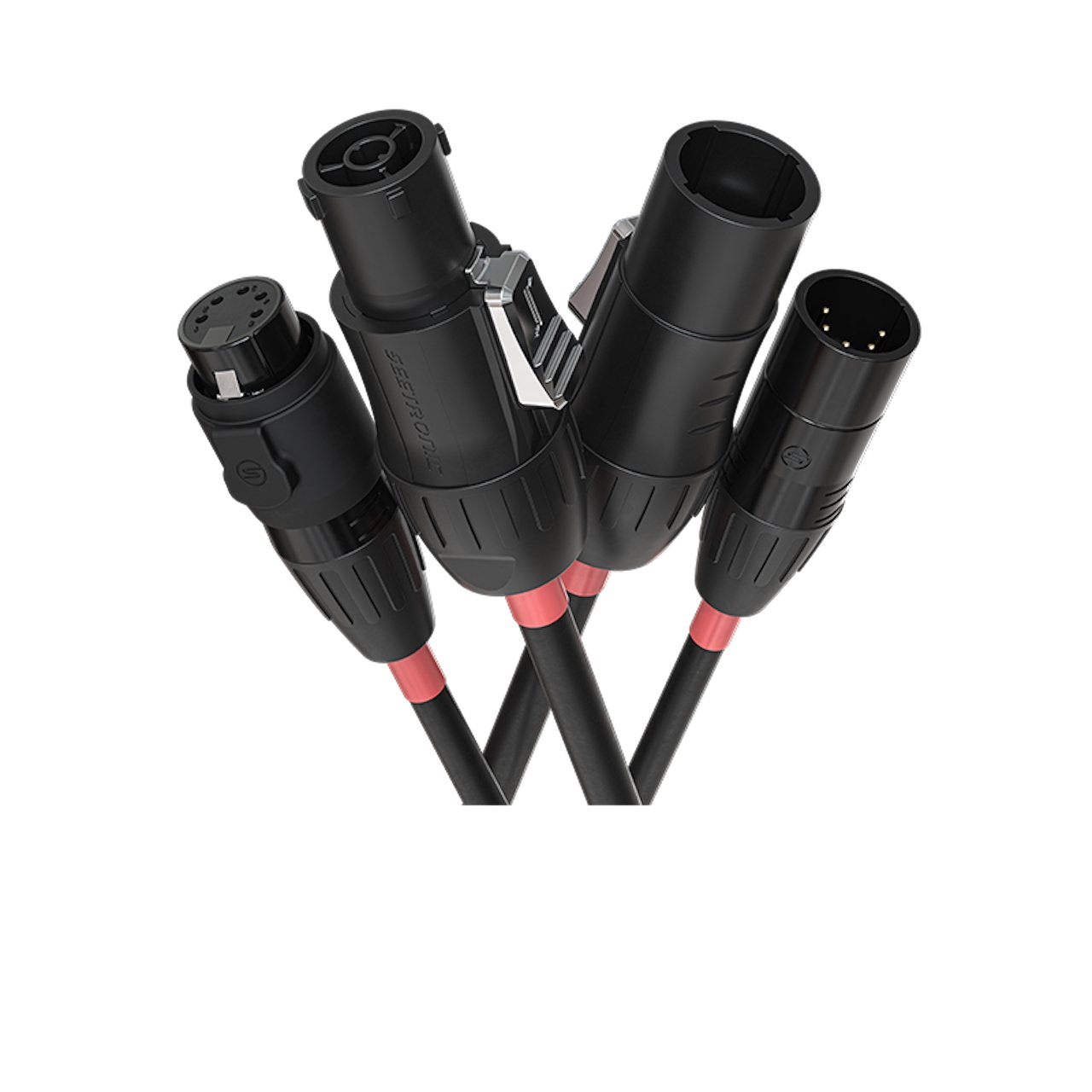

Chauvet RIGLINKCOMBO15FT Riglink TR1 5-Pin IP65 Rated DMX Cable Combo with PowerKon and XLR Connectors - 1.5 Foot

RIGLINKCOMBO15FT - Overview

• Features:

  • Color-coded connectors eliminate cable length guesswork
  • Certified components meet worldwide safety standards
  • Built rugged for live performance and life on the road
  • Reliable transmission and robust connection systems
  • Power and data all through one cable
  • Ideal for both installations and touring
  • IP65 rated for outdoor use
  • Individually insulated for minimal interference
  • Seetronic professional production grade connectors


• Specifications:

  Physical
  • Conductor Specification:
    - 2x 0.34mm² (22AWG)
    - 3x 2.07² (14AWG)
  • Conductor Structure: OFC 19/0. 15TC and 66/0.20BC
  • Insulation Material: HDPE and PVC
  • Insulation OD: 1.4mm and 3mm
  • Filler: Cotton and PPR
  • Wrapping Tape: Non-woven fabric
  • Sheild Structure: Tinned copper wire, 82% AL, 100% coverage
  • Middle Quilt: PVC
  • Outer Jacket Material: PVC (Black)
  • Outer Diameter: 16.5mm ±0.2mm
  • IP65

    Connections
  • 2x Seetronic PowerKON
  • 2x XLR 5-Pin

    Electrical
  • Withstand Voltage: 0.5/1.5 AC kV/min
  • Conductor Resistance: 25.98Ω/km & 7.98Ω/km
  • Capacitance between Connectors: 100pF/m
  • Conductor Shiels Capacitance: 180pF/m
  • Impedance: 110Ω


• Item Includes:

  • 1x Riglink TR1 5-Pin IP65 Rated DMX Cable Combo with PowerKon and XLR Connectors - 1.5 Foot


• Warranty:

  • 1 Year Limited Warranty


• GTIN:

  0781462228477
