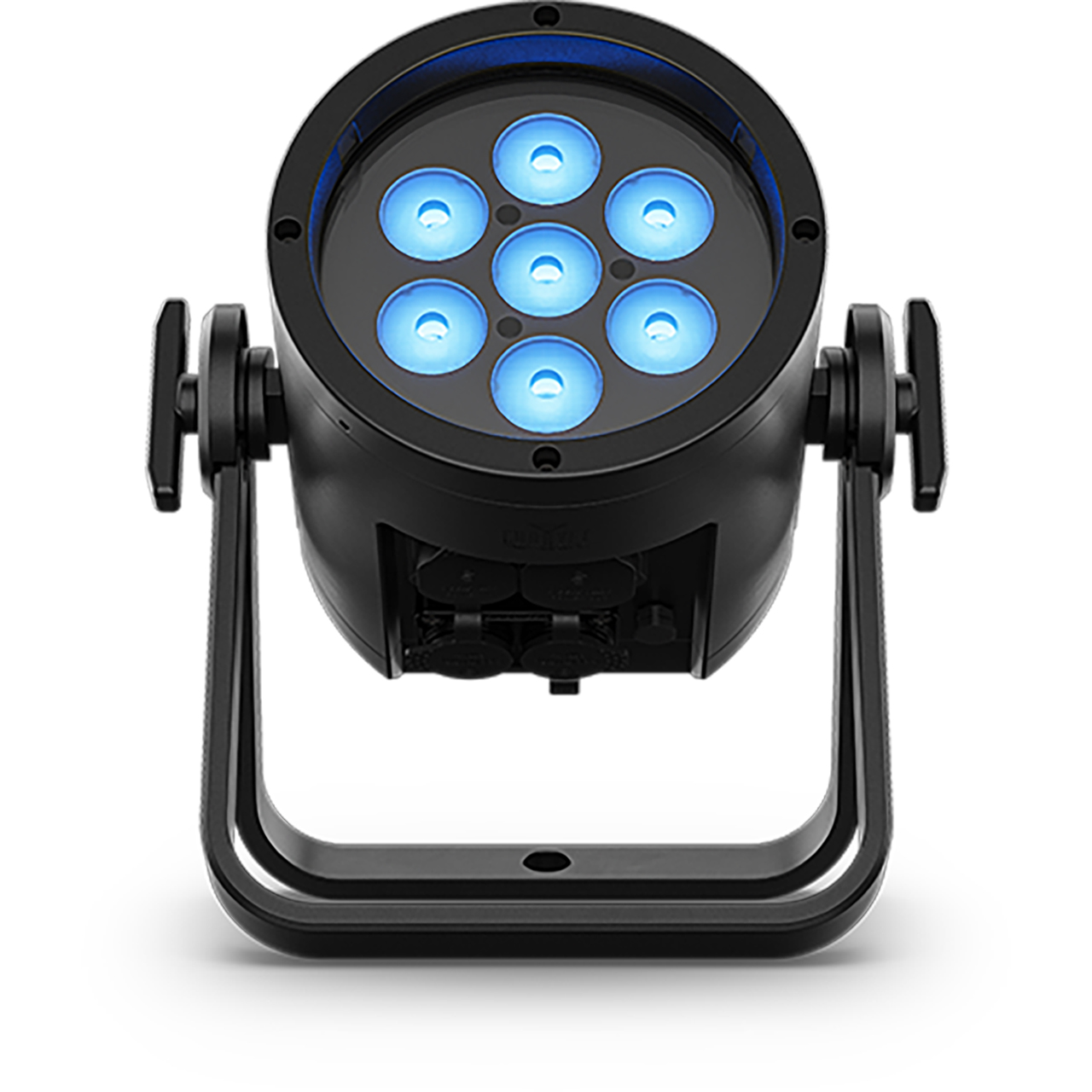

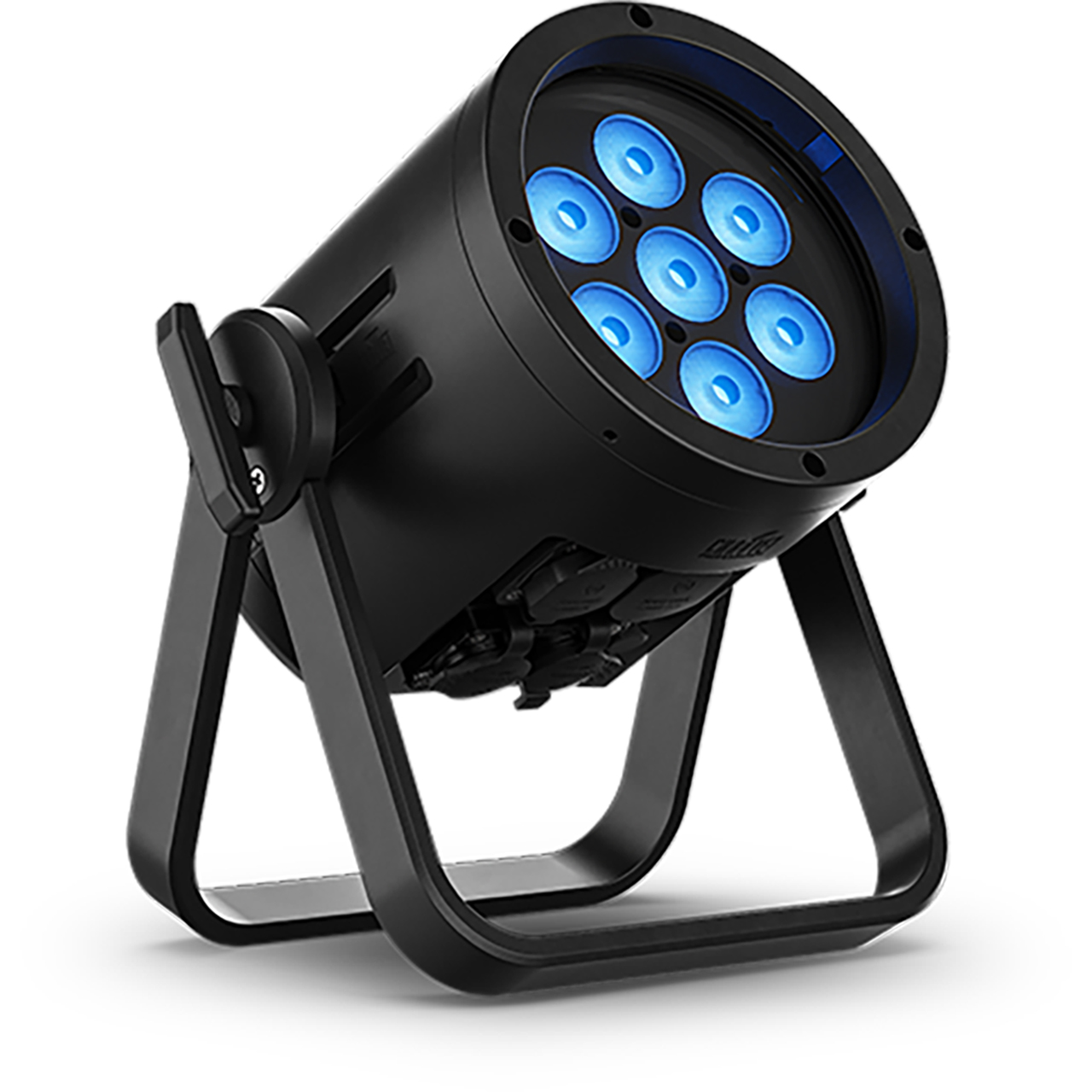

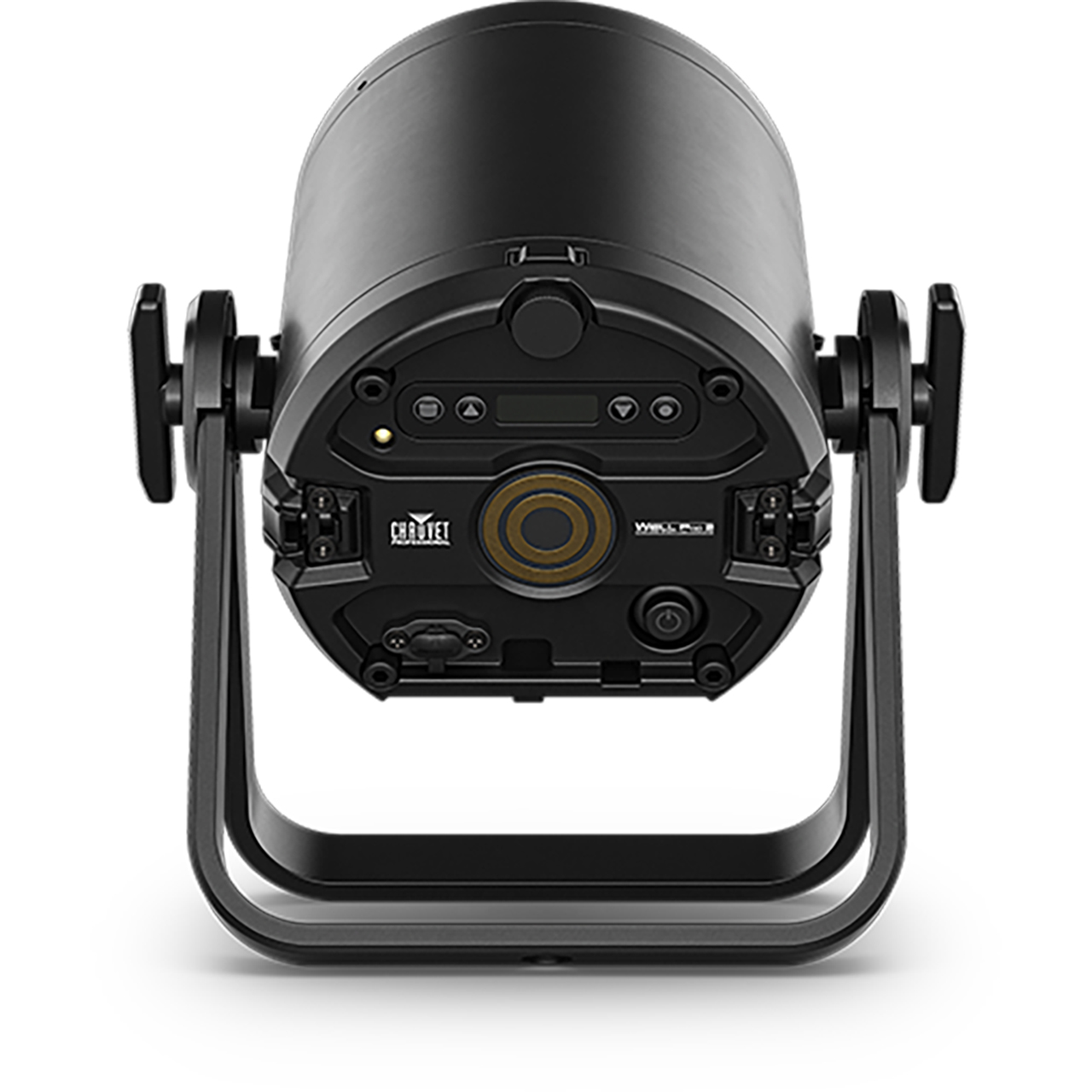

Chauvet WELLPOD2X6 Well Pod 2 RGB PAR 6x IP65 Light Fixture Kit in Charging Case

WELLPOD2X6 - Overview

• Features:

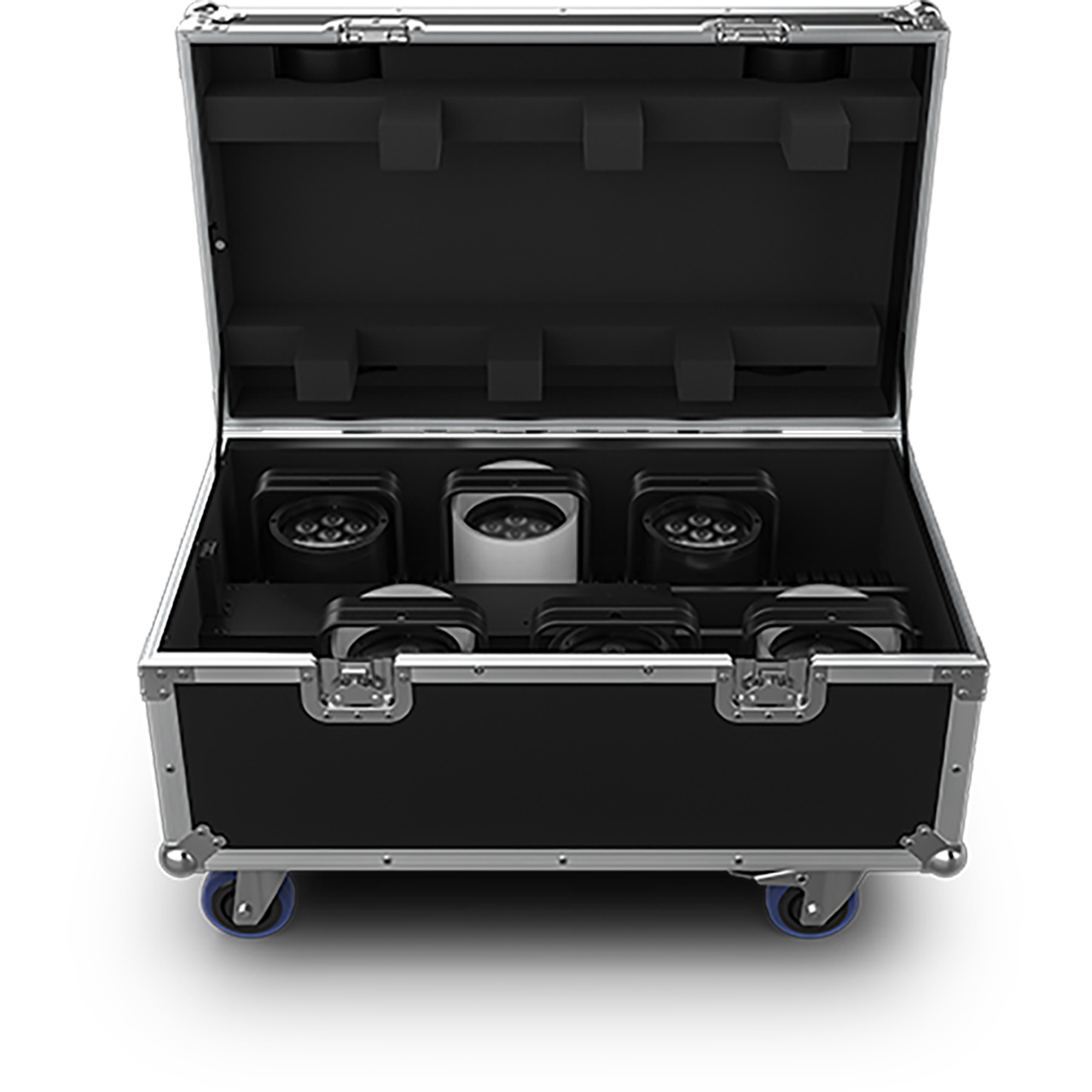

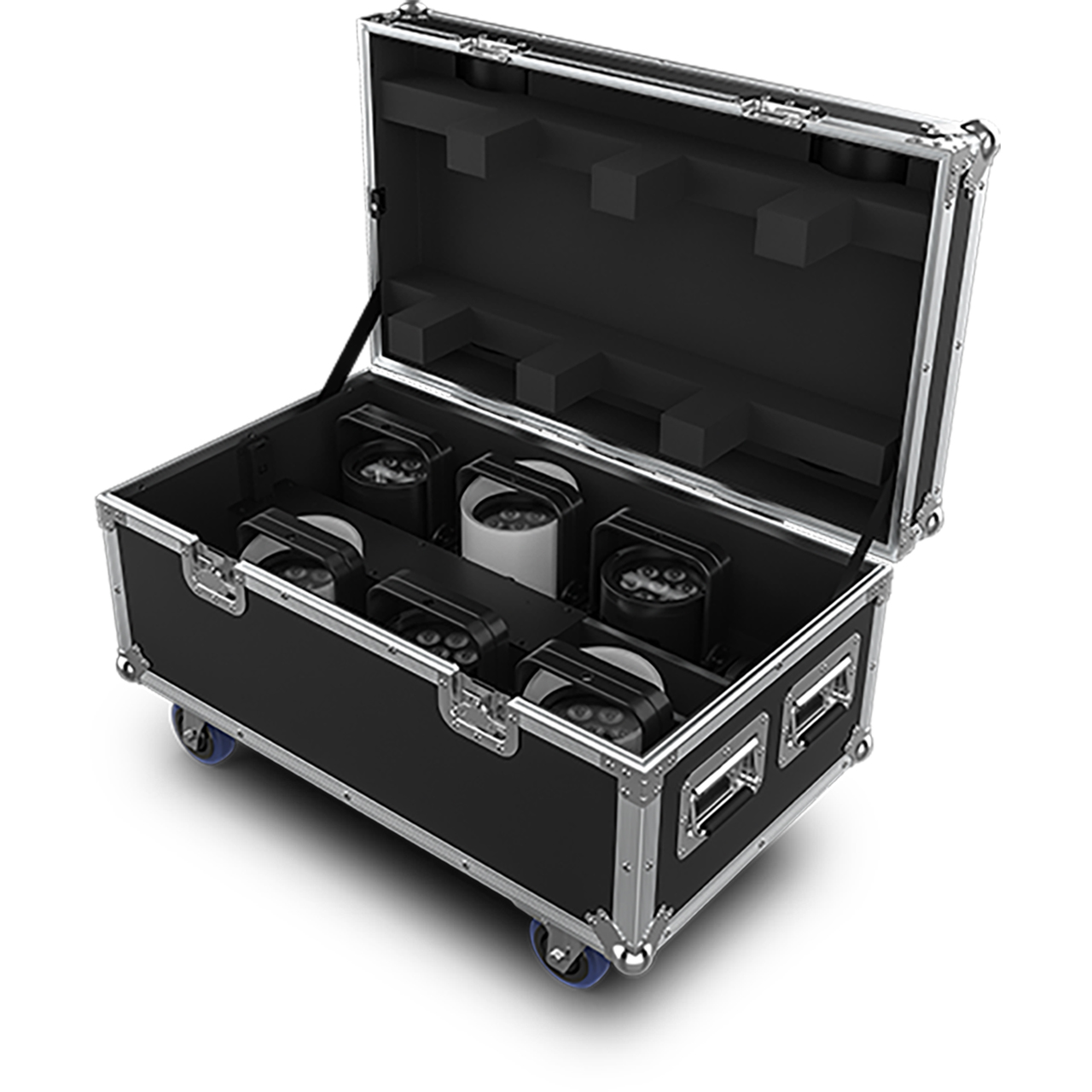

  • Charging case designed to charge with the lid closed to save warehouse space
  • Battery run time selections of 5, 8, 12, and 18 hours of operation at full output
  • Built-in battery charger allows fixture to operate while charging
  • Built-in IP65 5-pin DMX in/out allows for wired data
  • Built in Seetronic IP65 PowerKon input/output
  • Control over DMX, CRMX, RDM, or RF
  • Easy connection to WELL CONNECT box and ConnectFX for app control
  • USB-C port for convenient software updates
  • Removable split yoke for both hanging and floor standing
  • Pressure equalizing M6 Gore valve
  • Built-in safety cable attachment point
  • Easy-to-read OLED display
  • Built-in theft alarm (audio and visual notification)
  • Built-in PWM adjustment
  • Included RF remote
  • Included 6 pack charging case


• Specifications:

  Optical
  • Light Source: 7 LEDs (RGBWW) 13.2W, (556mA), 50,000 hours life expectancy
  • Color Temperature (range): 2800K - 6500K
  • Beam Angle: 11.5°
  • Field Angle: 21.6°
  • Cutoff Angle: 36.9°
  • Lumens: 1797 lm (AC power)
  • Illuminance: 1089 lux @ 5m (AC power)
  • Lumens: 718 lm (OFF battery setting)
  • Illuminance: 436 lux @ 5m (OFF battery setting)
  • Lumens: 834 lm (5-hour battery setting)
  • Illuminance: 507 lux @ 5m (5-hour battery setting)
  • Lumens: 528 lm (8-hour battery setting)
  • Illuminance: 319 lux @ 5m (8-hour battery setting)
  • Lumens: 335 lm (12-hour battery setting)
  • Illuminance: 202 lux @ 5m (12-hour battery setting)
  • Lumens: 214 lm (18-hour battery setting)
  • Illuminance: 129 lux @ 5m (18-hour battery setting)
  • Selectable PWM: 600Hz, 1,200Hz, 2,000Hz, 4000Hz, 6,000Hz, 25000Hz

    Dynamic Effects
  • Dimmer: Electronic
  • Shutter/Strobe: Electronic
  • Strobe Rate: 1Hz - 30Hz
  • Standalone Color Mixing: Yes
  • Color Temperature Presets: Yes
  • Dim Modes: 4
  • Dim Curves: 4
  • Built-In Automated Programs: Yes
  • Customizable Programs: No
  • Recall Custom Programs: No

    Connections
  • Power Connection: Edison (local) plug to Seetronic PowerKon IP65
  • Power Input (fixture and charging case): Seetronic PowerKon IP65
  • Power Output (fixture and charging case): Seetronic PowerKon IP65
  • Data Connectors: 5-pin XLR
  • Cable Length (power): 5ft (1.5m)
  • Software Connection: USB-C

    Control
  • Control Protocol: RDM, CRMX, NFC, RF
  • DMX Channels: 5, 8, or 12
  • Modes/Personalities: 3 personalities (5Ch, 8Ch, 12Ch)
  • Wireless WDMX "G" Compatibility: G4S
  • Wireless Lumen Radio Compatibility: CRMX

    Electrical
  • Input Voltage: 100VAC - 240VAC, 50/60Hz (auto-ranging)
  • 6 Pack Case:
    - Power Linking: 4 units @ 120V; 6 units @ 208V; 6 units @ 230V
    - Power and Current: 191W, 2.75A @ 120V, 60Hz
    - Power and Current: 185W, 1.96A @ 208V, 60Hz
    - Power and Current: 183W, 1.76A @ 230V, 50Hz

    Battery
  • Battery Type: Lithium Ion
  • Rechargeable: Yes
  • Battery Charge Time: 2 hours
  • Battery Life: 12 hours
  • Battery Power: 25.9V, 2.5Ah

    Construction/Physical
  • Dimensions: 8.11" x 5.31" x 8.76" (206mm x 138mm x 222.5mm)
  • Dimensions (w/o bracket): 5.43" x 5.43" x 5.67" (138mm x 138mm x 144mm)
  • Case Dimensions: 32.7" x 19.3" x 15.4" (832mm x 492mm x 390mm)
  • Weight: 7.2lbs (3.3kg)
  • Weight (shipping weight): 113.8lbs (51.6kg)
  • Exterior Color: Black
  • Housing Material: Aluminum die-cast

    Certifications/Qualifications
  • CE, UKCA, FCC, ROHS
  • IP Rating: IP65, temporary outdoor/wet use
  • Temperature (Ambient): -4°F - 113°F (-20°C - 45°C)


• Item Includes:

  • 6x WELL POD 2
  • 1x 6 slot charging case
  • 6x Detachable split yokes
  • 1x RF controller
  • 1x QRG
