Chauvet WELLPOD3X4 Well Pod 3 19x RGB Warm White LED Light Fixture in Charging Case - 4 Pack

WELLPOD3X4 - Overview

• Features:

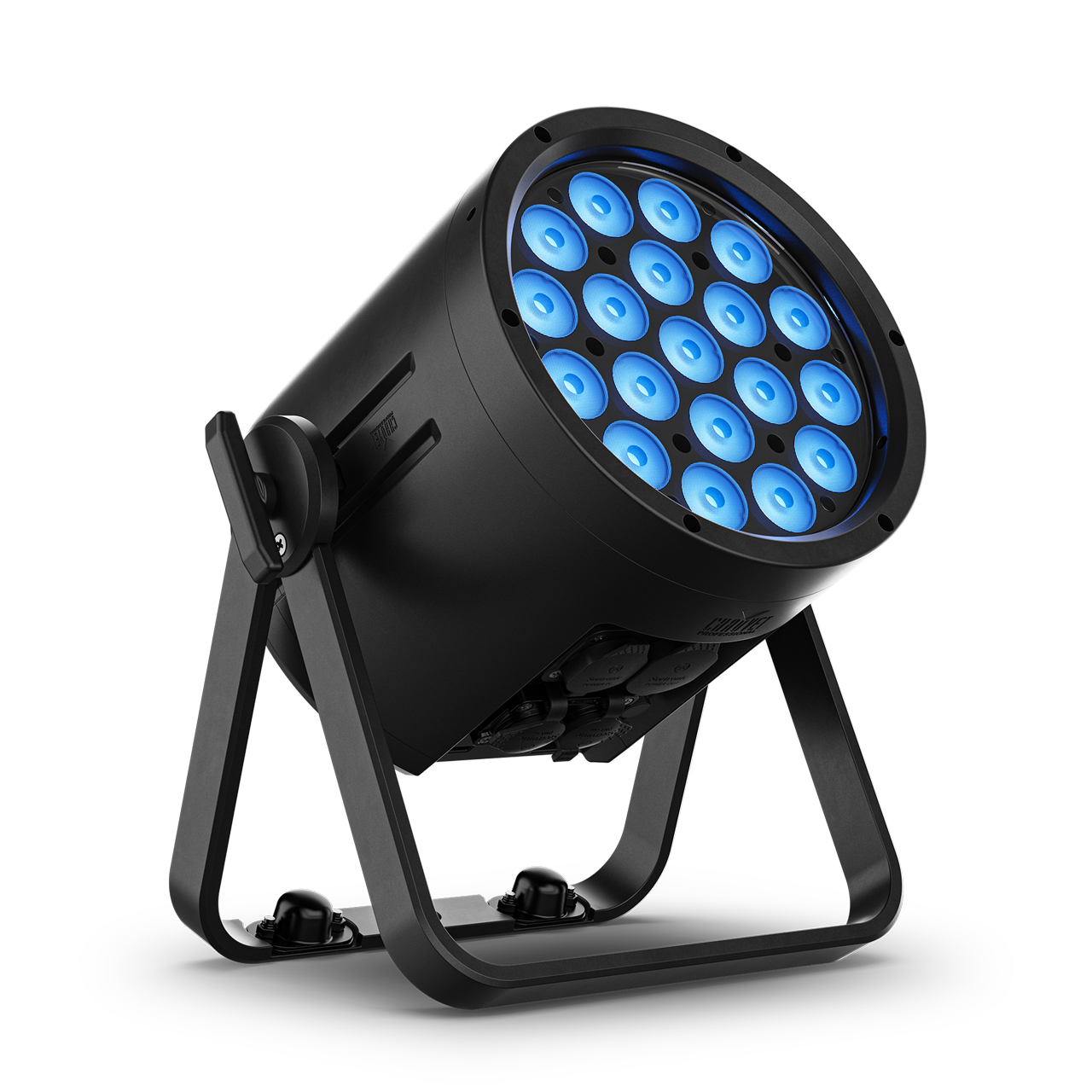

  • Complete 4-Fixture Kit: Includes four battery-operated, IP65-rated par fixtures, each with 19 RGB Warm White LEDs and a 12.7° beam angle.
  • Space-Saving Charging Case: Charge all fixtures inside the case with the lid closed to maximize storage and warehouse efficiency.
  • Selectable Battery Runtimes: Choose from 5, 8, 12, or 18-hour runtimes at full output to match the needs of your event.
  • Charge and Operate Simultaneously: The built-in battery charger allows the fixture to be used while it is plugged in and charging.
  • IP65 DMX Connectivity: Integrated IP65-rated 5-pin DMX in/out connections provide a reliable wired data link for any environment.
  • IP65 Power Connections: Features Seetronic IP65 PowerKon input and output for secure, weather-resistant power linking between fixtures.
  • Versatile Control Options: Operate the fixture using DMX, CRMX, RDM, or RF for maximum control flexibility.
  • Mobile App Control: Easily connect to the WELL CONNECT box and ConnectFX for convenient control directly from a mobile app.
  • USB-C Software Updates: A modern USB-C port allows for simple and convenient firmware updates.
  • Flexible Mounting Yoke: The removable split yoke enables versatile rigging options for both hanging and floor-standing applications.
  • Pressure Equalizing Valve: An integrated M6 Gore valve equalizes internal pressure, protecting the housing and electronics from the elements.
  • Integrated Safety Point: A dedicated attachment point is built directly into the fixture for securely attaching safety cables.
  • Clear OLED Display: An easy-to-read OLED display provides clear access to all onboard settings and fixture information.
  • Built-In Theft Alarm: Protect your investment with an integrated alarm that provides both audio and visual notifications if the fixture is moved.
  • Adjustable PWM: Built-in Pulse Width Modulation adjustment ensures completely flicker-free operation on camera.
  • Included RF Remote: An RF remote is included for simple, out-of-the-box wireless control of the fixtures.

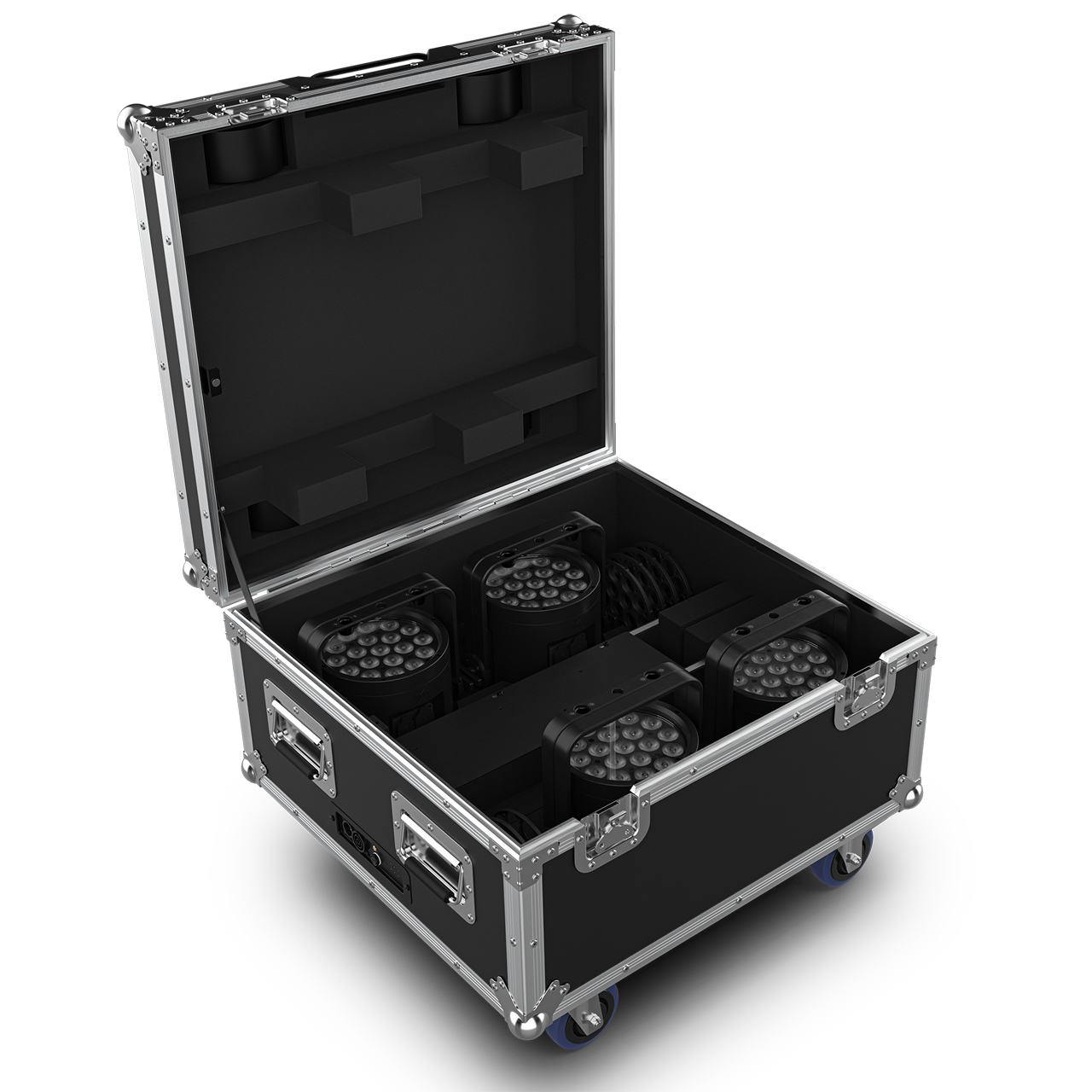

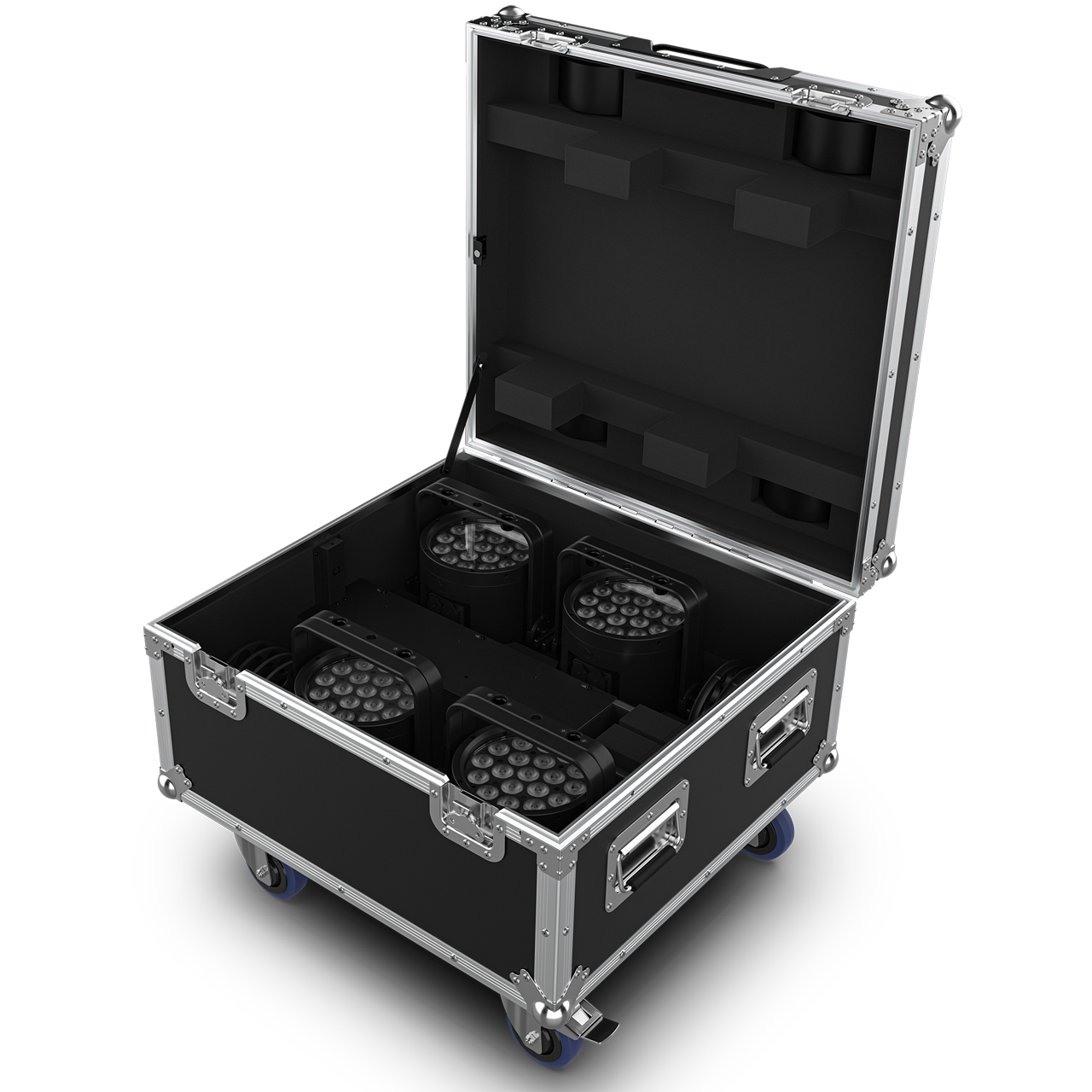

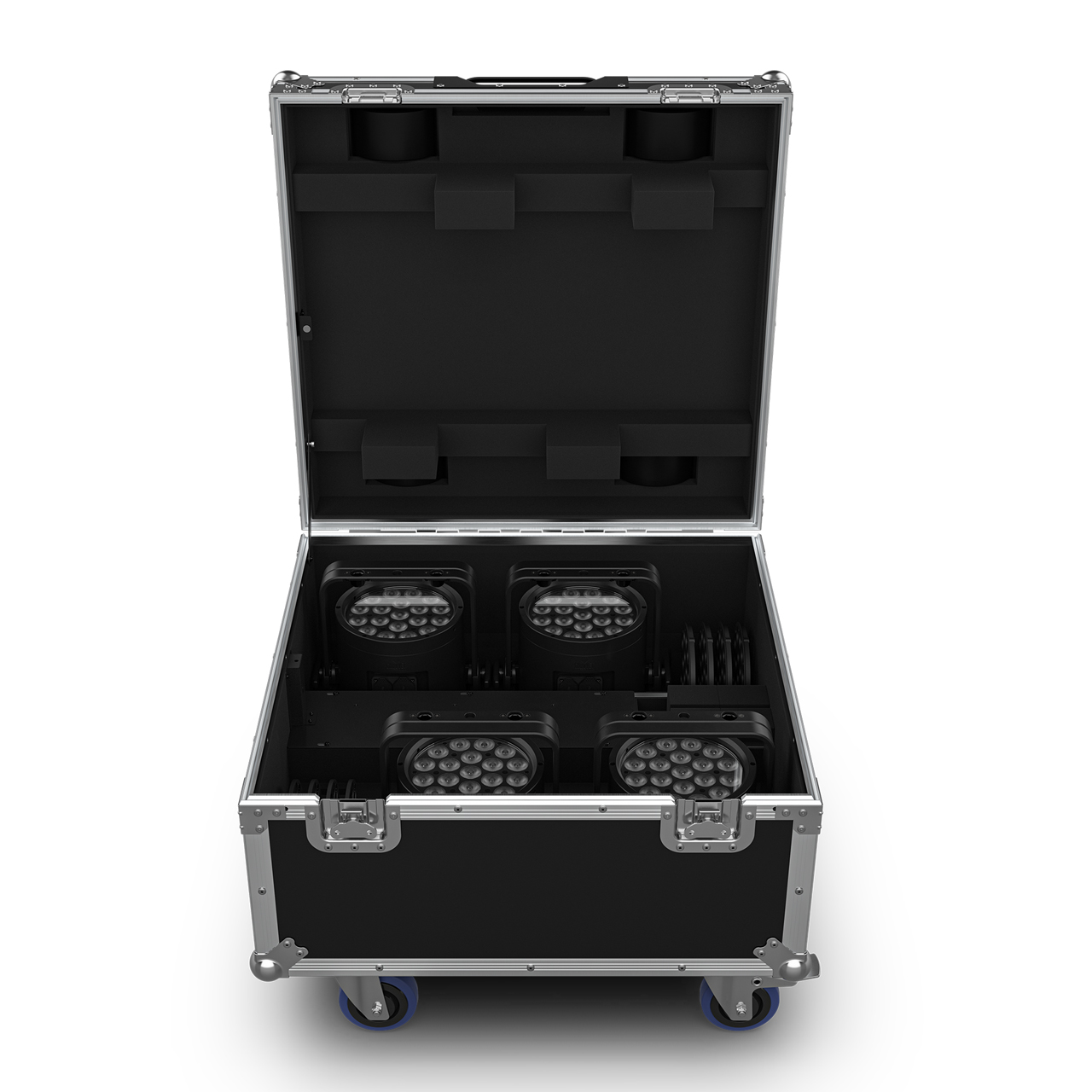

  • Included 4-Pack Charging Case: The kit comes complete with a rugged, road-ready charging case that holds and powers all four fixtures.


• Specifications:

  Optical
  • Light Source: 19 LEDs (RGBWW), 13.2W, (960mA) 50,000 hours life
  • Color Temperature (range): 2800K - 6500K
  • Beam Angle: 12.7°
  • Field Angle: 25.4°
  • Cutoff Angle: 47.2°
  • Lumens:
    - 3557 lm (AC power)
    - 1994 lm (OFF battery setting)
    - 2177 lm (5-hour battery setting)
    - 1379 lm (8-hour battery setting)
    - 845 lm (12-hour battery setting)
    - 555 lm (18-hour battery setting)
  • Illuminance:
    - 1692 lux @ 5m (AC power)
    - 946 lux @ 5m (OFF battery setting)
    - 1033 lux @ 5m (5-hour battery setting)
    - 655 lux @ 5m (8-hour battery setting)
    - 398 lux @ 5m (12-hour battery setting)
    - 261 lux @ 5m (18-hour battery setting)
  • Selectable PWM: 600Hz, 1,200Hz, 2,000Hz, 4,000Hz, 6,000Hz, 25,000Hz

    Dynamic Effects
  • Dimmer: Electronic
  • Shutter/Strobe: Electronic
  • Strobe Rate: 1Hz - 30Hz
  • Standalone Color Mixing: Yes
  • Color Temperature Presets: Yes
  • Dim Modes: 4
  • Dim Curves: 4
  • Built-in Automated Programs: Yes
  • Customizable Programs: No
  • Recall Custom Programs: No

    Construction/Physical
  • Dimensions: 9.76" x 7" x 10.86" (248mm x 178mm x 276mm)
  • Dimensions (w/o bracket): 9.76" x 7" x 7" (248mm x 178mm x 178mm)
  • Dimensions Case: 27" x 25.6" x 15" (685mm x 650mm x 380mm)
  • Weight: 11.2lbs (5.1kg)
  • Shipping Weight: 119.7lbs (54.3kg)
  • Exterior Color: Black
  • Housing Material: Aluminum die-cast
  • Temperature (Ambient): 14°F - 113°F (-10°C - 45°C)

    Connections
  • Power Connection: Edison (local) plug to Seetronic Powerkon IP65
  • Power Input (fixture and charging case): Seetronic Powerkon IP65
  • Power Output(fixture and charging case): Seetronic Powerkon IP65
  • Data Connectors: 5-pin XLR
  • Cable Length (power): 5ft (1.5m)
  • Software Connection: USB-C

    Control
  • Control Protocol: RDM, CRMX, NFC, RF
  • DMX Channels: 5, 8, or 12
  • Modes/Personalities: 3 personalities (5Ch, 8Ch, 12Ch)
  • Wireless WDMX "G" Compatibility: G4S
  • Wireless Lumen Radio Compatibility: CRMX

    Electrical
  • Power Linking:
    - 5 units @ 120V
    - 8 units @ 208V
    - 9 units @ 230V
  • Power and Current:
    - 135W, 2.02A @ 120V, 60Hz
    - 134 W, 1.45 A @ 208 V, 60 Hz
    - 135 W, 1.33 A @ 230 V, 50 Hz
  • Fuse: T5A, 250V

    Battery
  • Battery Type: Lithium Ion
  • Rechargeable: Yes
  • Battery Charge Time: 8 hours
  • Battery Life: 3hr, 5hr, 8hr, 12hr
  • Battery Power: 25.9V, 6.6Ah

    Certifications/Qualifications
  • Certifications: CE, UKCA, FCC, ROHS
  • IP Rating: IP65, temporary outdoor/wet use


• Item Includes:

  • 4x WELL POD 3
  • 1x Charging case
  • 4x Omega brackets
  • 4x Detachable split yokes
  • 1x RF controller
  • 1x Quick Reference Guide


• Warranty:

  • 2 Year Limited Warranty


• GTIN:

  0781462223885
