Clear-Com CZ11515 4-Up DX210 2.4GHz 4 User Wireless Intercom System - No Headsets

ITEM #: CLCM-CZ11515 MFG #: CZ11515

Primary Image
  • Product Image Thumbnail 1 of 5
  • Product Image Thumbnail 2 of 5
  • Product Image Thumbnail 3 of 5
  • Product Image Thumbnail 4 of 5
  • Product Image Thumbnail 5 of 5
Free Shipping with $49 Minimum Order

Our Price:

$11,740.00

Availability: 2+ Weeks.
Please Email, Chat or Call (800) 522-2025 for Detailed Delivery Info
iAvailability Description Popup
  • Special Order Item: non-cancelable, non-returnable, non-refundable.


CZ11515 - Overview

Choose your headset or use one you already own!

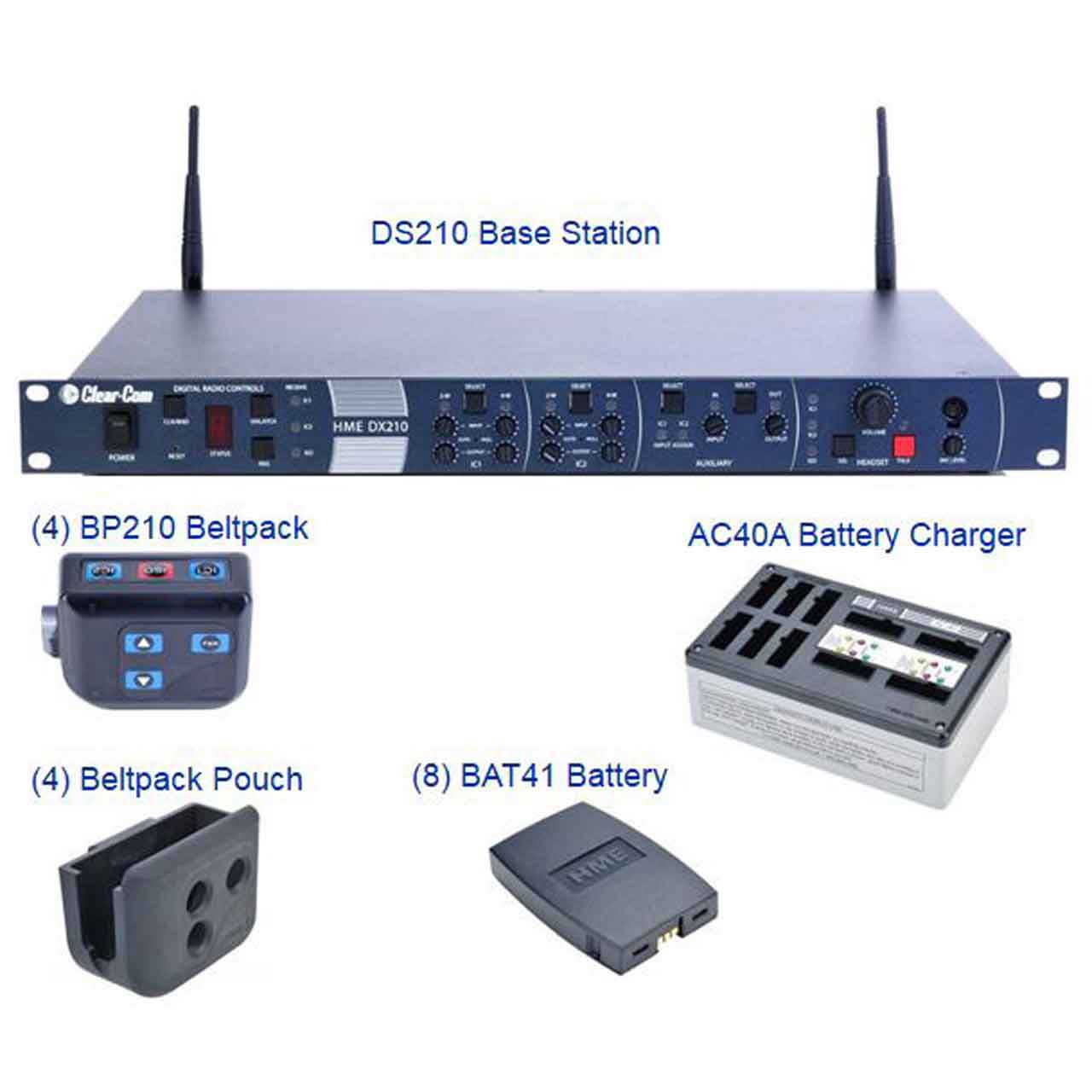

The Clear-Com CZ11515 4-UP (up to 4 users) 2.4GHz Wireless Intercom System is ready when you are! This system contains pretty much everything you'll need to get your production up and running smoothly EXCEPT HEADSETS. The CZ-11515 features a BS210 license-free base station with 2 antennas and 115/230 VAC power supply with 115 VAC power cord, 4 (four) BP210 Beltpacks with 8 (eight) BAT41 batteries and 4 pouches, an AC40A Battery Charger with 115/230 VAC power supply, 115VAC power cord, and manual. By adding the CLCM-G27245-1 Headset Adapter (sold separately) you can use ANY professional intercom headset with a 4 pin XLR female connector like the ClearCom CLCM-CC-300-X4 (also sold separately).


DX210 offers the perfect blend of wireless intercom performance, system compatibility with wired intercom systems, and ease of use. Operating in the 2.4GHz band, the DX210 delivers exceptional sound clarity and enables interference-free communication for highly demanding productions. The DX210 is a two-channel intercom system that has advanced the capabilities of the legendary DX200. It can interface with Clear-Com's or RTS' 2-wire systems, and provides two separate 2-wire and 4-wire interconnections.

The DX210 base station (BS210) is compatible with the previous DX200 beltpacks (BP200) and are automatically assigned to channel 1 audio. Triple diversity (space, time and frequency) operation for extreme multi-path situation provides redundant communication that offers the most dependable system available. The strongest signal is selected from two different antennas, transmitted and received at two different times, on two different frequencies. The vertical and horizontal diversity antenna system is specially designed to prevent dropouts and provides the strongest audio signal possible.

PLEASE NOTE: This product contains Lithium-Ion Batteries. Due to FAA regulation this item is restricted to ground transportation in the lower 48 contiguous states and cannot ship to Alaska, Hawaii or Puerto Rico.

  • Features:

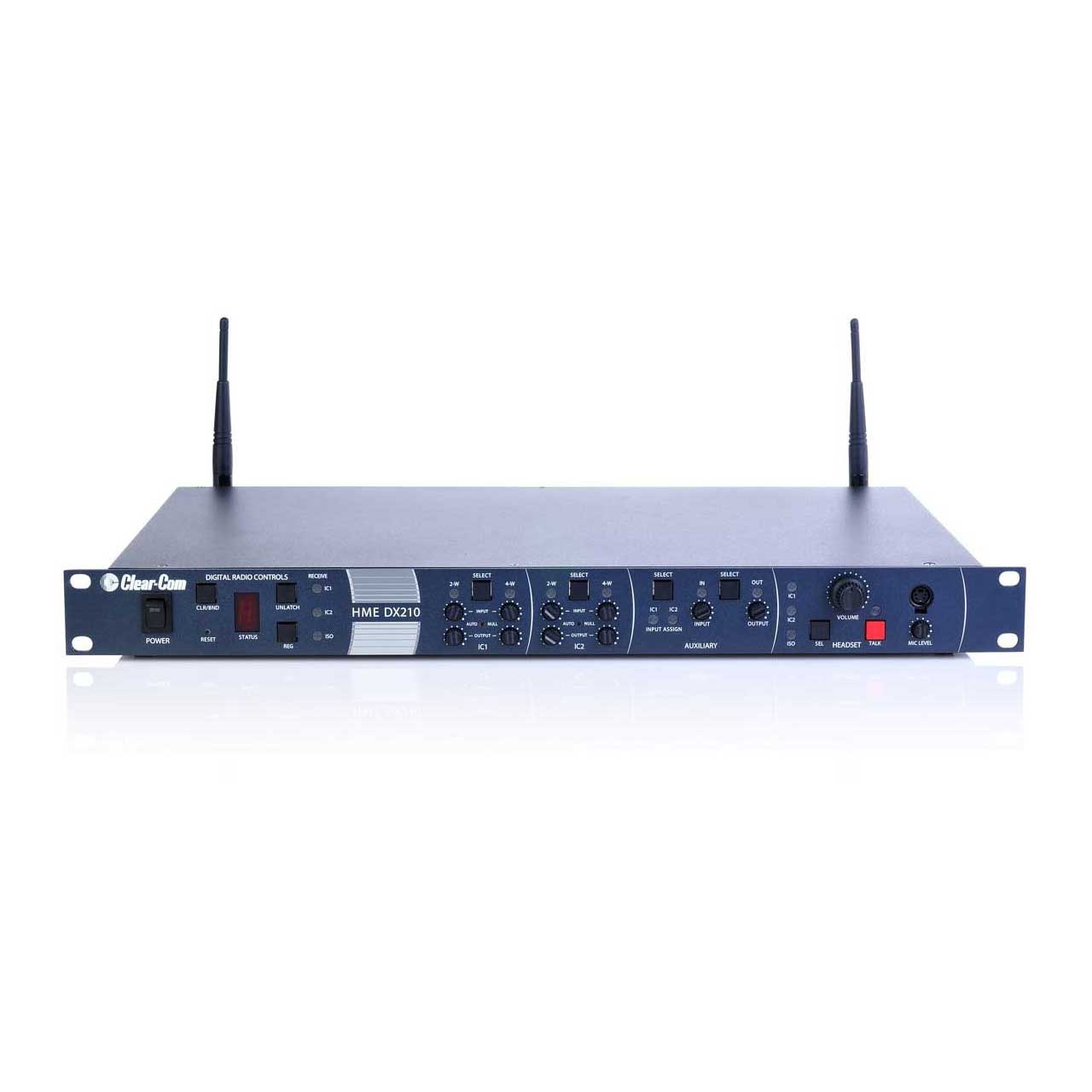

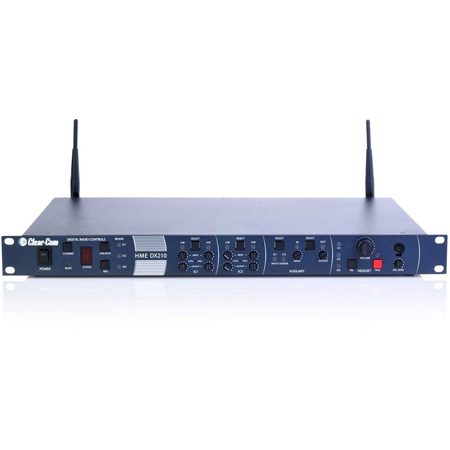

    • BS210 Base Station
    • 2-Channel 2.4GHz Base Station
    • 2-channels of communications
    • 2.4GHz license-free operation
    • Supports 4 full-duplex or 11 half-duplex beltpacks or all-in-one headsets
    • Link up to 4 co-located base stations
    • Two separate 2-wire and 4-wire interconnections
    • Digital auto-nulling
    • Wireless ISO talk-around
    • Relay (GPIO) actuation with ISO function
    • Feedback protection for un-terminated 2-wire channels
    • Triple diversity (space, time and frequency) operation

      BP210 Beltpack
    • 2-Channel 2.4GHz Wireless Beltpack
    • Two-channel operation
    • 2.4GHz license-free operation
    • Beltpack mic gain and side tone control
    • Selectable PTT or latching button modes

  • Specifications:

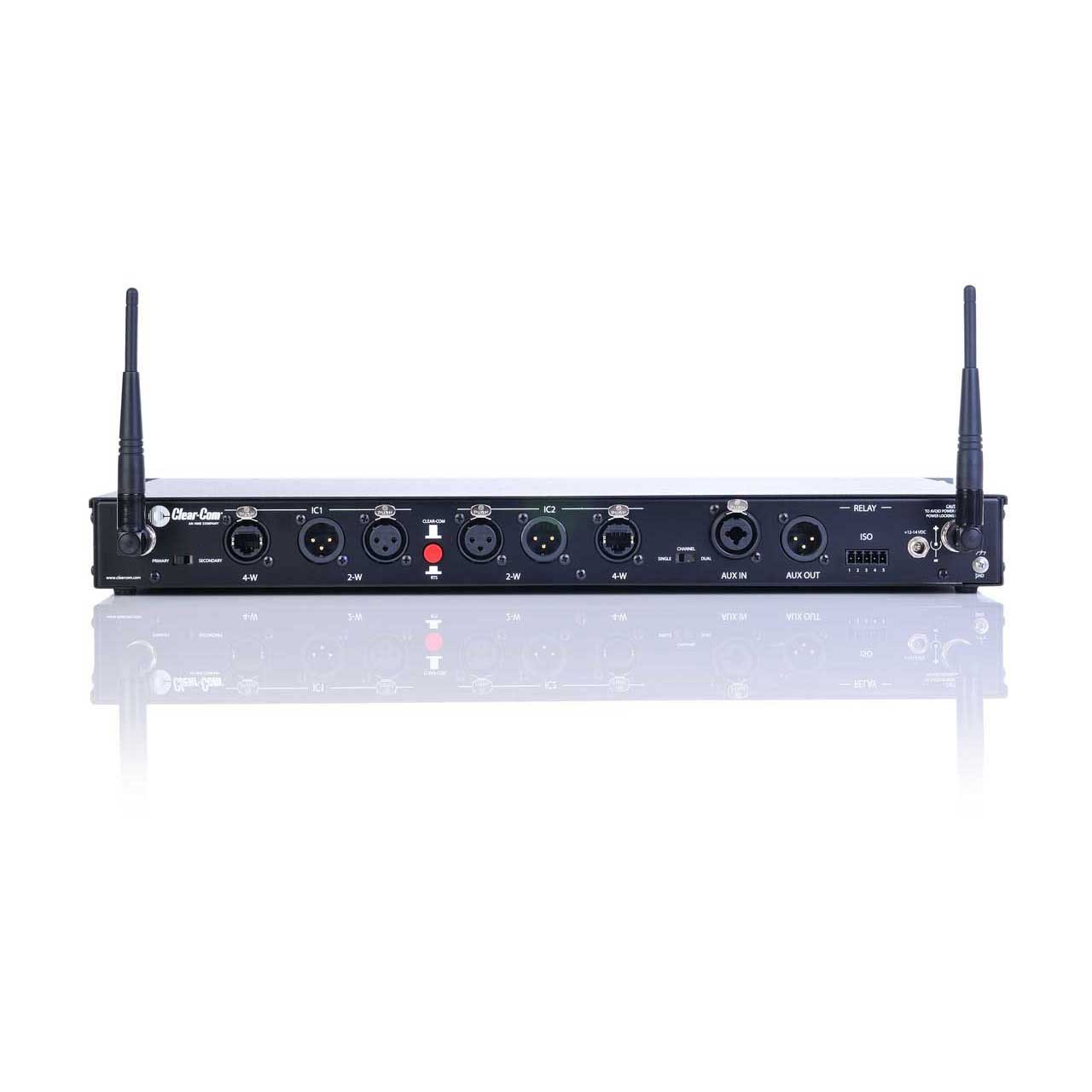

    • BS210 Base Station
    • TX & RX Antenna: ½-Wave, Dual Diversity Dipole
    • 4-Wire I/O: RJ-45, 600Ω Balanced, Level Adjustable, Simultaneous Operation with 2-Wire (x2)
    • 2-Wire I/O: XLR-3F & 3M, Externally-Switchable RTS or ClearCom Mode, 200Ω, Level Adjustable, Null Adjustable
    • Auxiliary Input: XLR-3F/ 1/4 inch Phone Combo Jack, 600Ω Balanced, Level Adjustable
    • Auxiliary Output: XLR-3M, 600Ω Balanced, Level Adjustable
    • Headset I/O: N/A
    • Headset Connector: 4-Pin Mini-DIN
    • Headset Output: 250mW into 32Ω

  • Item Includes:

    • 1 MB100 Mobile Base Station
    • 4 CC-15-MD4 Single Muff Headset with Noise Canceling Mic
    • 4 BP200 Beltpack
    • 4 Beltpack Pouch

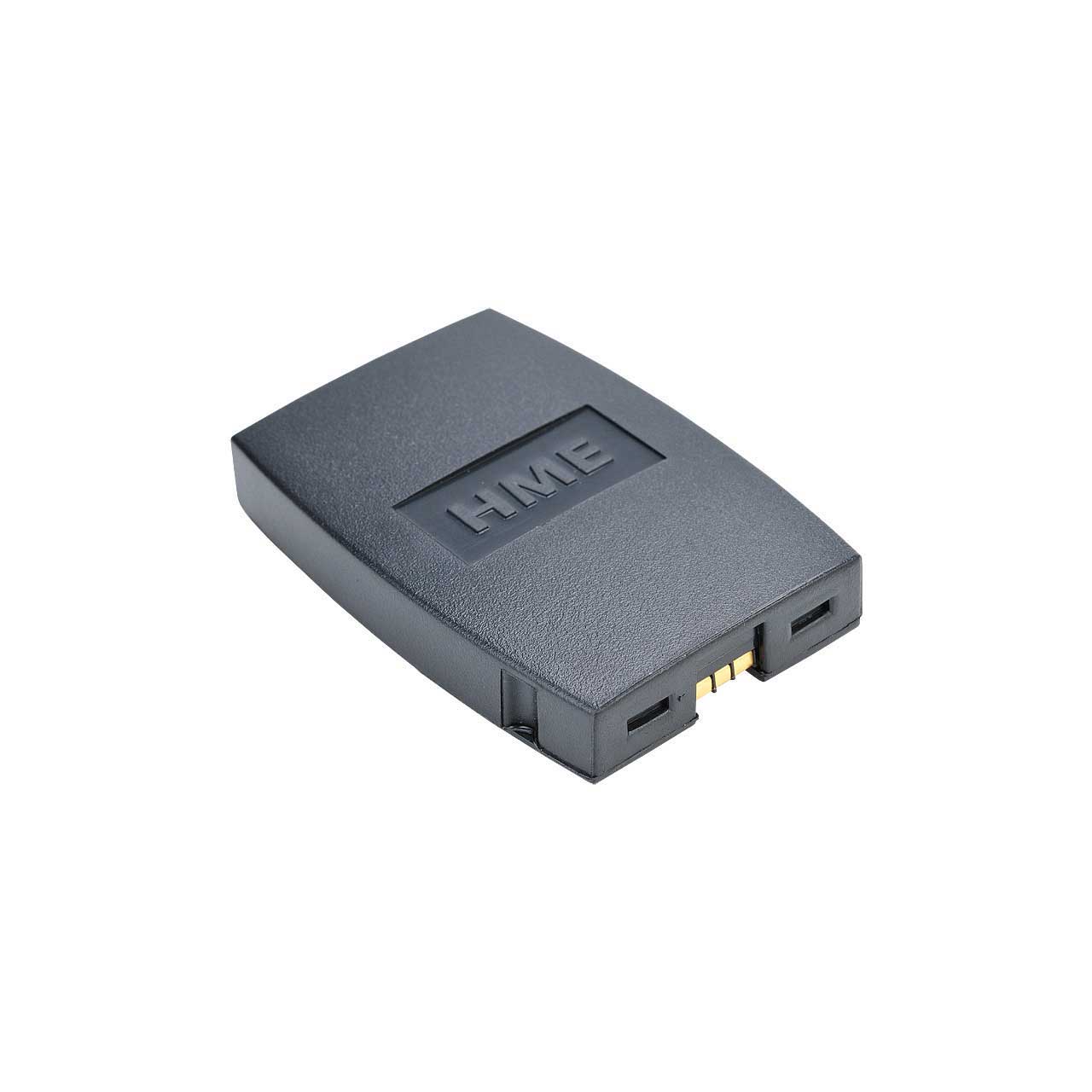

    • 8 BAT41 Battery Li-ion Rechargeable

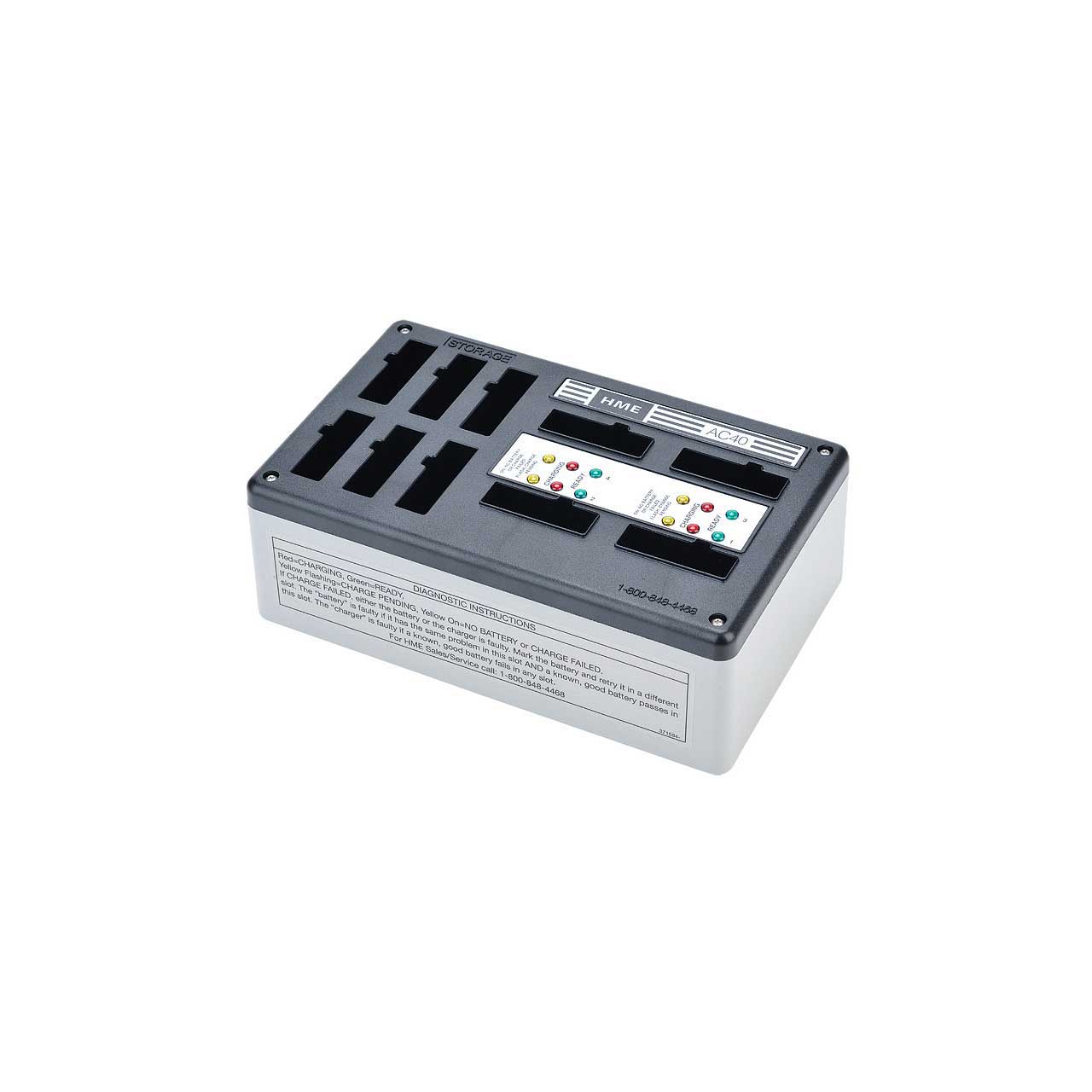

    • 1 AC40A Battery Charger
    • 2 12VDC 60W Power Supply (100/240VAC Universal)
    • 2 115VAC Power Cord
